Matrix Switch MSC-SV6416 64 Input 16 Output Composite Analog Video Router with Status Panel

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Matrix Switch MSC-SV6416 64 Input 16 Output Composite Analog Video Router with Status Panel

    Item #: MSC-XV6416   •   MFG #: MSC-XV6416



    List Price:$5,800.00
    Our Price:$5,104.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

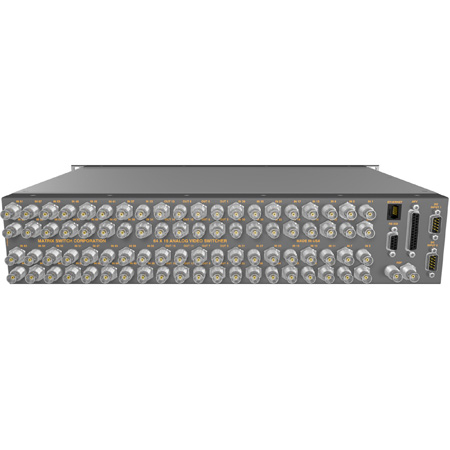

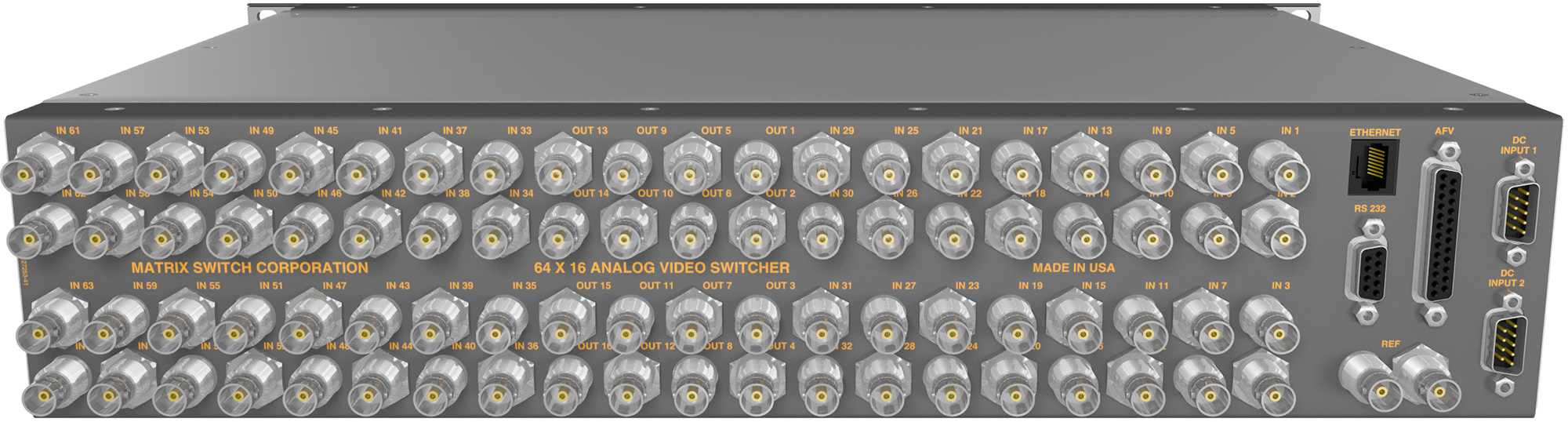

      The MSC-XV6416 composite analog video routing switcher has 64 inputs and 16 outputs. With a minimum signal bandwidth of 50MHz this router is more than enough for any analog video installation. The use of premium quality components, extensive shielding and low noise linear on board power supply regulation has resulted in systems with extremely low crosstalk and noise levels.

      Matrix Switch Corporation analog video routers can be used standalone or combined with additional analog video routers to produce a 2 channel YV router or 3 channel YUV or RGB router. When used in conjunction with the MSC-GCP2U32 LCD remote control panel, multiple analog video routers can be combined to expand the available input or output channels, using cascaded systems or input replication.

      Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. In addition to the powerful yet easy to use MASCOT protocol, there is support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP.


      • Features

        • Additional audio level can be connected to D25 connector (see Related Products), with break away from video support
        • Inputs can be switched to multiple outputs without restriction
        • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
        • Store and recall up to 10 preset salvos
        • Includes panel with status lights
        • Supports Matrix Switch Corporation Remote Panels
        • Ethernet port for control via built in web page interface or TCP/IP ports
        • Interactive web page interface
        • Serial control via RS-232 port
        • RS-485 port for an additional high speed long distance capable control interface
        • Support for some common 3rd party protocols for added integration flexibility
        • Auxiliary port for external status and control signaling
        • Real Time Operating System (RTOS) with 32 bit ARM processor
        • System software updates from webpage interface
        • External DC power supply
        • Redundant power supply included
        • Complies with all relevant FCC, U/L, CE, and RoHS requirements
        • Backed by a full 2 year manufacturer parts and labor warranty

      • Specifications

        • General
        • Inputs: 64
        • Outputs: 16
        • Enclosure Type: 2RU
        • Size: 19" x 3.50" x 11"
        • Weight: 12.0 lbs
        • Power: 12 VDC 5A Adapter
        • Power Connector: D9 Male
        • Panel Type: Status
        • Ethernet: 10/100 Base-T Auto MDIX
        • Made in: USA

          Composite Video
        • Connector Type: BNC
        • Input/Output Impedance: 75 Ohms
        • Nominal Input/Output Level: 1V P-P
        • Maximum Input/Output Level: +/- 2V P-P
        • Input Return Loss: < 40dB at 5MHz typical
        • Output Return Loss: < 35dB at 5MHz typical
        • Overall Gain Unity: +/-1% into a 75 ohm termination
        • Frequency Response: +/- 0.1dB to 5MHz +0 -3dB to 60MHz
        • Crosstalk: > 60dB at 5MHz all hostile
        • Differential Phase: < 0.2 degrees at 3.58MHz @ 4.43MHz
        • Differential Gain: < 0.2% at 3.58MHz @ 4.43MHz
        • S/N Ratio: > 75dB 0 to 10MHz

          Reference Sync
        • Connector Type: Analog BNC with pass-through
        • Format: Tri-Level Sync and NTSC/PAL Black Burst

      • Item Includes

        • Panel with status lights
        • Redundant power supply

      • Warranty

        • full 2 year manufacturer parts and labor warranty
