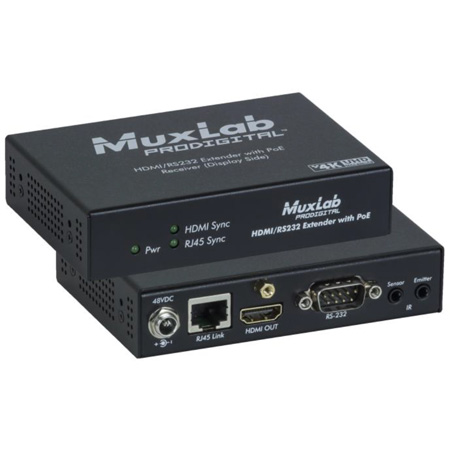

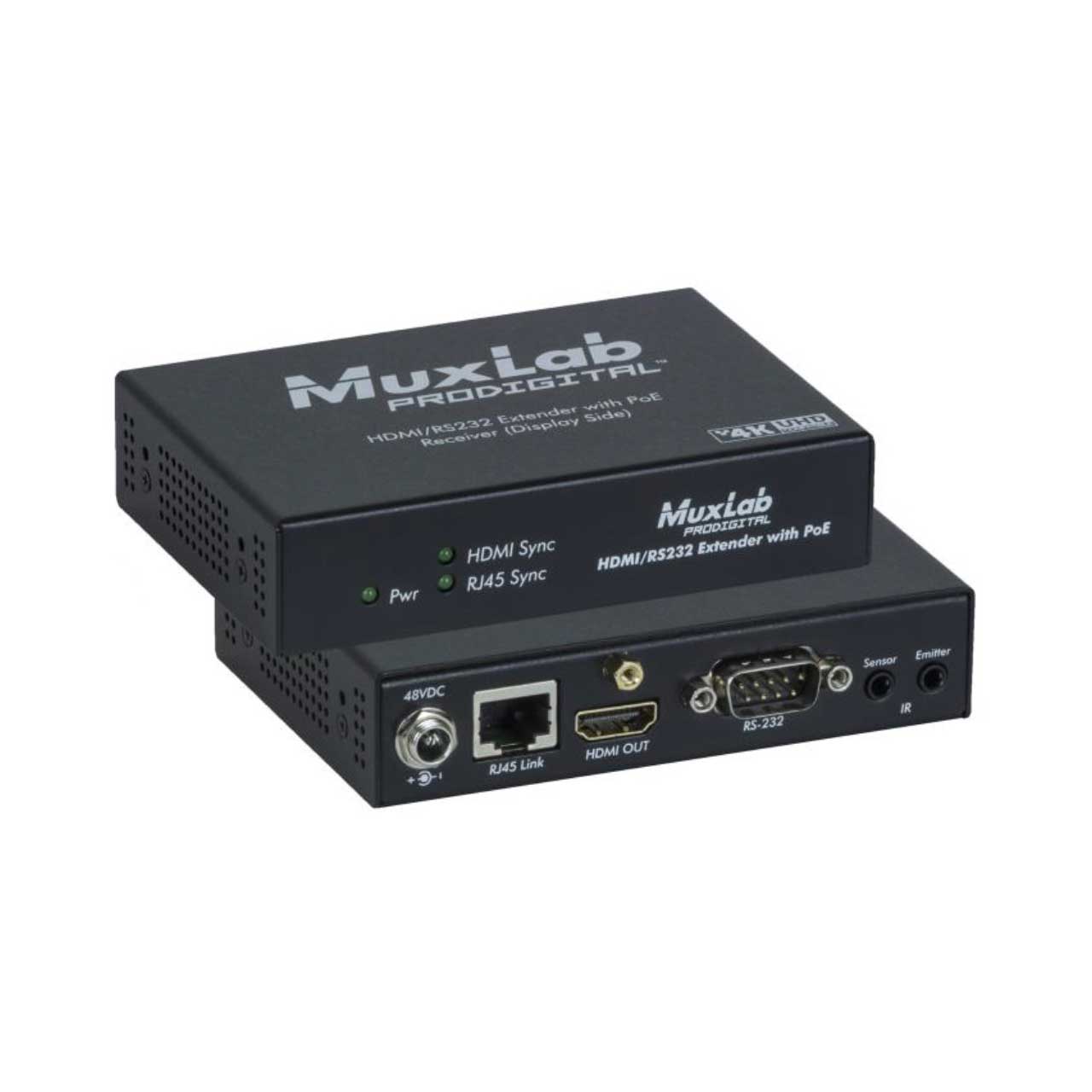

MuxLab 500454-POE-RX HDMI / RS232 Receiver with PoE / HDBT / UHD-4K

500454-POE-RX - Overview

• Features:

  • Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
  • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
  • Supports RS232
  • Supports Bi-directional IR pass through
  • Supports all digital audio modes
  • PoE (PD) & PoC on both the transmitter and receiver
  • Includes IR emitter and IR sensor (carrier-wave)
  • Compatible with 500454 (non PoE version)


• Specifications:

  • Environment: HDMI 1.4a (3D)
  • Devices: DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
  • Transmission: Transparent to the user
  • Bandwidth: 340MHz
  • Signals: HDMI 1.4a protocol

    Connectors - Cables not included
  • One (1) HDMI receptacle.
  • One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
  • One (1) DB9 for RS232.
  • Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave).
  • One (1) 2.1mm locking power connector.

    Max. Distance* *Based on a maximum length of 6.6 ft (2m) of HDMI cable per end
  • 4K/30 (4:4:4): Cat 5e/6: 131ft (40m)
  • 4K/60 (4:2:0): Cat 5e/6: 131ft (40m)
  • 1080p: Cat 5e/6: 230ft (70m)
  • 1080p Deep Color: Cat 5e/6: 230ft (70m)

    Cable: One (1) Category 5e or better twisted pair cables required.
  • Power Supply: Two (2) 110-240V/5VDC power supplies with interchangeable blades.
  • Power Consumption Transmitter: 1.6 Watt Receiver: 3.2 Watt
  • Temperature Operating: 0§ to 40§ C. Storage:-20§ to 85§ C. Humidity: up to 95% non-condensing.
  • Enclosure: Metal
  • Dimensions: 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
  • Weight: 1.4 lbs (.6 kg)
  • Compliance Regulatory: FCC, CE, RoHS, UL, cUL, TUV
  • Warranty: 2 years


• GTIN:

  0627699814543
