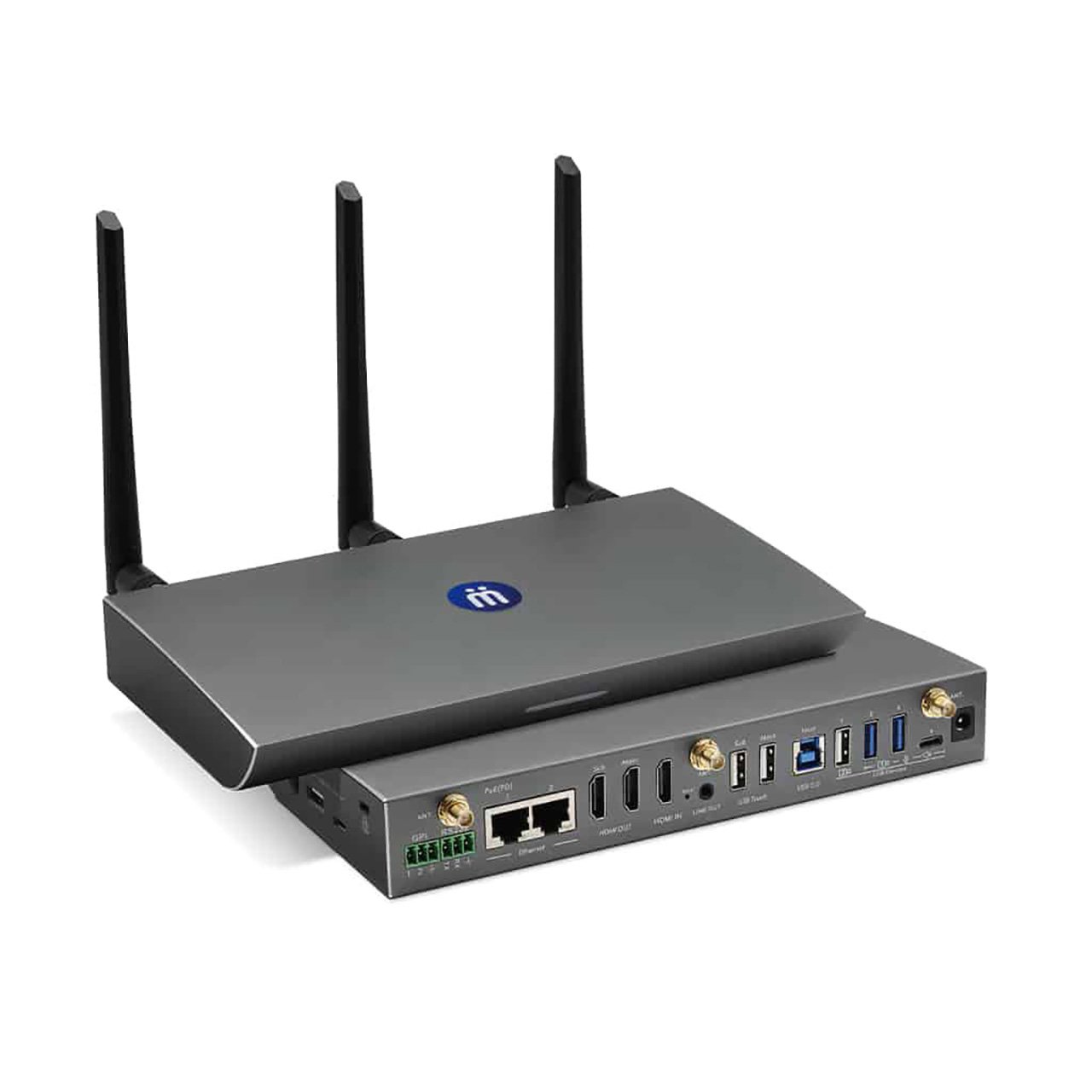

MuxLab 500825 MuxMeet Share Base-3 Wireless Video Conference Hub with HDMI and USB Interfaces

ITEM #: MUX-500825 MFG #: 500825

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,310.00

Our Price:

$1,048.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


500825 - Overview

Wireless Connection Between your Laptop and the USB Peripherals in The Room

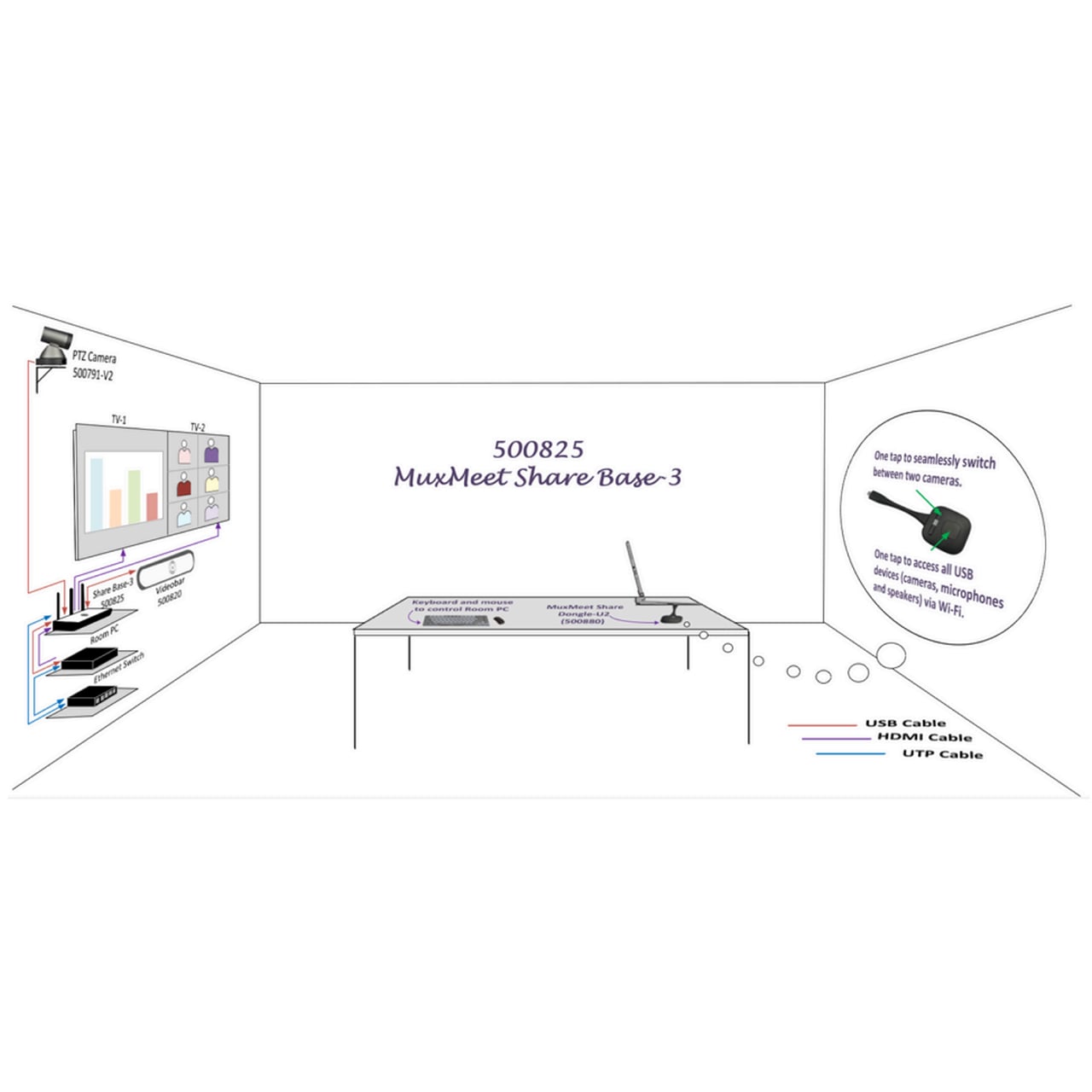

The MuxLab 500825 MuxMeet Share Base-3 is a wireless conference room product designed to meet the requirements of today's hybrid workforce, supporting not only local presentations but also allowing users to collaborate with remote participants. It enables people to connect the room camera, mic, speaker (such as the MuxMeet Videobar, sold separately), and display with their own laptops wirelessly, so people can take advantage of the room A/V system to collaborate with both in-room and remote meeting participants, without cable limitation and hassle.

The MuxMeet Share Base-3 allows sharing PC content to the display via transmitters, Windows, and macOS clients, as well as native protocols such as AirPlay, Miracast, and Chromecast. It also supports wireless connections of compatible devices, including webcams and microphones, via Windows and macOS clients to the PC. Supports dual-screen display and can display 5 devices simultaneously in a multi-view layout. It also provides a powerful Web GUI management background through which all these functions can be configured and managed.

Applications:
• Meeting Rooms
• Classrooms
• Huddle Spaces
• Boardroom systems
• Collaborative PC systems

  • Features:

    • 2x HDMI outputs enabling content sharing from the same or different sources
    • Supports up to 4 sources shared in a single screen
    • Windows and Mac applications for wireless connection
    • Supports use in whiteboard and annotation mode
    • OSD Control with preview function
    • Supports native wireless mirroring protocols like Airplay,
    • Miracast and Chromecast

  • Specifications:

      Hardware
    • Environment: Custom audio-video systems in a structured cabling environment
    • Application: Head-end installations, conference room, interactive teaching
    • Compatible Product: Muxlab 500880 and 500881
    • Video Output Resolution: HDMI Main: Up to 3840x2160@60Hz, HDMI Sub: Up to 1920x1080@60Hz
    • Video Output Capabilities: HDMI Main: HDMI 2.0/HDCP 2.2, HDMI Sub: HDMI 1.4/HDCP 1.4
    • Video Input Resolution: Up to 3840x2160@30Hz
    • Video Input Capabilities: HDMI 1.4/HDCP1.4
    • Audio Input: Airplay, Miracast, Chromecast, Windows/MAC App, WMH, WMC
    • Transmitter: Up to 16 dongles can be connected simultaneously
    • Display Windows: Up to 4+14 windows can be display (4 mains + 14 preview control windows)
    • Wireless Data Rate: Up to 1200Mbps
    • Transmission Delay: 80ms/min
    • Wireless Protocol: WiFi IEEE 802.11 a/g/n/ac/ax
    • Frequency Band: 2.4GHz & 5GHz
    • WiFi Antenna: MIMO 2x2, MIMO 1x1

      Interfaces
    • Video Output: 2x HDMI (19-pin female)
    • Video Input: 1x HDMI (19-pin female)
    • Analog Audio Output: 1x 3.5mm (Stereo female)
    • Ethernet Port: 2x RJ45 (Female) 1000Mbps
    • USB Port:
      - 2x USB3.0-A
      - 1x USB3.0-C
      - 4x USB2.0-A
      - 1x USB2.0-C
      - 1x USB3.0-B
    • RS232 Port: 1x Phoenix Terminal (3-POS, 3.5mm)
    • GPI Port: 1x Phoenix Terminal (3-POS, 3.5mm)
    • Power: 1x Barrel Jack (2.1/5.5mm)

      General
    • Power Supply: 12VDC or PoE (IEEE802.3at)
    • Power Consumption: 30.0W Maximum
    • Dimensions: 8.7" x 5.1" x 1.3" (220mm x 130mm x 34mm), Excluding Antenna
    • Weight: 2.1lbs (0.93kg)
    • Compliance: Regulatory: FCC, CE, RoHS
    • Order Information: 500825 Muxmeet Share Base-3 (UPC: 627699008256)

  • Item Includes:

    • 1x 500825 MuxMeet Share Base-3 Wireless Video Conference Hub

  • Warranty:

    • 2 Year Limited Warranty
