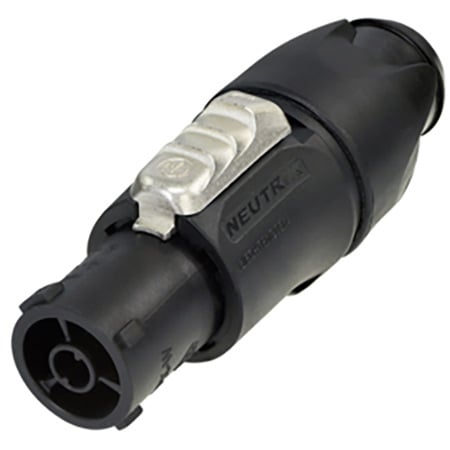

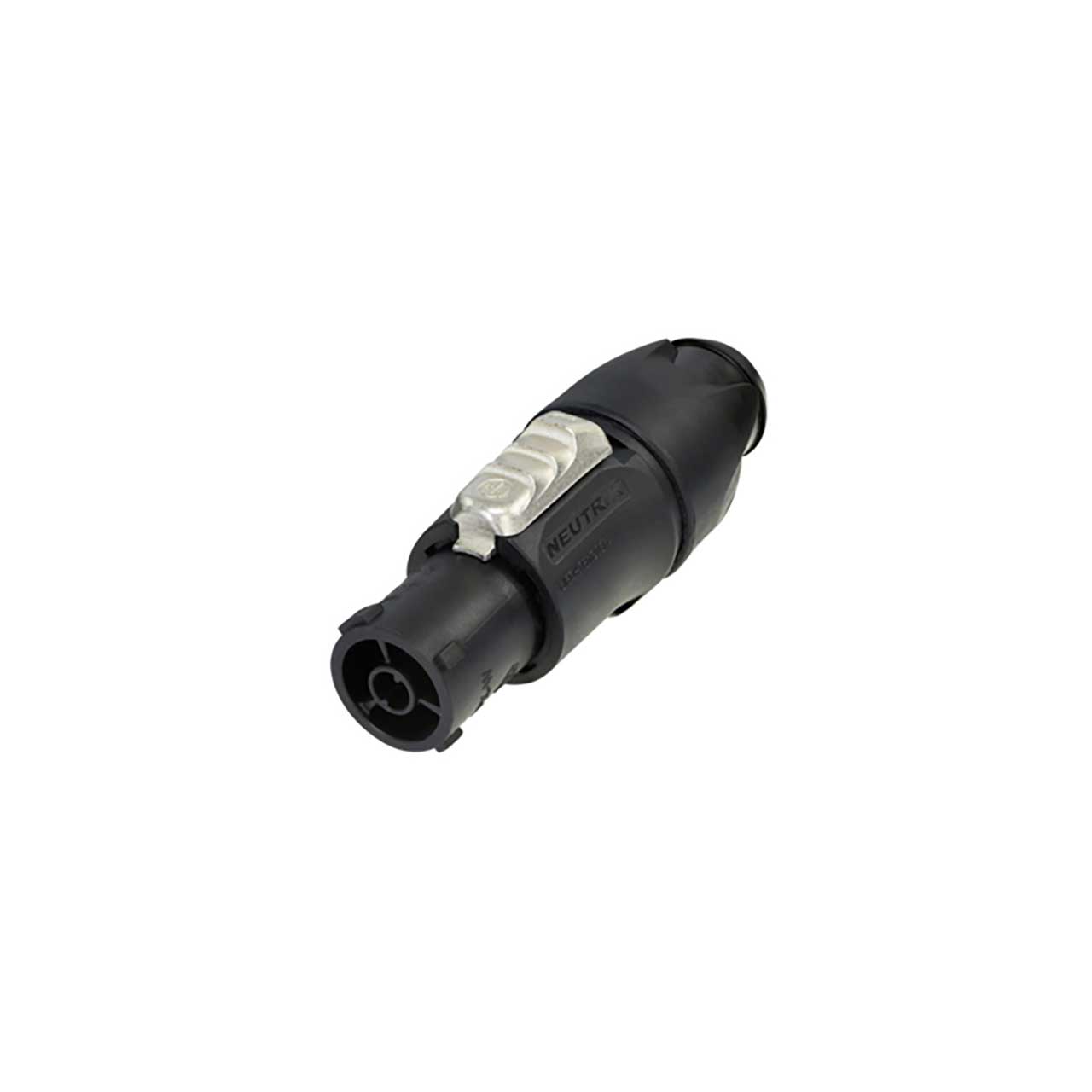

Neutrik NAC3FX-W-TOP Cable End Connector powerCON TRUE1 TOP - Female - PWR Out - Screw Terminals - IP65 - UV Rated - 20A

ITEM #: NAC3FX-W-TOP MFG #: NAC3FX-W-TOP

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$11.50

Our Price:

$9.86

Availability: In Stock
iAvailability Description Popup


    NAC3FX-W-TOP - Overview

    The NAC3FX-W-TOP is a 20 amp Locking female cable connector with screw terminals. The powerCON TRUE1 True Outdoor Protection (TOP) is a locking 20 Amp true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 True Outdoor Protection (TOP) is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

    • Features:

      • Heavy duty sealed power connector for harsch and demanding environment
      • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
      • Uses high impact UV-resistant materials
      • True mains connector with breaking capacity (CBC)
      • Lockable 20 A single phase connector 20 A (16A VDE)
      • Easy and reliable twist lock system
      • Extremely robust and reliable
      • Unique Neutrik cable retention
      • ENEC certified according to IEC 60320
      • UL498 certified

    • Specifications:

      • Contact resistance: ≥ 3 mΩ
      • Dielectric strength: 4 kVdc / 2.8 kVac
      • Insulation resistance: > 0,1 GΩ (after damp heat test IEC 68-2-30)
      • Number of electronical contacts: 2 + PE
      • Rated current per contact: 20 A (16A VDE)
      • Rated voltage: 250 V ac
      • Cable O.D.: 6 - 12 mm
      • Lifetime: > 5000 mating cycles
      • Wiresize: 1.0 - 2.5 mm
      • Wiresize: 12 AWG
      • Contact plating: 2 μm Ag
      • Contacts: Bronze (CuSn0.2)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking element: ZuAl4Cu1
      • Shell: Polyamide (PA 6.6 30 % GR)
      • Strain relief: Polyacetal (POM)
      • Flammability: UL 94 V-0
      • Protection class: IP65, UL50E enclosure type 4 (mated)
      • Temperature range: -30 °C to +80 °C

    • GTIN:

      7613187011832
