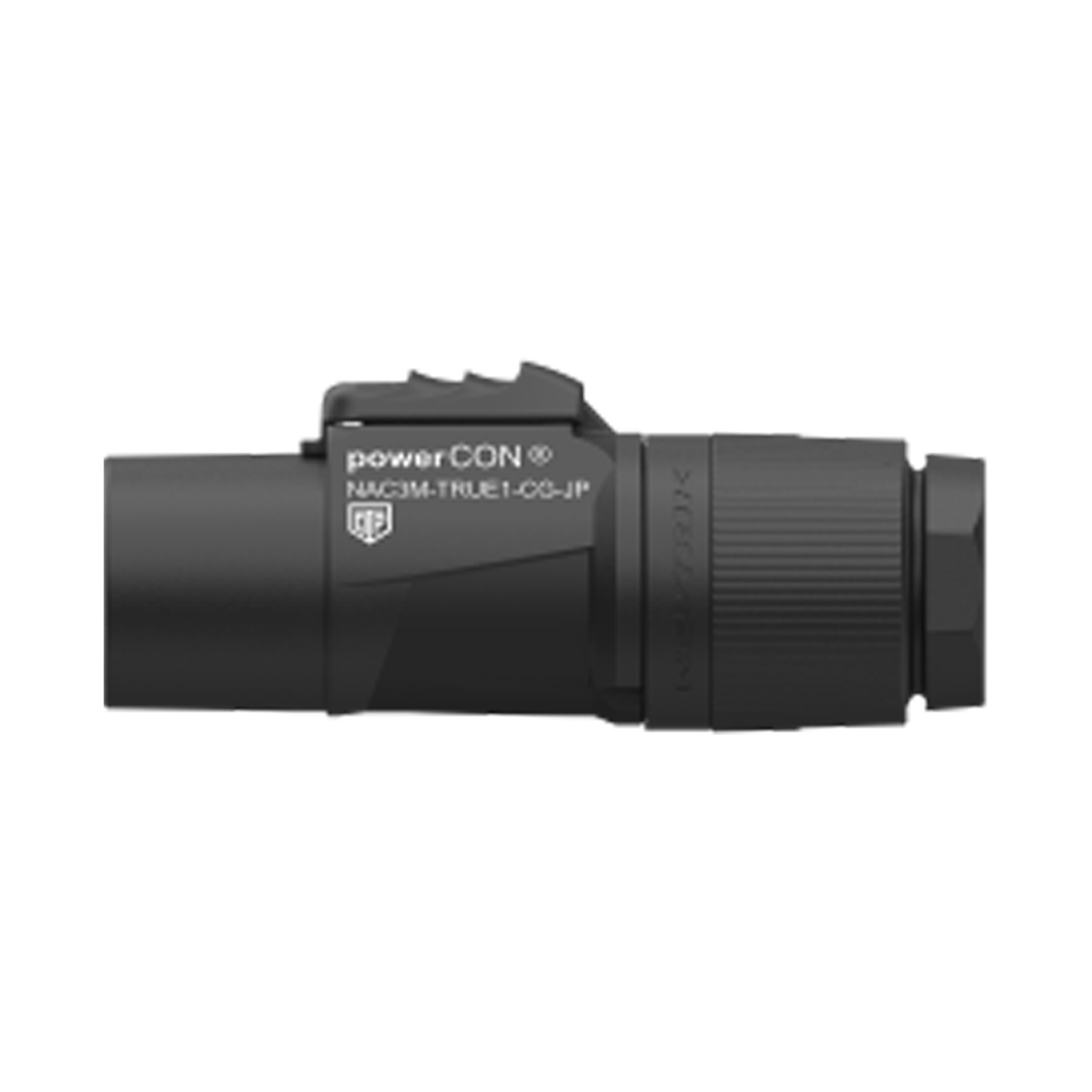

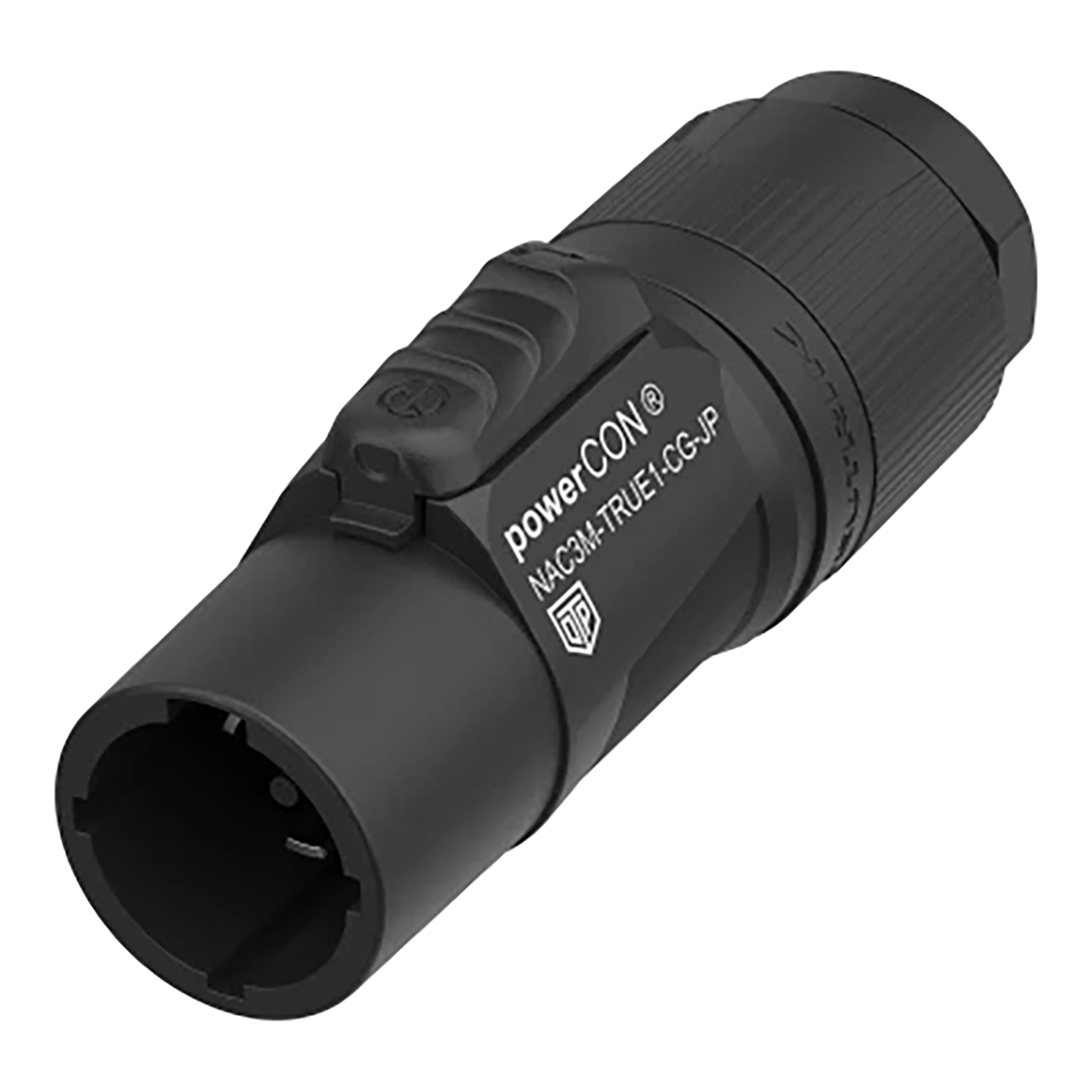

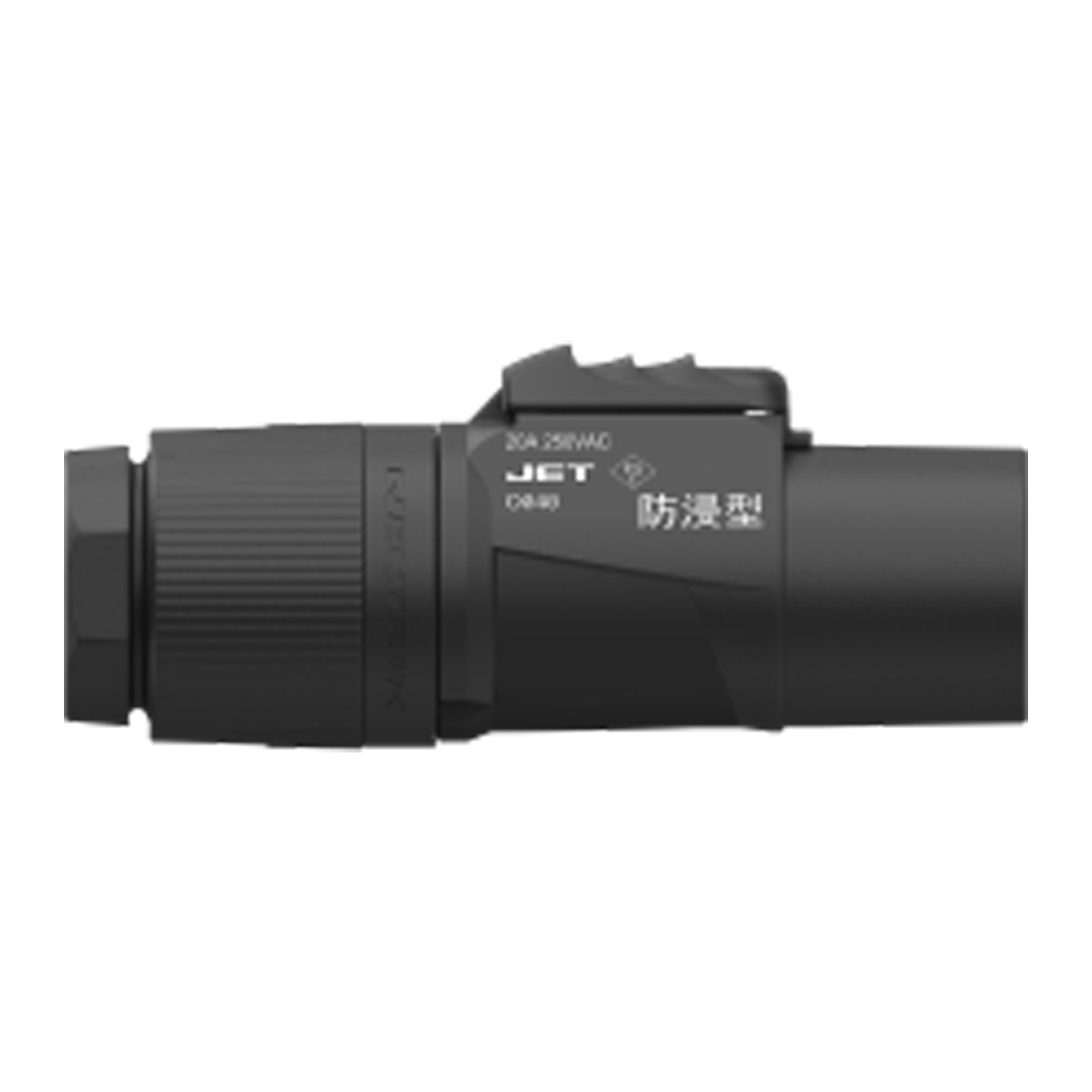

NEUTRIK NAC3M-TRUE-CGP Male powerCON True1 Locking Cable End Connector - Large Chuck for 8mm - 13mm Cable

NAC3M-TRUE-CG - Overview

• Features:

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • IP65, IP66 and IP67 (mated)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 0.31" to 0.51" (8mm to 13mm)


• Specifications:

  Electrical
  • Contact Resistance: ≤2mΩ
  • Dielectric Strength: 4kVdc/2.8kVac
  • Insulation Resistance: > 1GΩ (after damp and heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2x + PE
  • Rating Europe: 16A/250V AC according to EN IEC 60320-1
  • Rating America:
    - 20A/250V AC according to UL 60320-1
    - 20A/250V AC according to CSA C22.2 No. 60320-1

    Mechanical
  • Cable: O.D. 0.31" - 0.51" (8mm - 13mm)
  • Lifetime: > 5000 mating cycles
  • Wiresize: (mm²) 1.5 - 2.5 mm²
  • Wiresize: (AWG) 12 AWG

    Material
  • Contact Plating: 2µm Ag
  • Locking Element: Polyamide (PA 66)
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA 66)
  • Shell: Polyamide (PA 66)
  • Strain Relief: Polyketon

    Environmental
  • Flammability: UL 94 V-0
  • Protection Class: IP65, IP66 and IP67 (mated)
  • UV Resistance: F1 rated material withstands UV exposure


• Item Includes:

  • 1x NAC3M-TRUE-CGP Male powerCON True1 Locking Cable End Connector
