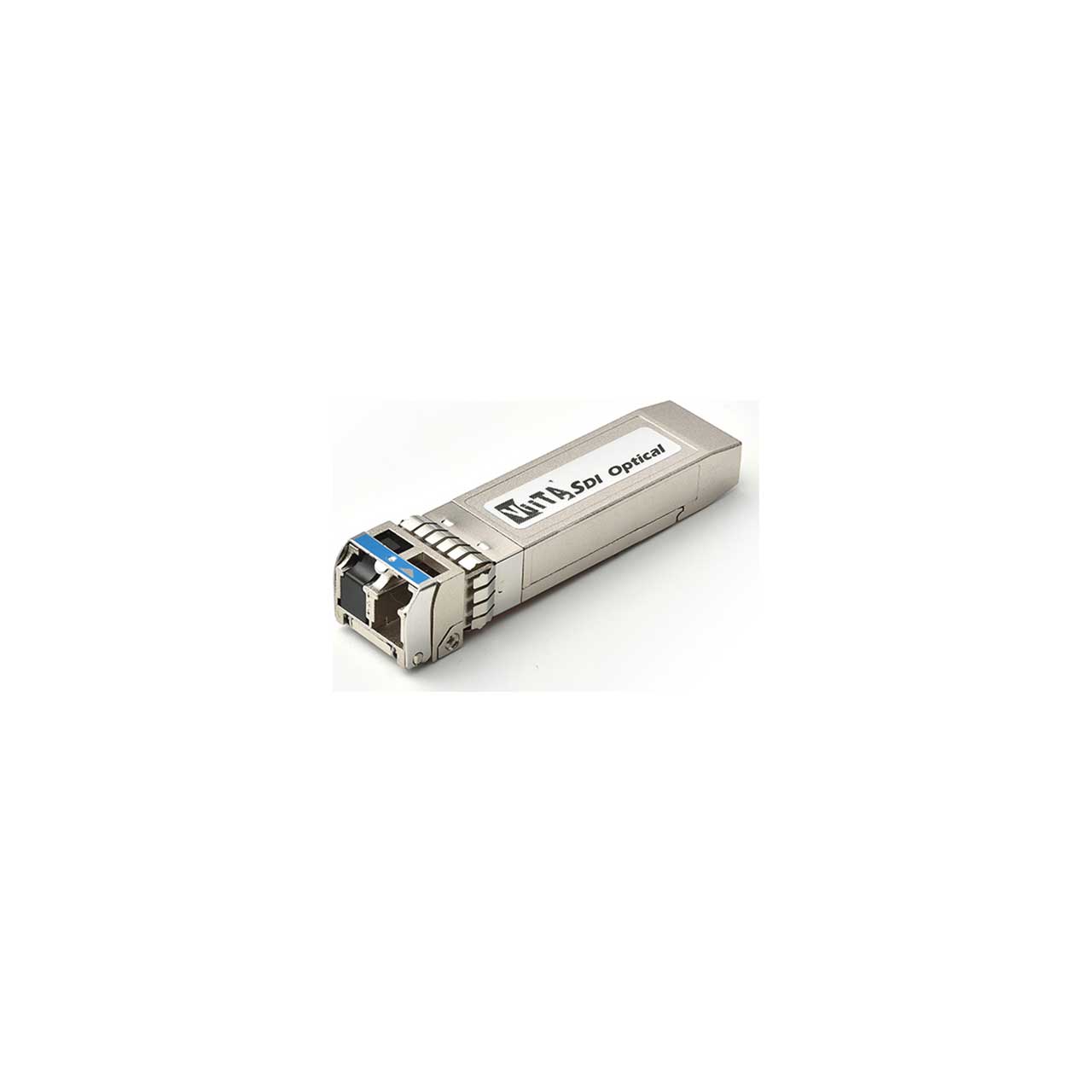

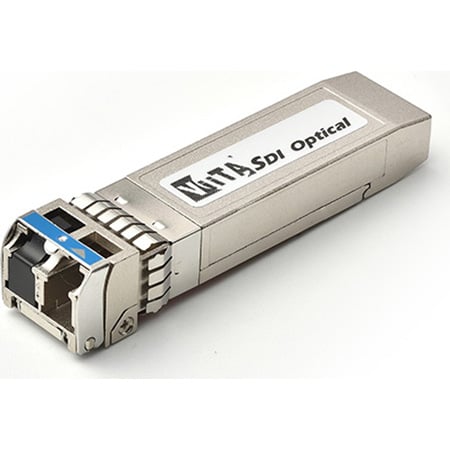

OMC Tech VPC-S1-4103K-R 12G-SDI/6G/3G/HD Single Optical Fiber Receiver - 1260-1620nm - 10km / Non-MSA

ITEM #: OMC-VPC-S14103KR MFG #: VPC-S1-4103K-R

Primary Image
OMC Tech
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$329.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    VPC-S1-4103K-R - Overview

    OMC Tech VPC-S1-4103K-R 12G-SDI optical fiber receiver perfectly converts from optical signals to SDI electrical signal at SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M and DVB-ASI. It supports data rate 11.88Gbps and handles pathological patterns.

    • Features:

      • Support transmission of SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
      • Handles pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
      • Digital diagnostics function
      • 10km over single mode fiber
      • Low power consumption- Typical 100 mA
      • Available in MSA and Non-MSA pinouts
      • LC and ST of connectors to choose from
      • Integrated Reclocker


    • Specifications:

      • Wavelength (nm): 1260/1620
      • Operating Case Temperature Range (°c): 0-70
      • Storage Temperature Range(°c): -40-85
      • Power Supply Voltage (V): 3.1 min, 3.3, typ, 3.5 max
      • Power Consumption (mA): 180 typ, 200 max


    • Item Includes:

      • 1x OMC Tech VPC-S1-4103K-R 12G-SDI Single Channel SMPTE/DVB-ASI Optical Fiber Receiver - 1260-1620nm - 10km / Non-MSA


    • Warranty:

      • 1 year
