Ocean Matrix OMX-01KVKV0002 1080p 60Hz HDMI KVM Extender up to 60 Meters Over Cat5e/6

ITEM #: OMX-01KVKV0002 MFG #: OMX-01KVKV0002

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-01KVKV0002

OMX-01KVKV0002 - Overview

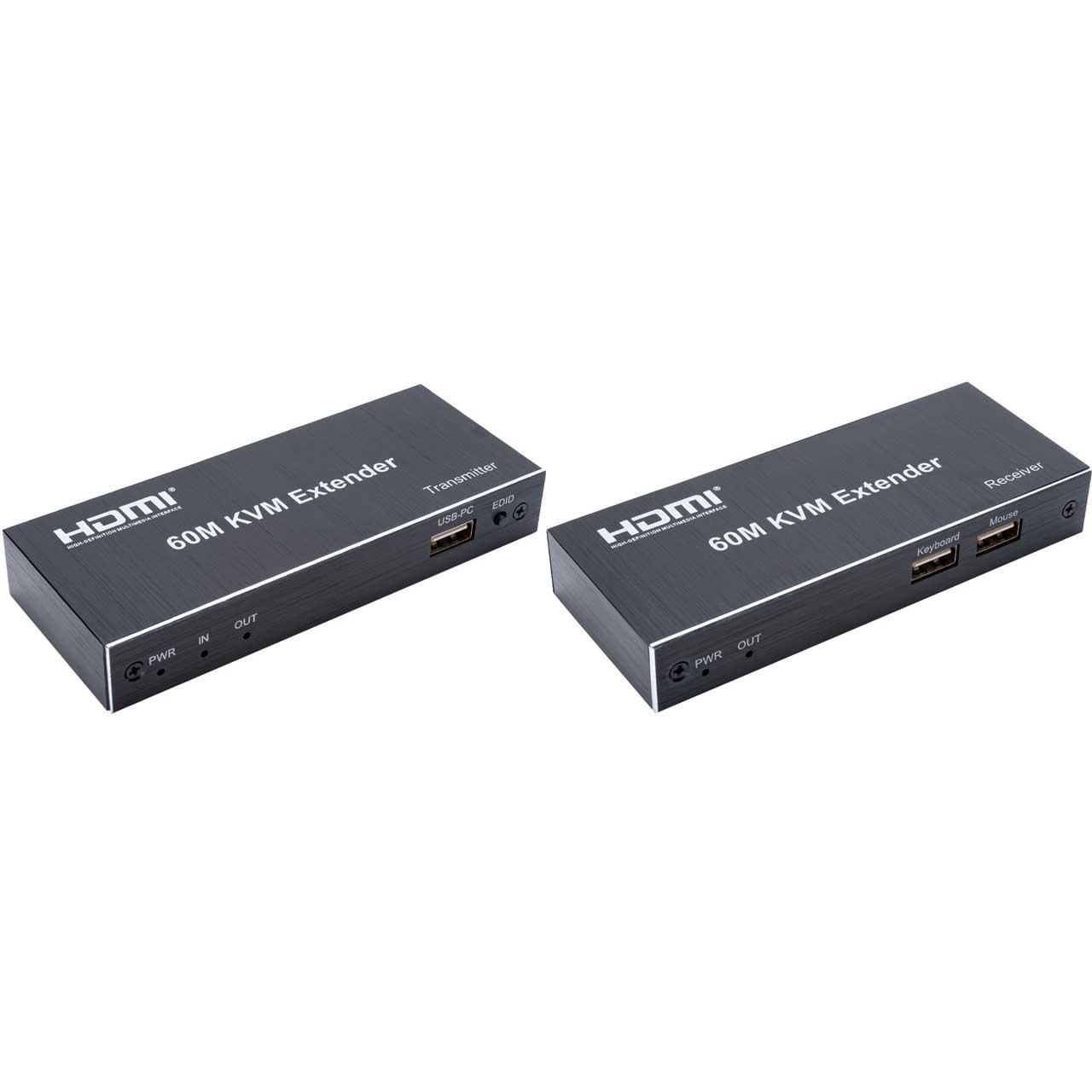

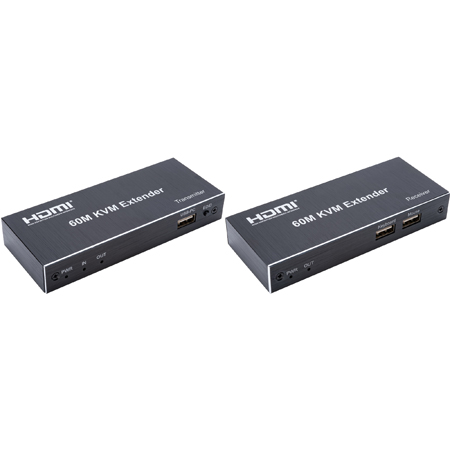

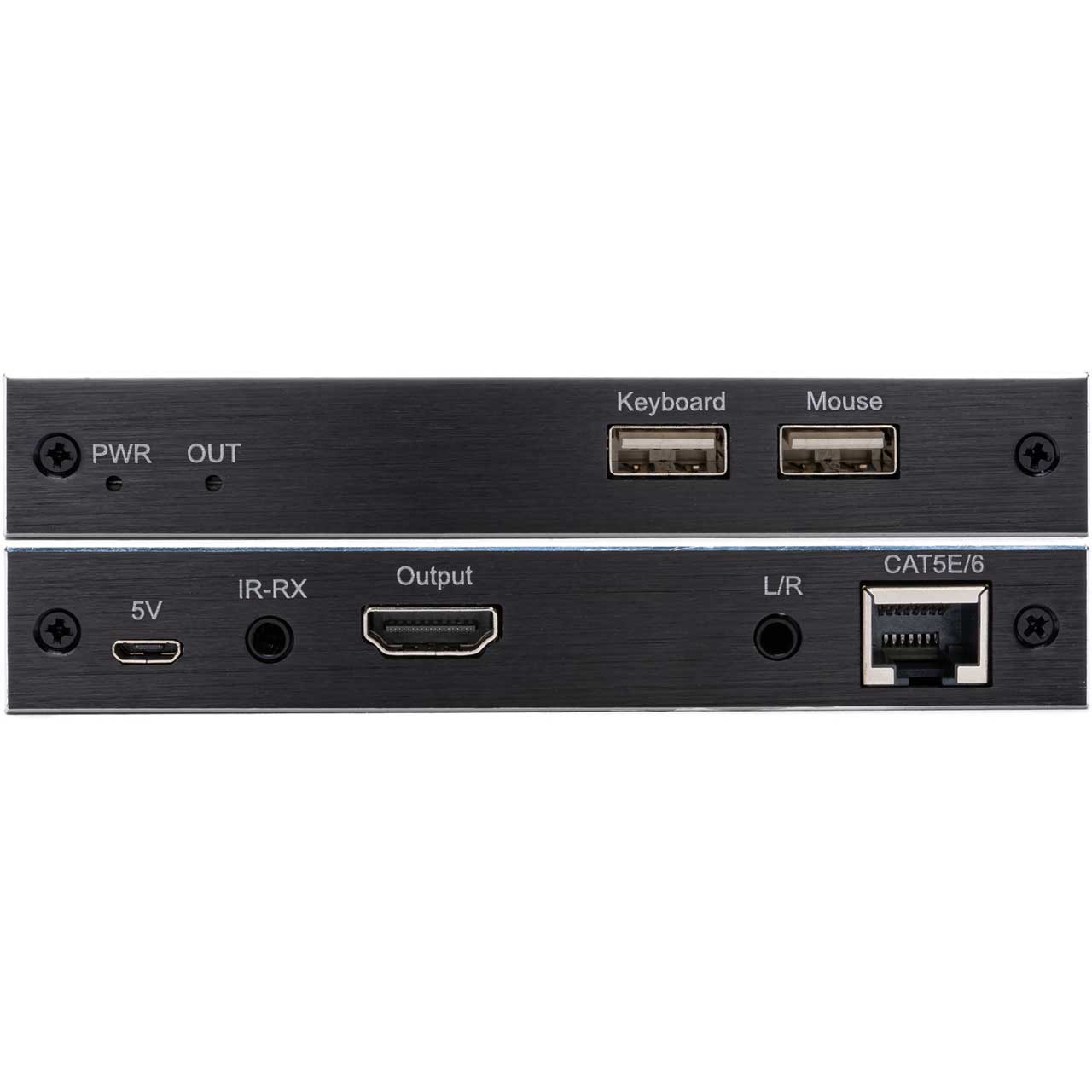

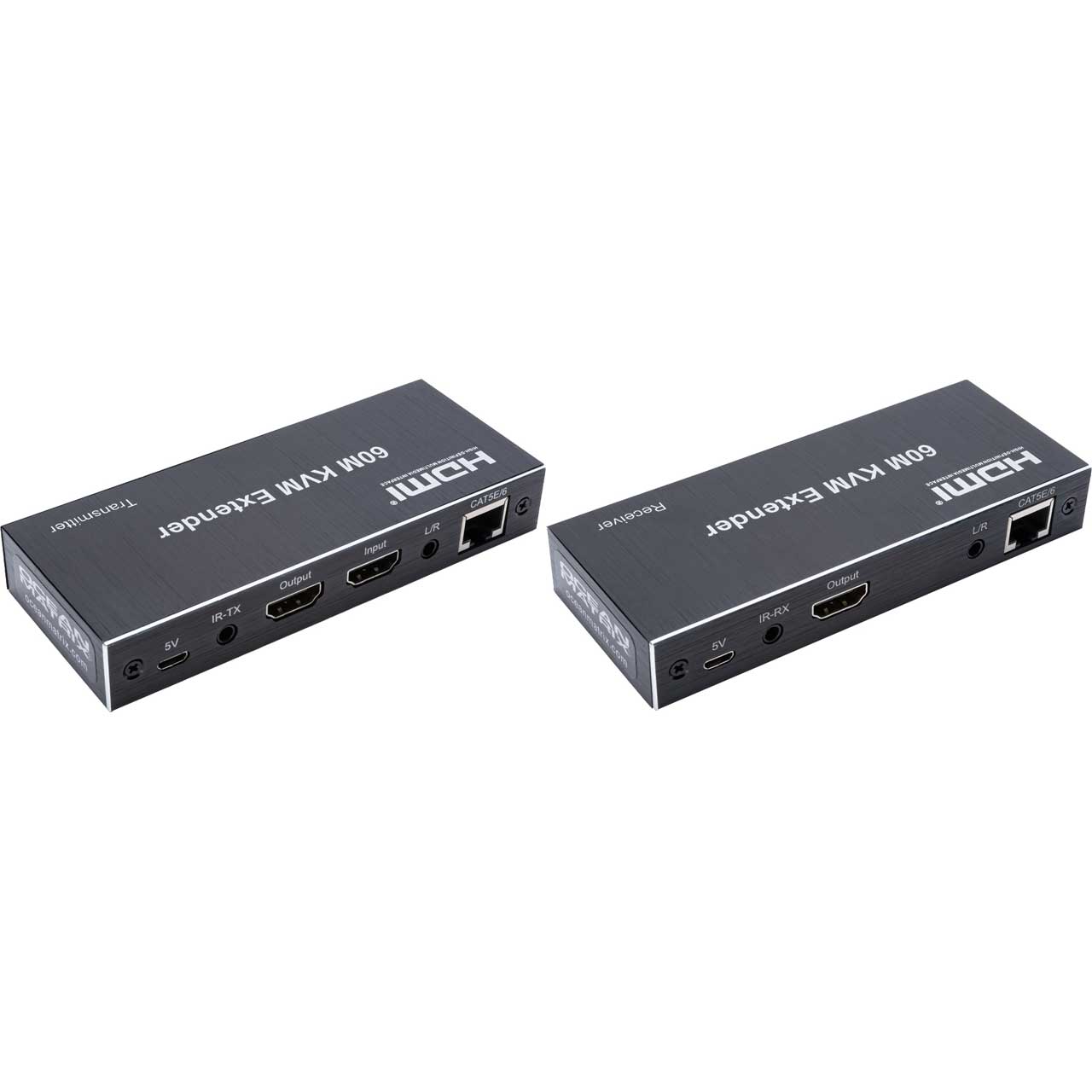

Maintain complete control of your computer from distances up to 60 meters with the cost effective Ocean Matrix 01KVKV0002 HDMI KVM. The unit extends HDMI signals, keyboard & mouse via USB and stereo audio via 3.5mm Mini connection - all achieved over a single CAT6/CA6A ethernet cable. This product is a perfect fit for conference rooms, command & control centers and anywhere long distance control of your computer is necessary.

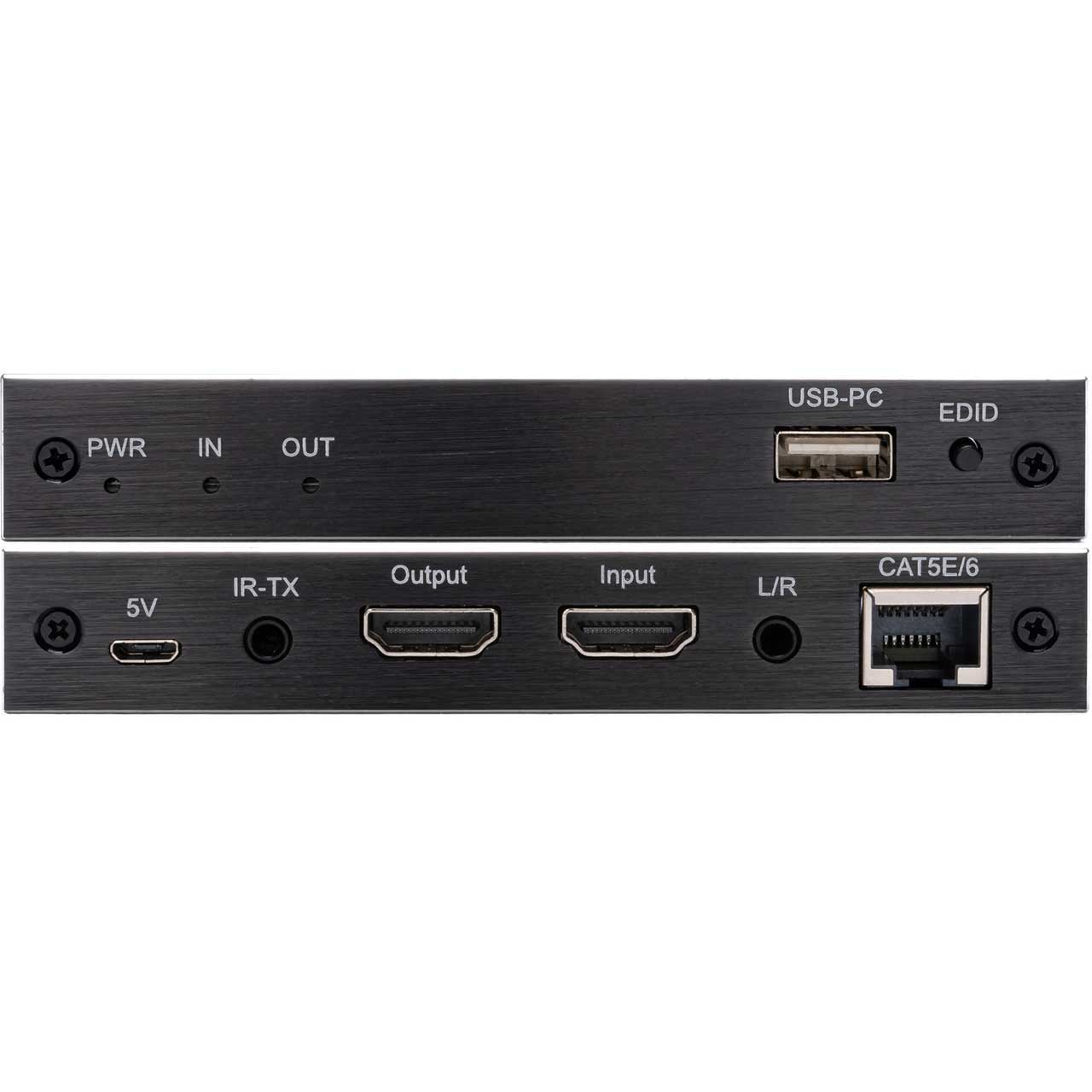

The Ocean Matrix 01KVKV0002 delivers the quality you expect featuring full 1080p/60Hz support. A unique feature of this OMX KVM extender is the built in IR control function allowing it to be used for digital signage applications. A front panel EDID switch allows selection between 720P and 1080P ensuring compatibility between multiple monitor types.

  • Features:

    • Supports Resolutions up to 1080P/60Hz
    • Local Loop-Out Functionality
    • Supports transmission up to 60 meters/197 feet
    • Low Power Consumption & Low Operating Temperature
    • Both the TX and RX Units Support 3.5mm Stereo Audio
    • IR Control Functionality
    • Supports Mouse and Keyboard Extension

  • Specifications:

    • Transmission Distance: Up to 60m/197ft via CAT5e/6
    • HDMI Input: 1080p/1080i/720p/576p/576i/480p/480i
    • HDMI Output: 1080p/1080i/720p/576p/576i/480p/480i
    • Max Bandwidth: 150MHz
    • Max Baud Rate: 4.5Gbps
    • Input Video Signal: 0.5~1.5Volts p-p
    • Output DDC Signal: 5 Volts p-p (TTL)
    • Input HDMI Cable Distance: ≤ 10m AWG26 HDMI Standard Cable
    • Output HDMI Cable Distance: ≤ 15m AWG26 HDMI Standard Cable
    • TX Max Working Current: 450mA
    • RX Max Working Current: 350mA

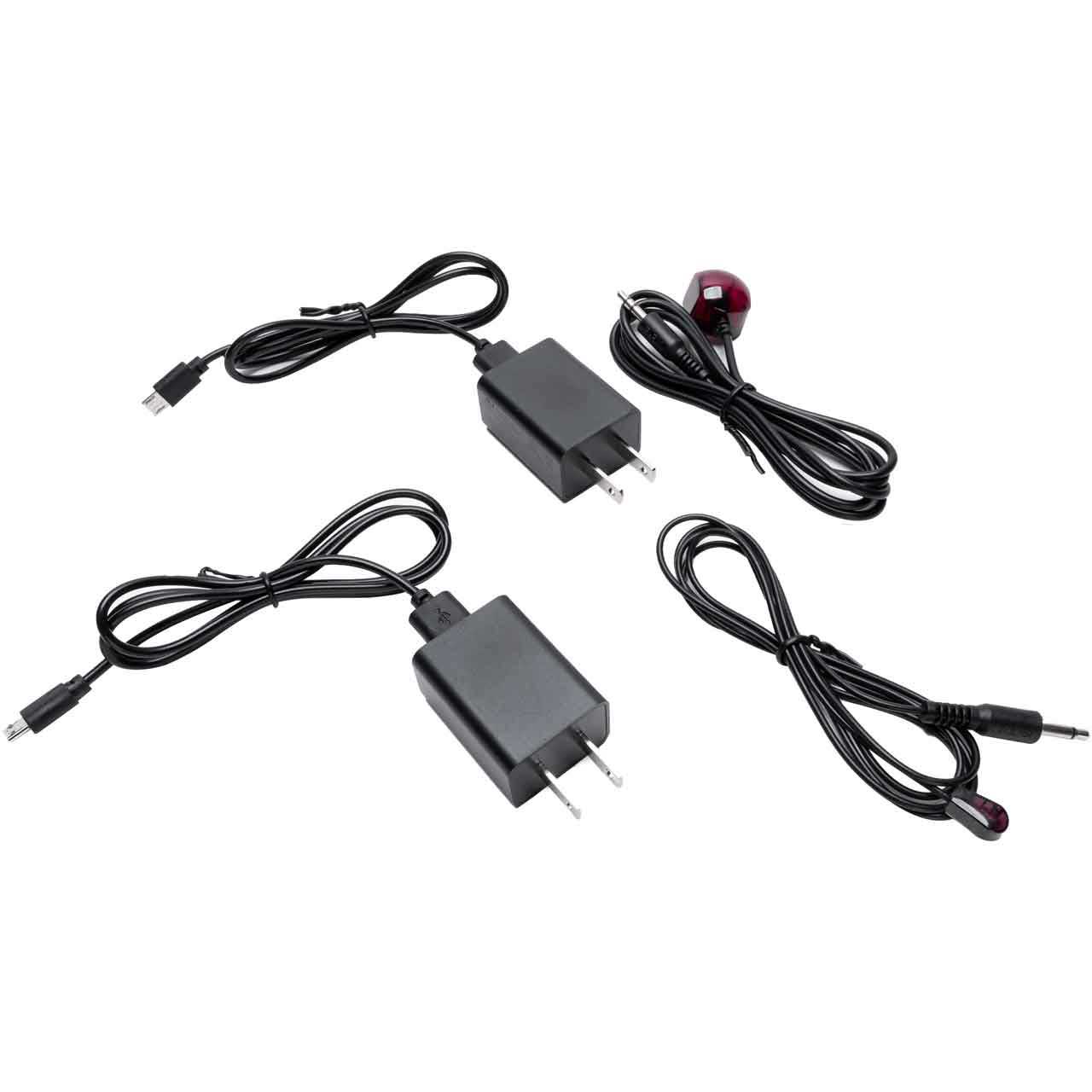

    • Power Adapter Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
    • Operating Temperature range: 5 to 113°F (-15 to +45°C)
    • Operating Humidity Range: 5 to 90% RH (No Condensation)
    • TX Weight: 108g
    • RX Weight: 108g
    • Dimensions (LxWxH): 4.78 x 1.97 x 0.74" (122 x 50 x 19 mm)
    • Weight: 0.24 lbs / 3.8 oz / 107 grams

  • Warranty:

    • 1 Year
