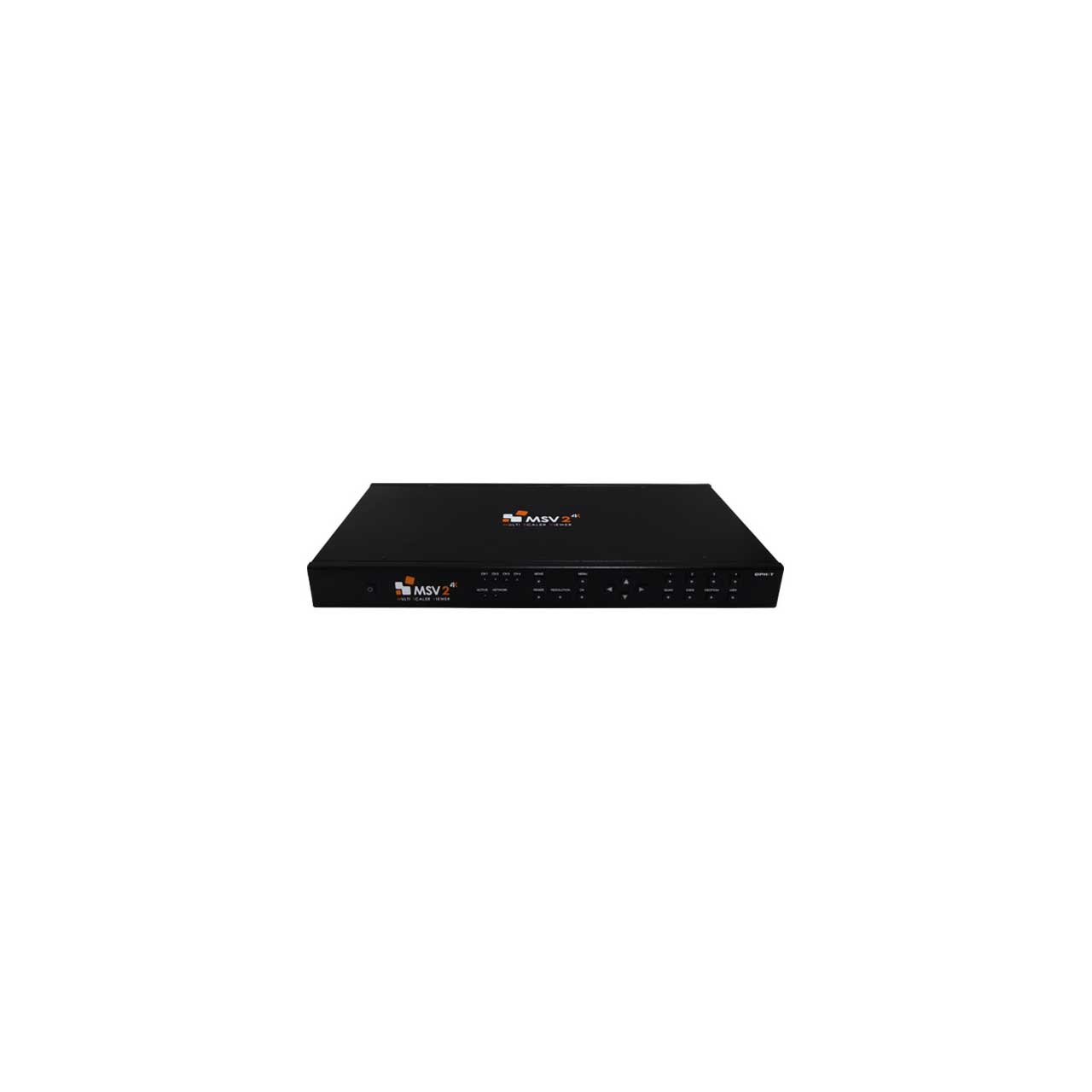

Ophit MSV2 4K HDMI 2.0 / DisplayPort 1.2a Multi Scaler Viewer with 4-Channel Inputs - Up to 4K@60Hz - Black


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    MSV2-BLACK - Overview

    The Most Advanced 4-input Multiviewer on the market in its price range!

    Ophit MSV2 BLACK is an advanced video processor for multimedia presentations. It is a video signal processing device that can one output of 4 input video signals to one video display device and provides 4 screen output modes. 4ch Inputs of MSV2 have 2 HDMI ports and 2 selectable ports (HDMI or DisplayPort), the user can select the input video the DisplayPort 1.2a or HDMI 2.0 Basically, it supports various output resolutions including up / down scale and supports seamless channel change.

    Preset or Custom Layouts

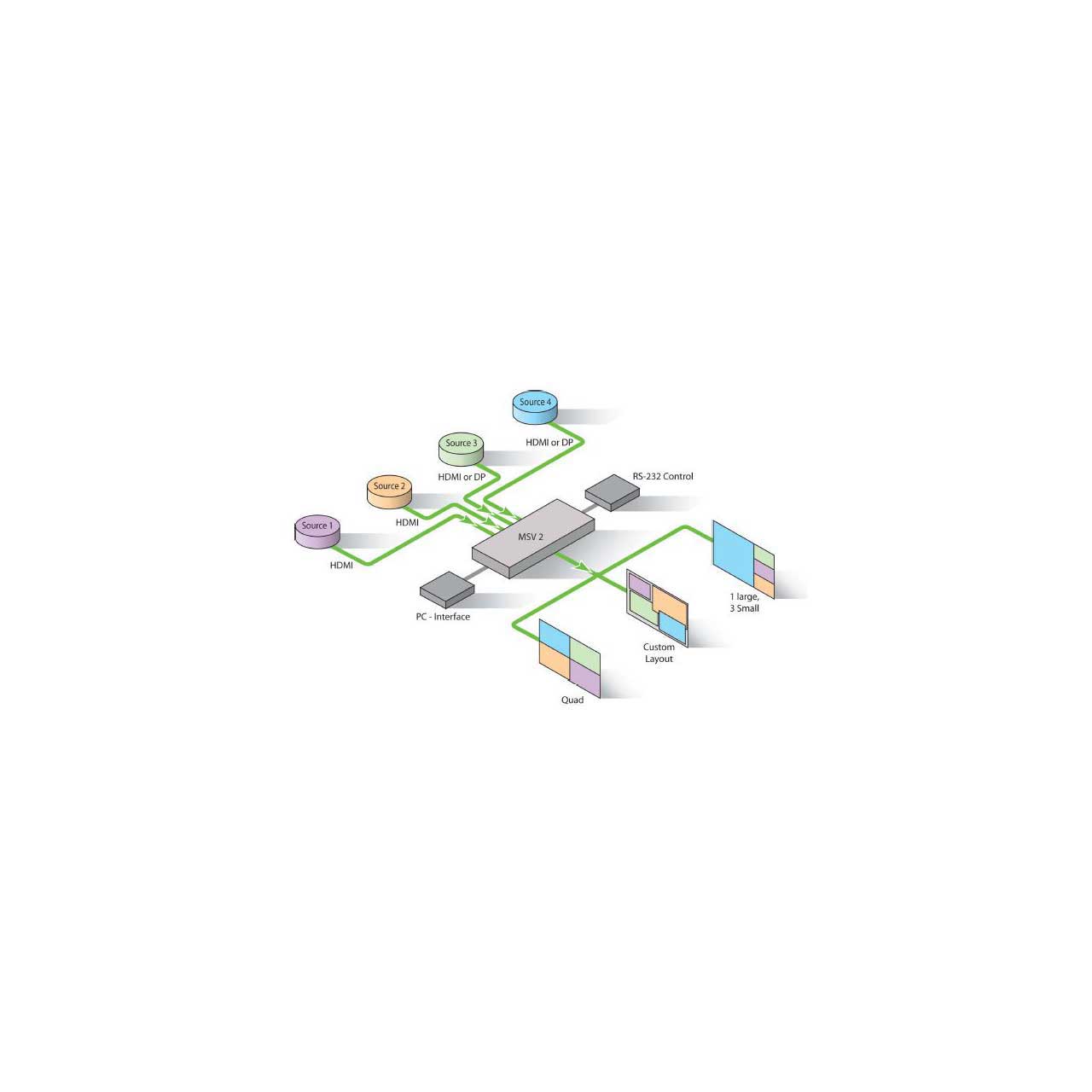

    MSV 2 will display multiple 4K images on one screen. Its advanced processing capabilities are ideal for multimedia presentations. Video input options include 2 dedicated HDMI channels, and 2 channels that can be switched to either HDMI or DisplayPort. Multiple video signals can be combined into one destination layout, such as quad screen, 1 large/3 small, or a usercustomized layout. Channel switching on MSV 2 is fast and seamless. MSV 2 is controlled by buttons on the unit's front face, or by a web-based PC interface that also offers live preview.

    Easy Preset Switching

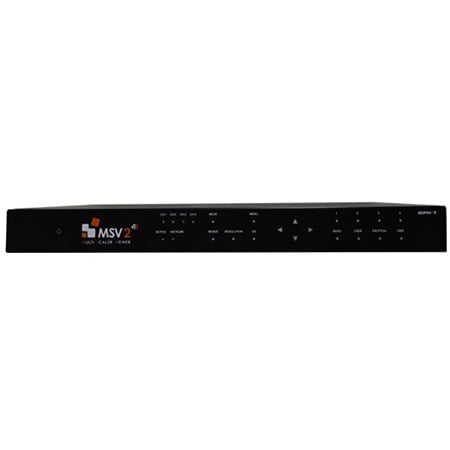

    MSV 2 box's front facing buttons make for quick switching between saved Presets.

    Advanced Web Controls
    Advanced features are found on the proprietary web controls software, accessible through your preferred web browser.

    Resize, Scale & Move
    Sources to design new layouts. Save customized layouts for quick access.

    • Features:

      • Full range of input and output format (Up to 4K@60Hz)
      • 4 preset modes and 5 user modes
      • HDMI 2.0, DisplayPort 1.2a Compliant
      • Supports DisplayPort 1, 2, 4 lanes
      • Supports HDMI 1.4 / 2.0
      • Compliant with HDMI 2.0, data rate up to 6Gbps
      • HDCP 1.4 / 2.2 Compliant
      • User control : Web, OSD, RS232
      • 1U Rack type
    • Specifications:

      • Input
      • Signal: HDMI 2.0, DisplayPort 1.2a
      • Resolution: Up to 4096 x 2160p@60Hz

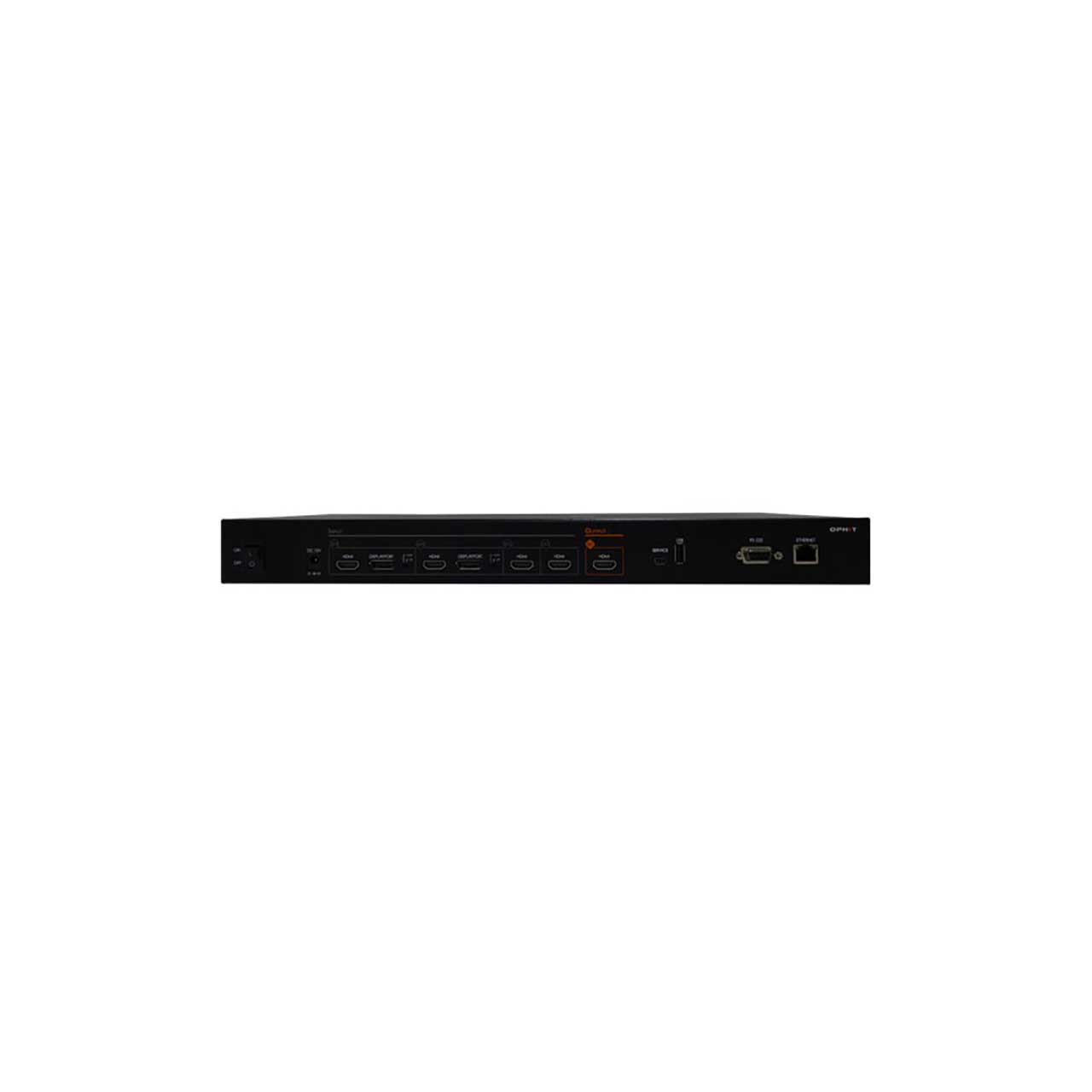

      • Ports: HDMI x 2, HDMI or DisplayPort (selectable) x2

      • Signal: HDMI 2.0
      • Resolution: Up to 4096 x 2160p@60Hz
      • Ports: HDMI x1

        Preset Modes
      • Quad
      • 3 side
      • 3 bottom
      • Full screen (channel 1-4)

      • User Configurable Modes: x5
      • User Control: Web-based PC interface / Front panel buttons / RS232.
      • Unit Dimension (mm): 436(W) x 44(D) x 213(H) 1 rack unit
      • Power Supply: DC +12 V
      • Operating Temperature: 0°C ~ +40°C
      • Relative Humidity: 20 ~ 80 %, non-condensing
      • HDCP 1.4/2.2: Compliant
    • Item Includes:

      • 1x Ophit MSV2 BLACK 4K HDMI 2.0 / DisplayPort 1.2a Multi Scaler Viewer
      • 1x Power Adapter
      • 1x Power Cord
      • 1x User's manual
