Osprey Video Raptor M25 2x 3G SDI Second Input Programmable as Loopout Embedded 8 Stereo Audio Pairs Per Channel
  • Osprey Video Raptor M25 2x 3G SDI Second Input Programmable as Loopout Embedded 8 Stereo Audio Pairs Per Channel
  • Osprey Video Raptor M25 2x 3G SDI Second Input Programmable as Loopout Embedded 8 Stereo Audio Pairs Per Channel

Questions? Ask a Markertek Expert:
800-522-2025 Email

Osprey Video Raptor M25 2x 3G SDI Second Input Programmable as Loopout Embedded 8 Stereo Audio Pairs Per Channel

Manufacturer: Osprey Video

Item #: OSP-M25   •   MFG #: M25




Our Price:$490.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

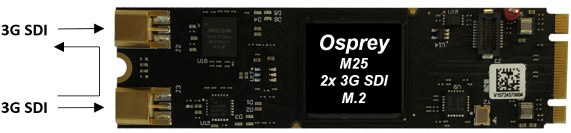

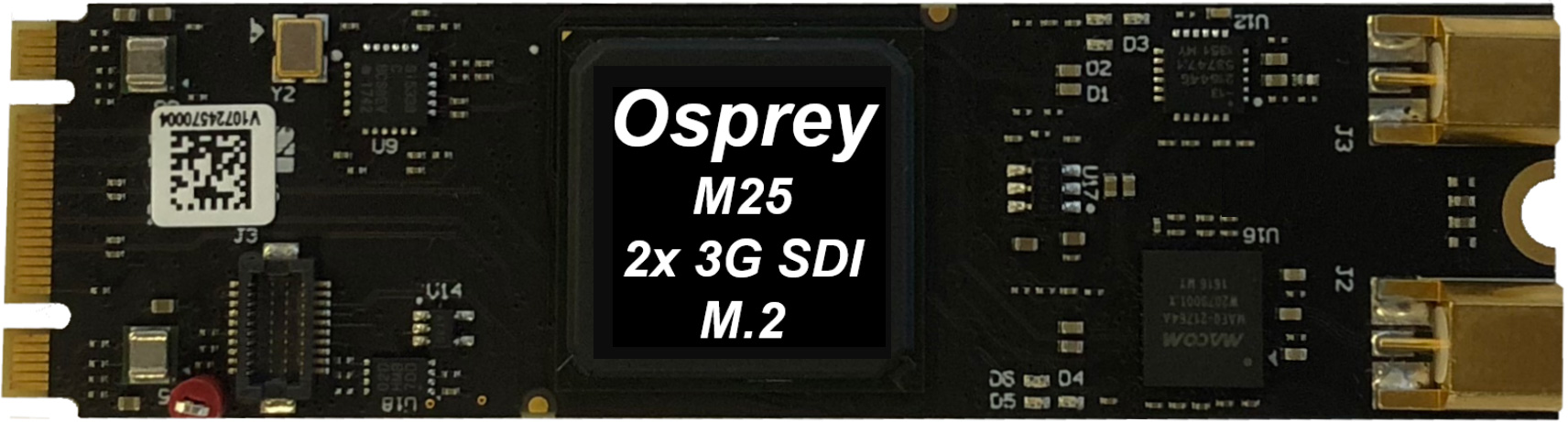

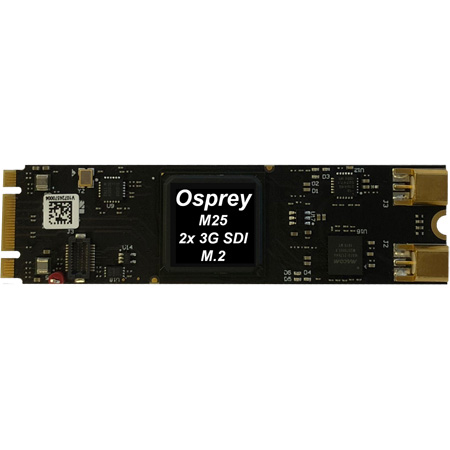

    The Osprey Raptor M25 features two SDI Inputs rated at 3Gb/s. Ports work with SD, HD and 3G frame sizes. All Mxx Raptor Cards can capture up to 60fps. Each SDI Input supports 16 Audio Channels (8 Stereo Channels) for a total of up to 32 combined Audio Channels between all inputs. Input B is programmable as Input or as Loopout from Input A.


    • Features

      • 3G-SDI
      • Inputs up to 1080P60
      • Programmable Loopouts
      • Video Outputs
      • 16 Audio Channels per Input
      • Simulstream
      • Medialooks SDK Support
      • Independent Scaling and Frame Rate Conversion for each Input

    • Specifications

      • Computer Interface: M.2 PCIe Gen2 x2 (2280)
      • Power Consumption: ~ 4.20W
      • Operating Temperature: 0 to 40C
      • Weight: 26g
      • In the Box: Capture Card
      • Connections: 2 x 3Gb/s SD/HD/3G-A (MCX)
      • SDI Audio Input: Embedded 16 Channels (8 Stereo) per connection
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • 3G/HD Video Standards: 720p50,59.94,60, 1080p23.98,24,25,29.97,30,50,59.94,60, 1080i50,59.94,60
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.
      • SDI Metadata Support: CEA-608, CEA-708 for closed captioning
      • Audio Sampling: Television standard sample rate of 48 kHz at 24-bit.
      • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4, YUV 4:4:4 and 4:2:2
      • Multiple Rate Support: Auto Detect SD/HD/3G-A

    • GTIN:

      0850189006733
