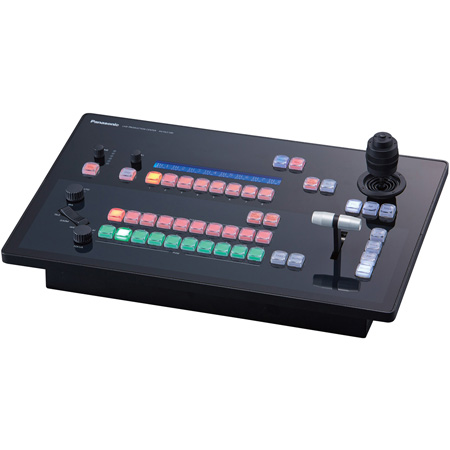

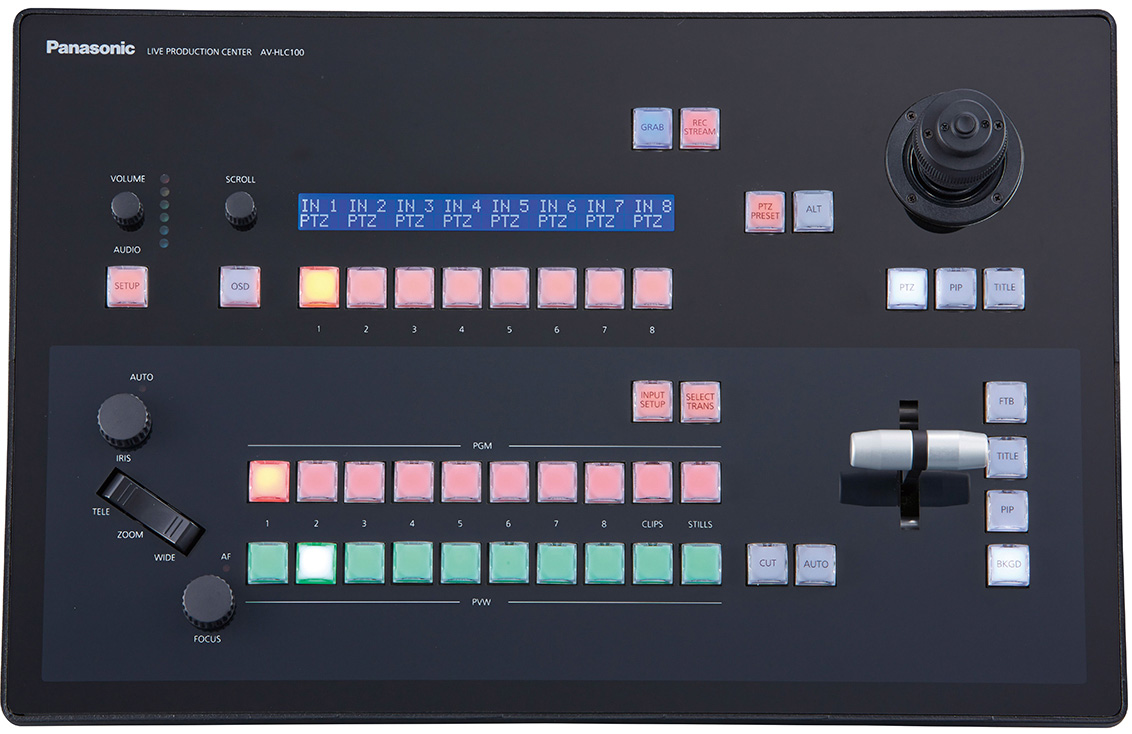

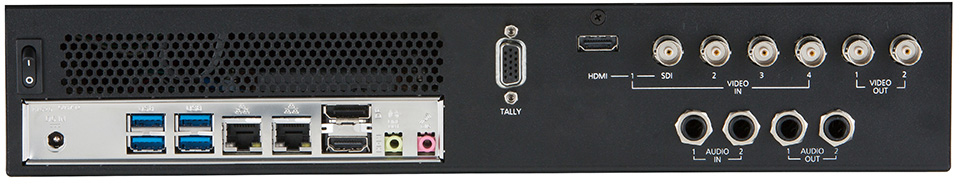

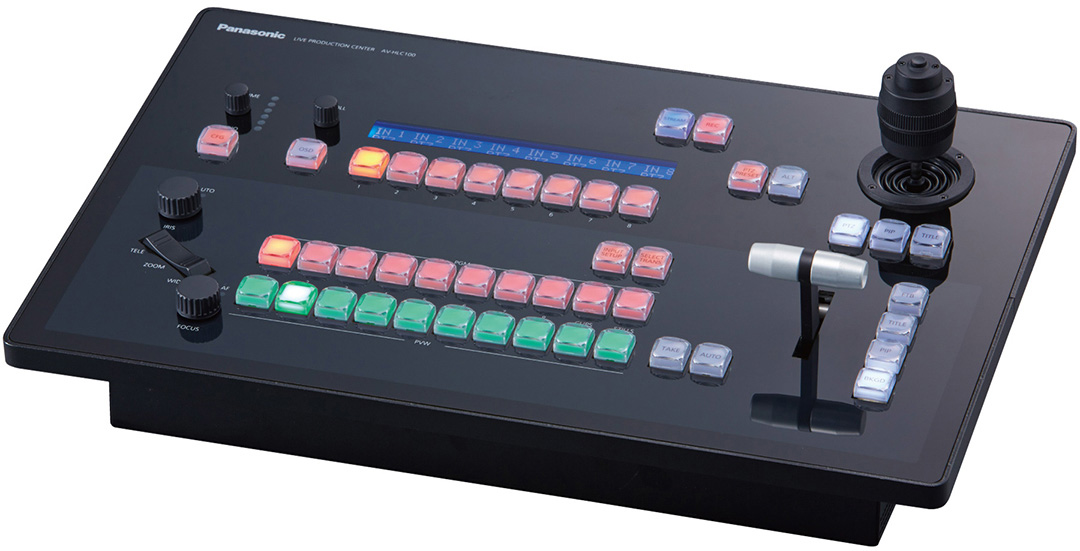

Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions
  • Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions
  • Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions
  • Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions
  • Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions

Questions? Ask a Markertek Expert:
800-522-2025 Email

Panasonic AV-HLC100 All-in-one IP Live Switcher with all the Functions Needed for Live Productions

Manufacturer: Panasonic

Item #: PAN-AV-HLC100   •   MFG #: AV-HLC100



List Price:$13,999.00
Our Price:$11,499.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Panasonic AV-HLC100 combines a live switcher, remote camera controller and audio mixer in one unit. Live audio production for small live musical performances, lectures and presentations can now be done easily by one operator, instead of the multiple operators that are usually required. It is also compliant with the NDI and NDI I HX standards, enabling connection and control of the remote camera to be performed through the same LAN cable with power provided for smooth remote shooting. RTMP (Real-Time Messaging Protocol) is also supported. Footage can be directly uploaded to various streaming services such as YouTube Live.


    • Features

      • Various inputs supported, including SDI, HDMI and IP
      • Direct streaming by RTMP (Real-Time Messaging Protocol)
      • Quick workflow for production and streaming with a wide range of video effects and titling
      • Easy operation at live events requiring multiple cameras
      • Direct online streaming of real-time footage
      • Camera control and document sharing for easy-to-understand lectures and presentations
      • Recording and Streaming Simultaneously for lectures and presentations

    • Specifications

      • Power Supply: DC 19 V (AC adapter provided)
      • Power Consumption: 110W
      • Temperature: 32° to 104°F (0° to 40°C)
      • Humidity: 20 % to 80 % (no condensation)
      • Mass Approx.: 13.34Lbs (6.05kg)
      • Dimensions (WxHxD) (Excluding Protrusions): 16.8 x 3.67 x 10.96" (427 x 93 x 278mm)
      • Number of ME: 1ME
      • Number of Switcher Channel: 10
        8 External (selected from among 3G-SDI x4, 3G-SDI x3 + HDMI x1, NDI sources x8)
        2 Internal (CLIP x1, STILL x1)
      • Number of Keyer: 2 Keyer (PinP/Title)
      • System Video Format: 1080/59.94p*1 *2, 1080/59.94i, 1080/29.97PsF, 1080/23.98p, 1080/50p*1 *2, 1080/50i, 1080/25PsF 720/59.94p, 720/50p, 720/29.97p, 720/25p
      • Video Input: SDI x4 or SDI x3 + HDMI x1*1 *3
      • Network Input Sources: 8
        NDI input from Panasonic PTZ Camera that supports NDI-HX & NDI compatible equipment
        IP input from Skype TX compatible PC
      • Audio Input: 15
        4-ch SDI/HDMI embedded audio x4
        4-ch NDI embedded audio x8
        6.35mm bal line x2
        3.5mm diameter, stereo mini jack x1
      • Video Output: 4
        BNC x1 3G-SDI (PGM)*1
        BNC x1 3G-SDI (selectable from PGM/PVW/AUX)*1
        HDMI x1 or Display Port (for GUI)*4 x1
        Network output x1
      • Network Video Output: 1
        Selectable from MIX (PGM or PVW)/AUX
        NDI output
        RTMP format streaming output*5
      • Audio Output: 6
        SDI embedded audio x2
        6.35mm balanced line x2
        3.5mm diameter, stereo mini jack x1
        NDI embedded audio x1
      • Effects & Transitions
      • Wipe/Mix/Cut
        Background Video
        PinP
        Title
      • Audio Mixing
        4-Ch Master (Program) mix
        12x faders: 1 for each of 8 external audio inputs, + 1x internal Clips player, 1x Skype TX Talkback input; + 1x Master output, 1x Headphones
        Plus 1x separate audio fader for video Streaming output
        Seven-band equalizer & stereo compressor/limiter per input & output, with per-input audio delay control
        Video Clip Memory: DDR x1-ch*6
        Still Store Memory: DDR x1-ch*6
        Title Buffer: 1 Title Buffer (displays 1 of 8 Buffer presets)
        Reference Input: Internal only
      • PTZ Camera Control (Via IP)
        Number of connected cameras: Up to 8 cameras
        Pan/Tilt/ZOOM/FOCUS: 3 axis joystick
        ZOOM: Independent rocker switch
        IRIS: independent IRIS knob, pressed AUTO/manual switching
        FOCUS: Independent FOCUS knob, pressed AUTO/manual switching
        Preset: store/recall, up to 100 positions
        OSD Menu: OSD button*7
        White balance control: GUI screen Camera menu or OSD screen (Auto/PST A/PST B/Execute)*7
        CAM/BAR selection: GUI screen Camera menu or OSD screen*7
        Tally Output DB-15 Tally port
        Network Connector RJ-45 x2 1000BASE-T/100BASE-TX/10BASE-TX
        USB Host I/F USB3.0 x4
      • Notes:
        *1: 3G-SDI corresponds to Level-A only
        *2: The 1080/59.94p & 1080/50p formats are not supported for HDMI input
        *3: You cannot use the SDI input 1 & the HDMI connector at the same time
        *4: HDMI & Display port can not be used simultaneously
        *5: Only available when plug-in provided by NewTek is installed
        *6: See "Supported Formats" on page 6 for details
        *7: OSD function is available for Panasonic PTZ camera of SDI & HDMI output
        It is not available for those of NDI-HX output

    • Item Includes

      • 1x AC Adapter
      • 1x Power Cable
      • 1x Keyboard
      • 1x Mouse

    • GTIN:

      0608938401298
