PHRX1000AG - Overview

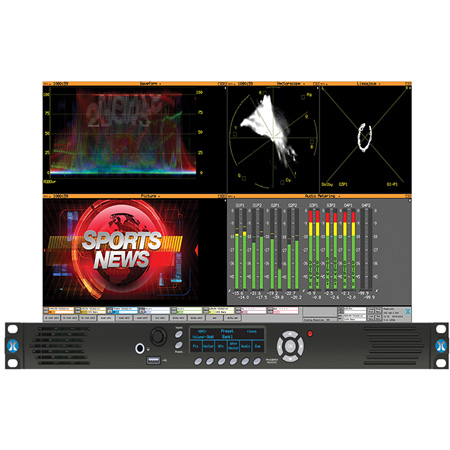

The advanced Rx 1000 is a compact, 1RU version of the Rx 2000 without the dual built-in monitoring displays or speakers. It provides up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and also provides signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external monitor. The Rx 1000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules.

  • Features:

    • Up to 99 configurable presets
    • Video Capture and Remote access
    • Four Channel Eye and Jitter Analysis
    • AV Delay Generation and Analysis (Analysis Optional)
    • Extensive Video Toolset
    • Multi-channel Audio Analysis

  • Specifications:

    • SD-SDI, HD-SDI as standard
    • Optional 3G-SDI (license)
    • OLED display
    • Front panel backlit navigation keypad
    • Front panel volume/gain control
    • Front panel headphone connector 6.3mm (1/4 inch) Stereo jack
    • Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
    • Internal loudspeaker Beeper
    • I/O Module slots (each supporting a range of audio/video modules): 4
    • Internal Dual Dolbyr decoder module slot (option): 1
    • HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
    • SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
    • Basic SDI generator included as standard (replaces instrument output)
    • 8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
    • Reference/VITC input, passive loop through, BNC 75 Ohm compensated
    • AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
    • LTC input (via 26 pin high density `D' Type socket)
    • 8x GPI I/O (via 26 pin high density `D' Type socket)
    • Stereo analog audio output, (via 26 pin high density `D' Type socket)
    • Calibrated stereo balanced analog audio output (option module)
    • Ethernet remote control via browser, RJ45 connector, 10/100Base-T
    • IP sockets based remote control as standard
    • FPGA firmware/software upgrade via Ethernet/USB
    • Desktop mounting kit
    • 19" Rack-mount kit - 1U
    • Whisper quiet temp controlled fan - 2 x 40mm internal
    • Power consumption (variable on modules inserted) - 24W typical 70W max
    • 4 Pin XLR power connector, 12V nominal (9V-18V)
    • AC Power adaptor (incl), 90-264VAC, 120W
    • Dimensions (w x h x d) excl ears & projections -440x44x170mm
    • Weight (chassis with CPU module and 1x AG option module fitted) - 2kg
