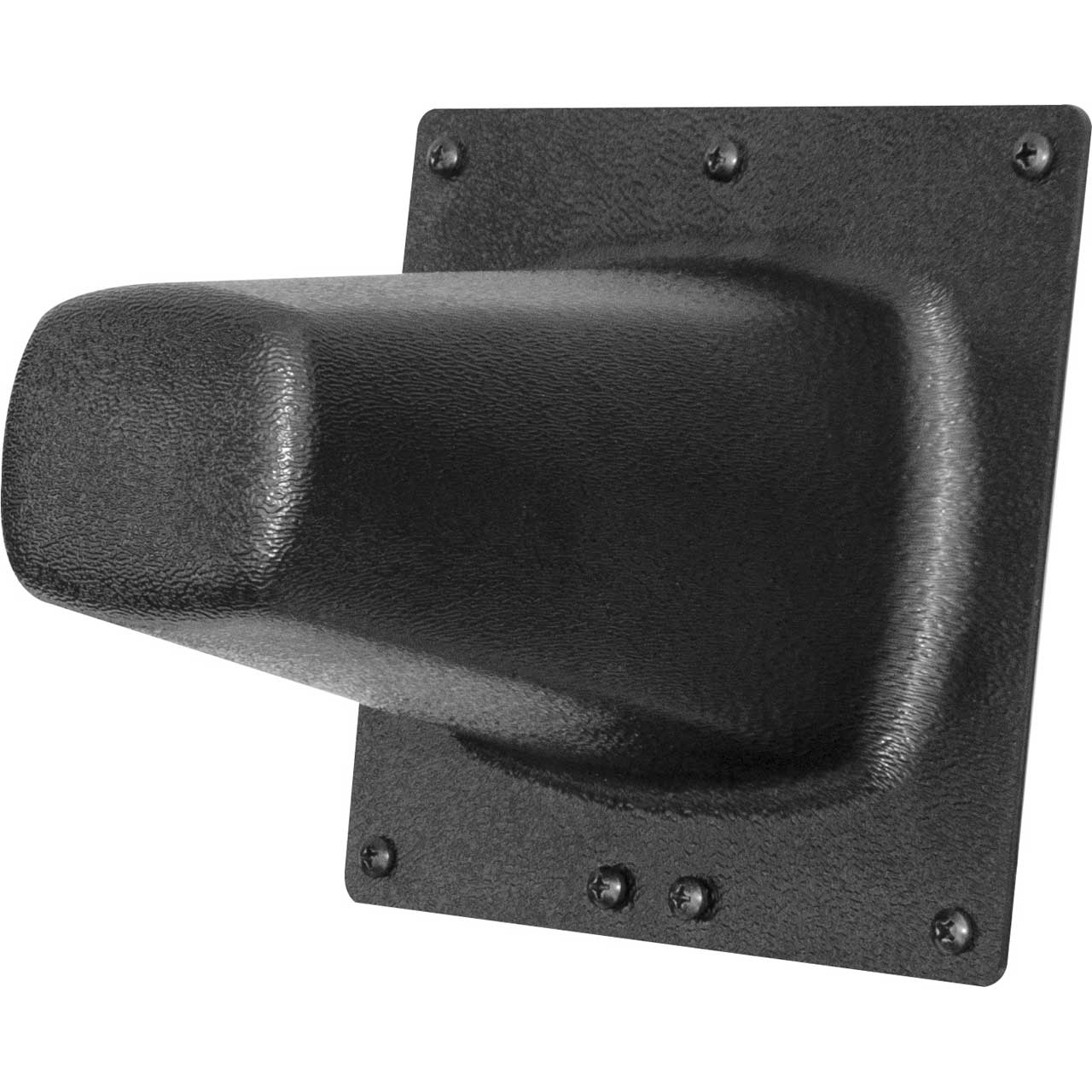

Pliant Technologies PAN-CP24 2.4GHz 12dBi CP Beam Antenna with Threaded Mounting Block

ITEM #: PLI-PAN-CP24 MFG #: PAN-CP24

free ship

List Price:

$480.00

Our Price:

$425.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    PAN-CP24 - Overview

    Pliant Technologies PAN-CP24 2.4GHz, 12 dBi Circularly Polarized (CP) Beam directional antenna protected by a durable ABS enclosure. Utilizes a female N-Type connector and multi-threaded mounting block. For use ONLY with 2.4GHz (Tempest2400 or CrewCom) Products.

    ** NOT AVAILABLE IN CE COMPLIANT COUNTRIES

    • Features:

      • 12 dBi of gain, significantly increasing useable range both indoors and outdoors.
      • Circularly polarized element reduces signal dropouts and improves link quality.
      • Durable, protective ABS element enclosure. Includes mounting block with 1/4-20 in., 3/8-16 in., or 5/8-27 in. threads.

    • Specifications:

      • Electrical
      • Operating Frequency: 2300-2500MHz
      • Bandwidth: 200MHz
      • Impedance: 50Ω
      • Average Return Loss: -14.3 dBm
      • Pattern Type: Beam
      • Polarization: RHCP
      • Gain: 12 dBi

        Physical
      • Length: 7.99 in. (203 mm)
      • Height: 5.98 in. (152 mm)
      • Weight: 0.74 lb (340 g)
      • Mount Threads: 1/4-20 in., 3/8-16 in., or 5/8-27 in.
      • Operating Temperature: -9.4°F to 129.2°F (-23°C to 54°C )
      • Color: Black
      • Connector N: female

    • Warranty:

      • 1 Year


    PAN-CP24 - Required Accessories

      PAN-CP24 - Recommended Accessories
