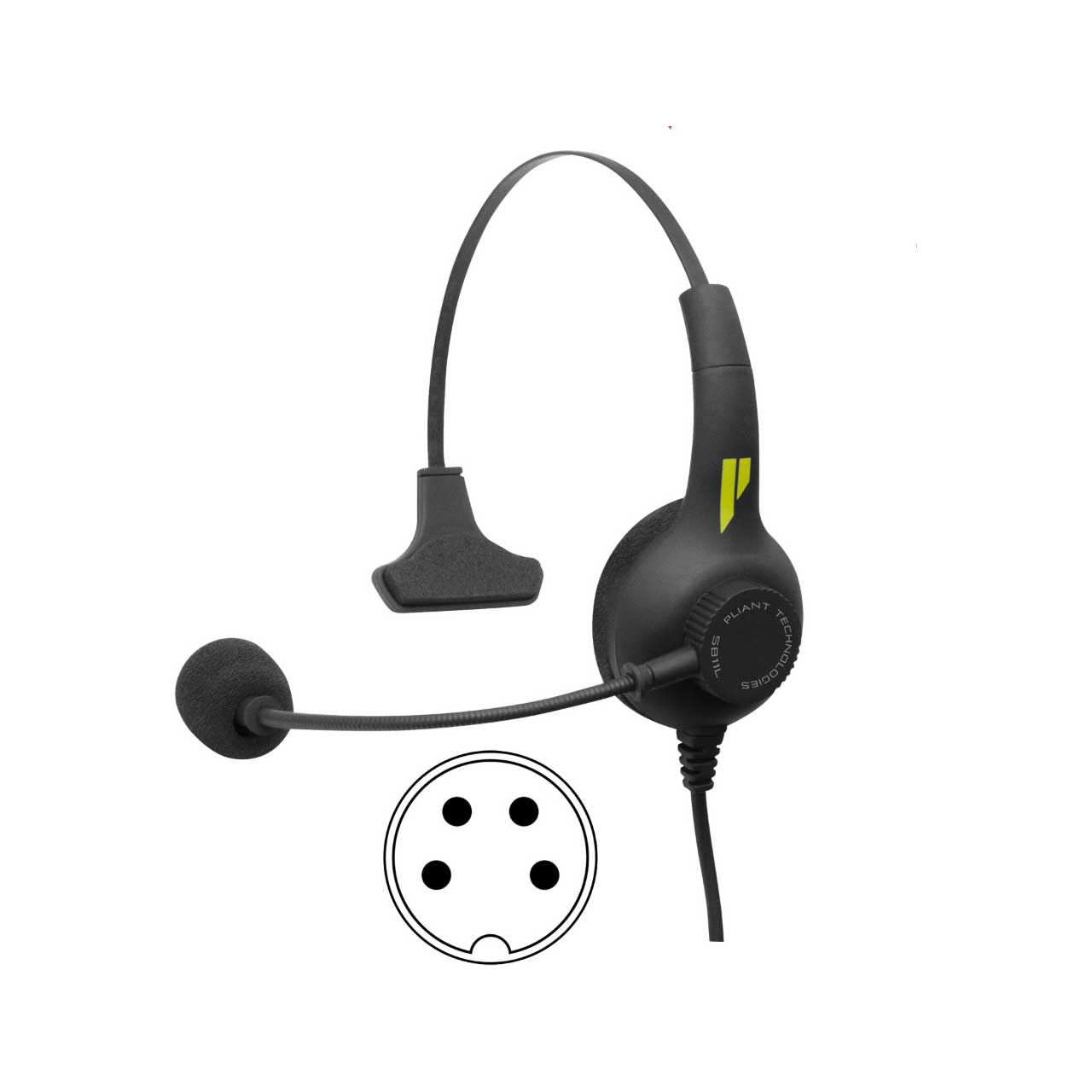

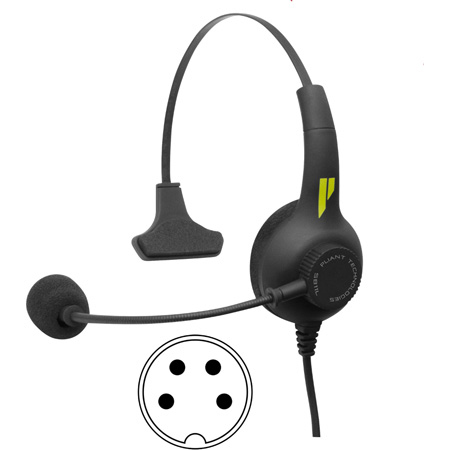

Pliant Technologies PHS-SB11L-4F SmartBoom Lite Single-Ear Dynamic Headset - 4-Pin XLR Female Connector

ITEM #: PLI-PHS-SB11L-4F MFG #: PHS-SB11L-4F

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLI-PHS-SB11L-4F

PHS-SB11L-4F - Overview

Pliant Technologies PHS-SB11L-4F Professional single ear lightweight headset that utilizes SmartBoom microphone boom On/Off technology. High quality audio using a cardioid dynamic microphone. Features a flexible ambidextrous design, soft foam padding, and replaceable ear cushion.

  • Features:

    • Single-ear lightweight design with enhanced acoustic isolation
    • Closed back supra-aural (on ear) design Flexible, ambidextrous swiveling mic boom
    • SmartBoom flip-up microphone mute
    • Dynamic noise-cancelling cardioid microphone optimized for voice communications
    • Comfort fit adjustable headband Replaceable ear cushion pad
    • Non-reflective rubberized matte black finish
    • Fixed cable (5 ft./1.5 m. Available as 4-pin female XLR, 5-pin male XLR, or unterminated.)

  • Specifications:

    • Microphone
    • Microphone Type: Dynamic
    • Frequency Response: 50 Hz-20 kHz
    • Mic Sensitivity: -66 dB &plumsn; 3 dB at 1 kHz
    • Pattern Hyper: Cardioid
    • Output Impedance: 200 Ω &plumsn; 15% at 1 kHz

      Speaker (Headphone)
    • Speaker Type: Dynamic
    • Frequency Response: 100-20,000 Hz
    • Sensitivity at 1 kHz: 316 mV 110 dB &plumsn; 3 dB SPL
    • Nominal Impedance: 96 Ω &plumsn; 15% at 1 kHz
    • Max Input Power: 500 mW

      Cables
    • Termination at Ear: Fixed
    • Length: 1.52 m (5.00 ft.)
    • Outside Diameter: 4.00 mm (0.15 in.)

      Physical Features
    • Mic Boom Length: 215.90 mm (8.50 in.)
    • Weight (with cable): 144 g (5.1 oz.)

  • Item Includes:

    • Fixed 5 ft. (1.52 m) cable with 4-pin XLR Female connector termination
    • Ear Sock (x1)
    • Data Sheet
    • Magnetic Cable Clip.

  • Warranty:

    • 1 Year
