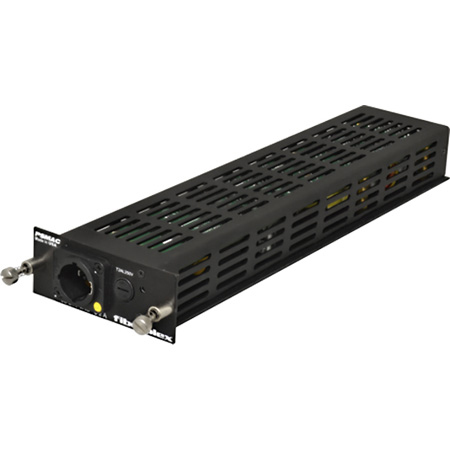

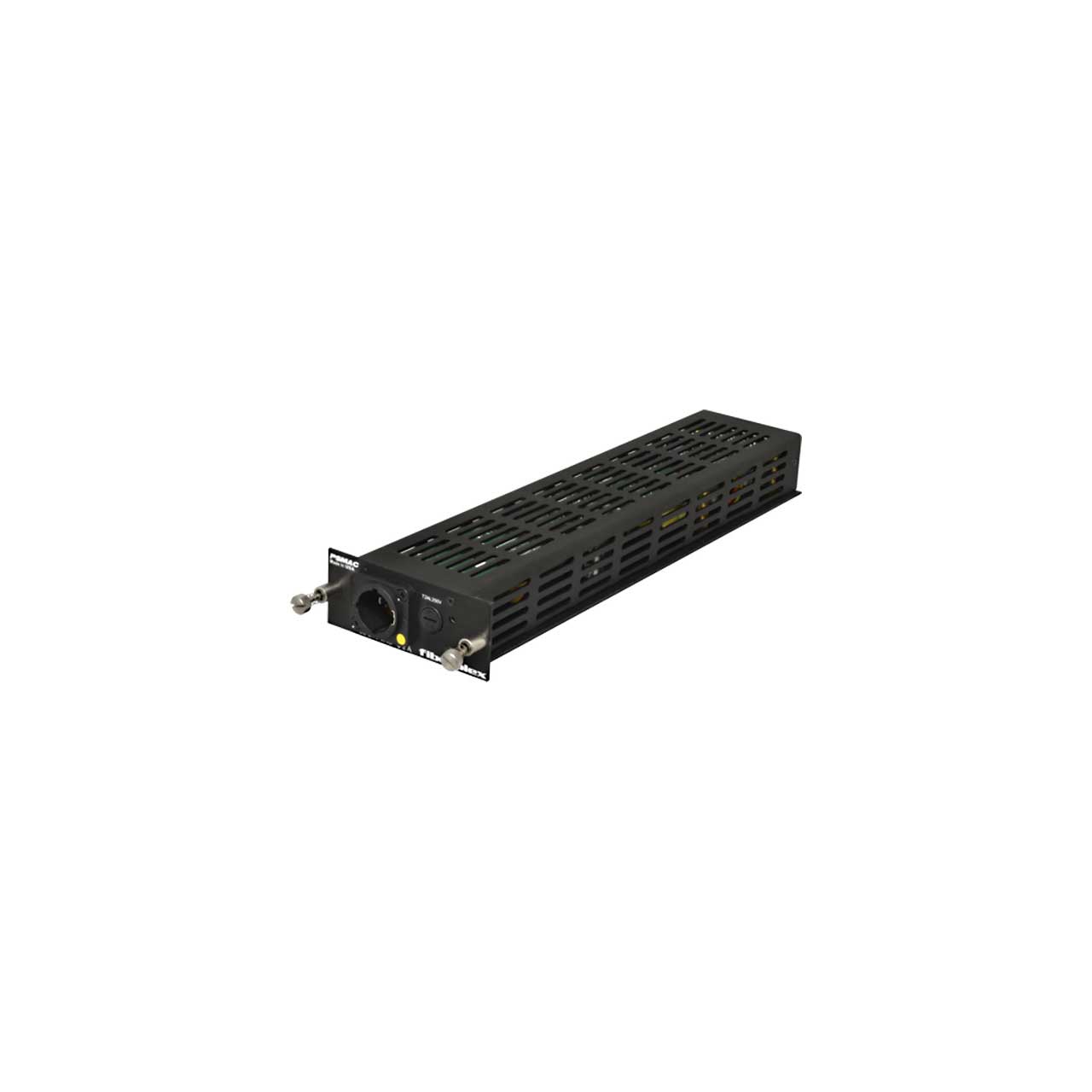

FiberPlex PSMAC100W Power Supply for Wave Division Mux Modules

ITEM #: PSMAC MFG #: PSMAC

Primary Image
Fiberplex
Free Shipping with $49 Minimum Order

Our Price:

$582.12

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PSMAC - Overview

    The FiberPlex Technologies PSMAC is a 100W power supply for the WDM modules. It is a dual voltage power supply providing 48 VDC and 5.3 VDC to their hosts. The supply is designed to be used as single supplies or redundantly for added reliability. The PSMAC has an integrated temperature sensing and a communications microprocessor which constantly monitors temperature and status information and reports it to the host.

    • Features:

      • 100 W full range power supply
      • AC supply available now, DC version in development
      • AC version has wide international input range


    • Specifications:

      • Power Supply
      • Input Voltage(VAC): Min - 90; Typ. - 110; Max - 240
      • Input Frequency(Hz): Min - 40; Max - 400
      • Power Factor (%): Typ. 92
      • Output 1Voltage (VDC): Min - 5.04; Typ. - 5.3; Max - 5.57
      • Output 1 Current (A): Typ. - 7
      • Output 2 Voltage (VDC): Min - 45.6; Typ. - 48; Max - 50.4
      • Output 1 Current (A): Typ. - 1.3
      • Supply Current (A): Typ. - 1.3
      • Ouput Power: 100w

        Physical Characteristics
      • Storage Temperature (°C): -40 - 85
      • Operating Temperature (°C): 0 - 50
      • Card Dimensions(L x W x H): 11.25 in x 2.625 in x 1..25 in (286 mm x 67 mm x 32 mm)
      • Weight: 2 lb (0.9kg)
