Roland Systems Group V-1HD Plus Video Switcher & UVC-01 Encoder Streaming Bundle

ITEM #: ROL-V-1HDPLUSSTR MFG #: V-1HDPLUSSTR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$795.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    V-1HDPLUSSTR - Overview

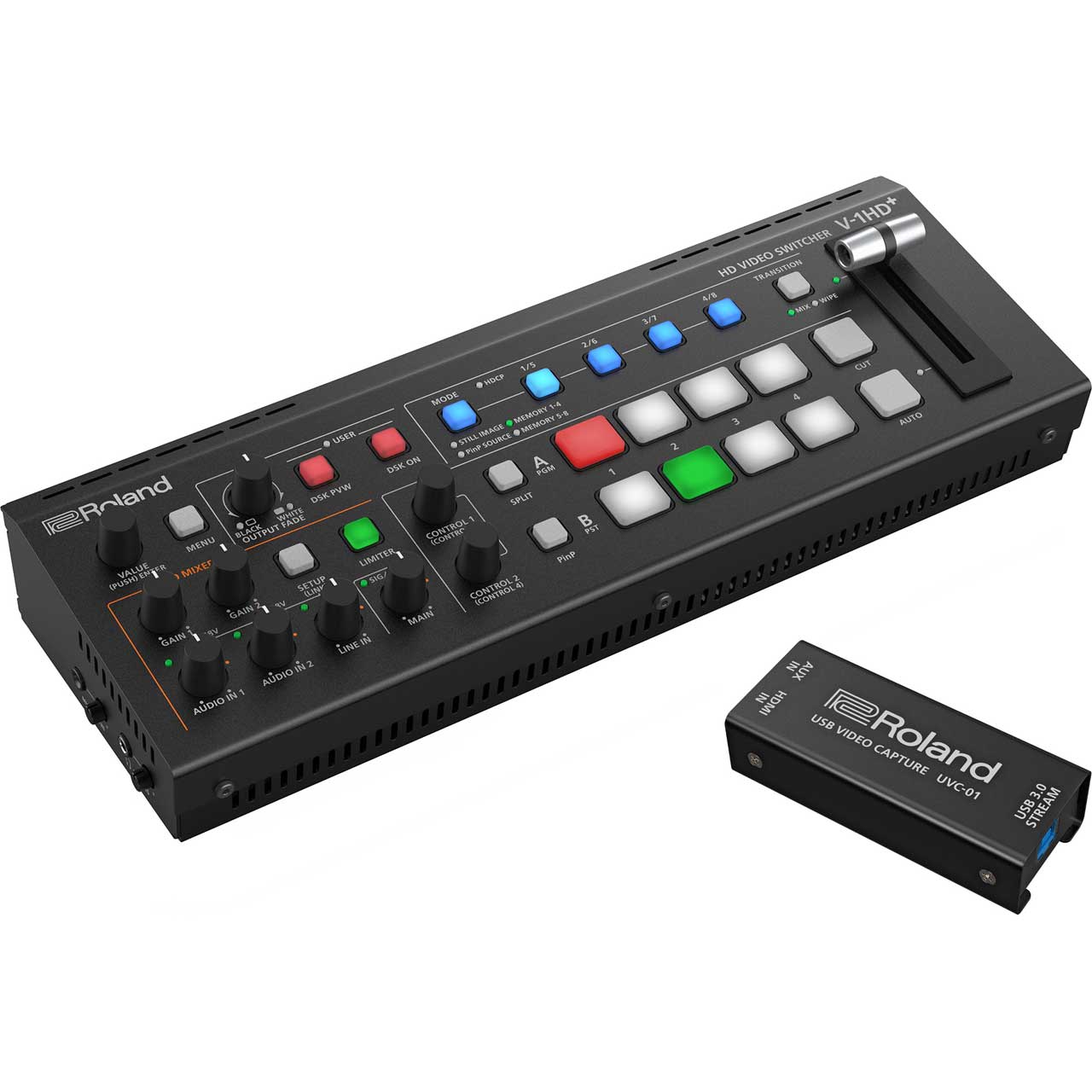

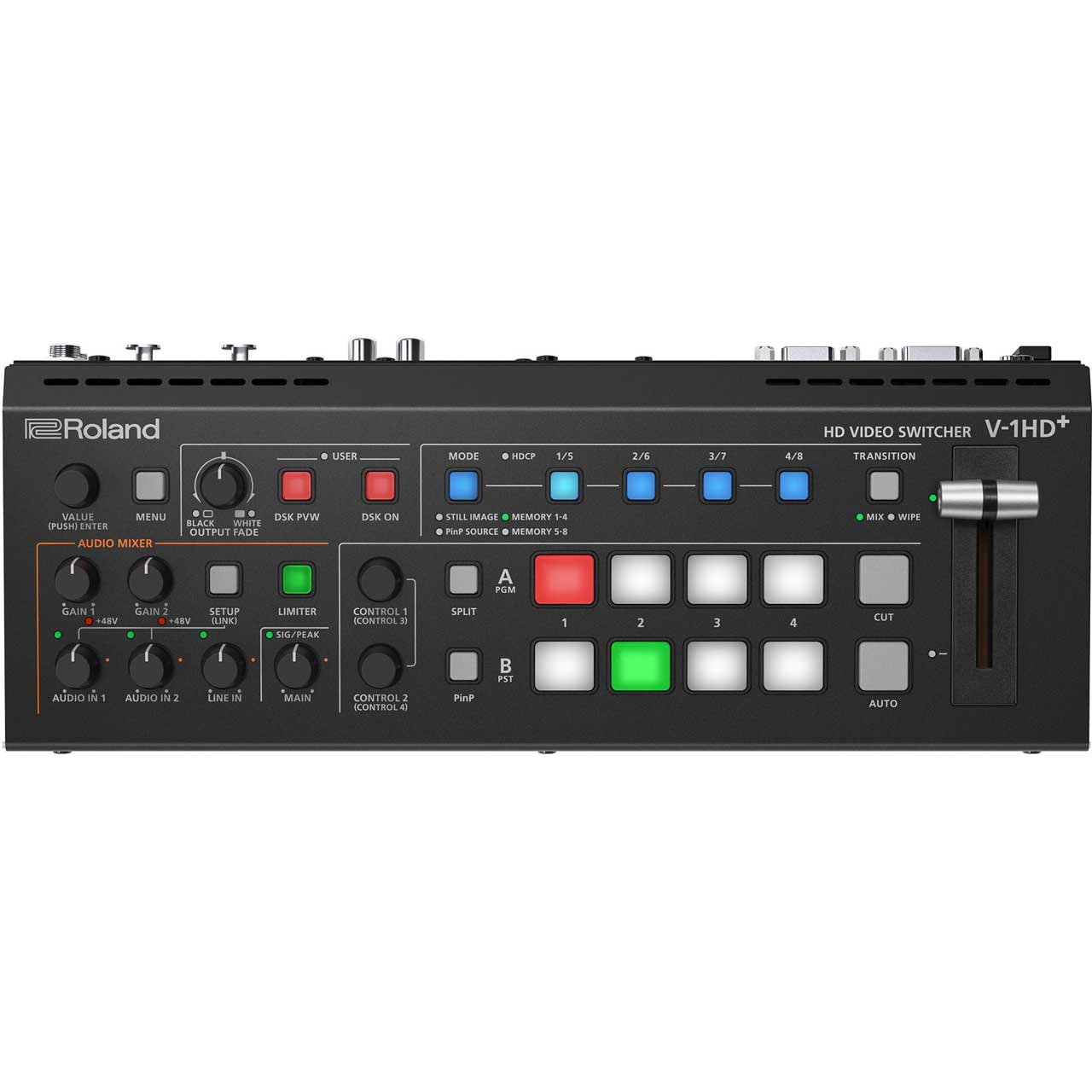

    The Roland V-1HD+ is the next generation compact A/V switching solution and is an addition to the V-1HD family of product. Event Ready, Portable, and operator-friendly like V-1HD, with many improvements to the hardware and design. Powered by a Four Layer Effects Engine Independently combine Picture in Picture and Graphics, Easily setup a Presentation Layout. Professional Audio Features, XLR inputs can be either mic preamps or a line input. EQ, Compressor, and Limiter effects built in, Balanced Line Out as well. In addition to the switcher, the streaming bundle includes a Roland UVC-01 "Plug and Play" Encoder for efficient and simple streaming application.

    Plug-and-Play for Flawless Recordings and Livestreams

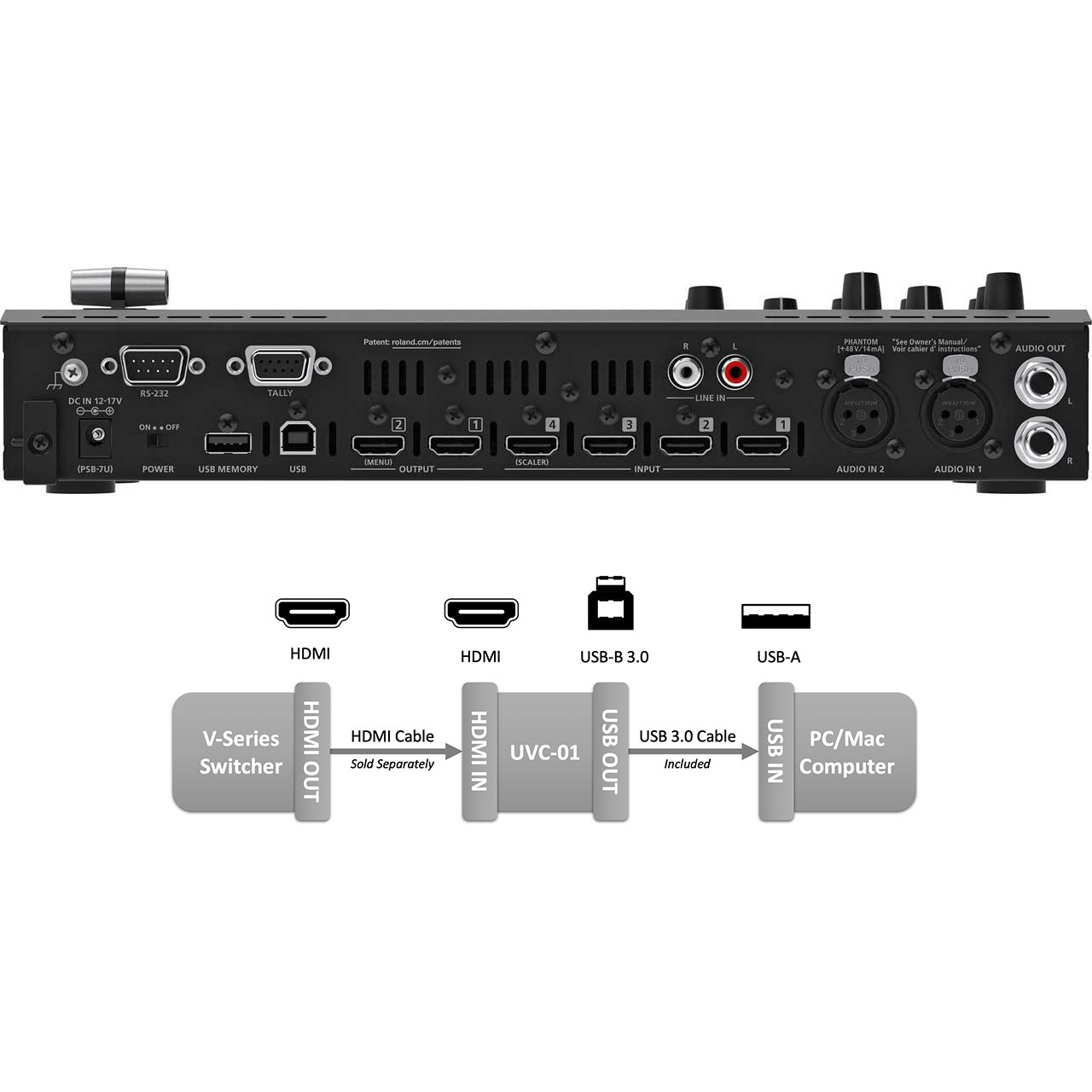

    For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it's never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder. Just connect to the UVC-01 via HDMI, plug into your computer's USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

    • Features:

      • V-1HD+ Features
      • Professional HD switching solution for live events, livestreaming, or both at once
      • Standalone video switcher and 14-channel audio mixer for single operators
      • Compact and portable for fast set up
      • Familiar interface that's quick to learn and easy to use
      • Technology-assisted automatic video switching
      • Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
      • Pro audio I/O with legendary Roland sound quality
      • Eight memory presets to recall visual layouts on cue

        UVC-01 Features
      • Please Note: The UVC-01 is only available with the bundle.
      • High-quality HDMI to USB 3.0 video encoder
      • Plug-and-play USB webcam operation for Mac and Windows computers
      • Seamlessly works with all Roland V-series switchers with an HDMI output
      • Also works with most HDMI-equipped cameras and camcorders
      • Uncompressed 1080p HD at 60 FPS for engaging livestreams
      • Dedicated analog audio line input for live music versatility
      • Powered via USB

    • Specifications:

      • V-1HD+ Specifications
      • Video
      • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
      • Input Connectors: INPUT 1-3: HDMI type A x3 *HDCP Supported; INPUT 4: HDMI type A *HDCP Supported *Multi-format Supported
      • Output Connectors: OUTPUT 1-2: HDMI type A x2 *HDCP Supported
      • Video Effects: Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types) Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key) Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

        Audio
      • Audio Processing: Sample rate: 24 bits/48 kHz
      • Audio Formats: Linear PCM, 24 bits/48 kHz, 2 ch
      • Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output

        Others
      • Other Connectors: USB MEMORY: USB A type (for USB flash drive) REMOTE: USB B type (for remote control) RS-232: DB-9 type (male, for remote control) TALLY: DB-9 type (female, for TALLY output)
      • Other Functions: Preset memory (8 types), Panel lock function, EDID emulator, Auto switching, Auto input detect
      • Power Supply: AC adapter
      • Current Draw: 2.1 A
      • Power Consumption: 25.2 W
      • Operation Temperature: 32° to 104°F (0° to 40°C)
      • Dimensions (WxDxH): 12.44 x 4.76 x 2.56"
      • Weight: 3Lbs
      • For a full list of V-1HD+ specifications please visit the Data Sheets Tab

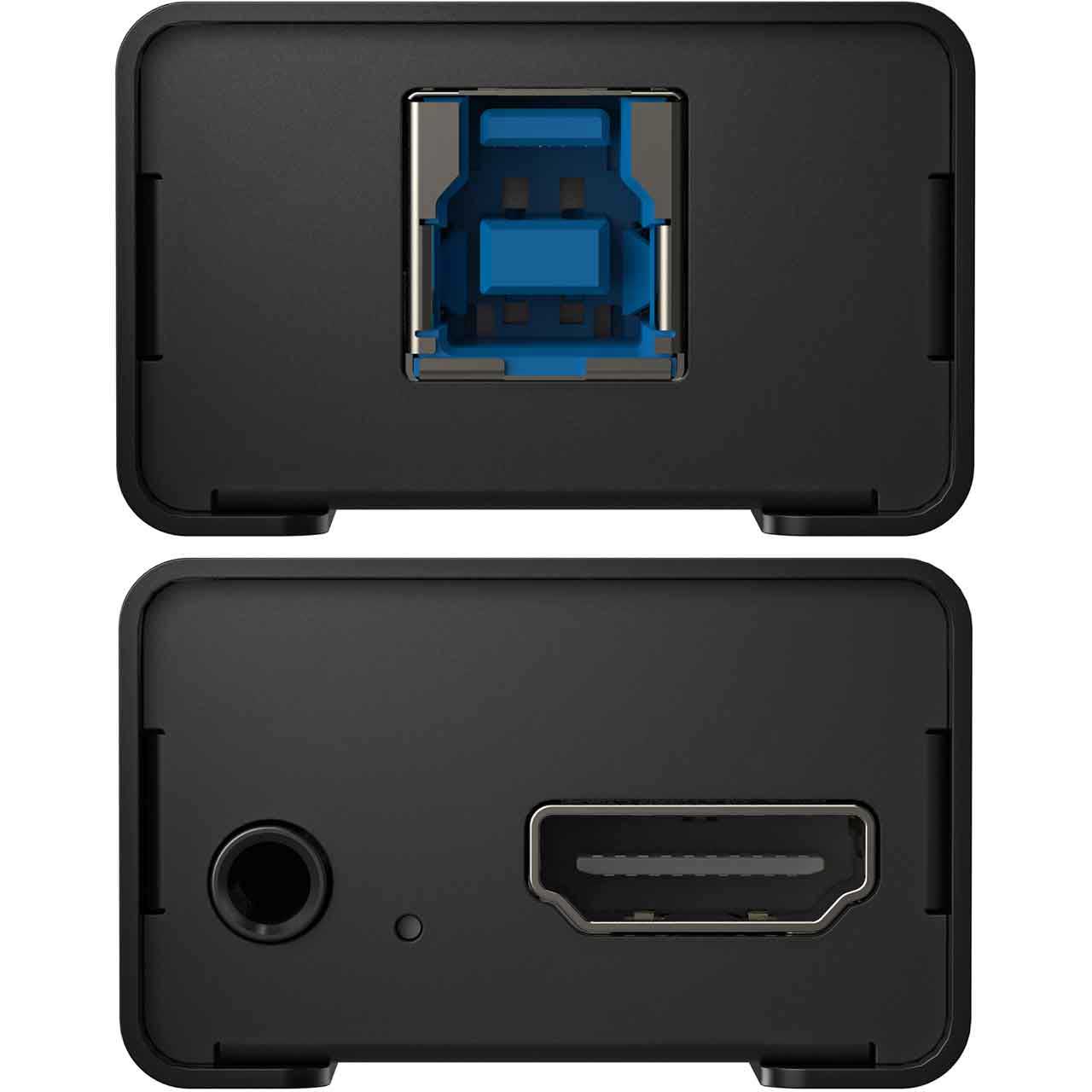

        UVC-01 Specifications
      • Video
      • Input Connectors: HDMI IN connector: HDMI type A *Multi-format Supported *HDCP Not Supported
      • Output Connectors: USB STREAM port: USB 3.0 B type
      • Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz) *The refresh rate is the maximum value of each resolution. *Conforms to VESA DMT Version 1.0 Revision 11.
      • USB Video Output Format/Resolution: YUY2 (Uncompressed)/1920x1200, 1920x1080, 1680x1050, 1600x1200, 1600x900, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1152x864, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 320x240 *The maximum frame rate is 60 fps.

        Audio
      • Audio Formats: HDMI IN connector: Linear PCM, 48kHz/44.1kHz, 24bits/20bits/16bits, stereo; USB STREAM port: Linear PCM, 48kHz, 16bits, stereo
      • Input Connectors: HDMI IN connector: HDMI type A
      • AUX IN jack: Stereo miniature phone type
      • Output Connectors: USB STREAM port: USB 3.0B type
      • Nominal Input Level: AUX IN jack: -10dBu (Maximum input level: +8dBu)
      • Input Impedance: AUX IN jack: 10kohms
      • Power Supply: Supplied from the computer via USB
      • Current Draw: 500mA
      • Operation Temperature: 32° to 104°F
      • Dimensions (WxDxH): 3.54 x 1.46 x 0.90"
      • Weight: 0.21Lbs

    • Item Includes:

      • 1x V-1HD+ Video Switcher
      • 1x UVC-01 Encoder
      • 1x Owner's Manual
      • 1x USB 3.0 Cable

    • GTIN:

      0761294224410
