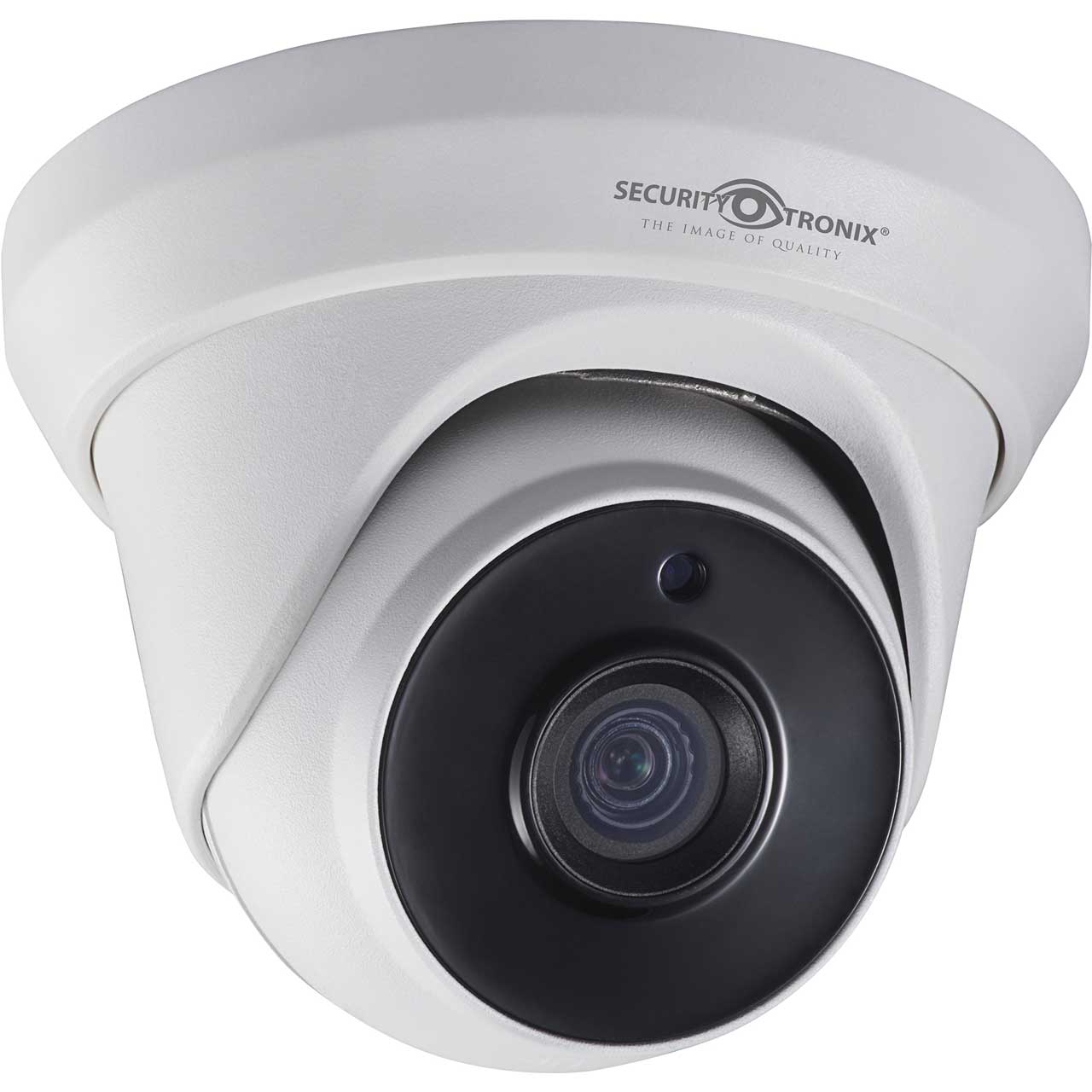

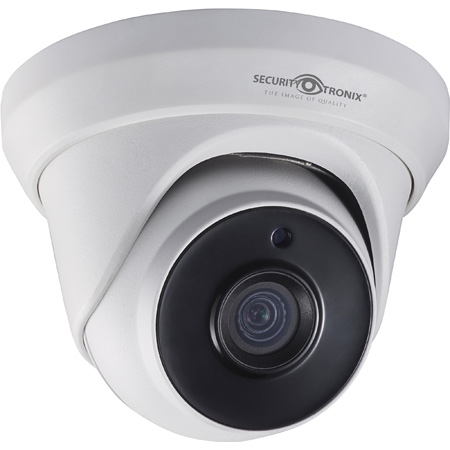

SecurityTronix ST-HDC2FTD-2.8 2MP HD-TVI Fixed Lens Turret Dome Camera

ITEM #: SCT-ST-HDC2FTD28 MFG #: ST-HDC2FTD-2.8

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SCT-ST-HDC2FTD28

ST-HDC2FTD-2.8 - Overview

The SecurityTronix HD-COAXINATOR™ TVI ST-HDC2FTD-2.8 Turret Dome camera with a fixed 2.8mm lens has grown quite popular due to the ease of installation. The 3 axis dome can be mounted vertically or horizontally. Uses the same coaxial cable, connectors, and power plugs as a traditional analog camera system making it as easy to install as traditional analog but delivers resolution like IP without video latency or other complexities found when dealing with IP based systems. Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR (digital video recorder) and analog cameras with HD-COAXINATOR™ TVI cameras and recorders. Power supply not included.

  • Features:

    • 2MP High Resolution
    • Incorporates HD-TVI to provide HD 1080p video over coaxial cable
    • 3.6mm or 2.8mm Fixed lens
    • True Day/Night
    • Smart IR
    • IR Distance up to 131 Feet
    • On Screen Display menu
    • IP66 Weather rating


  • Specifications:

    • Camera
    • Image Sensor: 2MP CMOS Image Sensor
    • Effective Pixels: 1928(H) x 1088(V)
    • Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on
    • Shutter Time: 1/25s to 1/50,000s
    • Lens: 3.6mm or 2.8mm Fixed lens
    • Lens Mount: M12
    • Angle Adjustment: Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0-360°
    • Day & Night: ICR
    • Synchronization: Internal synchronization
    • Video Frame Rate: 1080p@25fps/1080p@30fps
    • HD Video Output: 1 turbo HD output
    • S/N Ratio: More than 62dB

      Menu
    • AGC: Supported
    • D/N Mode: Color/BW/Smart IR
    • White Balance: Auto/Manual
    • BLC: Supported
    • Functions: Wide Dynamic Range, Digital noise reduction, Mirror, Smart IR

      General
    • Working Temperature: -40° to 140°F (-40° to 60°C)
    • Humidity: 90% or less (non-condensing)
    • Power Supply: 12 VDC (not included)
    • Power Consumption: Max. 5W
    • Weather Proof Ratings: IP66
    • IR Range: Up to 131 Feet
    • Communication: Up the coax
    • Dimensions: 4.33 x 3.67" (110 x 93.2mm)
    • Weight: (approx.): 0.77Lbs (350g)
