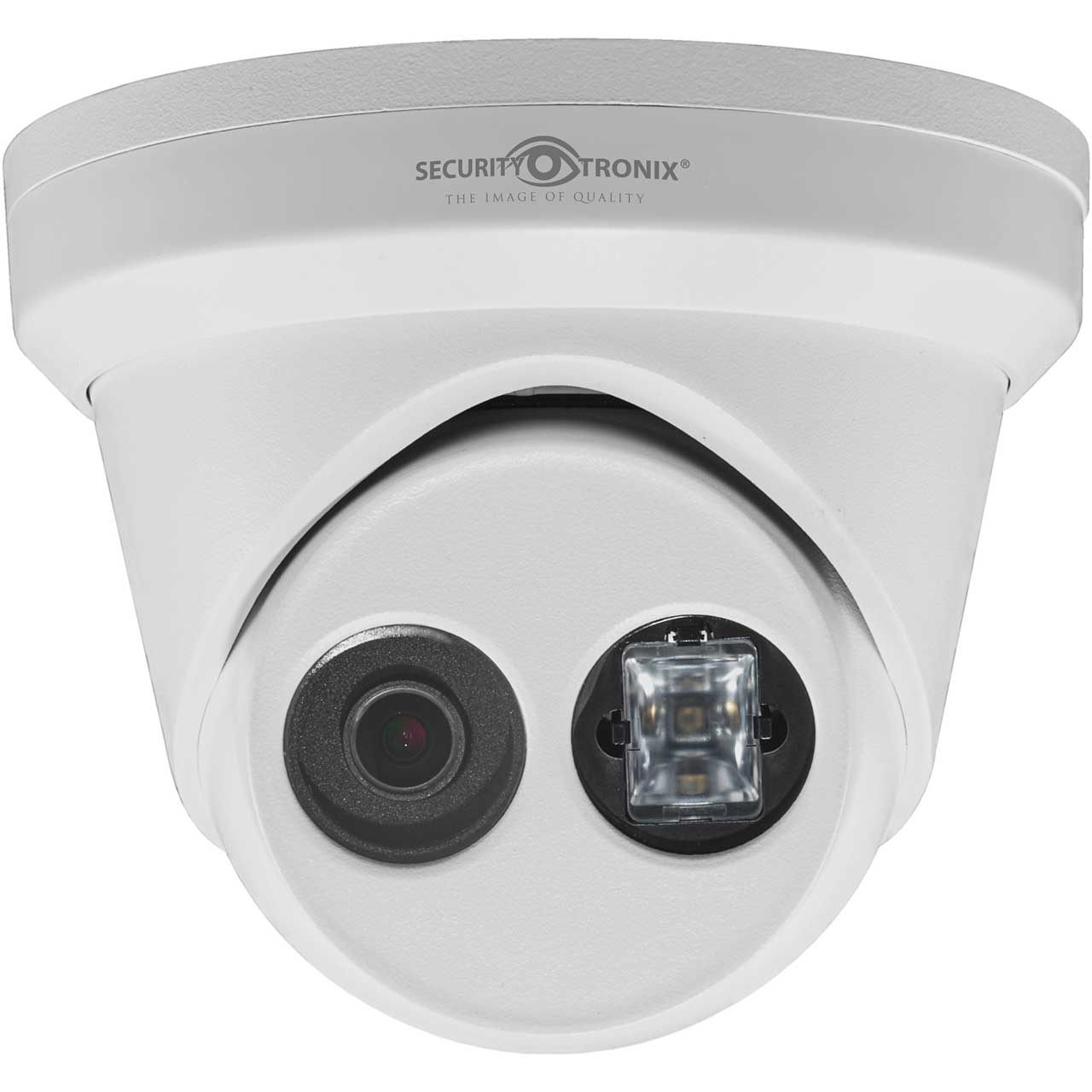

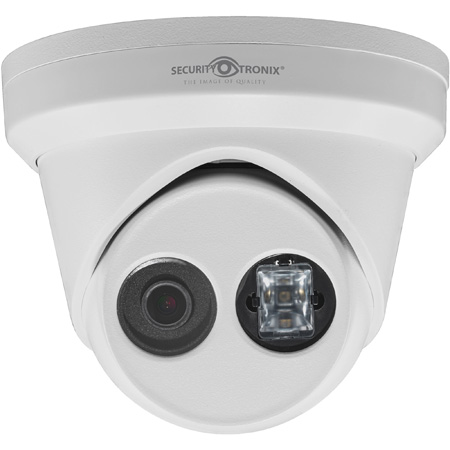

SecurityTronix ST-IP4FTD 4MP IP Fixed Lens Turret Dome Camera - White

ST-IP4FTD - Overview

• Features:

  • Up to 4 megapixel high resolution
  • Full HD 2560 x 1440 @ 30fps video
  • Three streams
  • 2.8mm fixed lens
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • Backlight Compensation
  • Region of interest
  • DC12V & PoE
  • H.265+, H.265, H.264+, H.264
  • High performance EXIR LED
  • Up to 98’ IR range
  • 3-axis adjustment
  • IP67 weather-proof protection
  • 2 Behavior analysis and face detection
  • Micro SD/SDHC/SDXC card slot up to 128 GB


• Specifications:

  • Camera
  • Image Sensor: 1/3" Progressive Scan CMOS
  • Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Lens: 2.8mm or 4.0mm
  • 2.8mm Lens FOV: 2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
  • 4.0mm Lens FOV: 4.0 mm: horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
  • Lens Mount: M12
  • Day & Night: IR cut filter
  • Digital Noise Reduction: 3D DNR
  • Wide Dynamic Range: 120dB
  • Pan & Tilt: Rotation Pan: 0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360°
  • Video Compression:
    Main Stream: H.265 / H.264
    Sub-Stream: H.265 / H.264 / MJPEG
    Third Stream: H.265 / H.264
  • Video Compression: H.264 / MJPEG / H.264+
  • Video Bit Rate: 32 Kbps – 16 Mbps
  • Behavior Analysis: Line crossing detection, intrusion detection
  • Face Detection: Yes
  • Region of Interest: 1 fixed region for main stream and sub-stream

  • Max. Image Resolution: 2560 x 1440
  • Frame Rate:
    Main Stream: 50Hz:25fps (2560 x 1440, 2304 x 1296, 1920 x 1080) 60Hz: 30fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
    Sub-Stream: 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
    Third Stream: 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
  • Day & Night: switch Auto / Schedule
  • Image Settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • Image Enhancement: BLC / 3D DNR
  • ROI: Supported

    Network
  • Network Storage: Supports Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm Trigger: Motion Detection, Tampering alarm, Network disconnect , IP address conflict, Storage exception, illegal login, HDD full, HDD error
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
  • General: One-key reset, anti-flicker, three streams, Flash-prevention, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
  • Standard: ONVIF (Profile S, Profile G), ISAPI
  • Client: Central management software
  • Simultaneous Live View: Up to 6 channels
  • User & Host: Up to 32 users, 3 levels: administrator, operator and user
  • Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

    Interface
  • Communication Interface: 1 RJ45 10M/100M Ethernet interface
  • On-Board Storage: Built in micro SD/SDHC/SDXC slot up to 128GB
  • Reset: Yes

    General
  • Operating conditions: -22° to 140°F (-30° to 60°C)
  • Humidity: 95% or less (non-condensing)
  • Power supply: 12 VDC ± 25%, 5.5mm coaxial power plug, PoE (802.3af, class 3) (not included)
  • Power Consumption: 12 VDC, 0.5A, max. 6W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
  • Protection Level: IP67, IK10
  • TVS: 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • IR Range: Up to 98 Feet
  • Dimensions: 5.0 x 3.8" (127.3 x 95.9mm)
  • Weight: 1.3Lbs (610g)
