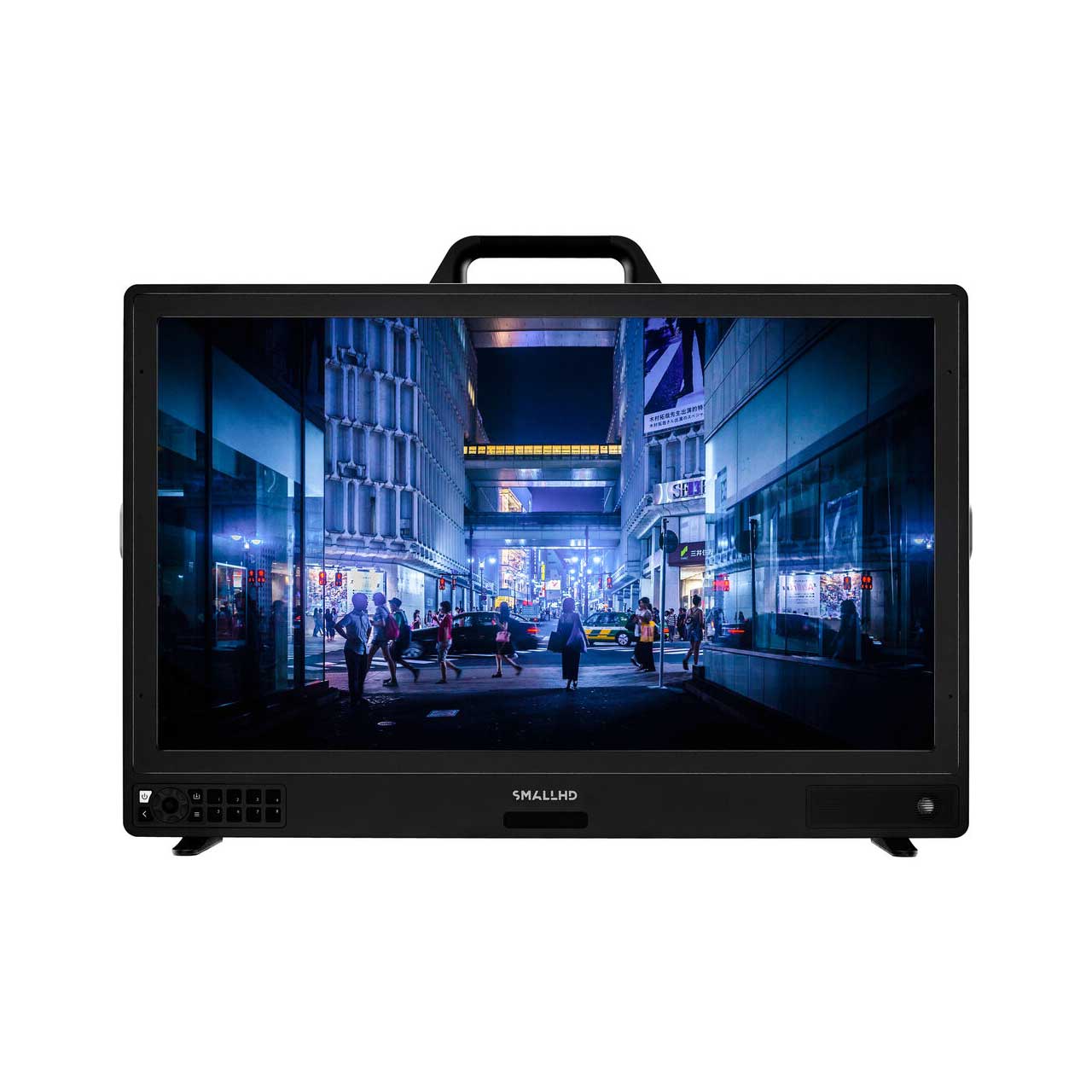

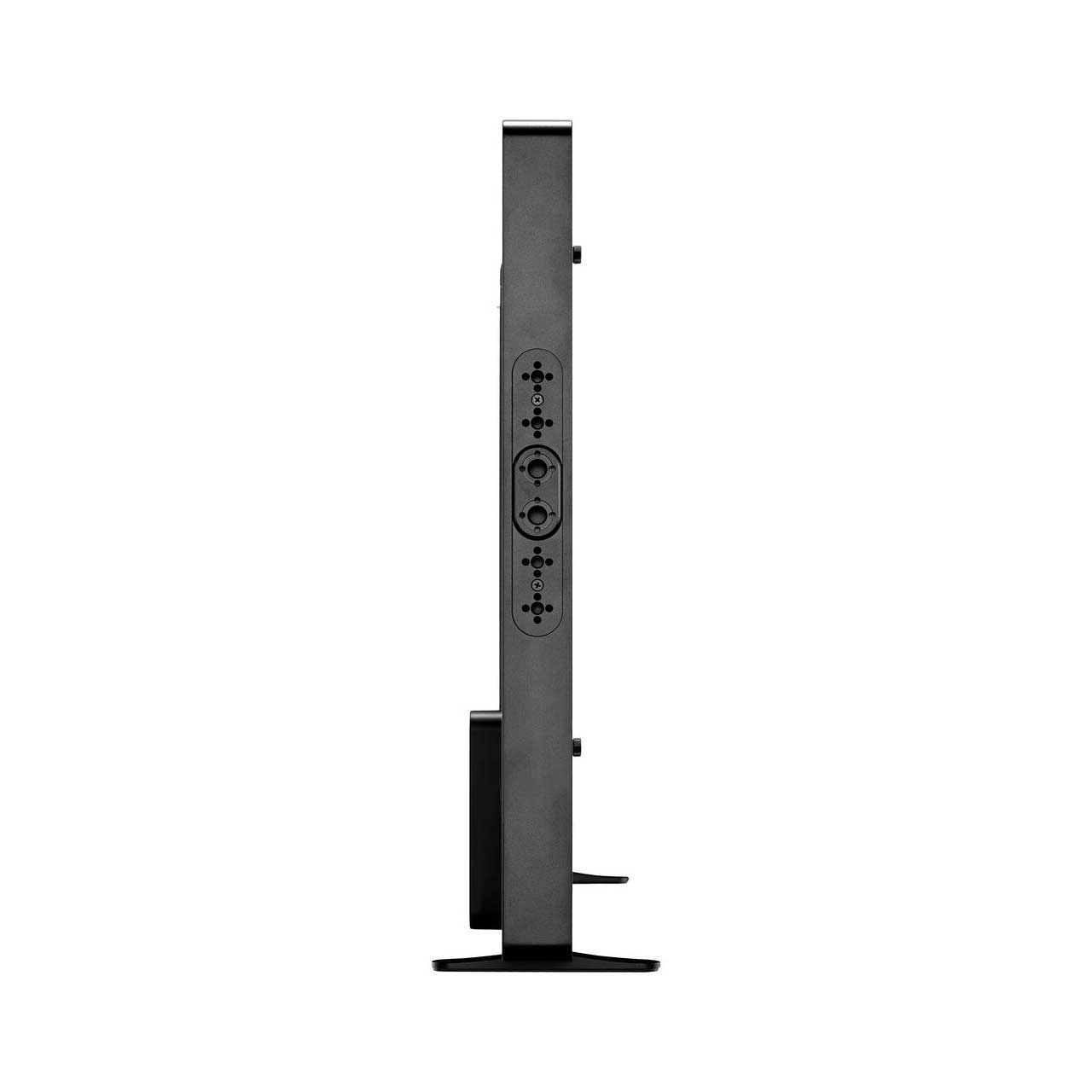

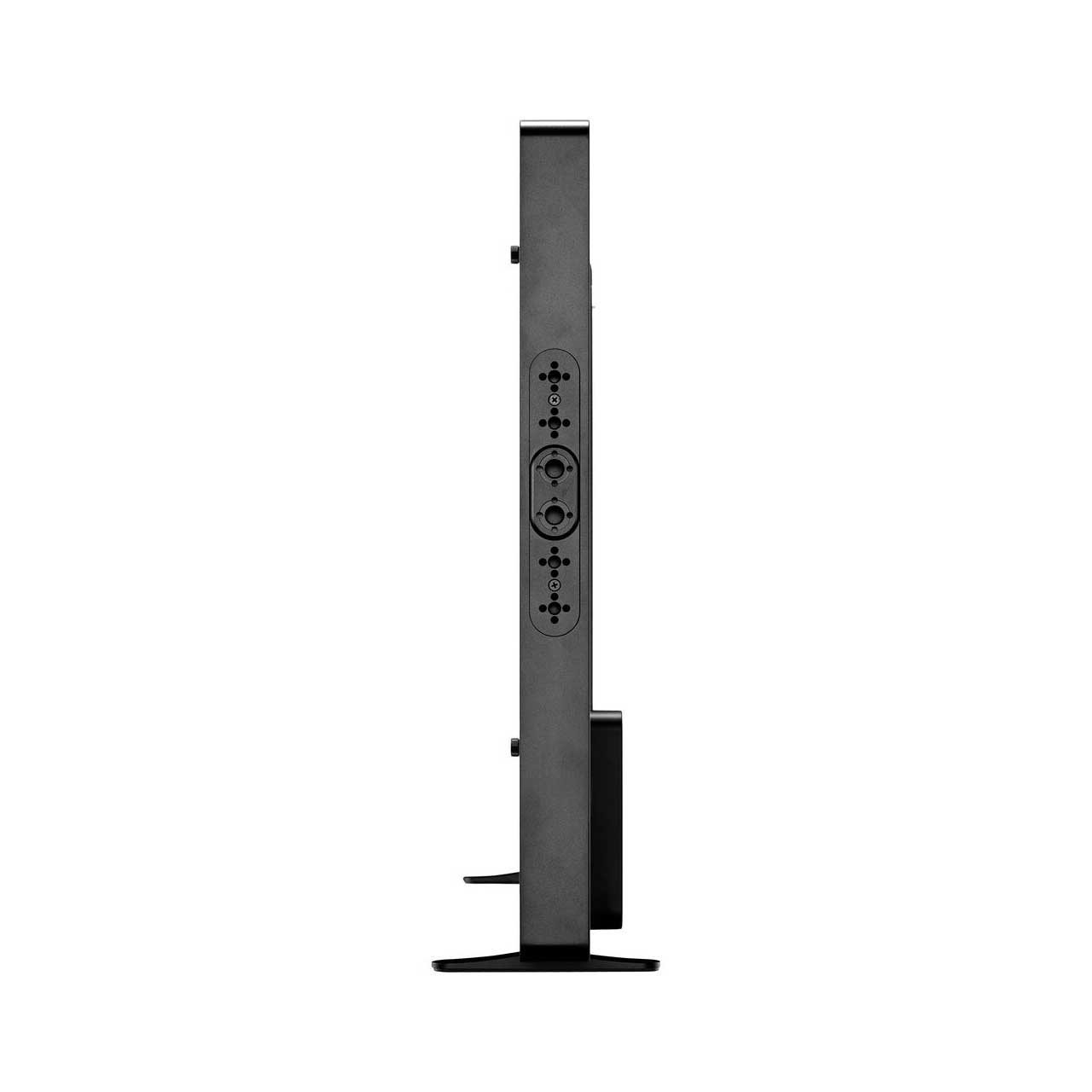

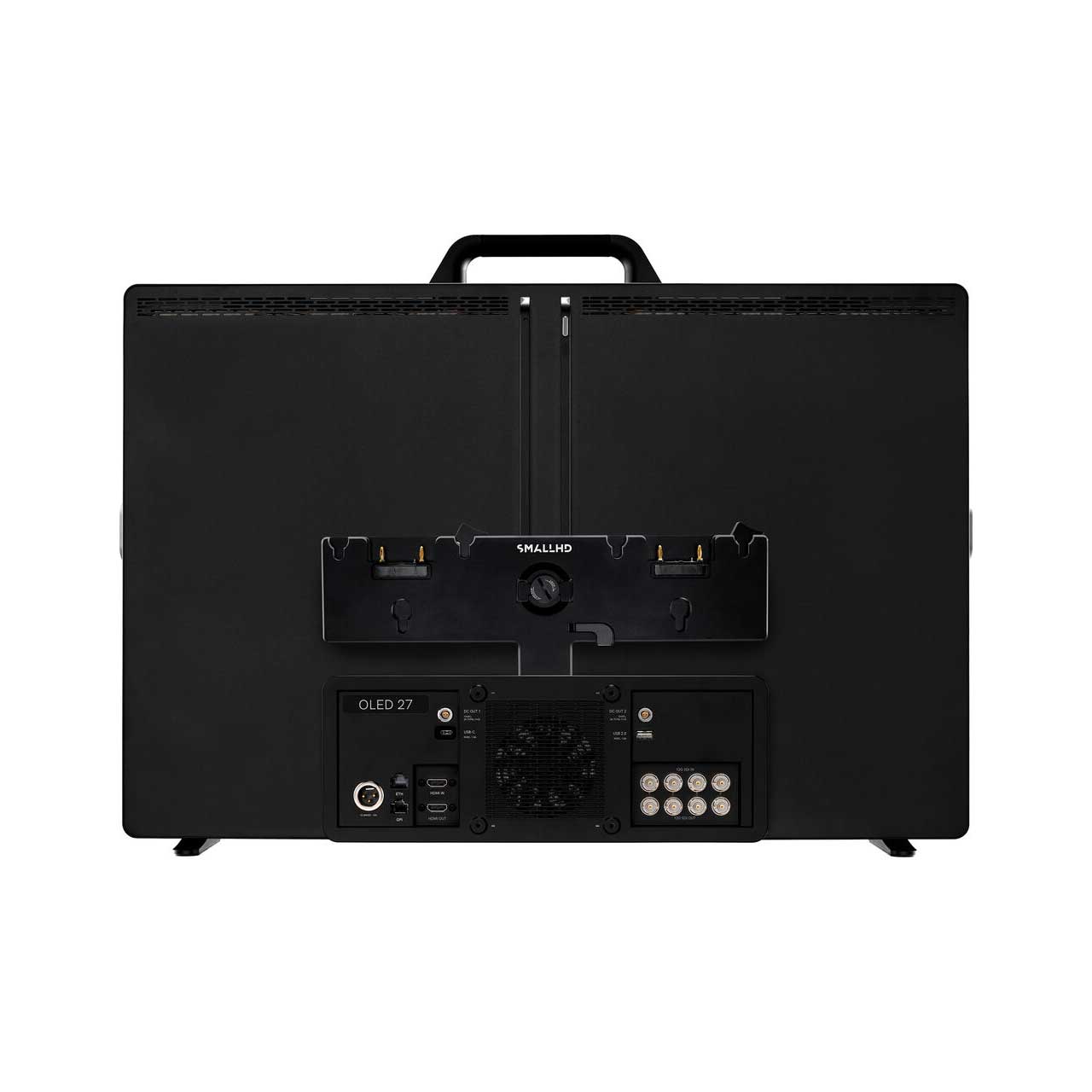

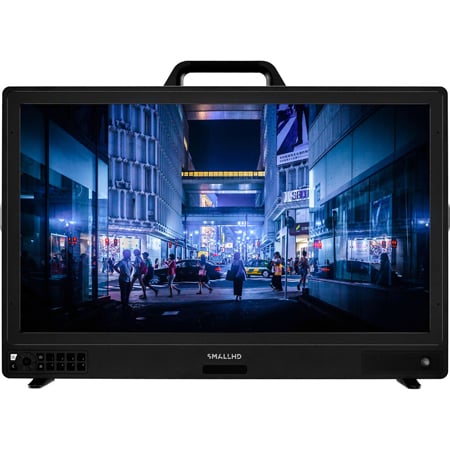

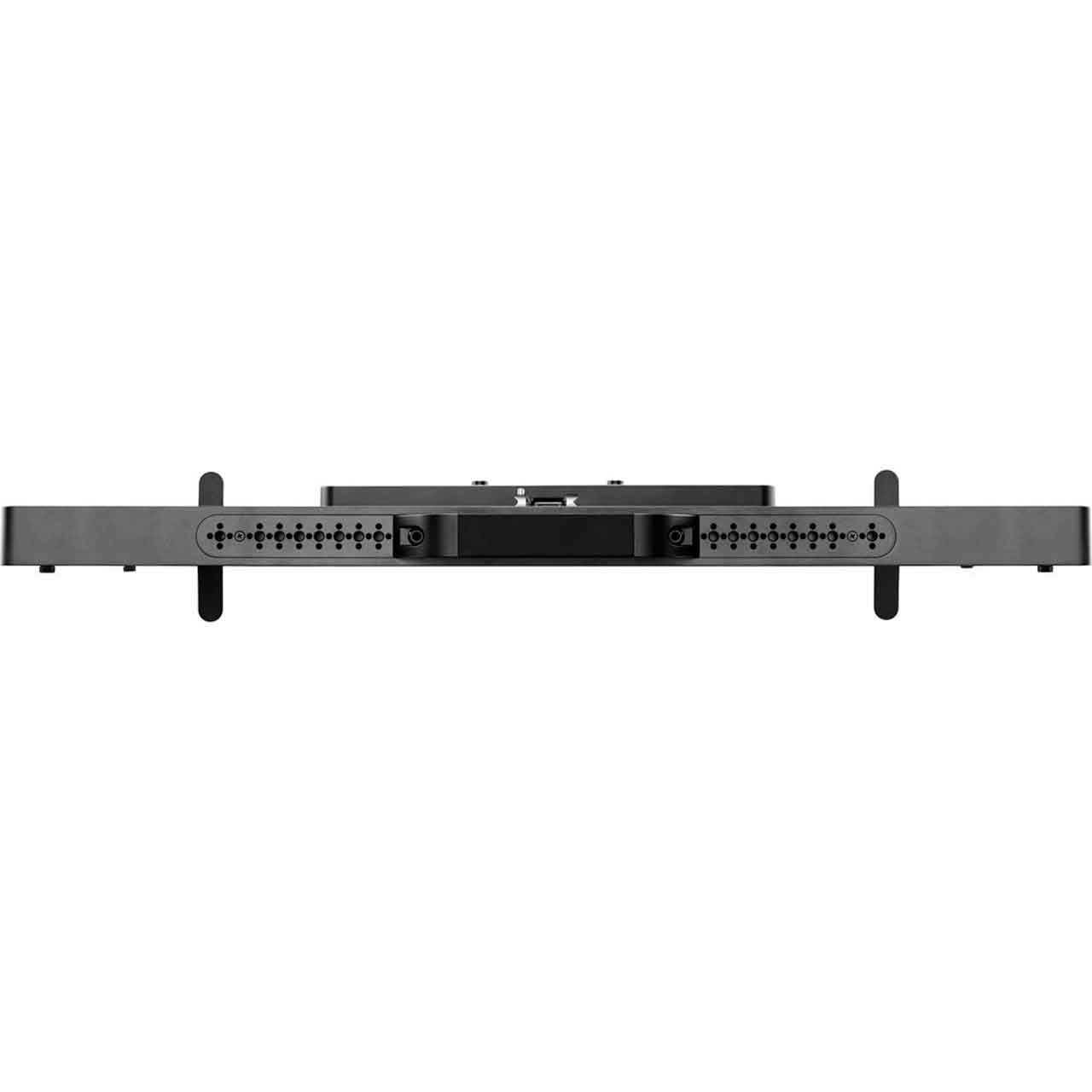

SmallHD OLED 27-Inch 4K Reference Monitor - 12G SDI & HDMI 2.0 - True 10-bit - Up to 550nits

ITEM #: SMHD-MON-OLED-27 MFG #: 16-2701

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$11,999.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    16-2701 - Overview

    The SmallHD OLED 27 is their brightest and largest 4K OLED reference monitor yet, offering the best combination of premium color-accuracy and lightweight, set-ready portability you'll find in any workflow. OLED 27 delivers up to 550nits of brightness and a 1,000,000:1 contrast ratio for previewing HDR on set, as well as 10-bit, true-to-life color accuracy with 110%DCI-P3 & 135% Rec. 709 color gamuts for precise grading in the suite. OLED 27 is Bolt 4K-compatible and comes with PageOS, the powerful software toolset designed for simplicity and speed up to 4K resolution with features including Waveform, Vectorscope, Color Pipe HDR color-rendering, Monitor Calibration Wizard, and more. If you demand OLED-quality image and color that's equally at home on location or in post, then this is the monitoring solution for you.

    • Specifications:

      • Display
      • Diagonal Size: 26.9
      • Resolution: 3840x2160
      • Brightness: Up to 550nits
      • Contrast: 1,000,000:1
      • Gamut: 100% DCI-P3
      • Color Depth: True 10-bit
      • Backlight Type: OLED
      • Display Size: 27"
      • Panel Resolution: 3840 x 2160
      • Color Bit Depth: True 10-bit

        Input Signal
      • 12G-SDI Input Types: 4x 12G-SDI
      • HDMI Input Types: 1x HDMI 2.0 (4K60)

        Output Signal
      • 12G-SDI Output Types: 4x 12G-SDI
      • HDMI Output Types: Coming Soon
      • Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack (coming soon)

        Power
      • Input: 1x 3-pin XLR (142W max, 12V-34V, 12A max)
      • Output:
        2x 2pin (12V/2A combined)
        1x USB (2.4A) (Front)
        1x USB (1.5A) (Front)
        1x USB-C (5V/1.5A)
      • Battery Plate Included: No
      • Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)

        Data I/O Connector Type:
        1x SD Card Slot
        1x RJ45 Ethernet
        1x RJ45 GPI

      • Weight: 13.16lbs (5.97kg)

    • Item Includes:

      • 1x OLED 27 4K Reference Monitor
      • 1x 3ft HDMI cable
      • 1x 24V Power Supply
      • 1x Cleaning cloth

    • GTIN:

      0811786033157
