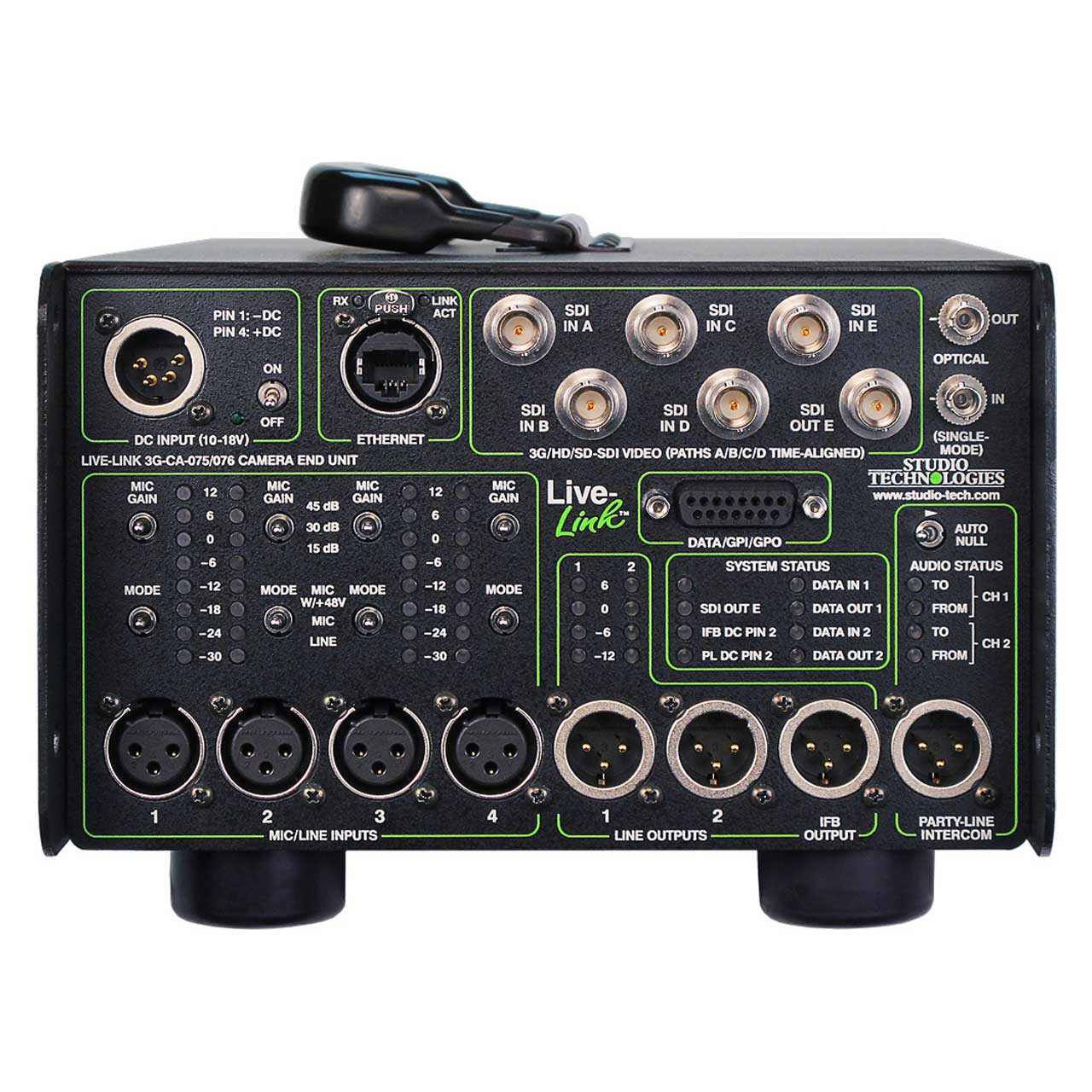

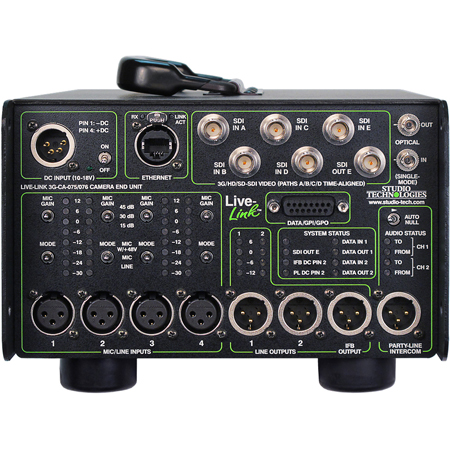

Studio Technologies LL-3G-CA-076 Live-Link Sr. Rack-Ready Camera End Unit Version with two ST Optical Connectors

LL-3G-CA-076 - Overview

• Features:

  • Transports digital video, audio, and data over two single-mode ST optical fibers
  • Supports standard 3G/HD/SD-SDI digital video formats
  • Four mic/line inputs with selectable gain and +48 V phantom power
  • Two line-level audio paths for IFB or general-purpose use
  • Party-line intercom interface with 28 V beltpack power
  • 2-wire-to-4-wire auto nulling hybrids for excellent intercom audio
  • 10/100/1000 (Gigabit) Ethernet
  • RS-232 and RS-422 for camera control
  • Available with Neutrik opticalCON DUO for fast, reliable fiber connectivity
  • Anton/Bauer® battery mount standard on both units
  • Low power consumption allows extended battery operating time
  • Industry-standard connectors for all inputs and outputs


• Specifications:

  • Live-Link Sr. "07X" Series Control Room Specifications
  • Optical Connector(s): two ST (UPC polish), factory installed, selectable at time of order
  • Digital Video Inputs: 1
  • Connector: BNC
  • Type: unbalanced
  • Impedance: 75 ohms
  • Digital Video Outputs: 5
  • Connector: BNC
  • Type: unbalanced
  • Impedance: 75 ohms
  • Level: 800 mV p-p
  • Mic/Line Audio Outputs: 4
  • Connector: 3-pin male XLR
  • Type: electronically balanced
  • Impedance: 100 ohms
  • Level: +4 dBu nominal, +24 dBu maximum
  • Line-Level Audio Inputs: 2
  • Connector: 3-pin female XLR
  • Type: electronically balanced
  • Impedance: 10 k ohms
  • Level: +4 dBu nominal, +24 dBu maximum
  • 4-Wire Intercom Version–Audio Inputs: 2
  • Connector: 3-pin female XLR
  • Type: electronically balanced
  • Impedance: 10 k ohms
  • Level: +4 dBu nominal, +24 dBu maximum
  • 4-Wire Intercom Version–Audio Outputs: 2
  • Connector: 3-pin male XLR
  • Type: electronically balanced
  • Impedance: 100 ohms
  • Level: +4 dBu nominal, +24 dBu maximum
  • Party-Line (PL) Intercom Interface Version: 1, 2-channel
  • Connector: 3-pin male XLR
  • Type: 2-wire party-line (PL)
  • Audio Level: –10 dBu nominal
  • Power Source and Impedance: 28 VDC nominal, 315 mA maximum, 200 ohms, selectable on/off
  • Compatibility: single- and dual-channel intercom systems such as those from RTS® and Clear-Com®
  • Dimensions (Portable w/protective bumpers/handle) (WxHxD): 8.36 x 6.54 x 13.33" (21.2 x 16.6 x 33.9cm)
  • Dimensions (Rack-Ready w/protective bumpers/handle) (WxHxD): 8.36 x 5 x 12.60" (21.2 x 12.7 x 32cm)
  • Weight (Portable): 10.9Lbs (5.0 kg)
  • Weight (Rack-Ready): 7.7Lbs (3.5kg)

    Ethernet
  • Connector: RJ45 (auto MDI/MDI-X)
  • Rate: 10/100/1000 auto sensing
  • RS-232, RS-422, GPI, GPO, and Auxiliary Power Source:
  • Connector: 15-pin D-subminiature female (DA-15F)

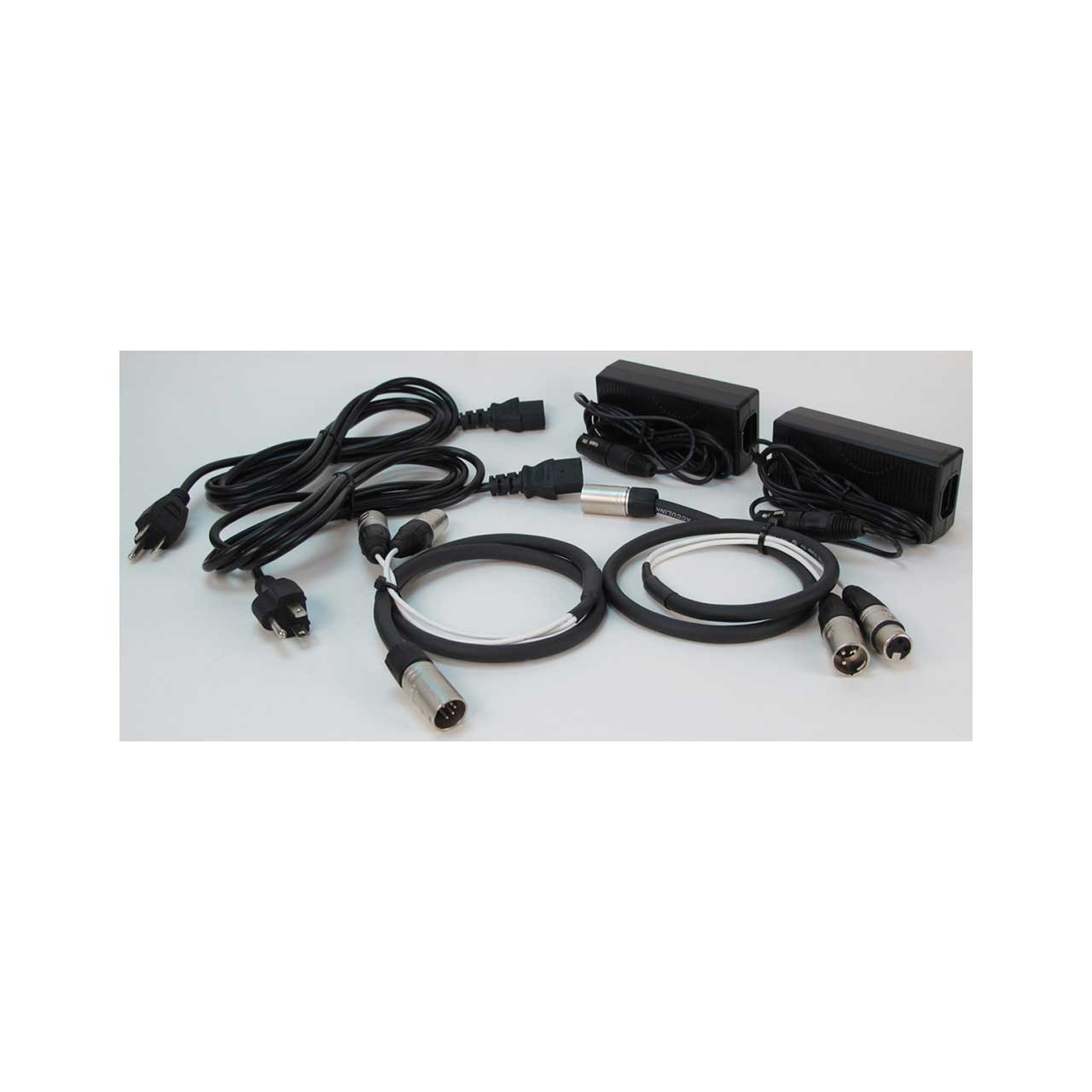

    Power
  • DC Input Range: 10 to 18 V
  • Requirement: 20 watts maximum
  • DC Input Connector: 4-pin male XLR
  • Battery Mount: Anton/Bauer Gold Mount System (Portable Version only) (V-Mount optional)
  • Specifications subject to change without notice.
