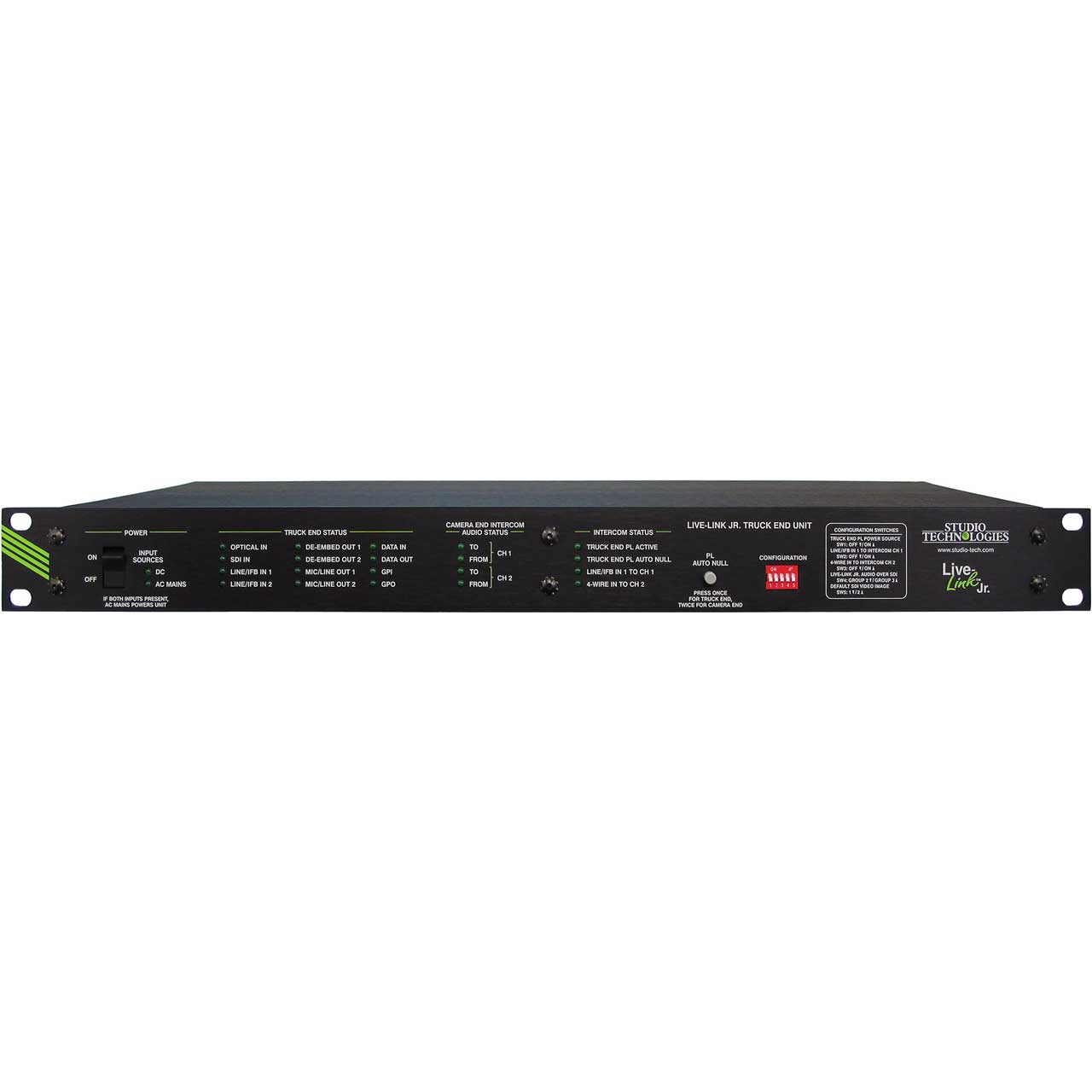

Studio Technologies LLJR-TE-106 Live-Link Jr. is a Truck End Unit with 1 ST Connector. Live-Link™ Jr. is a highly-integrated camera extender system optimized for electronic news gathering (ENG), uplink truck, and specialized broadcast applications. The portable camera end unit and rack-mounted truck end unit provide all the resources needed for a single-camera live event. Linked using just two single-mode optical fibers, the same excellent performance will be supplied whether the units are hundreds of feet or miles apart. Notable features of the Live-Link Jr. system include performance flexibility, support for high-quality on-air (program), talent cue (IFB) and intercom audio, and ease of use. Live-Link Jr. interconnects using two strands of single-mode fiber-optic cable (not included) and provide support for the following:
Digital Video: one 3G/HD/SD-SDI send (camera to truck) and one 3G/HD/SD-SDI return (truck to camera)
Mic/Line Audio: two analog mic/line sends (camera to truck) with selectable gain and 48 V phantom power
Line/IFB: two analog line-level audio returns (truck to camera) and one 2-channel IFB output (camera) with 28 V beltpack power
Intercom: integrated 2-channel system; party-line (PL) with 28 V beltpack power and auto nulling on Camera End and Truck End, single-channel 4-wire interface on Truck End
Data/Remore Control: one RS-422 and one GPI/GPO
Powering: Camera End powered by 12 VDC, battery or 10-50 VDC via a hybrid fiber/copper connector; Truck End powered by 100-240 V, 50/60 Hz or 12 VDC
The Camera End units are portable and include an enclosure with Anton/Bauer battery mount system (contact factory for V-Mount availability), handle, and rubber feet. Also included is a universal input (100-240 V, 50/60 Hz)/12 VDC output power supply. Available with opticalCON DUO or ST fiber-optic connectors. Truck End units mount in one space (1U) of a standard 19-inch equipment rack. Includes ST fiber-optic connectors.
