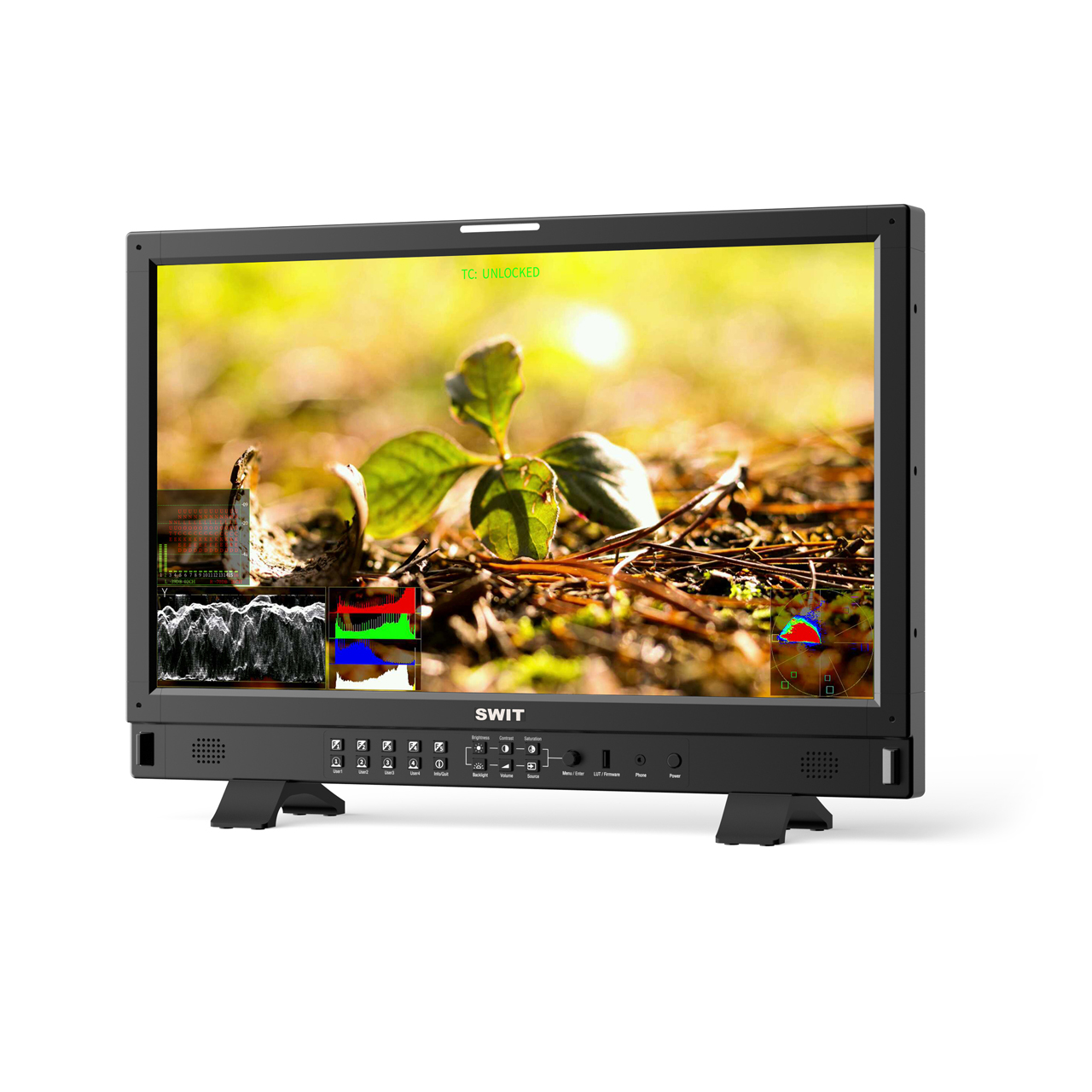

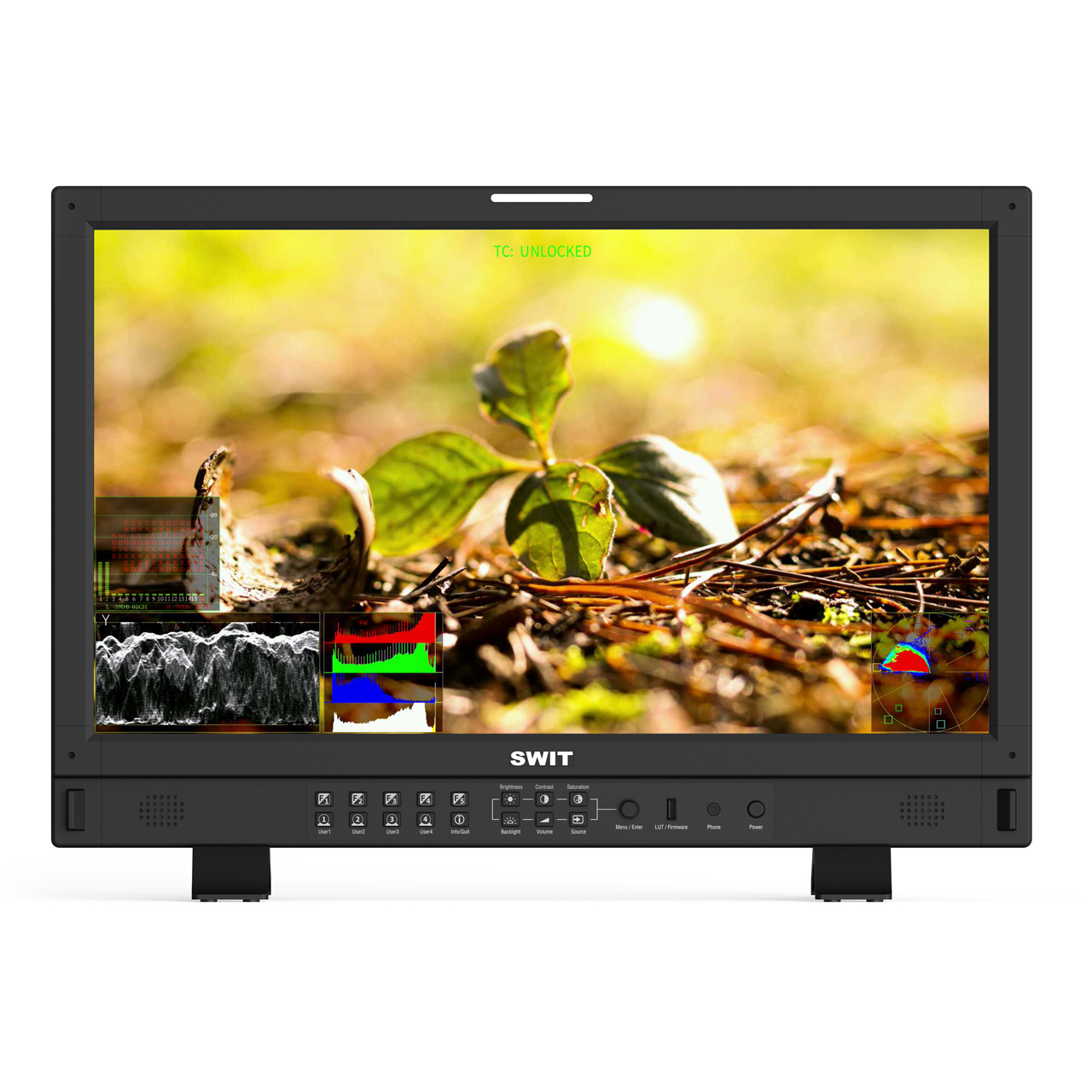

The SWIT BM-U245HDR is a 23.8" UHD 4K/8K HDR Reference monitor with 3840x2160 resolution & 1000nits brightness. It has four 12GSDI input and loop out, and one HDMI2.0 input (4K60p). The monitor supports multiple 4K/8K interfaces, a Single link 4K input including 12GSDI, HDMI2.0 and Quad link 4K (four 3G-SDI 4K) or Quad link 8K (four 12G-SDI) inputs. The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode. It also supports four independent 4K video inputs to multiview supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
BM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring. It also supports multi CG & EOTF viewing, and 1 input source can be quadviewed and displaying different HDR/SDR and color gamut simultaneously, give user a quick reference when producing image with both HDR and SDR settings.

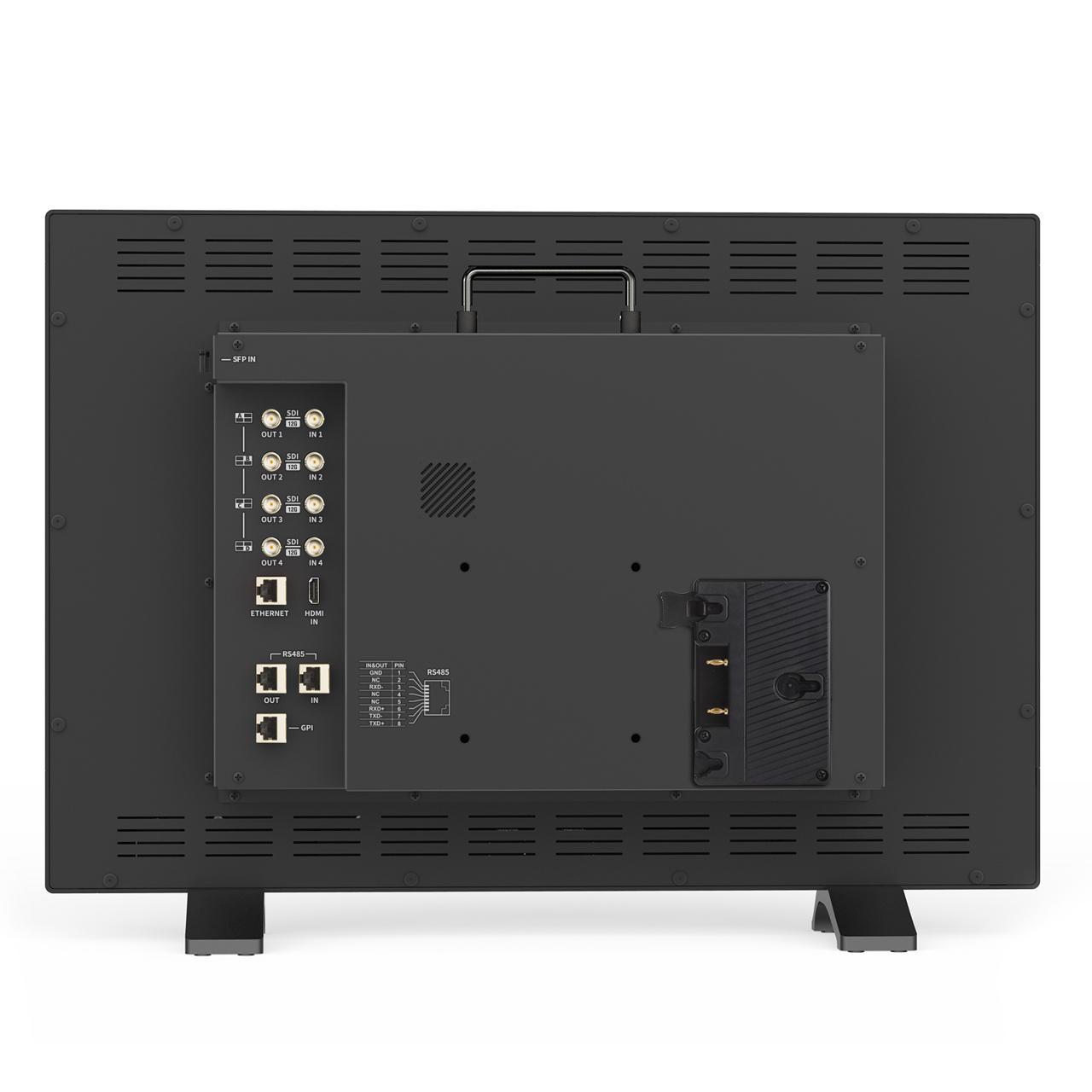

The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc. The User 3DLUTs can be uploded to monitor via USB port support 17x17x17 3DLUT cube files. BM-U245HDR monitors features multi video analysis patterns, such as Waveform/Vector/Histogram/Focus Assist/False Color/Zebra. The monitor supports IP remote control via LAN(RJ45) connection, using PC to remote control monitor settings. BM-U245HDR consumes 120W power, supports both AC 100V - 240V input, 4-pin XLR DC 12V - 17V input, and a Gold mount battery plate on the rear panel.
Multi 4K/8K Interfaces
Four 12G-SDI inputs and outputs, supports Single link 4K; Quad link 4K and Quad link 8K (supports both Quad mode and 2SI interleave mode); HDMI 2.0 (4K60P); 12G-SDI via SFP Fiber (Optional); ST2110 IP via SFP Fiber (Optional)
Display Mode
Supports four independent 12G/6G/3G-SDI and HDMI 2.0/1.4/1.3 mixed formats video inputs to multiview(Quadview), and waveform, vector, audio meters, EOTF, color gamut selection for each input.
HDR/SDR EOTFs
BM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring
Payload ID Auto Setting
Support input video Payload ID identify and will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info
Multi CG & EOTF Viewing
Supports one input source can be quadviewed with different HDR/SDR and color gamut settings simultaneously. User can get correct reference when producing HDR and SDR together
Multiple Video Analysis Patterns
Supports waveform selection display Y/Cb/Cr/R/G/B /RGB and single line selection mode; Vector scope, R/G/B/Y Histogram, RGB/Mono Mode, Bi-color Focus Assist, Zebra and False color
Bulit-in Eye Pattern
Built-in eye pattern to check the quality of input video transmission
Audio/Video Zero Latency Processing
Less than 1/100 frame audio/video latency for 4K input source for special image processing mode for lip-sync monitoring
3DLUT Auto Self-Calibration
3DLUT Audo Self-Calibration with Built-in calibration software without PC. Supports X-rite i1 and JETI Specbos. 1211 probes directly plug into monitor USB port to doing auto calibrate. Calibration time: X-rite i1: 15min; Specbos1211: 45min
16-ch Audio Meters/Lissajous
Max 16-ch embedded audio meters display, 2-channel audio output via speaker or 3.5mm headphone socket, and with Lissajous figures, 5.1+2 surround sound patterns, and zero latency mode for lip-sync monitoring.
