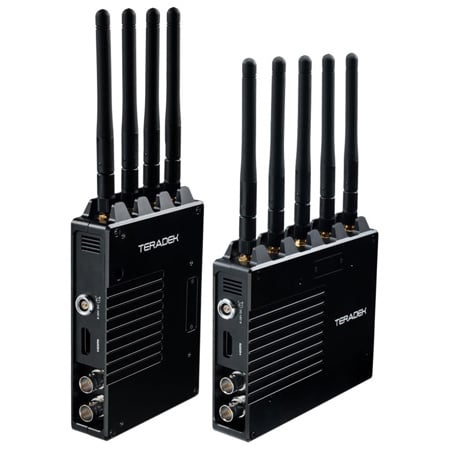

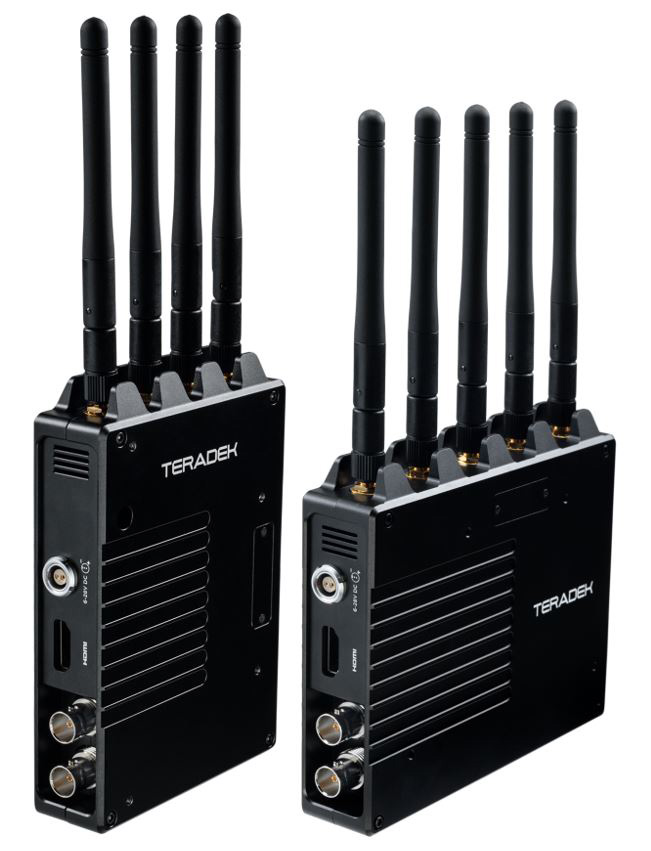

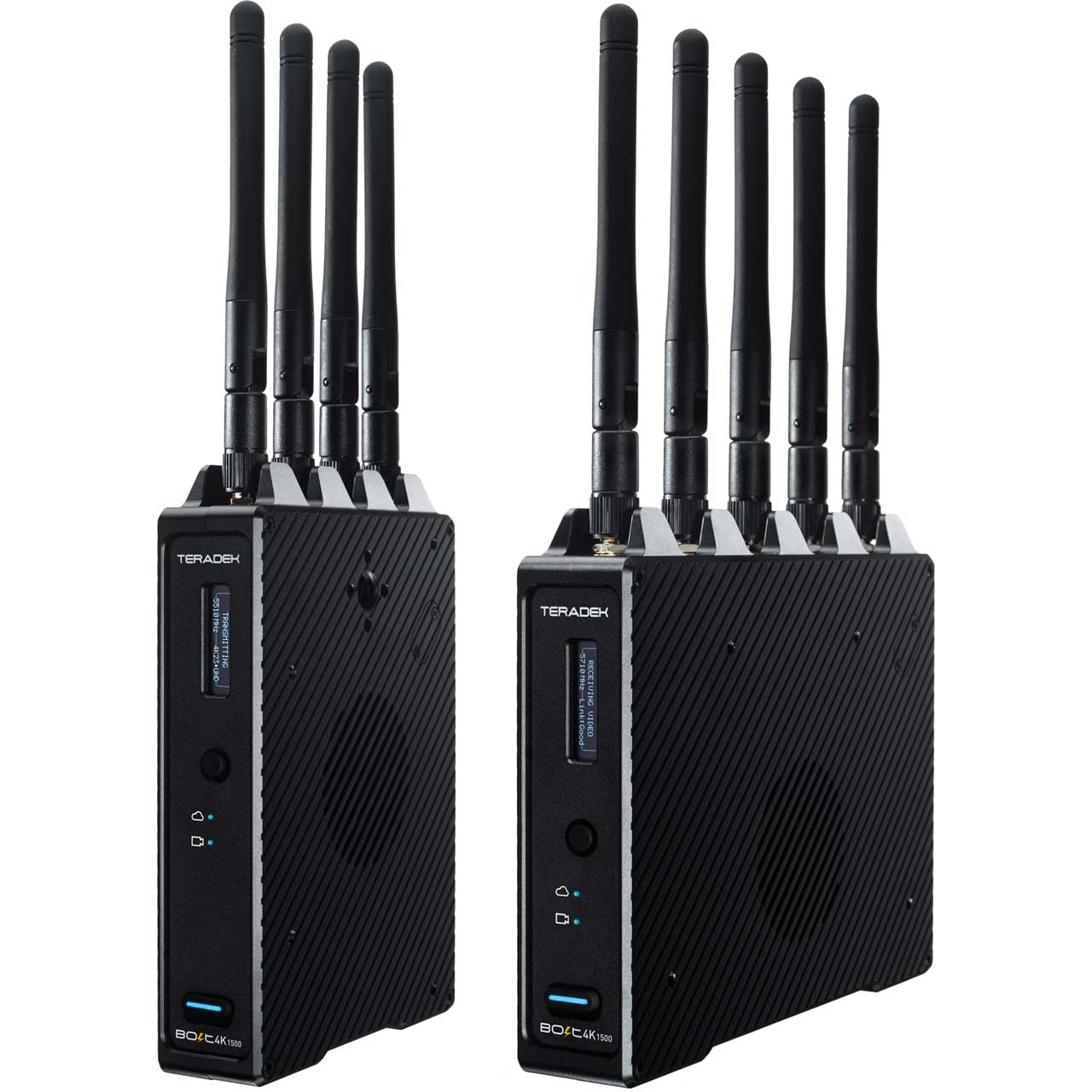

Teradek Bolt 4K 1500 Wireless Video Transmitter/Receiver Deluxe Set - Gold-Mount

ITEM #: TER-BOLT-4K-1500 MFG #: 10-2110-G

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    10-2110-G - Overview

    Recipient of Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences.

    Teradek's Bolt 4K 1500 defines a revolutionary new category of wireless video technology, delivering uncompressed 2160p60 HDR video transmission with zero delay. Bolt 4K's exclusive technology offers 8x the signal performance and 50% more range than existing systems, making it the most robust wireless system they've ever designed.

    Teradek's patented RF technology greatly improves image quality across all resolutions and framerates, giving you finer detail and better color reproduction, even if you're at the system's maximum wireless range. Monitor every shot in stunning 10-bit 2160p with 4:2:2 chroma subsampling. For cutting-edge HDR workflows, Bolt 4K supports HLG, PQ, and HDR-10 standards.

    Bolt 4K offers the industry's best protection against prying eyes with AES-256 encryption and RSA 1024 key pairing. Combined, these two technologies ensure nobody can decrypt your wireless feed or connect another receiver to your system without explicit authorization. All Bolt 4K systems are compatible with one another and are multicast-capable to up to 6 receivers, even if they're from different model ranges.

    Transmitters feature dual 12G-SDI and HDMI 2.0 inputs, while receivers feature two 12G-SDI outputs and an HDMI 2.0 output. Bolt 4K can transport extended camera metadata, timecode, and record triggers for industry standard cameras from ARRI, RED, Sony, Canon, and more. Manage every parameter of the Bolt 4K from the convenience of your smartphone.

    Bolt 4K transmitters offer various mounting options, including an ARRI 3/8-16" Pin-Lock mounting point for camera arms, as well as an optional camera-back mount with Gold/V-Mount pass-through power. Bolt 4K receivers offer optional Gold and V-Mount battery plates with pass-through power. Both transmitter and receiver feature OLED displays. Easily access Bolt 4K settings and software features such as spectrum analyzer, channel selection, 3D LUTs and more.

    • Specifications:

      • Bolt 4K 1500 TX V Mount
      • Video Inputs: 1x 12G-SDI SMPTE 2082-1 standard / 75 Ohm (accepts 12G-SDI, 6G-SDI, or 3G-SDI), 1x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4).
      • Video Outputs: 1x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ohm.
      • Sdi Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
      • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit.
      • Input Cross Conversion: Yes, HDMI to SDI.
      • Delay Tx To Rx <0.001sec.
      • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60,1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL).
      • Video Compression: Visually Lossless.
      • Video Format Conversion Support: Connect an HD source to the Tx and get a 4K signal out of Rx, Connect a 4K source to the Tx, get HD resolution out of Rx, You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx, Input/output configurations are controlled directly on units or via Bolt 4K app.
      • Color Correction: None.
      • Audio Format: 48kHz 24-bit PCM.
      • Audio Input: Embedded SDI/HDMI Audio Input (2 Channel).
    • Item Includes:

      • 1x Bolt 1500 12G-SDI/HDMI Wireless TX Gold Mount
      • 1x Bolt 1500 12G-SDI/HDMI Wireless RX Gold Mount
      • 1x Antenna Array
      • 4x Bolt 4K Wire Cover Plate (Machined Anodized)
      • 1x Bolt 4K TX Mounting Bracket
      • 1x Lightstand Adapter 3/8in
      • 1x Hot Shoe Adaptor
      • 4x Screw FlatHead Phillips Black Oxide 18-8 S S 0-80 x 1/8in
      • 2x Screw Socket Cap A S, M3 x 16mm
      • 1x Hex L key 2.5mm size 3-5/8" length
      • 2x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
      • 1x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in Cable
      • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
      • 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
      • 5x RP-SMA Male to RP-SMA Male 4in/10cm Cable
      • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm
      • 1x Teradek Case XL - Bolt 4K TX/4RX and Antenna Array
      • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
      • 9x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
      • 1x Teradek Standard Terms and Conditions
      • 1x Insert - Product Register
      • 1x Quickstart Guide - Bolt 4K 750/1500
      • 1x Insert - Bolt 4K A/C Adapter Requirements
      • 1x Quickstart Guide - Bolt 4K Antenna Array
      • 1x Wooden Camera - Ultra Arm Monitor Mount (1/4-20 to 3/8-16, 5in)
