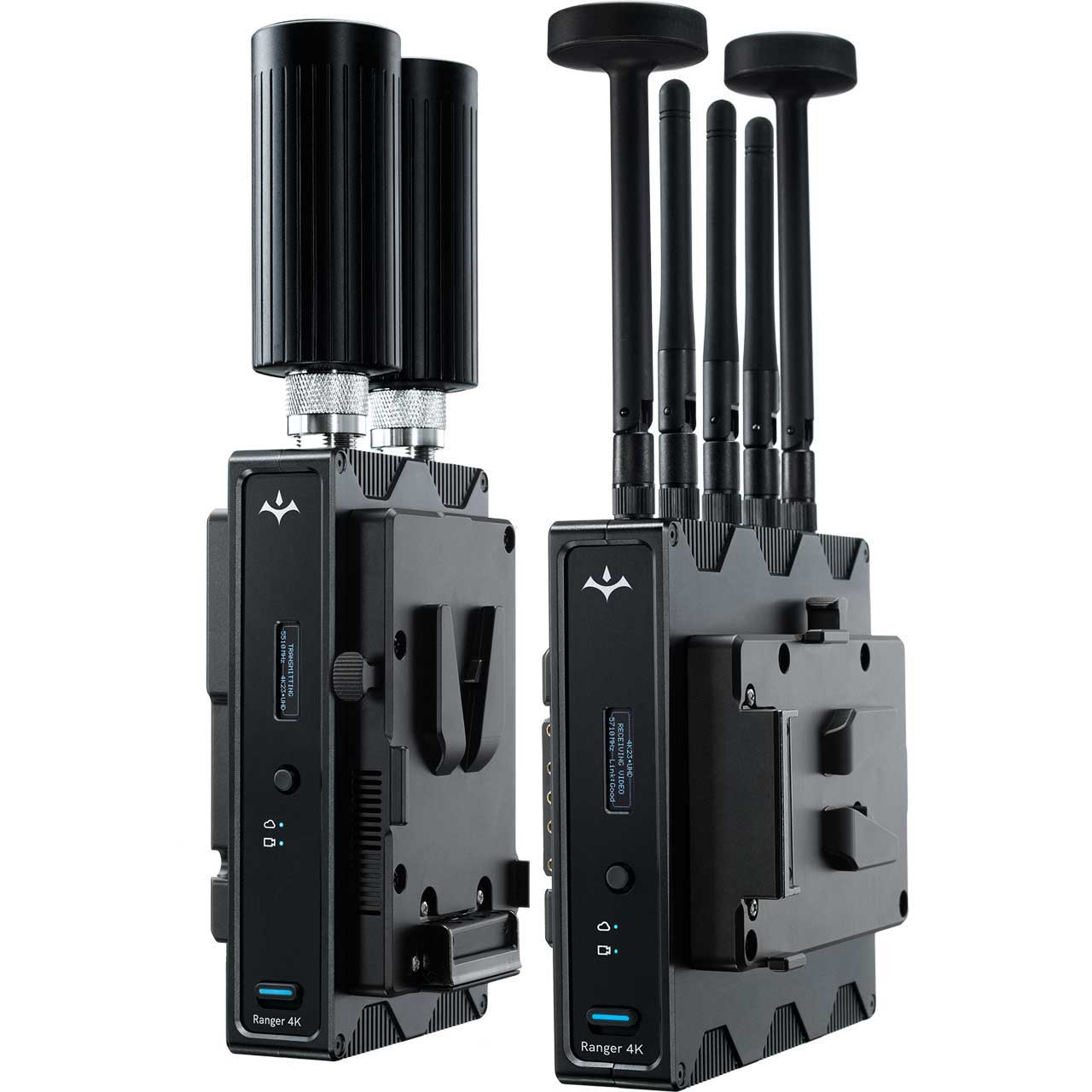

RANGER 4K TXRX SET - Overview

• Features:

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers


• Specifications:

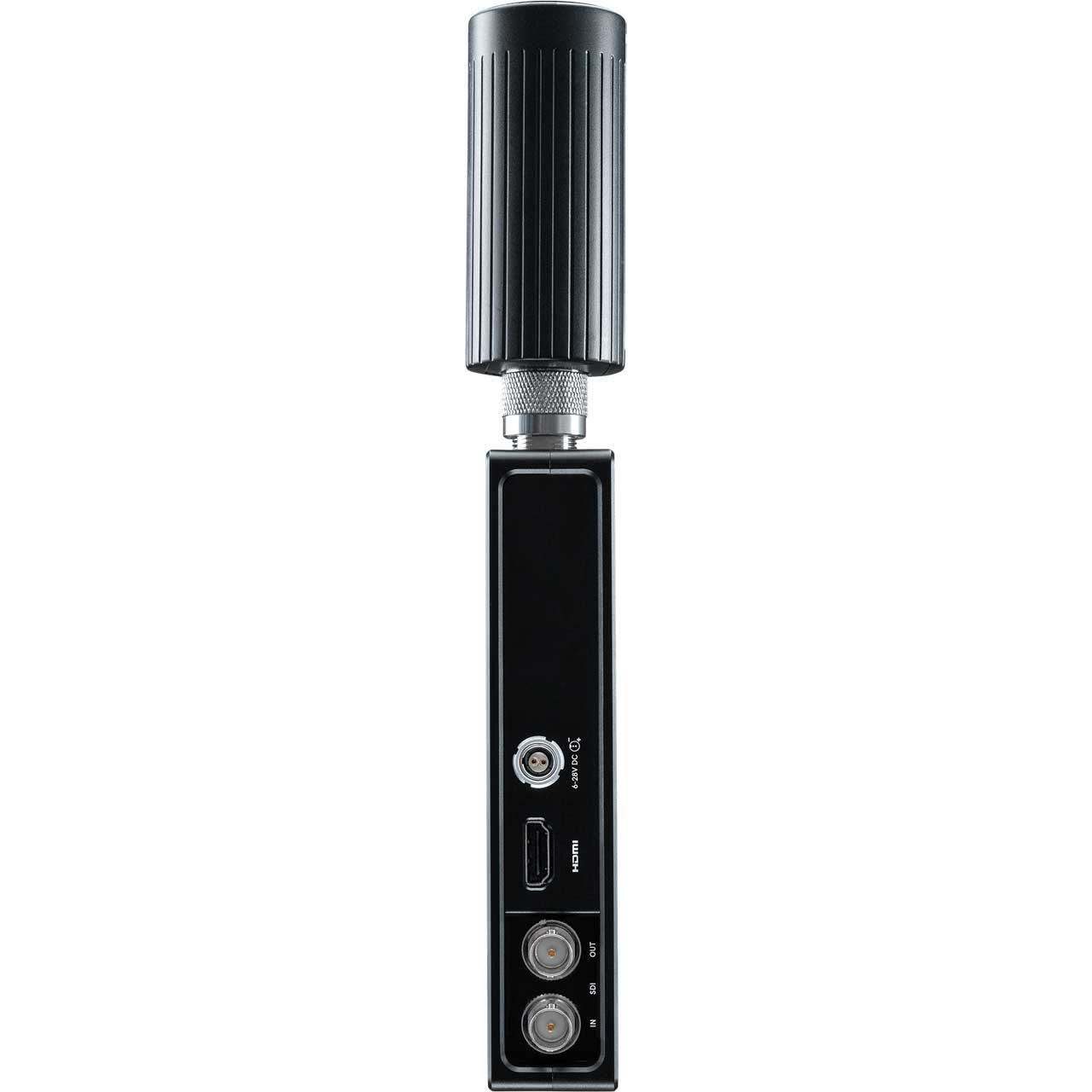

  • Transmitter
  • Video Inputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1); 1x HDMI 2.0 Type-A receptacle
  • Video Outputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x1)
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/HDMI: RGB 4:4:4/8-bit/YCbCr 4:2:2, 10-bit
  • Delay Tx to Rx: <0.001sec
  • Input Cross Conversion: HDMI to SDI
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
  • Video Compression: Uncompressed
  • Audio Format: 48kHz 24-bit PCM
  • Audio Input: Embedded SDI/HDMI Audio Input (2-CH)
  • Dimensions: 5.9 x 3.6 x 1.2"
  • Weight: 1.20Lbs
  • Construction: Milled Aluminum (Chassis) & regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 & M3 holes
  • Configuration Interfaces: OSD with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Recording Storage: Upgrade via Micro-USB
  • Mobile App: iOS & Android app configuration via Bluetooth
  • Desktop App: Launchpad application for OSX & Windows
  • USB Interface Functionality: Bluetooth 5 LE
  • Wireless: Licensed Frequencies*: 4.850 ~ 5.150 GHz, 5.350 ~ 5.470 GHz, 5.850 ~ 5.925 GHz, Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS), 5.250 ~ 5.350 GHz (DFS), 5.470 ~ 5.725 GHz (DFS), 5.725 ~ 5.850 GHz (Non-DFS)
    *By using this product in the licensed frequencies, you acknowledge & agree to comply with all applicable regulations & rules, & to only operate this system in compliance with the applicable license requirements.
  • Rf-CH Selection: Auto, Manual (Manual available for DFS & non-DFS-CHs)
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)
  • Rf Sensitivity: 1x Horizontal N-Type 2dBi antenna; 1x Vertical N-Type 2dBi antenna
  • Range: Up to 5000 ft line of sight (using Panel Antenna on RX)
  • Unicast Multicast: 1x transmitter to up to 6 receivers
  • Noise Rejection: Can coexist with WiFi & 5GHz cordless phones & operate up to 6 sets in same location.
  • Power Input: 2-Pin Circular locking connector 7-28 VDC
  • Battery: V mount battery plate
  • Power Consumption: 19 Watts
  • Operating Temperature: 32 to 104°F

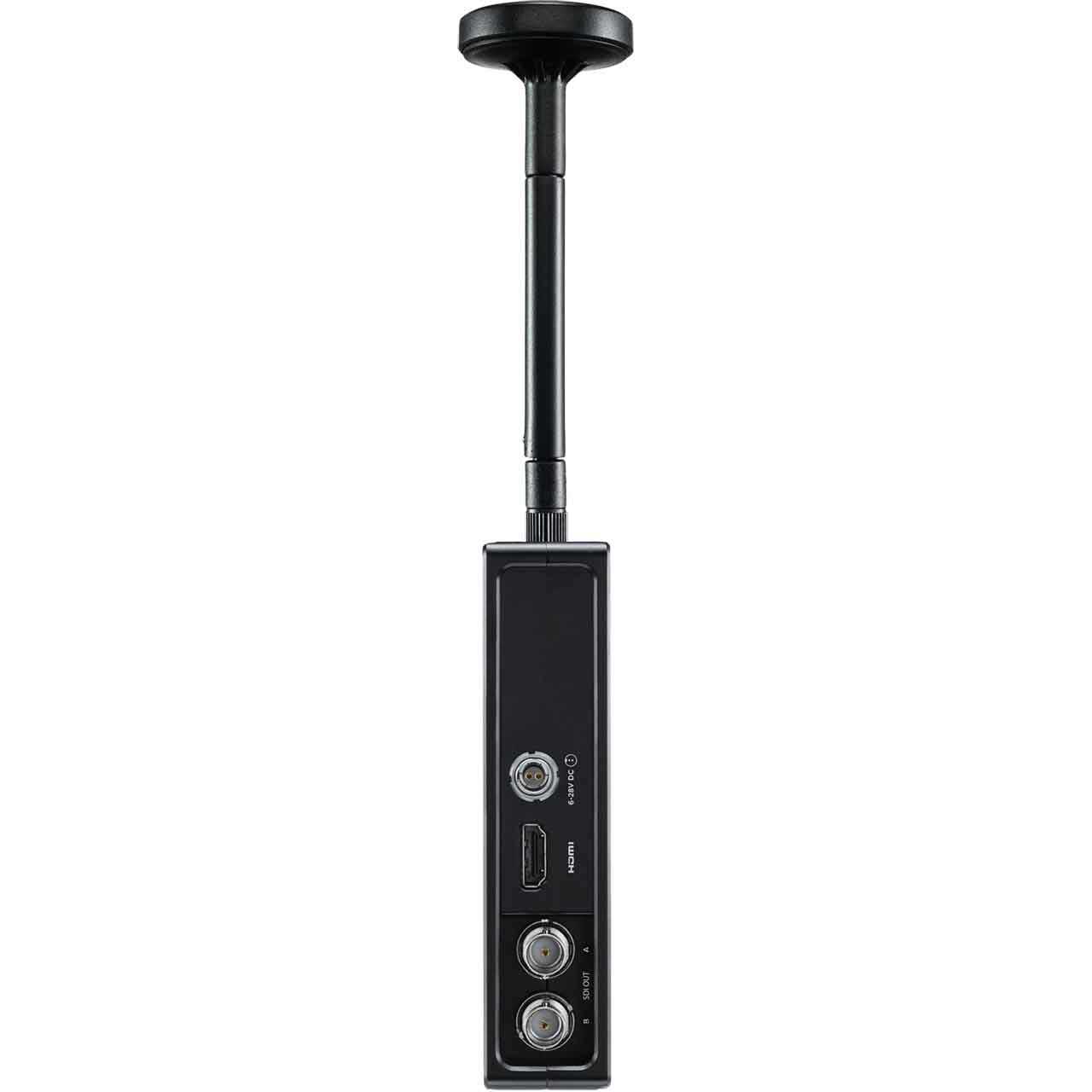

    Receiver
  • Video Outputs: 12G-SDI SMPTE 2082-1 standard/75Ω (BNC x2); 1x HDMI 2.0 Type-A receptacle
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit/HDMI: RGB 4:4:4/8-bit/YCbCr 4:2:2, 10-bit
  • Delay Tx to Rx: <0.001sec
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
  • Video Compression: Uncompressed
  • Video Format Conversion Support: Framerate & Resolution Scaling
  • Audio Format: 48kHz 24-bit PCM
  • Audio Output: Embedded SDI/HDMI Audio Output (2-CH)
  • Dimensions: 5.3 x 5.5 x 1.2"
  • Weight: 1.44Lbs
  • Construction: Milled Aluminum(Chassis) & regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 & 3/8"x16 holes
  • Antennas: 5 External 2 dBi antennas
  • Wireless: Licensed Frequencies*: 4.850 ~ 5.150 GHz, 5.350 ~ 5.470 GHz, 5.850 ~ 5.925 GHz, Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS), 5.250 ~ 5.350 GHz (DFS), 5.470 ~ 5.725 GHz (DFS), 5.725 ~ 5.850 GHz (Non-DFS)
    *By using this product in the licensed frequencies, you acknowledge & agree to comply with all applicable regulations & rules, & to only operate this system in compliance with the applicable license requirements.
  • Rf-CH Selection: Auto, Manual (Manual available for DFS & non-DFS-CHs)
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  • Range: Up to 5000 ft line of sight (using Panel Antenna on RX)
  • Unicast Multicast: 1x transmitter to up to 6 receivers
  • Noise Rejection: Can coexist with WiFi & 5GHz cordless phones & operate up to 6 sets in same location
  • Power Input: 2-Pin circular locking connector 6-28V DC
  • Battery: V-Mount Battery Plate
  • Power Consumption: 15 Watts
  • Operating Temperature: 32 to 104°F

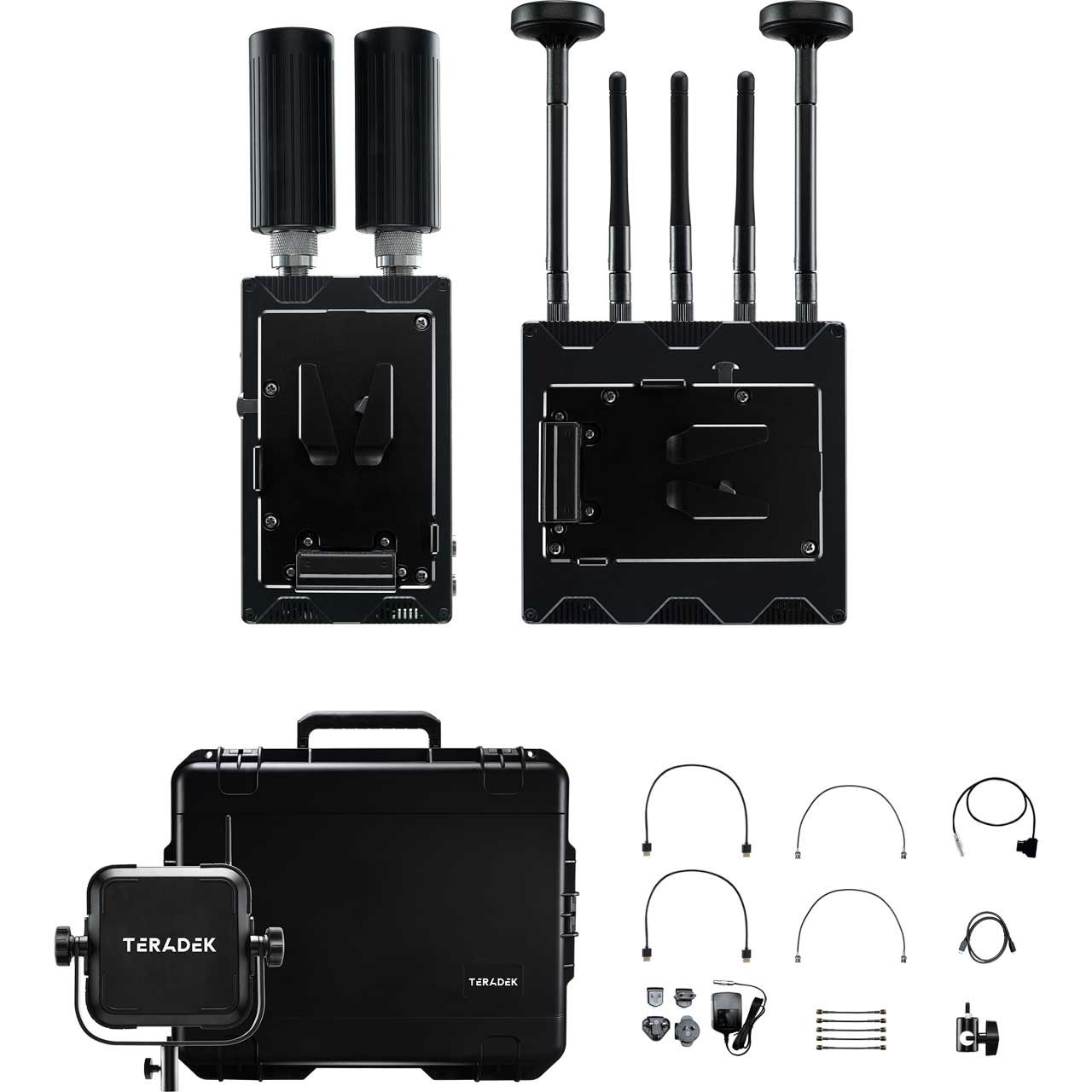

• Item Includes:

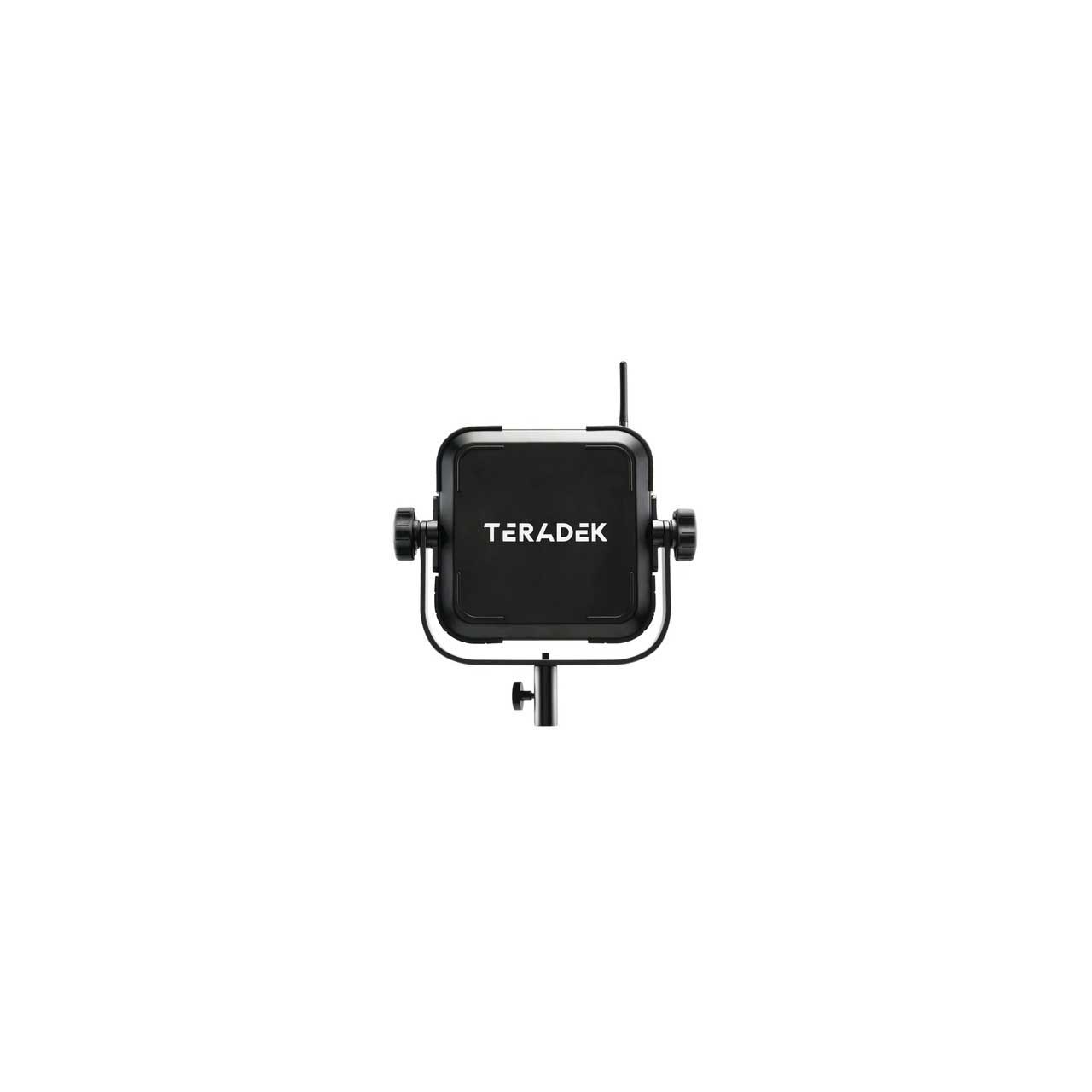

  • 1x Antenna Array for Bolt 4K 4.9-7.3GHz V-Mount
  • 1x Ranger 4K 12G-SDI/HDMI - Wireless TX V-Mount
  • 1x Ranger 4K 12G-SDI/HDMI - Wireless RX V-Mount
  • 4x Battery Slot Cover
  • 1x Lightstand Adapter 1/4-20in
  • 4x Screw Flat Head Phillips Black SS M2 x 4mm
  • 1x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
  • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
  • 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
  • 5x RP-SMA Male to RP-SMA Male 4in/10cm Cable
  • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1x Teradek Case XL - Ranger 4K TX/RX and Antenna Array
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
  • 3x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 2x Antenna H Mushroom
  • 1x Antenna H N-type Barrel
  • 1x Antenna V N-type Barrel
  • 1x Teradek Standard Terms and Conditions
  • 1x Insert - Product Register
  • 1x Quickstart Guide - Ranger 4K/HD
