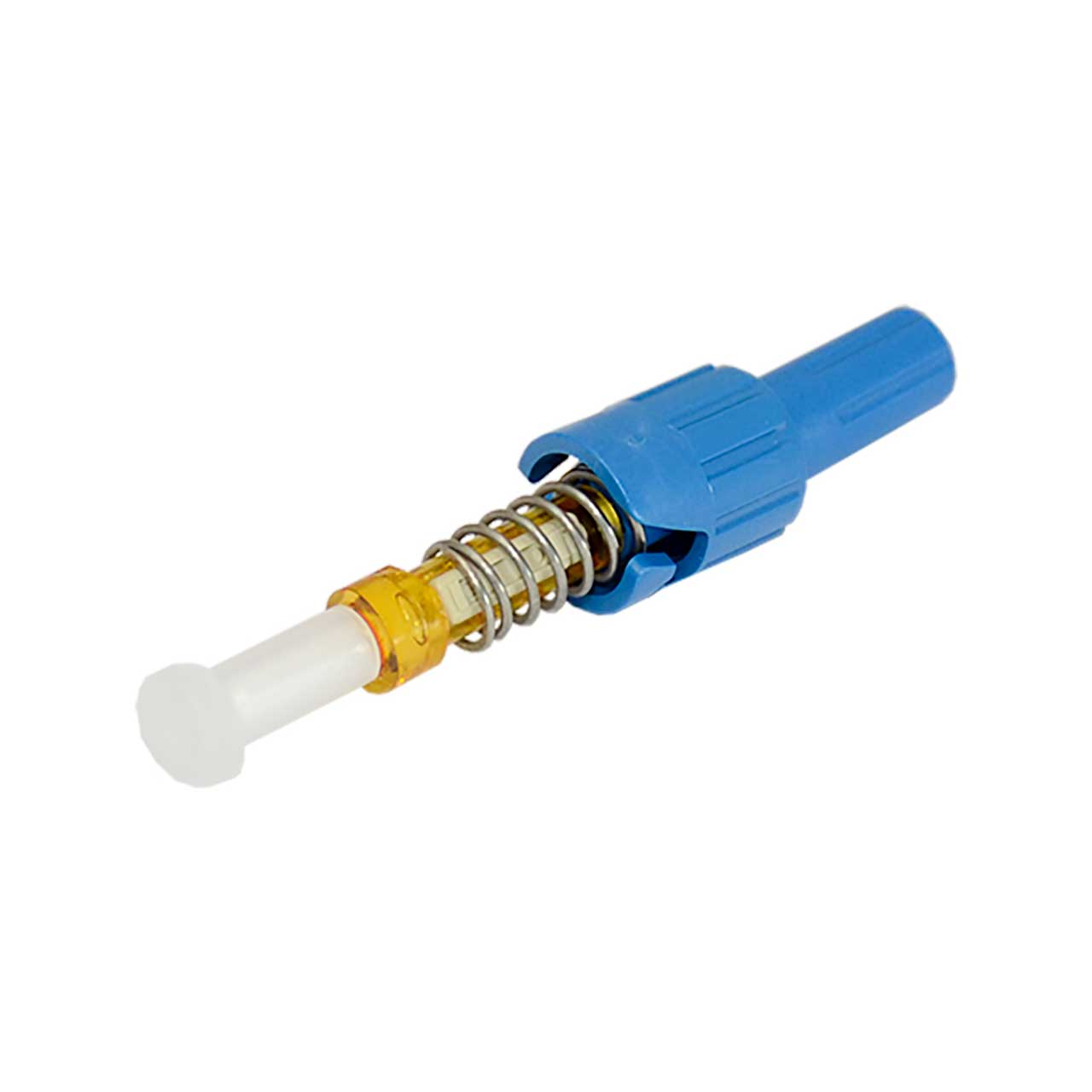

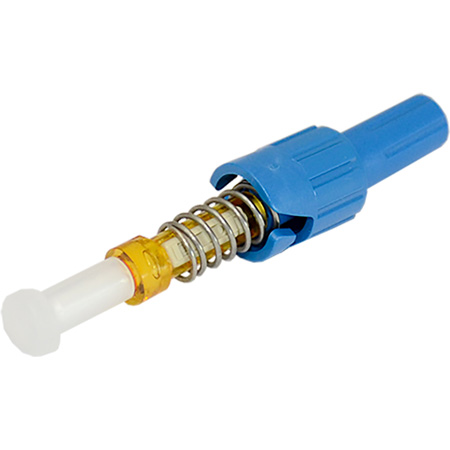

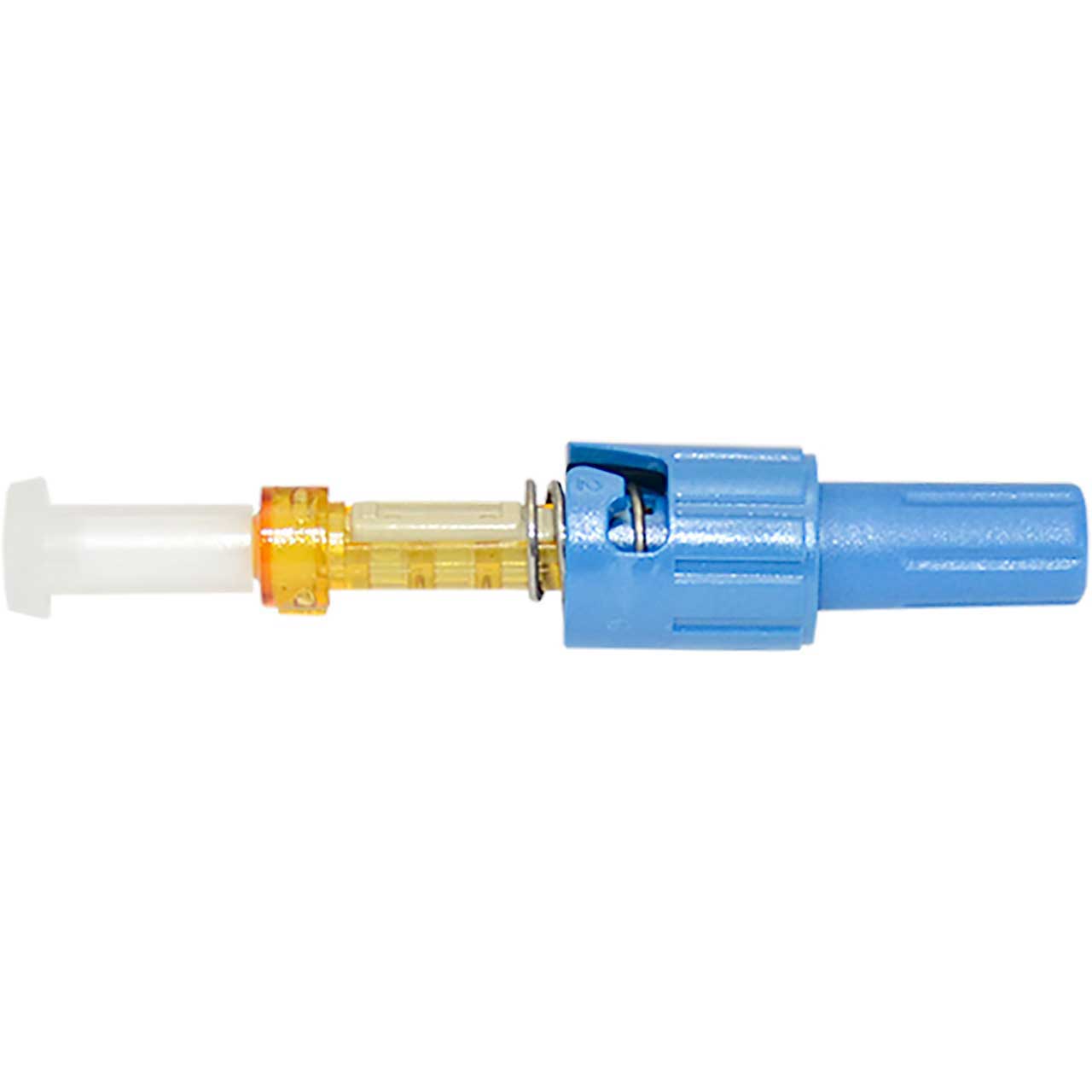

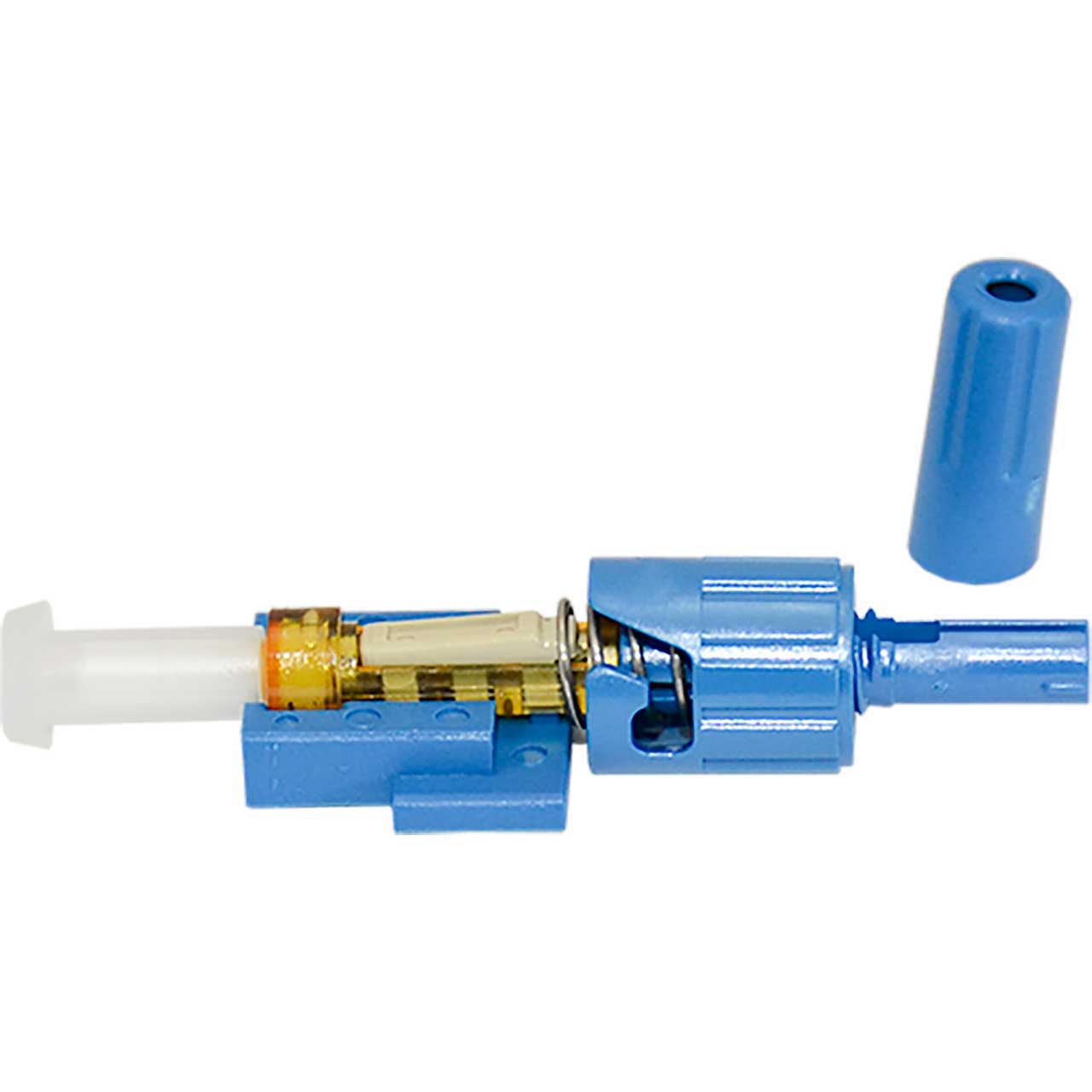

TechLogix SM9-ST Single Mode 900um ST Click-on Connector - 1 Unit

ITEM #: TGX-SM9-ST MFG #: SM9-ST

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
TechLogix
Free Shipping with $49 Minimum Order

List Price:

$17.47

Our Price:

$16.59

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    SM9-ST - Overview

    ECO Series™ Field-Assembly ST Type Fiber Optic Connectors
    TechLogix SM9-ST Single Mode ECO Series™ field-installable fiber optic connectors are designed for quick, easy and reliable termination of 250æm, 900æm and 2.0mm fiber cables, including both distribution and zip-cord configurations.

    ECO Series™ connectors are compatible with both single mode (OS1 & OS2) and multimode (OM2, OM3 & OM4) fiber and are available in standard (UPC) and angled (APC) pre-polished formats. No epoxying, crimping, polishing or proprietary tools are required for termination.

    Unlike other connectors which are marketed as "one-size fits all", ECO Series™ connectors are specific to 250æm, 900æm and 2.0mm cables to ensure perfect alignment, reducing refraction and signal loss. And regardless of cable, a large built-in verification window, self-centering alignment groove and easy-to-press button for one-click termination ensures installation times around two minutes.

    • Features:

      • ST type connectors
      • Pre-polished for UPC (standard) & APC (angled) connections
      • Compatible with single mode (OS1 & OS2) & multimode (OM2, OM3 & OM4) cable
      • Compatible with 250æm, 900æm & 2.0mm cable, including distribution and zip-cord formats
      • No proprietary tools required
      • No epoxy, crimping or polishing required
      • Built-in verification window showing proper termination
      • Self-centering alignment groove for easy & reliable insertion of the fiber optic strand
      • Built-in button for one click termination & locking jig release
      • Average termination time around two minutes
      • Re-usable (five or less termination cycles recommended)


    • Specifications:

      • Fiber Type: Single Mode
      • Cable Type: Distribution
      • Polish: UPC Standard
      • Connector Type: ST (TIA / EIA 604-2)
      • Recommended Maximum Re-Termination Times: 5 times
      • Average Termination Strength: 2.0mm: 6.5lbs of sustained tension, 250µm & 900µm: 2.0lbs of sustained tension
      • Assembled Connector Dimensions: 44mm (length) x 10mm (height) x 10mm (width)
      • Construction: Zirconia ferrule / Ultem plastic body / Internal index matching gel
      • Insertion Loss: Typical: 0.3dB
      • Maximum: 0.5dB
      • Return Loss: APC: =60dB, UPC: =50dB
      • Operating Temperature: -40 degrees - 75 degrees C
      • Storage Temperature: -45 degrees - 85 degrees C
      • Certifications: RoHS, IEC 61754-20


    • Item Includes:

      • 1x TechLogix SM9-ST Single Mode 900um ST Click-on Connector
