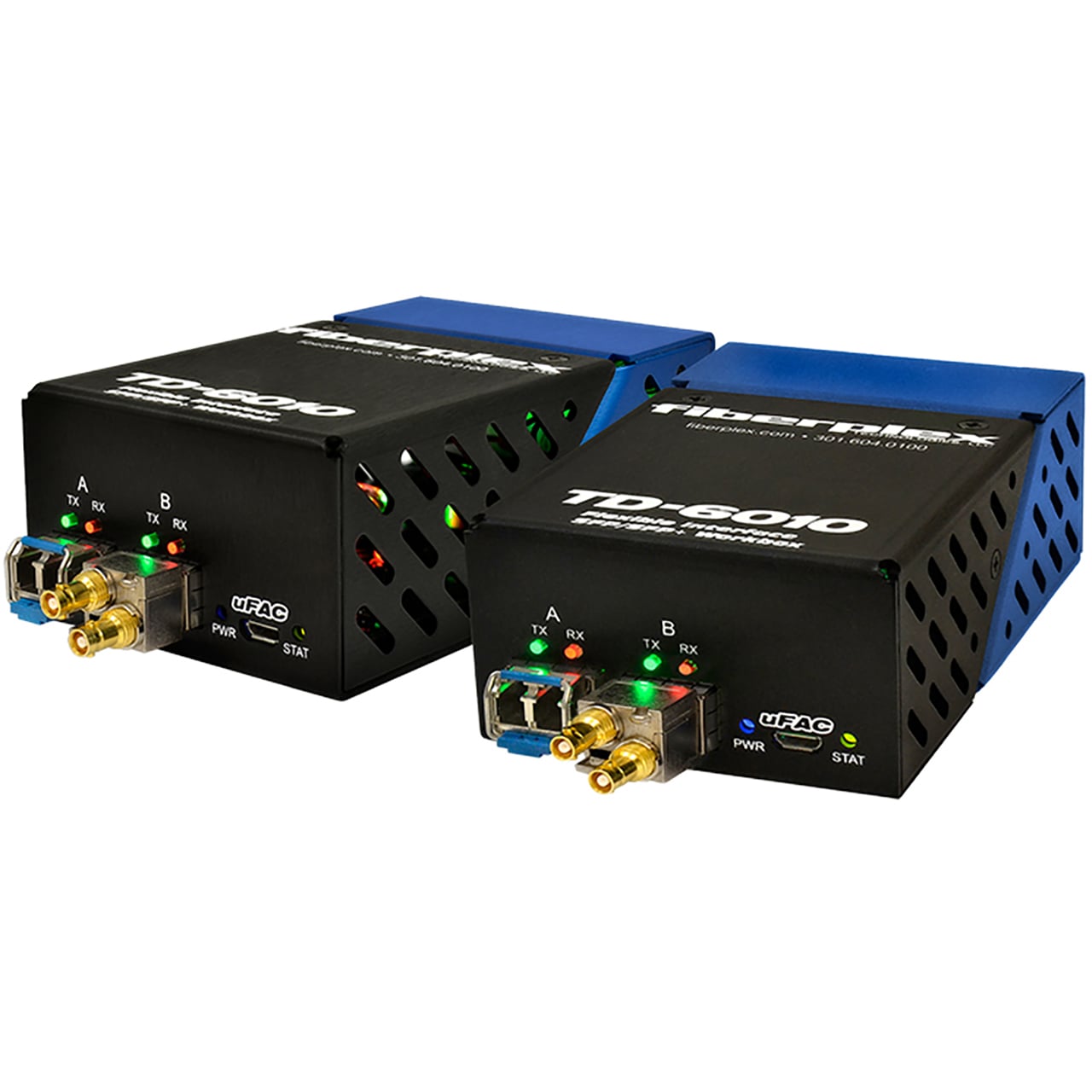

Manufactured in the USA, the FiberPlex TKIT bundles from Patton leverage the incredible flexibility of their TD-6010 and TD-6012 workbox, and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific SDI Fiber Converter application.
The TKIT-12G SDI Fiber Converter extends 12G-SDI digital video (75ohm HD-BNC™ Coax) over fiber. The TKIT-12G is offered in two versions. The units offer either bi-Directional (Transceiver) and multi-channel (Transmitter or Receiver) support.
The TKIT-12G/1CH offers bidirectional 12G/6G/3G/HD/SD-SDI over two fibers, like a Transceiver.
The TKIT-12G/2CH TX/RX offers support for 2 channels of 12G/6G/3G/HD/SD-SDI in one direction over fiber. You need to use two strands of single mode fiber to support two channels, using a Transmit Unit on one side and a Receive unit on the other. Only one single mode fiber is required for one channel of single direction transport.
The Patton FiberPlex and Artel FiberLink, DigiLink and SMART products are designed to enable Broadcasters to move their SDI infrastructure over time and at pace over fiber, while future-proofing adoptions with 12G and 4K video today
Applications:

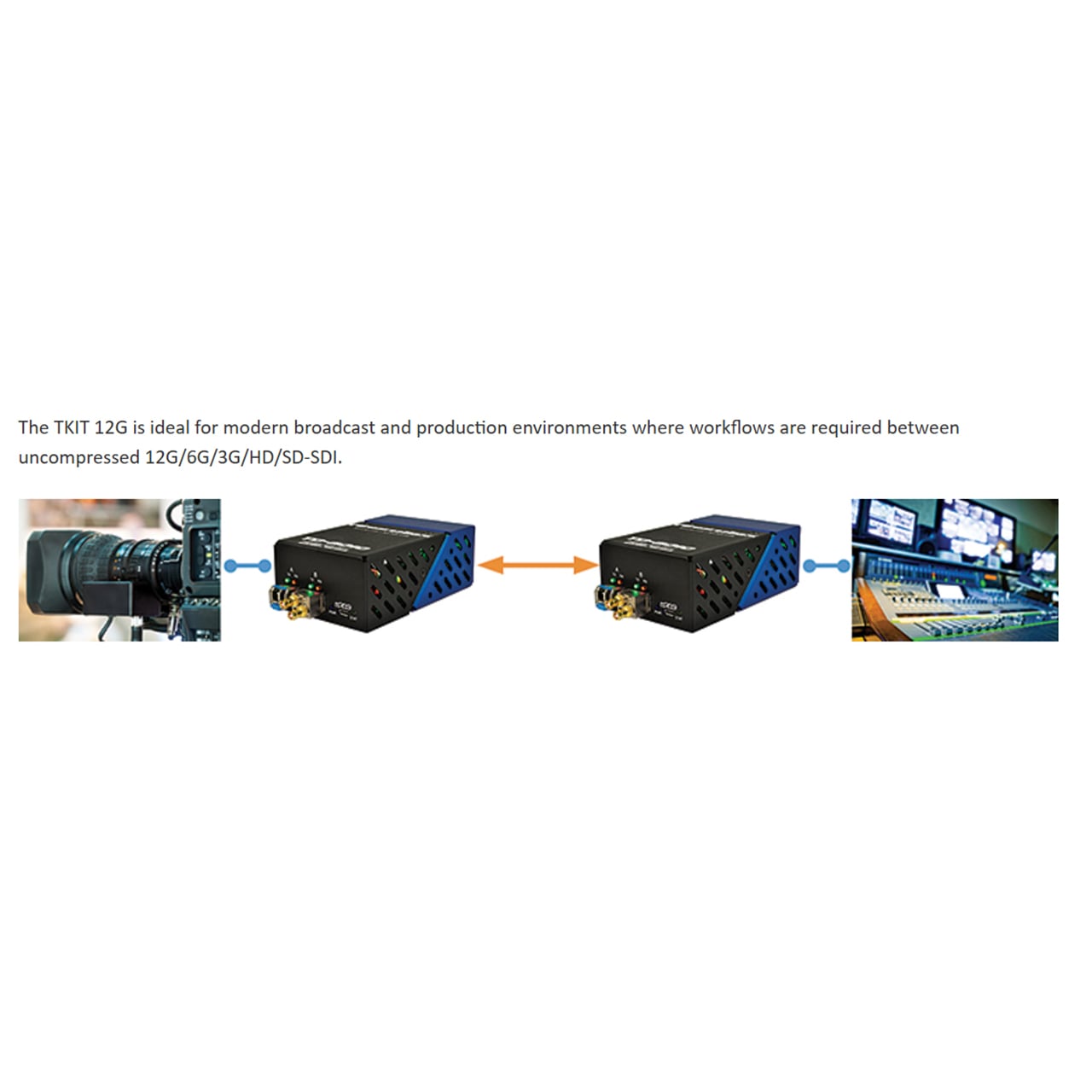

The TKIT 12G is ideal for modern broadcast and production environments where workflows are required between uncompressed 12G/6G/3G/HD/SD-SDI.
