    XVVRM-DP2QSDI - Overview

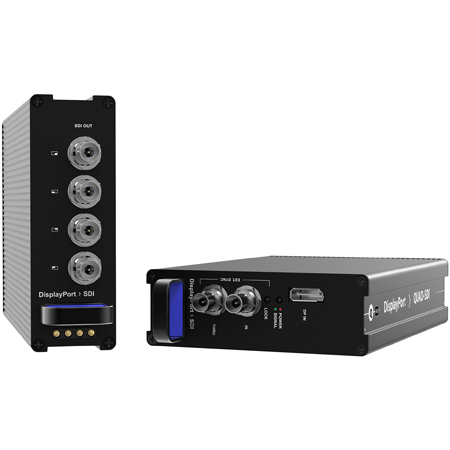

    The Theatrixx XVVRM-DP2QSDI is a DisplayPort to Quad-SDI Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections

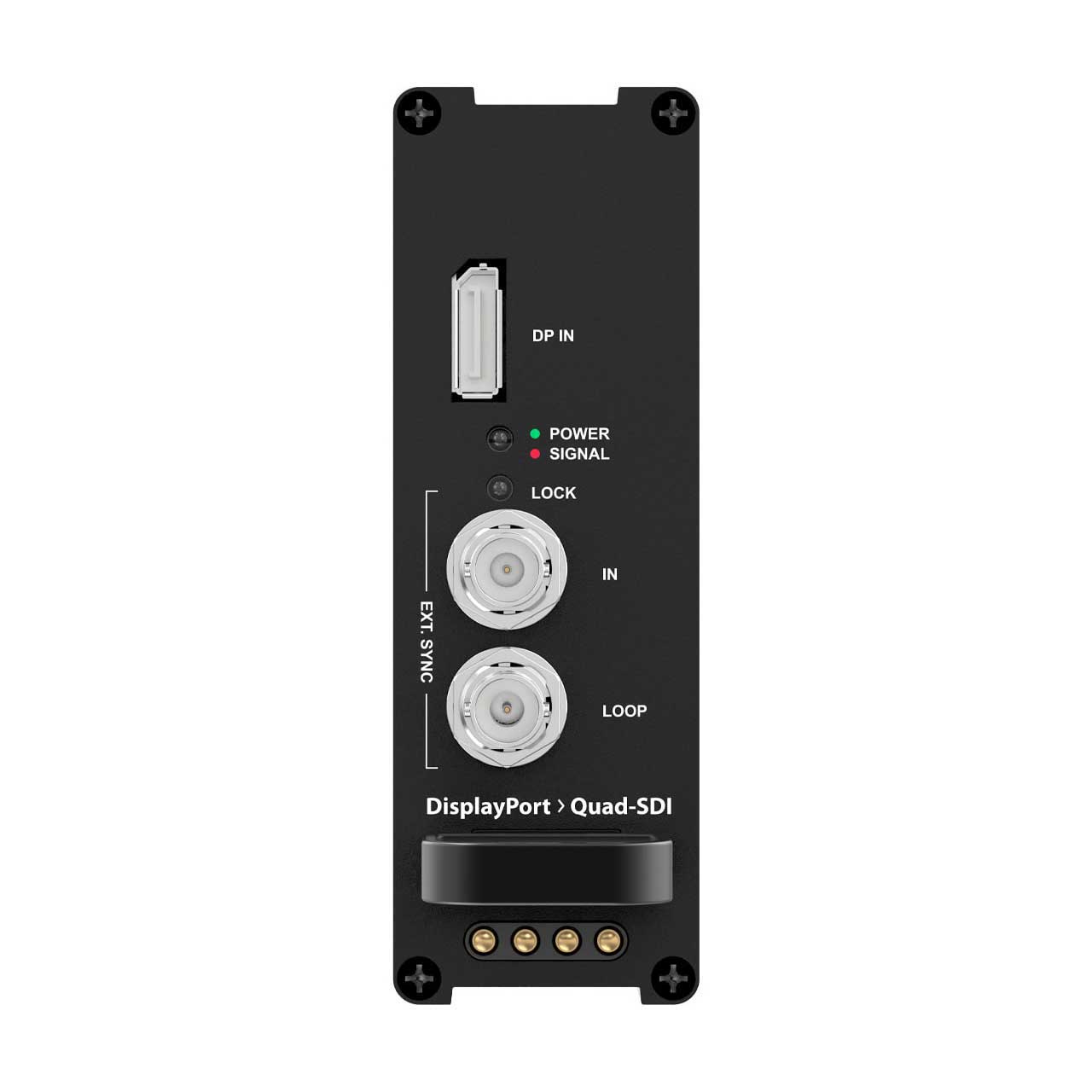

      • Video Input: 1x DisplayPort 1.2
      • Sync (Gen-Lock) Input: 1x Tri-level sync (BNC)
      • Loop-thru: 1x Tri-level sync (BNC)

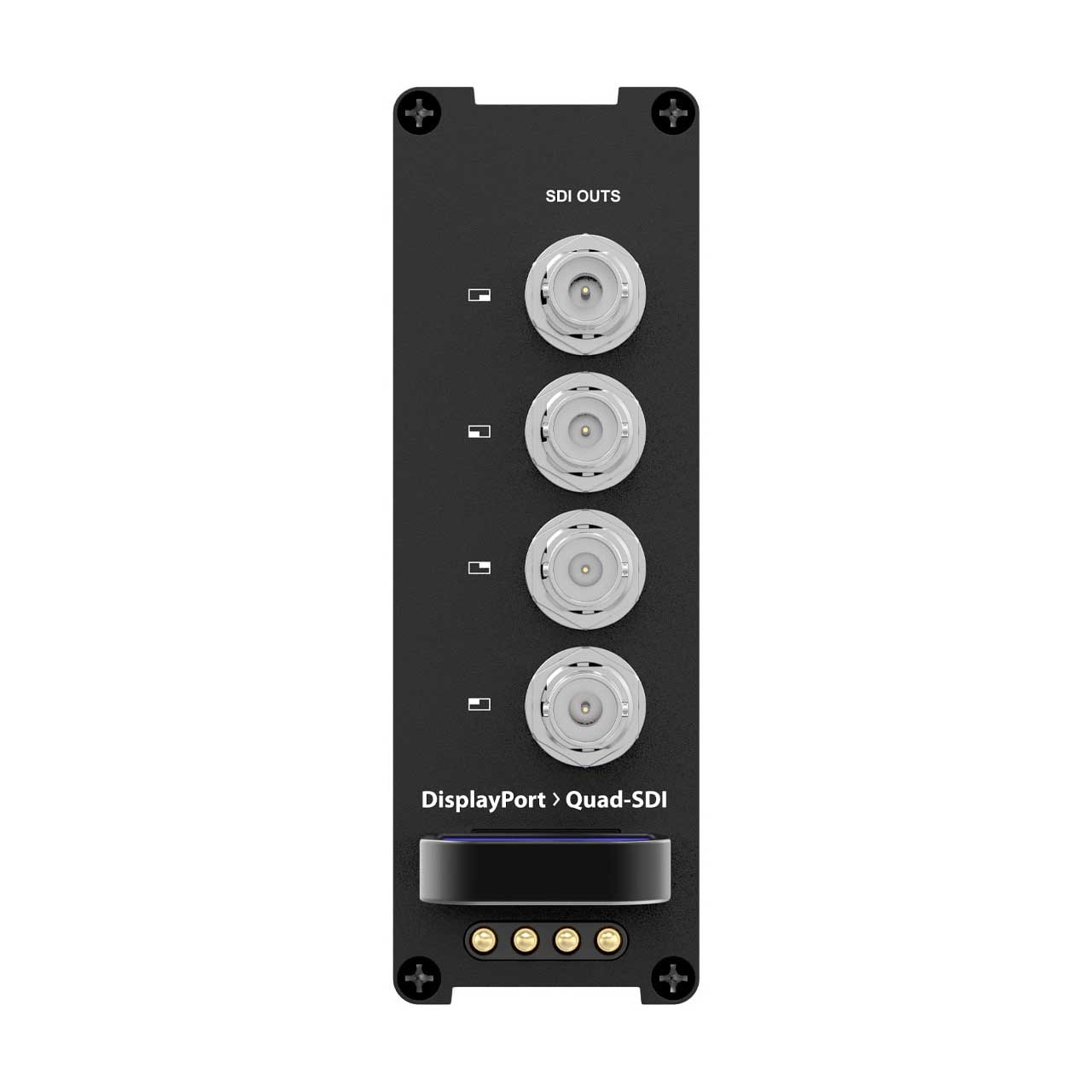

      • Video Output: 4x 3G/HD/SD SDI BNC (Quad-Link)

        Supported Signals
      • DisplayPort 1.2/HDMI 2.0 Input: 4096x2160p @ 60/50 fps
      • 4K60P 4:4:4: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 60/50 fps, 3840x2160p @ 30/25/24 fps, 1920x1080p @ 60/50 fps,
      • 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps
      • Quad-Link 3G-SDI out: 4096x2160p @ 60/50/30/25/24 fps
      • 4x 1080P 4:2:2: 3840x2160p @ 60/50/30/25/24 fps
      • Embedded Audio: Up to 8 channels, 24 bit, 48kHz
      • Default EDID: 3840x2160p @ 60 or 50 fps (selectable)

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module DisplayPort to Quad-SDI
