Theatrixx XVVRM-FIBER2SDI Reversible Module - Fiber to 3G-SDI

ITEM #: TTX-XVVRMFBR2SDI MFG #: XVVRM-FIBER2SDI**

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-FIBER2SDI** - Overview

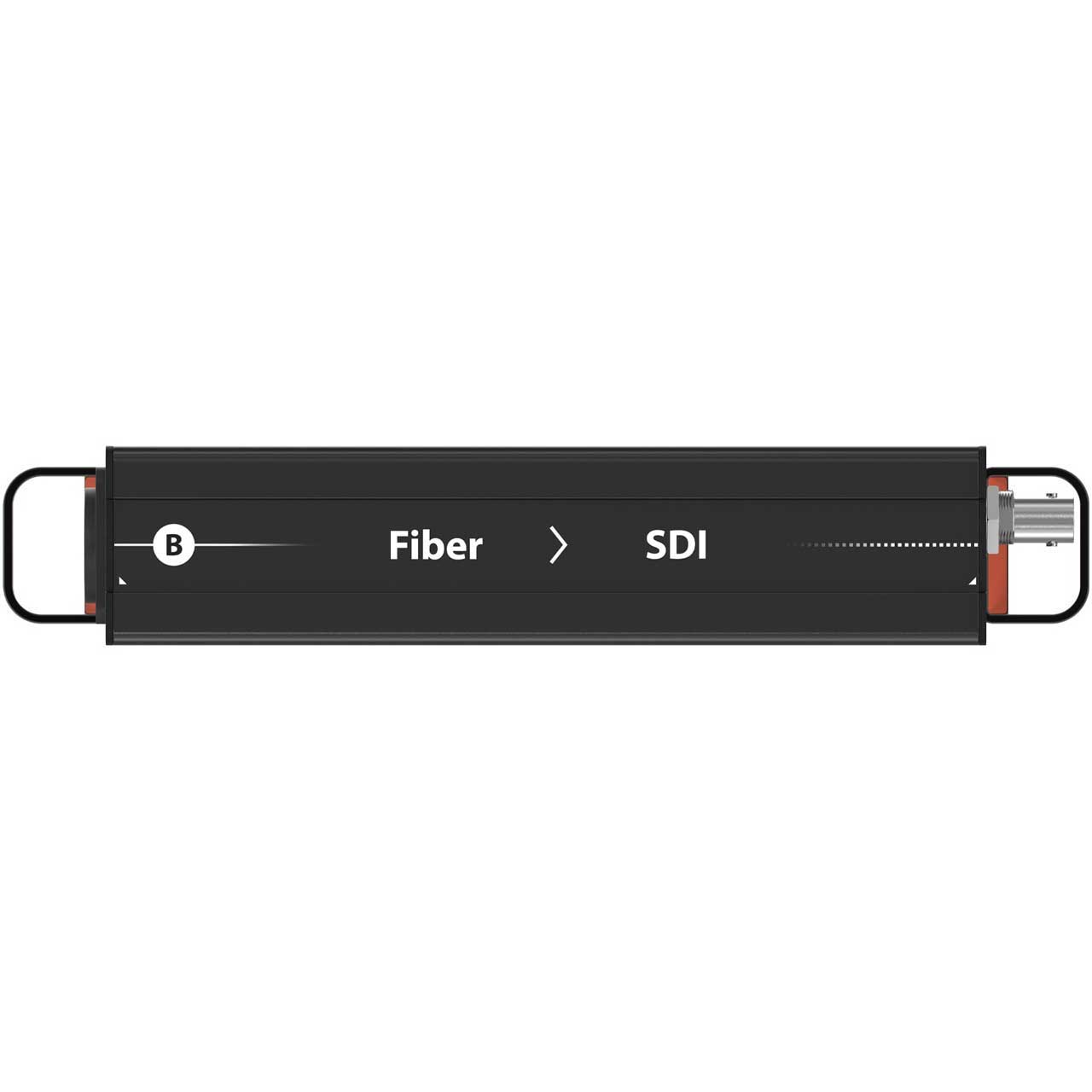

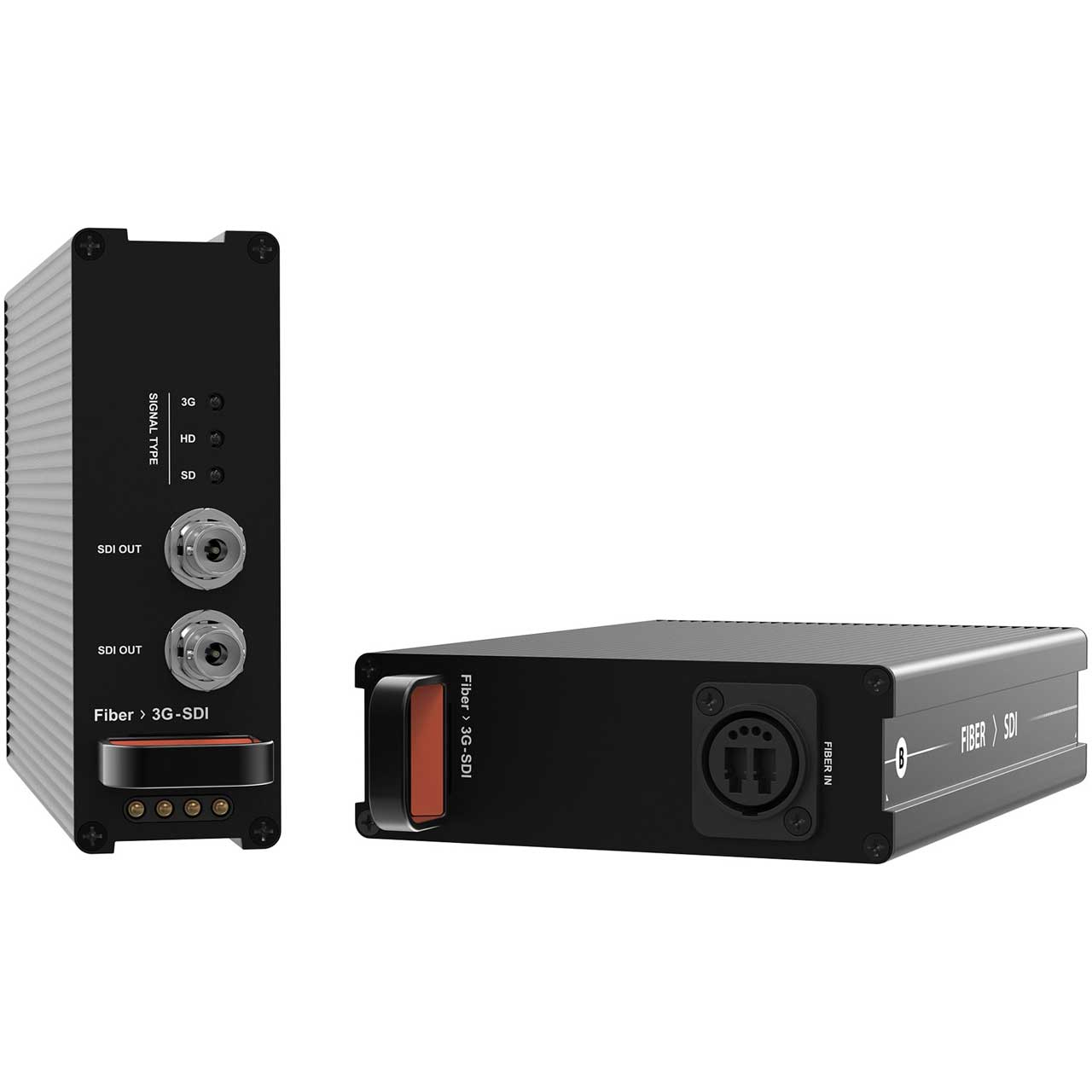

    The Theatrixx XVVRM-FIBER2SDI** is a Fiber to SDI Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections

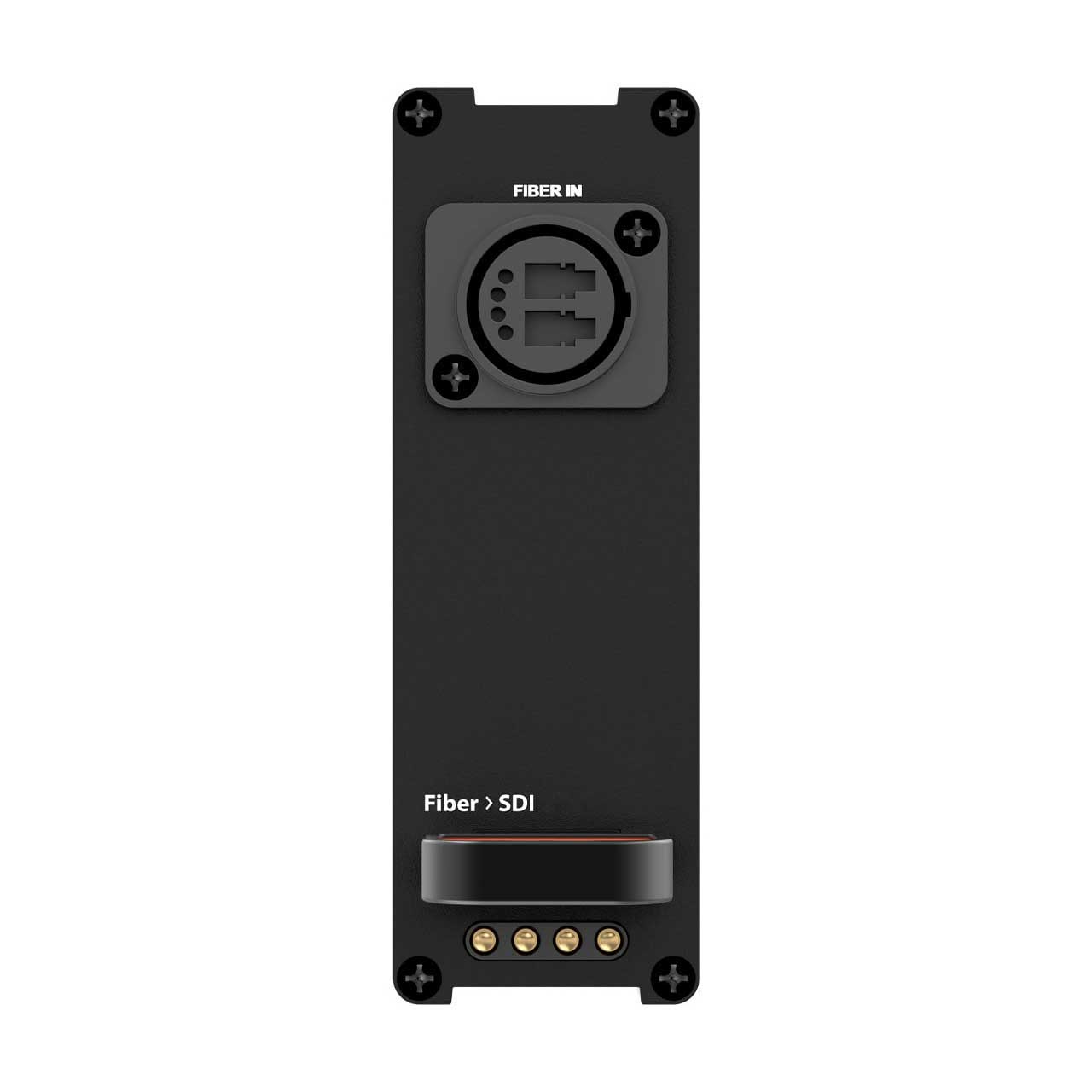

      • Video Input
        Choice of Multimode or Singlemode
        Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

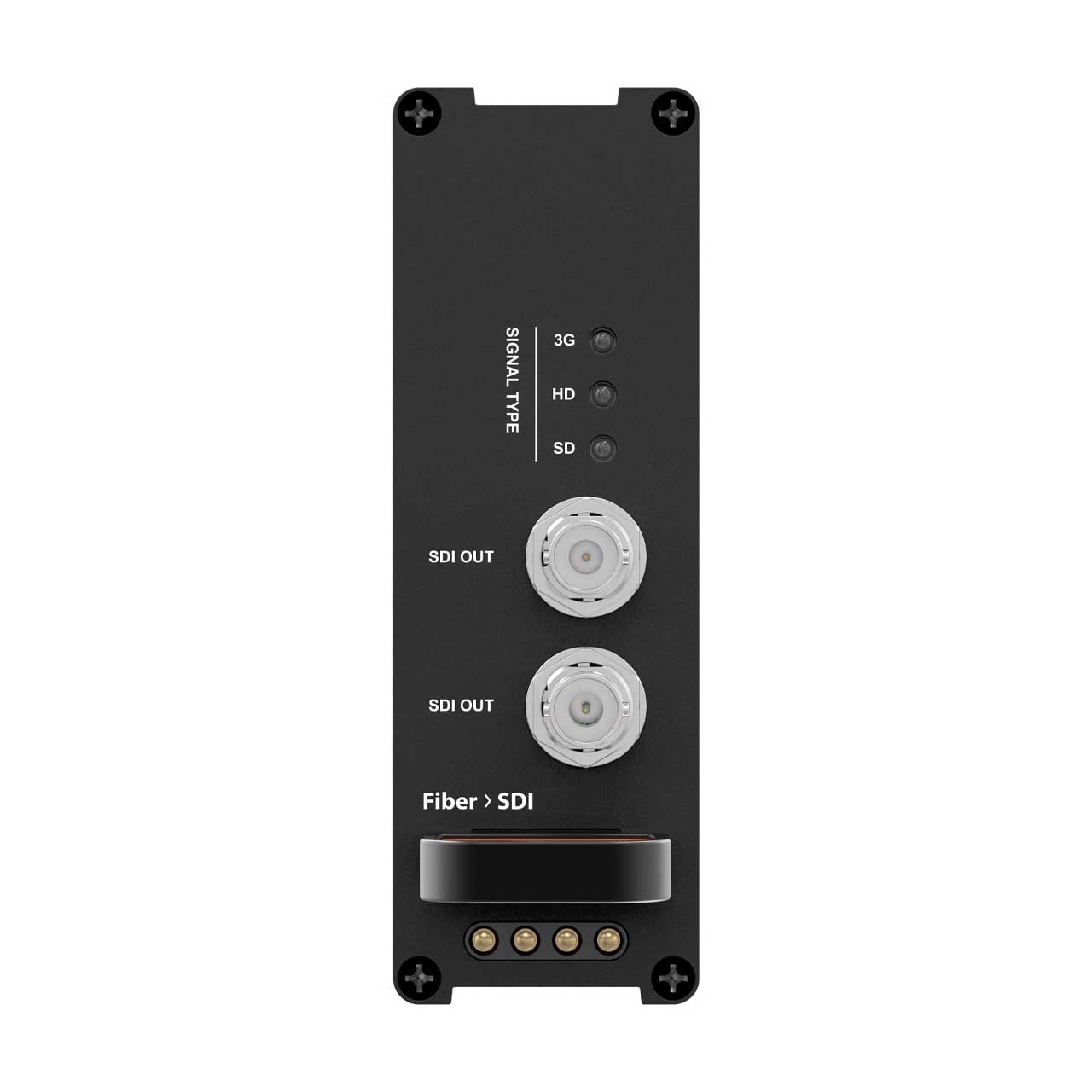

        Video Output: 2 x 3G/HD/SD SDI BNC

        Supported Signals
      • Video Format Support: 3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
      • SMPTE Standards: 425 M Level A & B, 424 M, 292 M, 259 M

        Physical

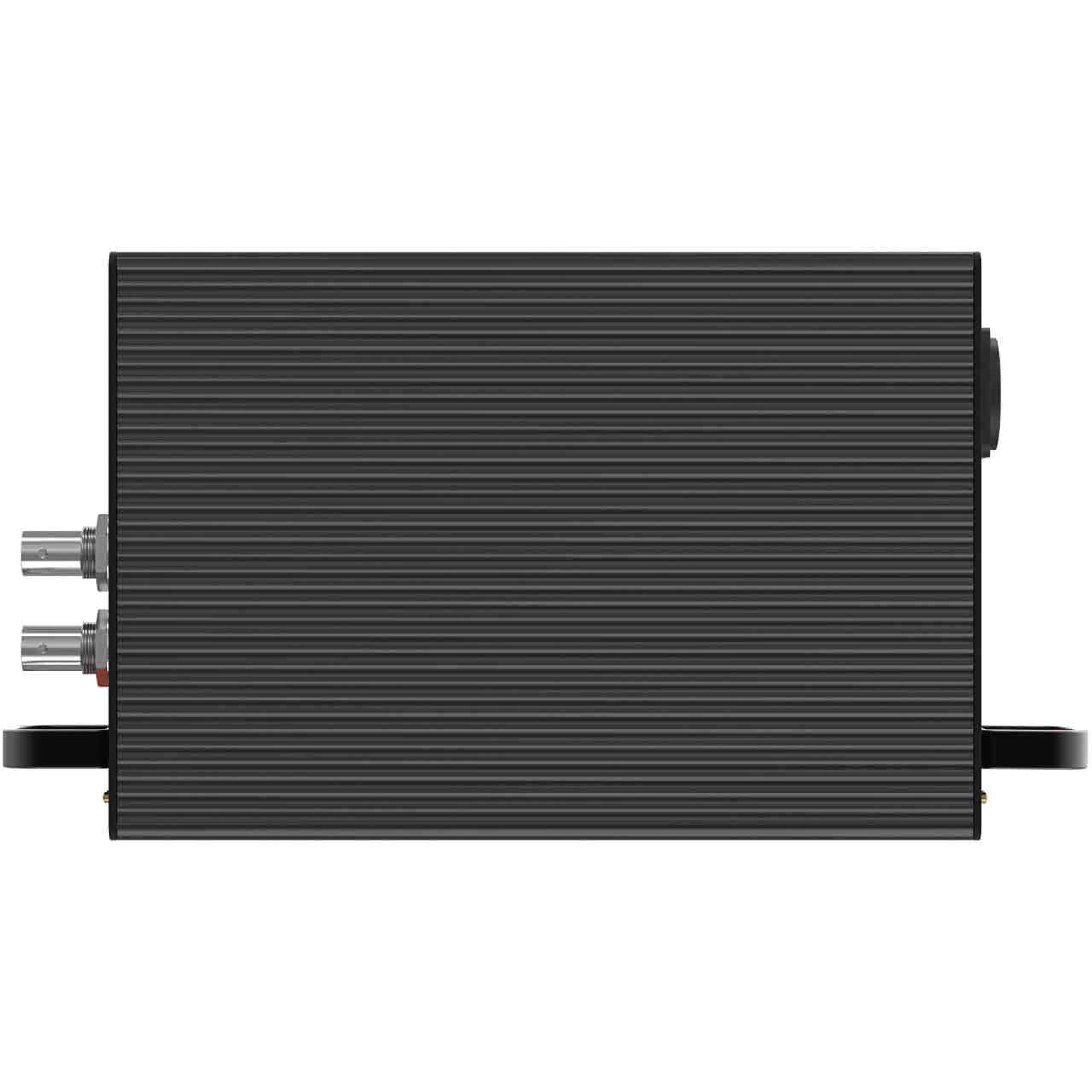

      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module Fiber to SDI
