Theatrixx XVVRM-FIBER2HDMI Reversible Module - Fiber to HDMI2.0 + 1Gbps Ethernet (SDVoE)

ITEM #: TTX-XVVRMFBRHDMI MFG #: XVVRM-FIBER2HDMI-**

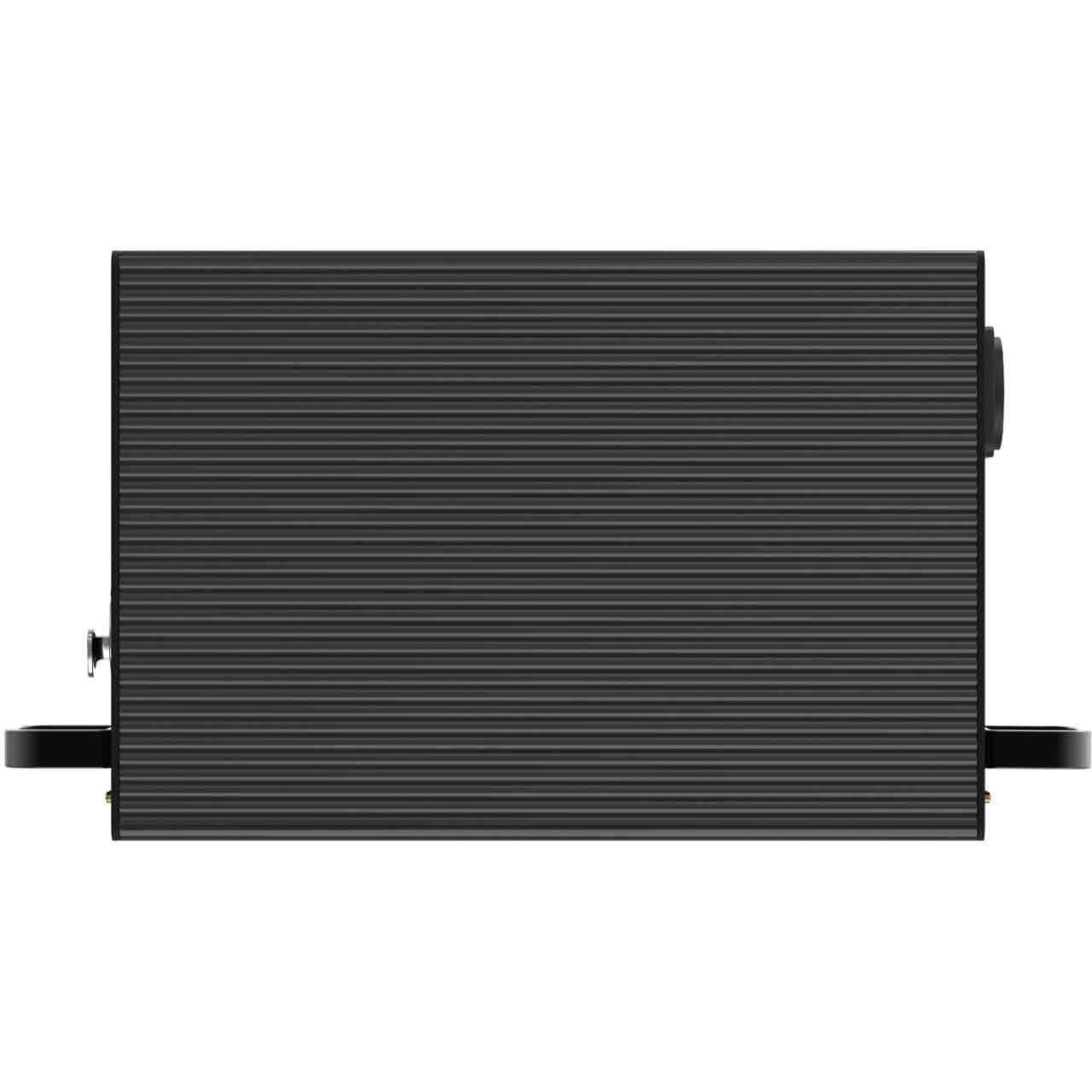

  • Product Image Thumbnail 1 of 5

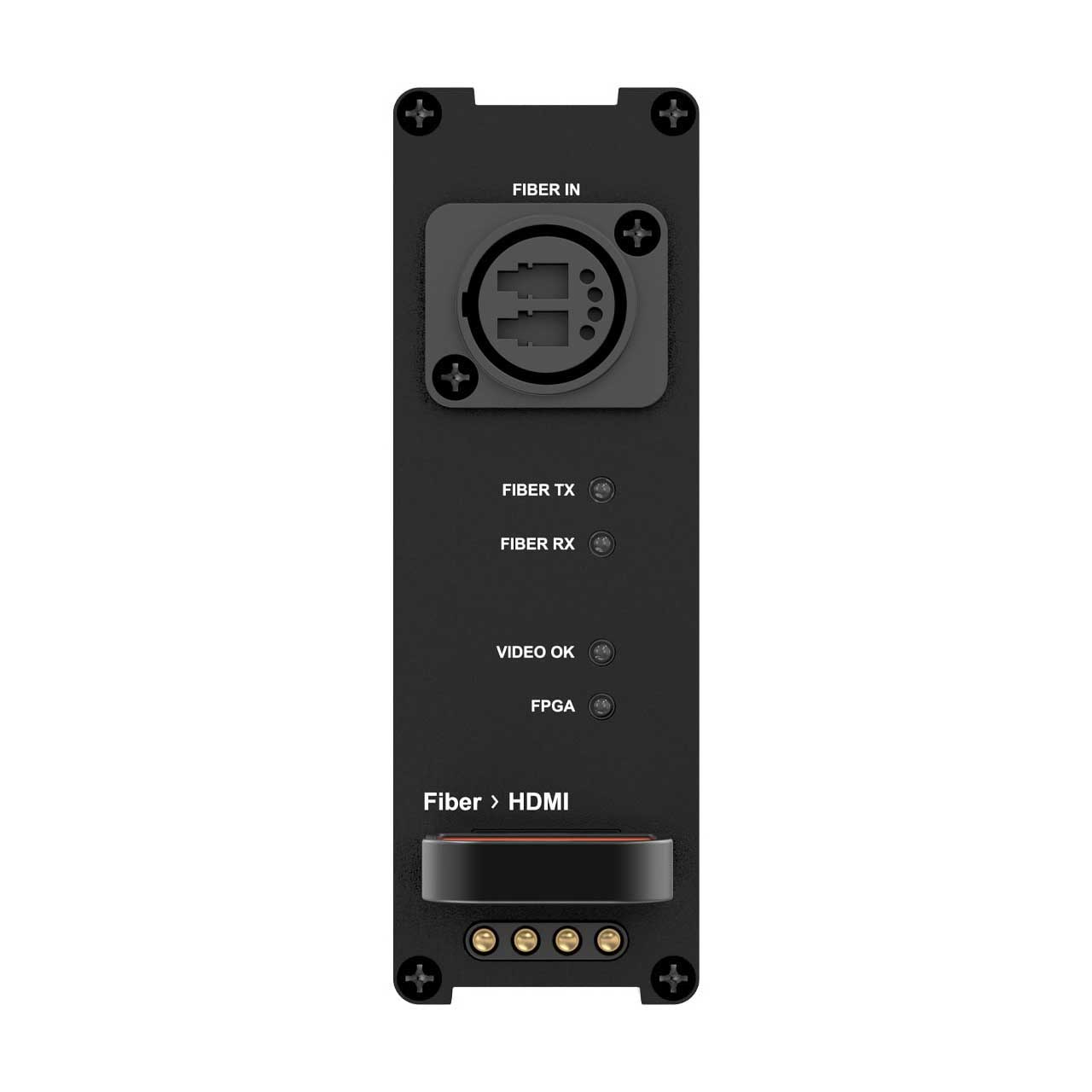

  • Product Image Thumbnail 2 of 5

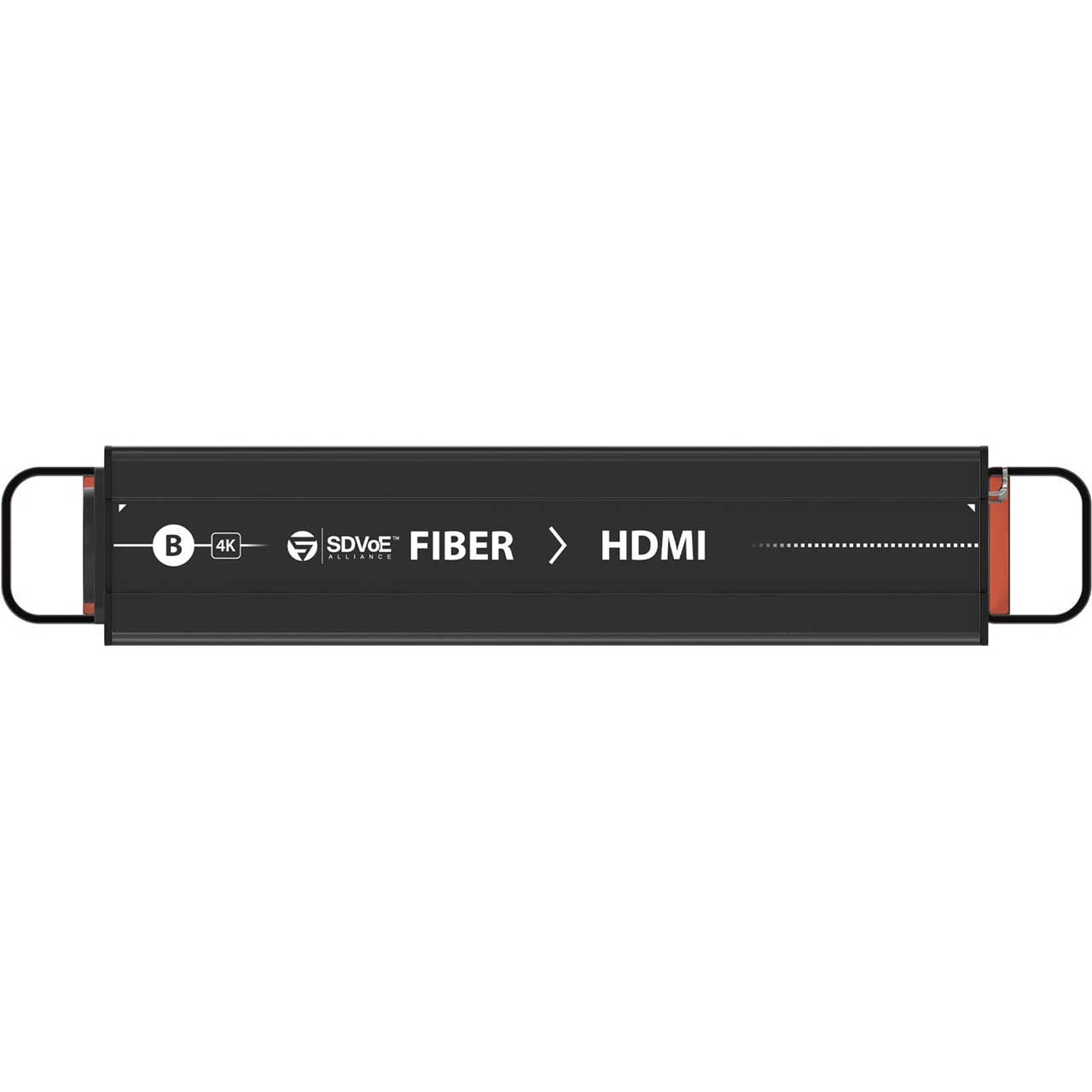

  • Product Image Thumbnail 3 of 5

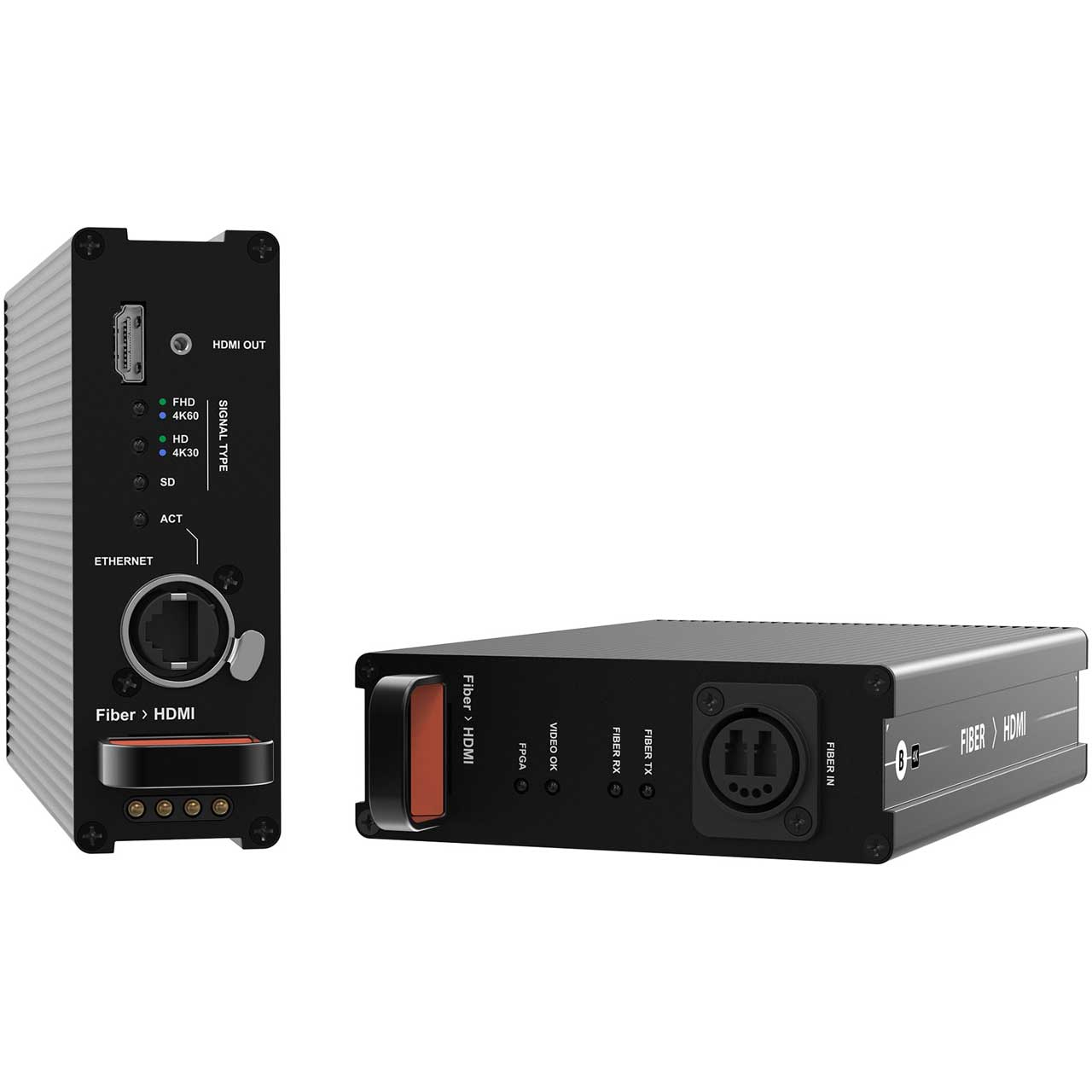

  • Product Image Thumbnail 4 of 5

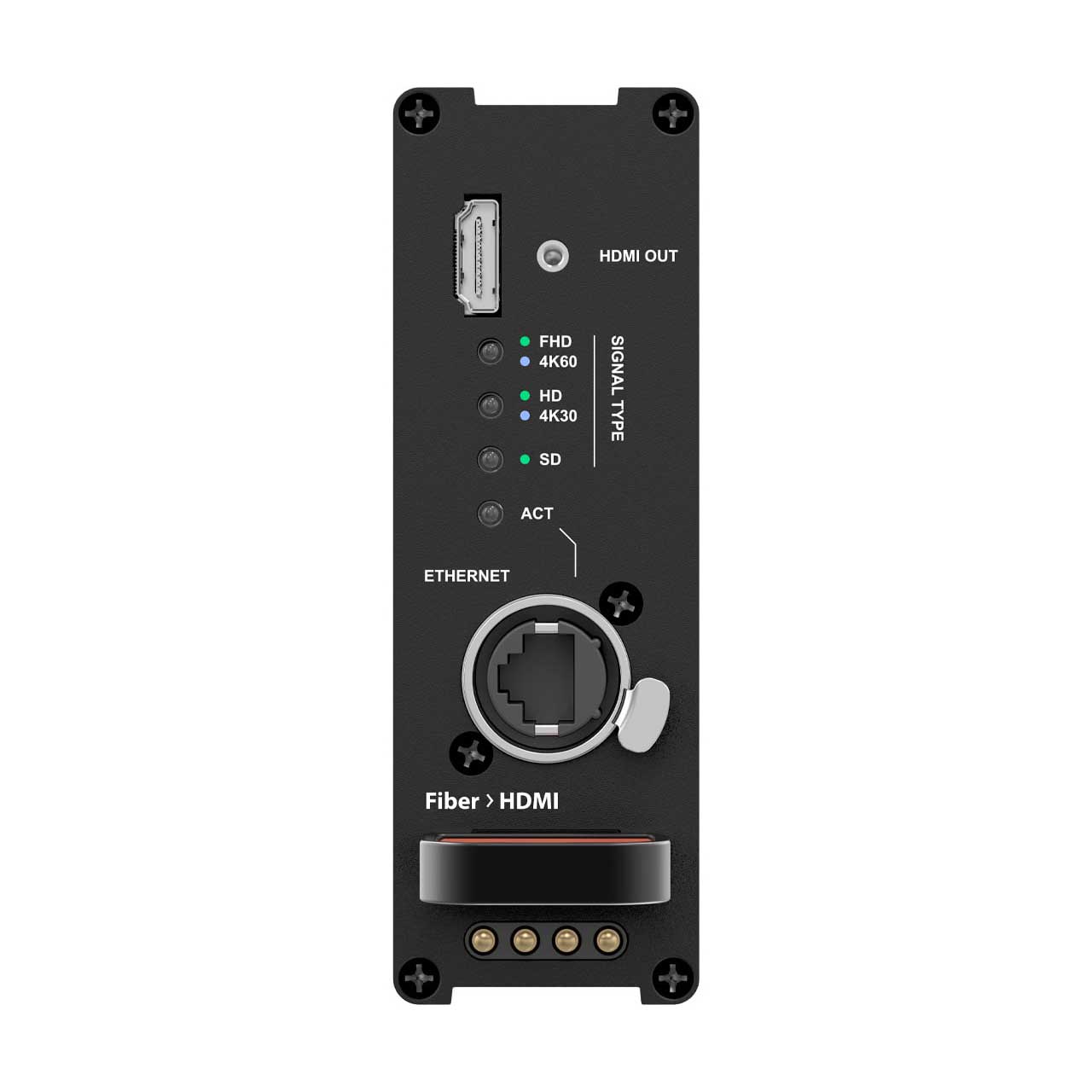

  • Product Image Thumbnail 5 of 5
free ship

This item is custom made. Ordering this product requires written authorization. Please contact a sales engineer at 1-800-522-2025 for details.

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-FIBER2HDMI-** - Overview

    The Theatrixx XVVRM-FIBER2HDMI-** is a Fiber to HDMI Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections
      • Video Input
        1x 10 Gbps Optical Ethernet, SFP-based
        Choice of Singlemode or Multimode
        Choice of Neutrik OpticalCON DUO or QUAD
      • Ethernet Port: 1x Gbps Ethernet on Neutrik EtherCON
      • Video Output: 1x HDMI 2.0 type A with locking system

        Supported Signals
      • HDMI 2.0 output
        4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2
        High dynamic range (HDR10 & Dolby Vision)
      • Embedded Audio: Up to 8 channels, 24 bit, 192 kHz
      • Encoding Technology: SDVoE (NT1000-based)
      • Typical Latency: < 0.1 ms
      • Auxiliary Signals: 1 Gbps Ethernet pass-thru

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module Fiber to HDMI
