Theatrixx XVVRM-HDMI2SDI Reversible Module - HDMI1.2 to 3G-SDI

ITEM #: TTX-XVVRMHDMISDI MFG #: XVVRM-HDMI2SDI

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$516.00

Our Price:

$403.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    XVVRM-HDMI2SDI - Overview

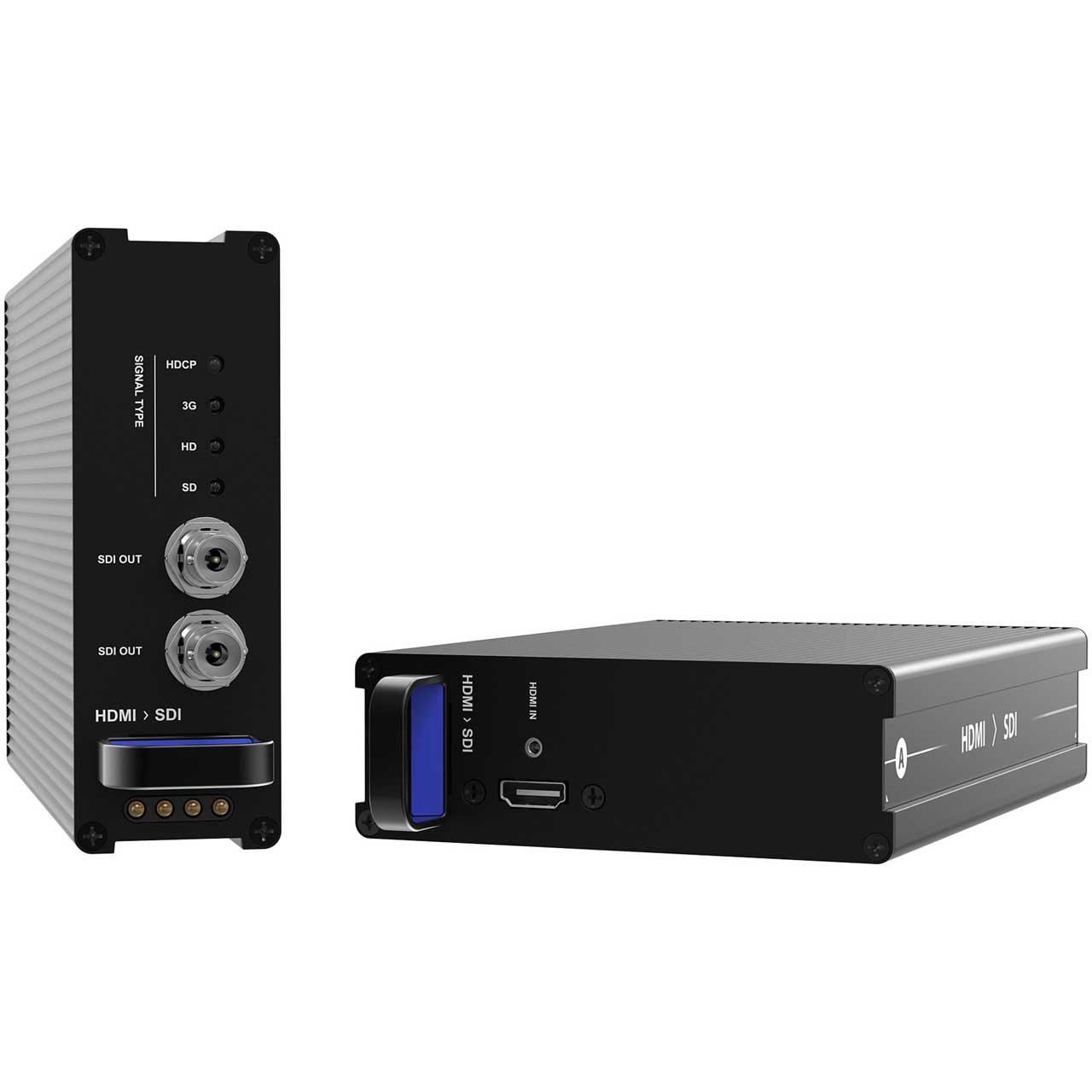

    The Theatrixx XVVRM-HDMI2SDI is an HDMI to SDI Rack Module that is a unit option for the 8-Bay Reversible Rackmount Converter system.

    The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections

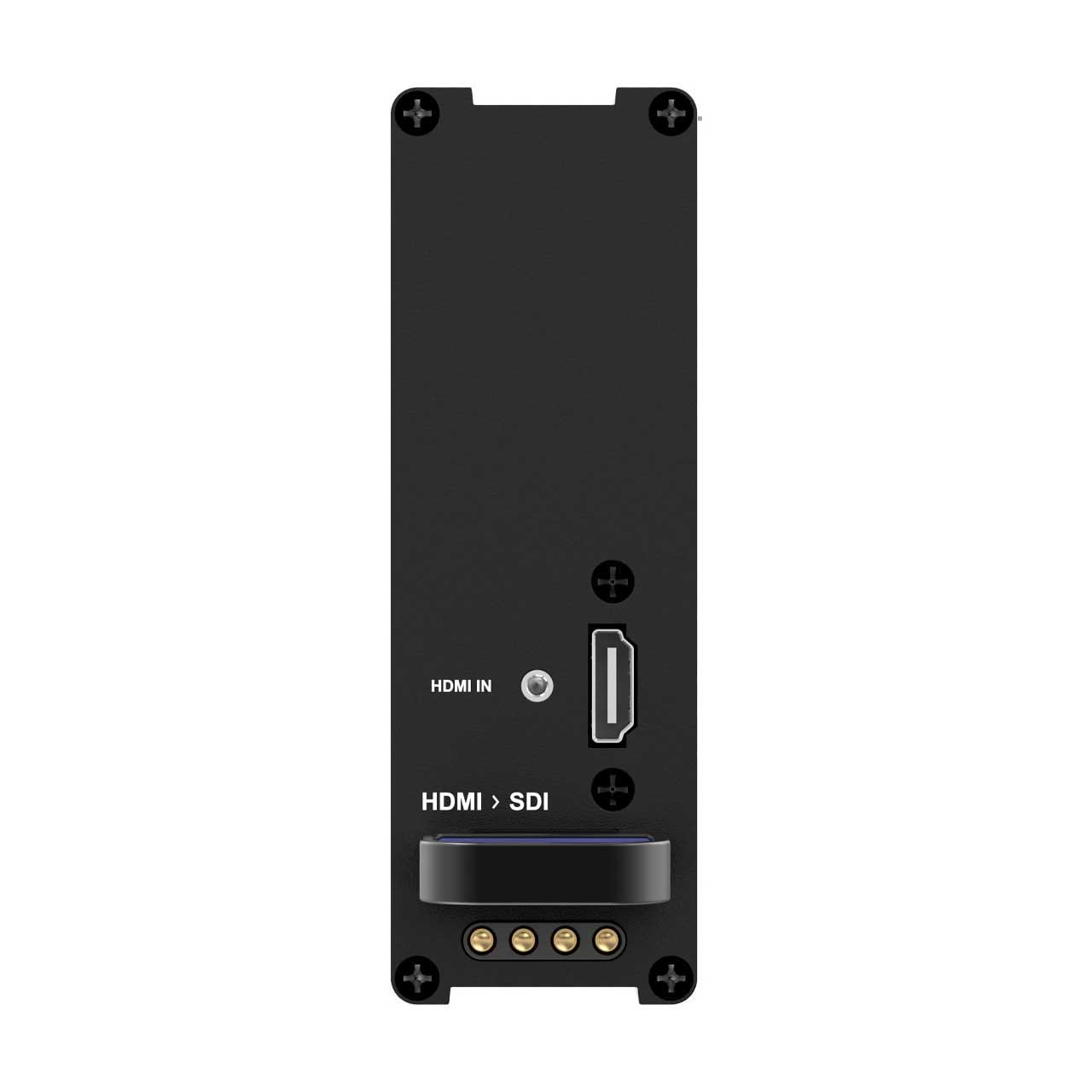

      • Video Input: 1x HDMI 1.2 type A with locking system

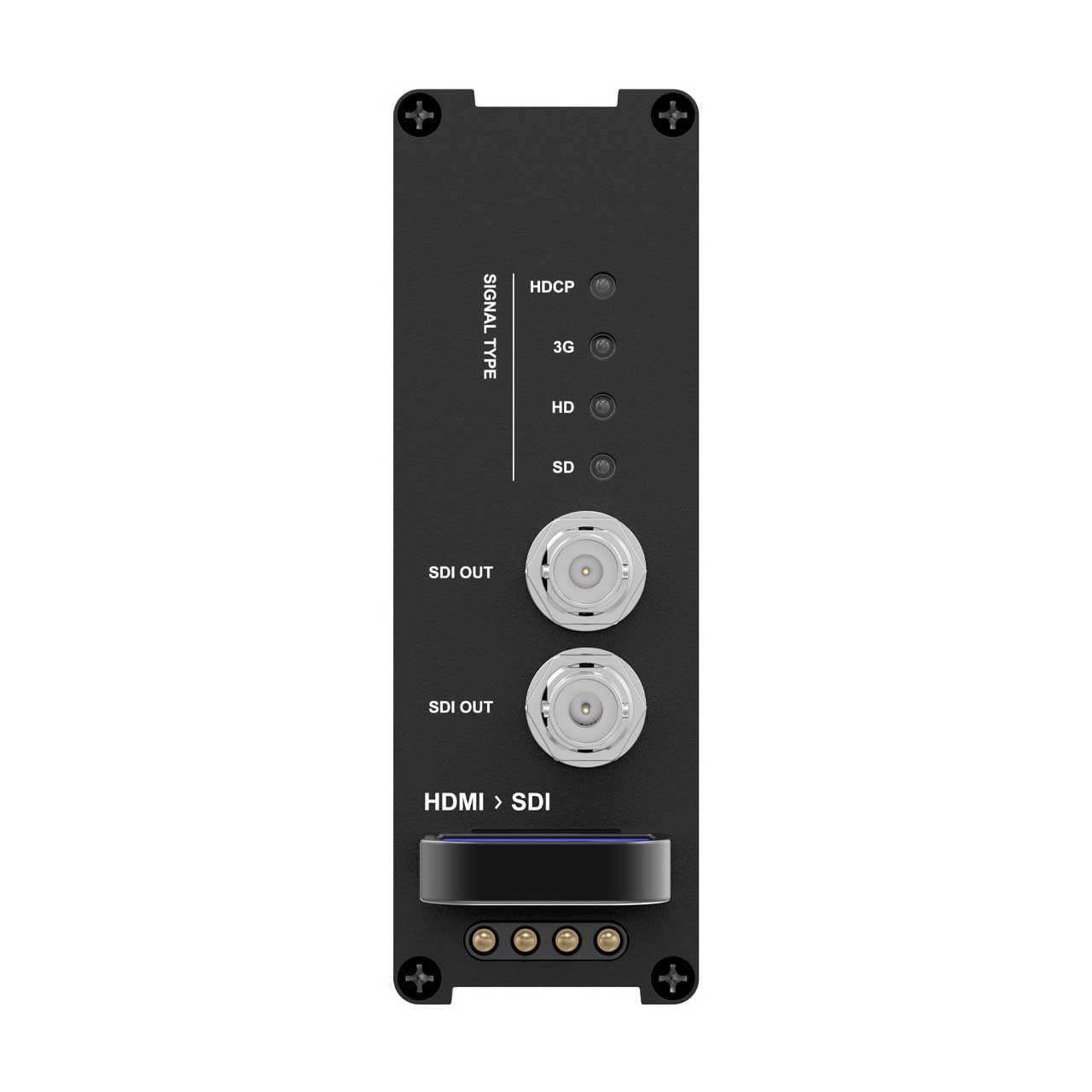

      • Video Output: 2x 3G/HD/SD SDI BNC

        Supported Signals
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60
      • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

        Physical
      • Dimensions (HxDxW): 4.78 x 8.85 x 1.61" (121.5 x 225 x 41mm)
      • Weight: 1.56Lbs (710g)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 32° to 104°F (0° to 40°C)

        Power Requirements
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module HDMI to SDI


    XVVRM-HDMI2SDI - Required Accessories

    XVVRM-HDMI2SDI - Recommended Accessories
