VAC 11-513-104 1x4 Composite Video DA - Standard Input - Global Variable Gain

ITEM #: VAC-11-513-104 MFG #: 11-513-104

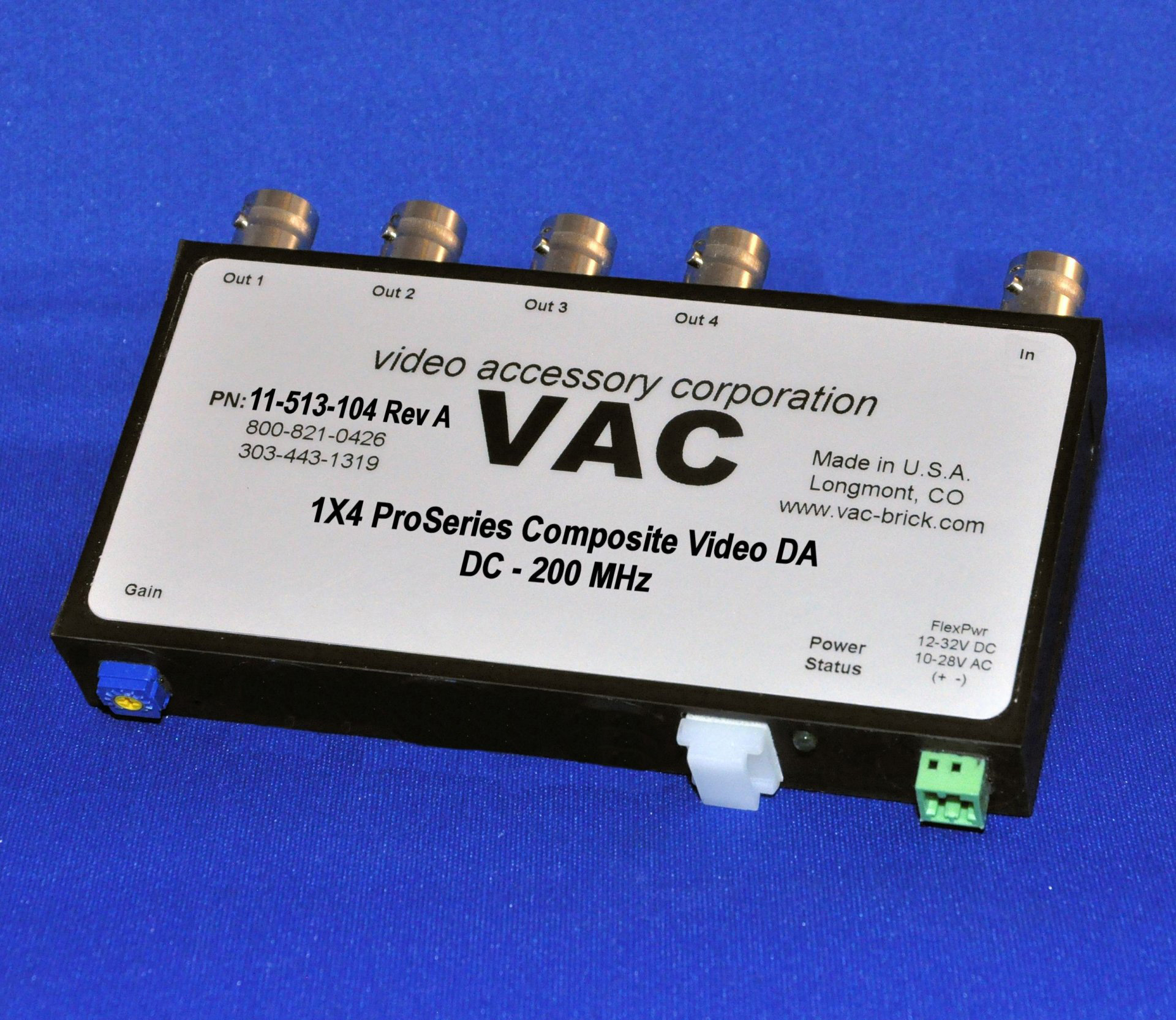

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VAC-11-513-104

11-513-104 - Overview

The 11-513-104 is a one input to four output composite video distribution amplifier with a single ended input (75 Ohm termination). This unit has a single gain pot controls the gain of all four outputs. Unused outputs do not need to be terminated with 75 Ohms. All of the video connections are BNC connectors. This unit is intended to be used with NTSC or PAL video signals.

The common application of this unit is to generate four copies of a single composite video signal so several downstream devices can be driven without degradation of the video quality. Because this is an active device (requires power) signal quality as well as signal levels are maintained while generating the multiple copies of the original signal. The high bandwidth of this unit insures the input video signal is not modified due to bandwidth roll off (DC - 200 MHz bandwidth at -3db level).

This unit has a non-isolated internal switcher power supply (FlexPWR). The unit will operate correctly on 10-28 VAC or 10-32 VDC. The power input is protected so power can be applied in either polarity. The supply provides the internal electronics with power with the ground of the video circuits being the same as the input power ground. The power connector is a 2-pin 2.5mm terminal block with detent retention that can support high vibration environments.

  • Features:

    • Analog video distribution amplifier (DA)
    • NTSC or PAL formats
    • 1 input, 4 output configuration
    • Single gain control for all outputs
    • Standard single ended 75 Ohm terminated input
    • BNC connectors for video signals
    • Sealed epoxy package
    • FlexPwr power supply (10-28 VAC, 10-32 VDC)
    • 2 pin 2.5mm terminal block power connector
    • 2.2" X 4.4" X 0.65" size (not including connectors)
    • Mounted using two 6-32 threaded inserts

  • Specifications:

    • # Channels: 1
    • Inputs/Channel: 1
    • Outputs/Channel: 4
    • Input 1 Signal Type: Composite Video
    • Input 1 Coupling: DC
    • Input Configuration 1: Standard 75 Ohms
    • Gain Configuration: Global
    • Input 1 Connector: BNC
    • Output 1 Signal Format: Composite Video
    • Output 1 Coupling: DC
    • Output 1 Connectors: BNC
    • Power Connector: 2 Pin 2.5mm TB
    • Input Voltage 1: 10-28 VAC
    • Input Voltage 2: 10-32 VDC
    • Height: .65"
    • Width: 4.4"
    • Depth: 2.2"
    • Weight Oz: 6.5
    • High Operating Temp (C): 80
    • Power Bypass: NO
    • Mounting: Two 6-32 Inserts
