VigilLink VLSP-12CTH14 1x2 10.2Gbps HDMI 1.4 4K2K Distribution Amplifier over CAT6 - 229 Foot/70m

VLSP-12CTH14 - Overview

• Features:

  • HDMI 1.4 and HDCP 1.4 compliant
  • Video resolution up to 4K2K@30Hz (4:4:4) 8-bit
  • Supports audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HDMaster Audio
  • Extend the signal transmission distance up to 40m/131ft at the resolution of 4K30 or 70m/230ft at 1080P@60Hz via a single CAT6 cable

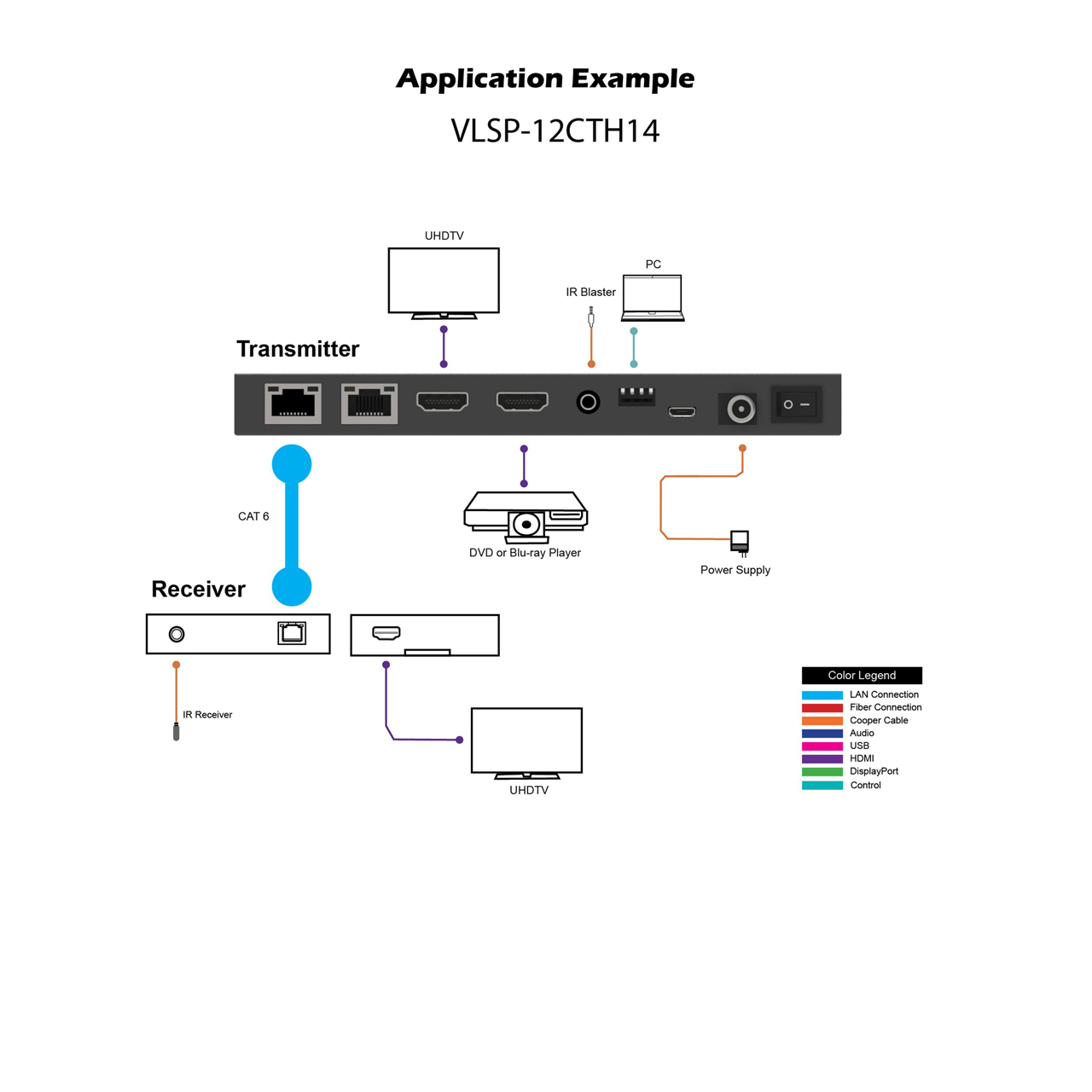

  • Supports 1 HDMI input, 1 HDMI loop output, and 2 CAT outputs
  • Advanced EDID management
  • Supports 12V one-way POC function (only from transmitter to receiver)
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 1.4
  • HDCP Compliance: HDCP 1.4
  • Video Bandwidth: 297MHz/10.2Gbps
  • Video Resolution: 480i - 1080p50/60Hz, 4Kx2K @ 30Hz (4:4:4)
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p@60Hz)
    - 8-bit (4K30Hz)
  • Color Space: RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
  • Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

    Connections

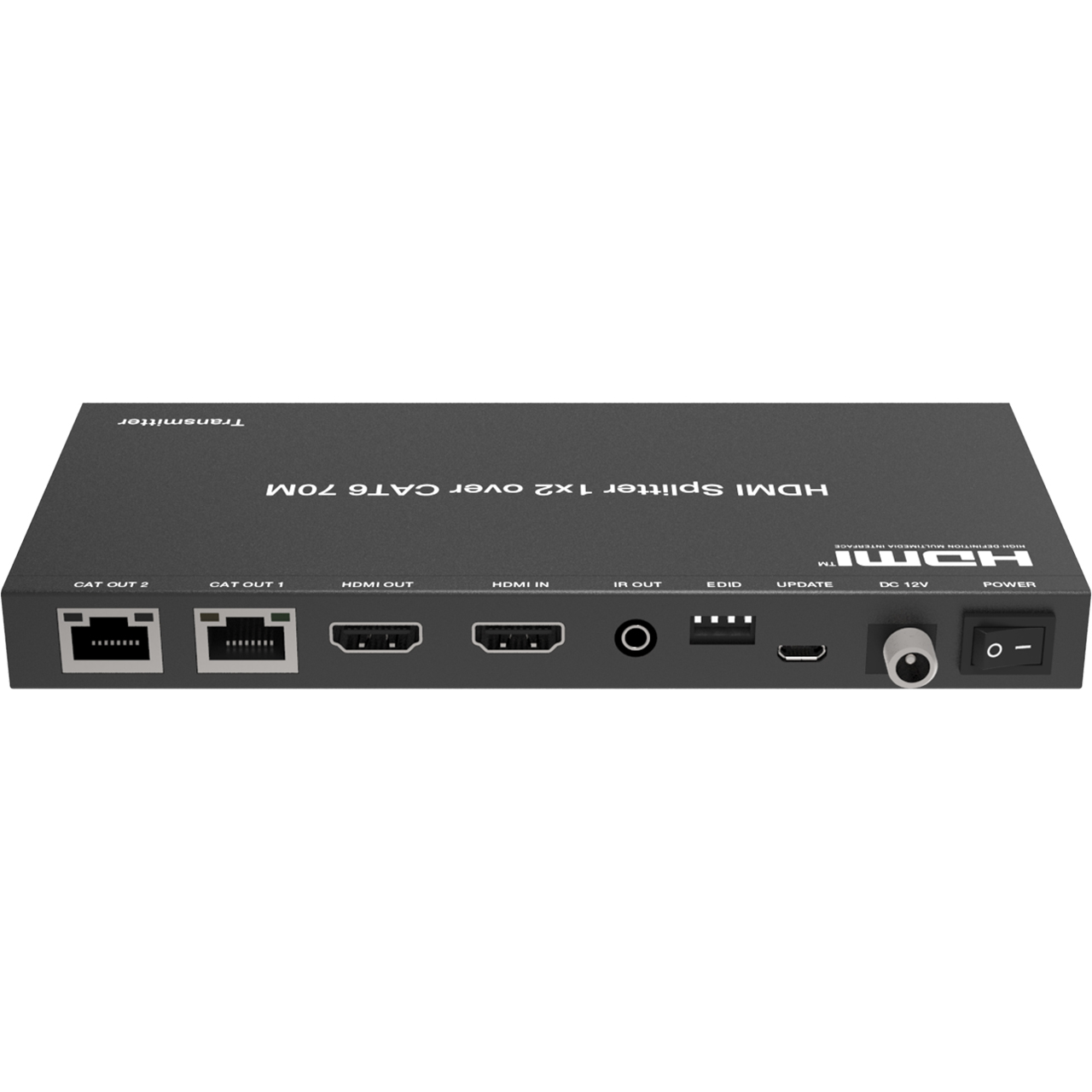

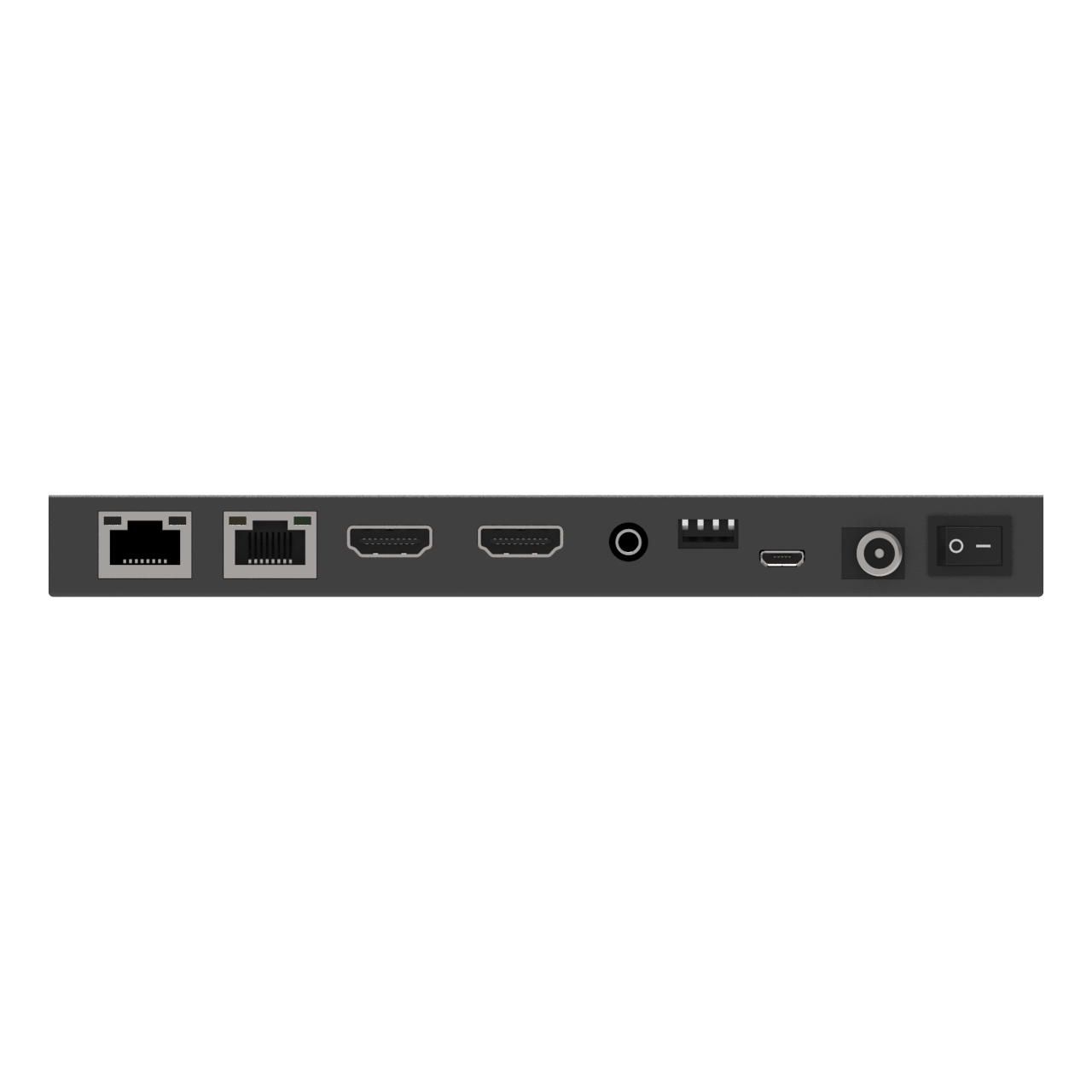

  • Transmitter Input: 1x HDMI IN (Type A, 19-pin female)
  • Transmitter Outputs:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 2x CAT OUT (RJ45)
  • Transmitter Controls:
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 1x EDID DIP switch (4-pin)
    - 1x UPDATE (Micro USB)
  • Receiver Inputs:
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x CAT IN (RJ45, 8-pin female)
  • Receiver Output: 1x HDMI OUT (Type A, 19-pin female)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    - Transmitter: 6.89" x 3.23" x 0.71" (175mm x 82mm x 18mm)
    - Receiver: 3.13" x 2.72" x 0.65" (79.5mm x 69mm x 16.5mm)
  • Weight:
    - Transmitter: 0.81lbs (366g)
    - Receiver: 0.29lbs (130g)
  • Power Supply: 12V/1A DC Locking Power (US/EU standards, CE/FCC/RoHs certificated)
  • Power Consumption: 5.4W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

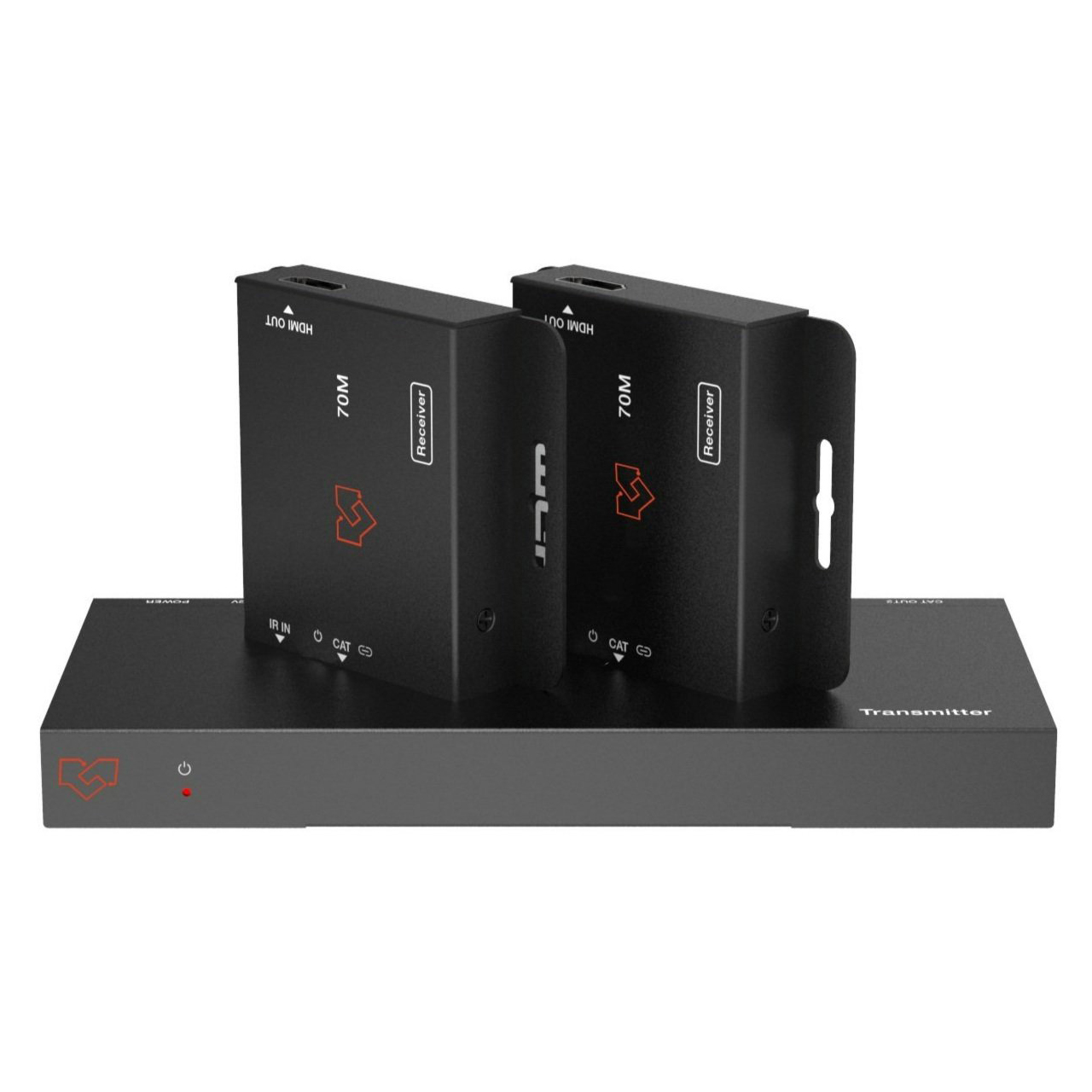

  • 1x HDMI 1x2 Splitter
  • 2x CAT Receiver
  • 1x IR Blaster Cable (1.5 meters)
  • 2x IR Receiver Cable (1.5 meters)
  • 2x Mounting Ear
  • 1x 12V/1A DC Locking Power Adapter
  • 4x Machine Screw (KM3*4)
  • 1x User Manual


• Warranty:

  • 6 Years
