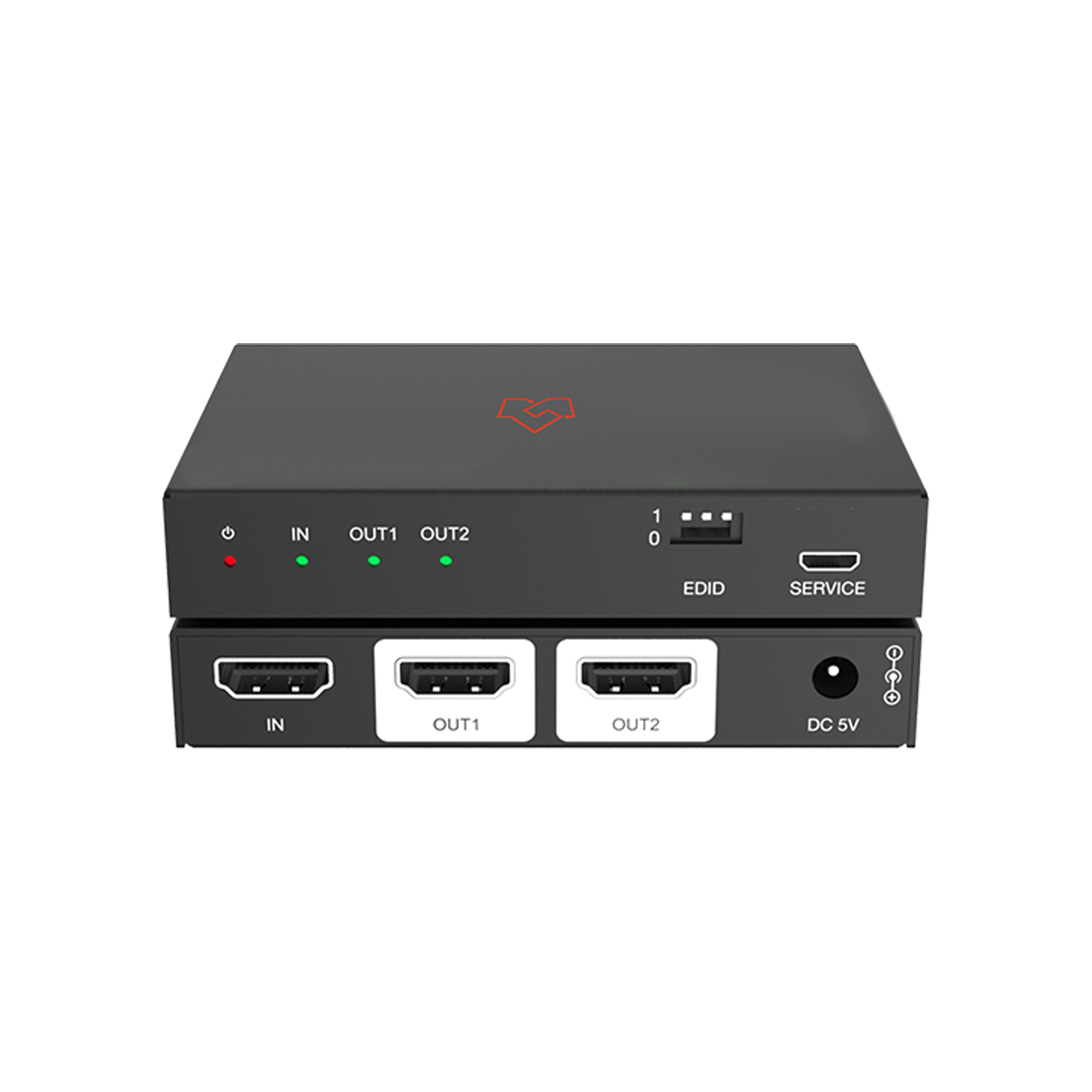

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$152.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLSP-12H21S - Overview

VigilLink VLSP-12H21S 48Gbps 1x2 HDMI Splitter is an advanced solution for splitting single HDMI signal to 2 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization. This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz on your TVs or relative monitors.

  • Features:

    • HDMI 2.1 and HDCP 2.3 compliant
    • Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
    • Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
    • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
    • Supports HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
    • LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
    • 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
    • HDR to SDR auto converting on all outputs
    • Advanced EDID management
    • Compact design for easy and flexible installation


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps
    • Video Resolution: Up to 8K @ 60Hz 4:2:0 12bit, 4K @ 120Hz 4:4:4 12bit
    • Color Depth: 8/10/12bit
    • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio Formats:
      - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections
    • Input: 1x HDMI IN (Type A, 19-pin female)
    • Output: 2x HDMI OUT (Type A, 19-pin female)
    • Control: 1x SERVICE (USB Type C, Update port)

      Mechanical
    • Housing: Metal enclosure
    • Color: Black
    • Dimensions: 3.74" x 2.67" x 0.70" (95mm x 68mm x 18mm)
    • Weight: 0.39lbs (177g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 5V/2A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 4.3W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

      Recommended HDMI Cable/Resolution/Distance
    • Ultra HDMI 2.1 Cable: 8K60 - 6.6ft (2m) - 10ft (3m)
    • HDMI 2.0 Cable: 4K60 - 26ft (8m)
    • HDMI Cable: 1080P - 49ft (15m)
      **The use of the "Premium High-Speed HDMI" is highly recommended.


  • Item Includes:

    • 1x 48Gbps 1x2 HDMI Splitter
    • 1x 5V/2A Multinational Power Supply
    • 1x User Manual


  • Warranty:

    • 6 Years
