VigilLink VLSP-12HT150 1x2 HDMI 2.0 4K2K Distribution Amplifier with integrated HDBaseT Extender - 492 Foot/150m

VLSP-12HT150 - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K@50/60Hz 4:4:4
  • Supports HDR, HDR10+, HLG, Dolby Vision
  • Up to 7.1CH HD audio pass-through
  • Supports digital and analog audio de-embedded output
  • Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single CAT6/6a/7 cable
  • Supports 1 HDMI input, 1 HDMI loop output and 2 CAT outputs
  • Supports 20-60Hz IR control source equipment from RX side
  • Advanced EDID management
  • Supports one-way PoC function (only from transmitter to receiver)


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: Up to 4k2k @ 60Hz 4:4:4
  • Color Depth:
    - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit, 10-bit, 12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDR: Support HDR10, HDR10+, HLG, Dolby vision
    Note: For Dolby vision, the local HDMI loopout supports 4K60, but the remote HDMI output only supports 1080P.
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS, HD-HRA, DTS-X
  • Coaxial Audio Formats: LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH
  • Analog Audio Formats: PCM 2.0CH
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

    Connections
  • Transmitter Input: 1x HDMI IN (Type A, 19-pin female)

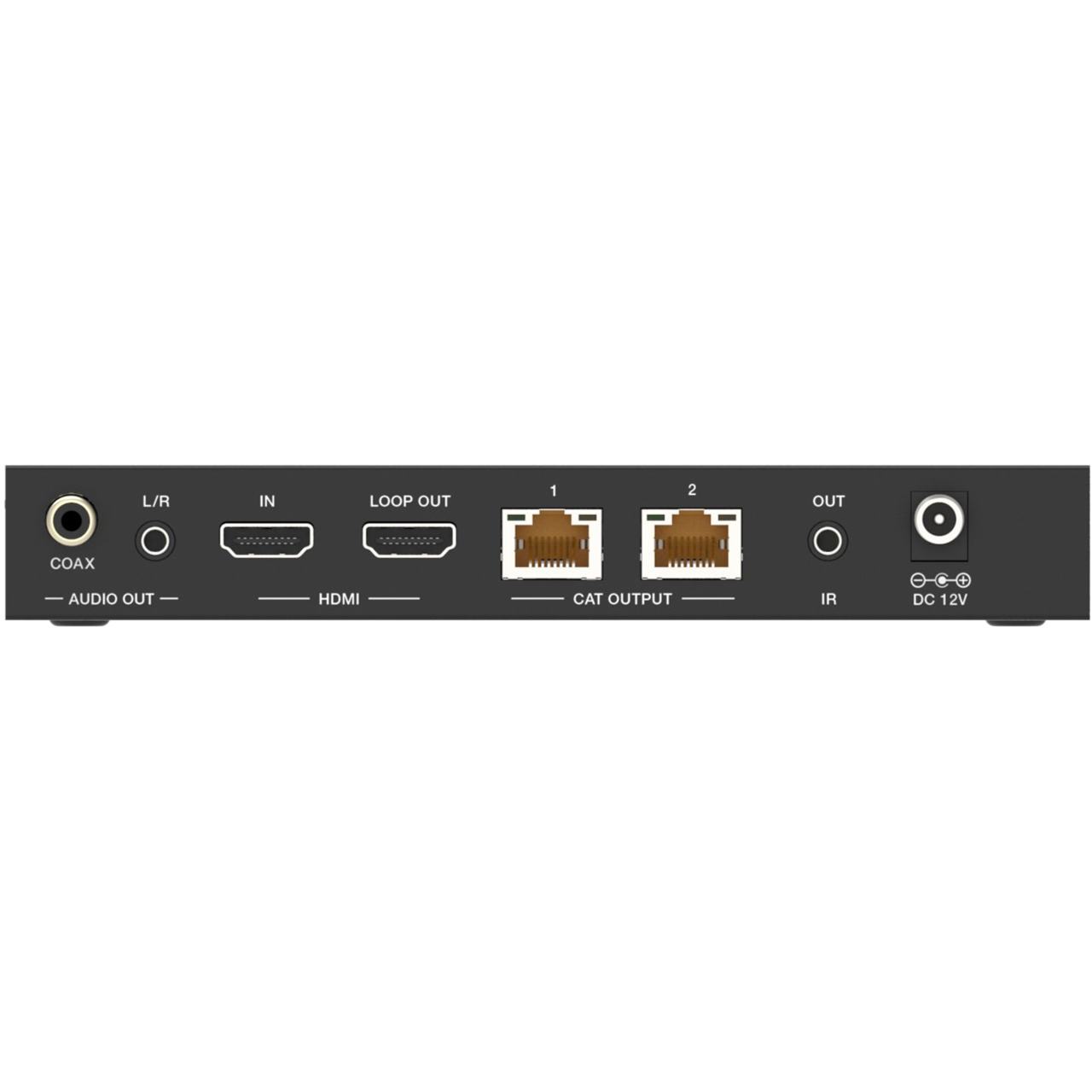

  • Transmitter Output:
    - 1x HDMI LOOP OUT (Type A, 19-pin)
    - 2x HDBT OUTPUT (RJ45)
    - 1x COAX AUDIO OUT (RCA)
    - 1x L/R AUDIO OUT (5-pin phoenix connector)
  • Transmitter Control:
    - 1x RS-232 (3-pin phoenix connector)
    - 1x EDID DIP switch (5-pin)
    - 1x IR IN (3.5mm stereo mini-jack)
    - 1x IR OUT (3.5mm stereo mini-jack)
  • Receiver Input: 1x HDBT IN (RJ45, 8-pin female)
  • Receiver Output:
    - 1x HDMI Type A (19-pin female)
    - 1x AUDIO OUT (3.5mm Stereo Mini-jack)
  • Receiver Control:
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
    - 1x RS-232 (Phoenix jack)
    - 1x SERVICE (Mini-USB, Update port)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    - Transmitter: 3.70" x 5.12" x 1.57" (170mm x 130mm x 40mm)
    - Receiver: 5.51" x 2.56" x 0.71" (140mm x 65mm x 18mm)
  • Weight:
    - Transmitter: 1.52lbs (689g)
    - Receiver: 0.34lbs (155g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 24V/2.7A (US/EU standards, CE/FCC/RoHs certificated)
  • Power Consumption: 18W (Max.)
  • Operating Temperature: 32°F - 10°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

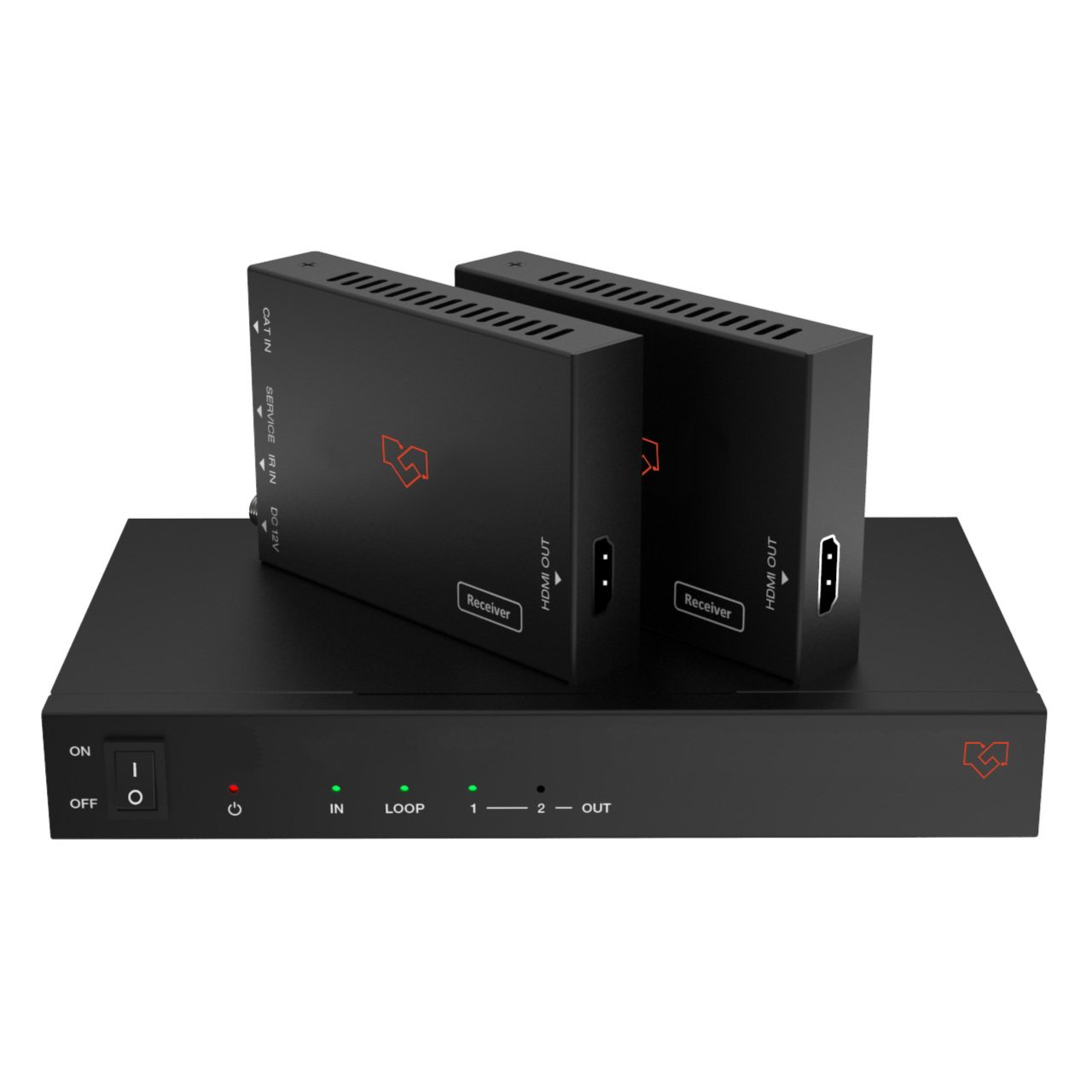

• Item Includes:

  • 1x 18Gbps HDMI 1x2 HDBaseT Splitter
  • 2x HDBaseT Receiver
  • 3x IR Blaster Cable (1.5 meters)
  • 3x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 3x 3pin-3.81mm Phoenix Connector (male)
  • 1x 5pin-3.81mm Phoenix Connector (male)
  • 6x Mounting Ear
  • 1x 24V/1A DC Locking Power Adapter
  • 12x Machine Screws (KM3*4)
  • 1x User Manual


• Warranty:

  • 6 Years
