VigilLink VLSP-14CTH14 1x4 10.2Gbps HDMI 1.4 4K2K Distribution Amplifier over CAT6 - 229 Foot/70m

ITEM #: VGL-VLSP-14CTH14 MFG #: VLSP-14CTH14

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$541.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLSP-14CTH14 - Overview

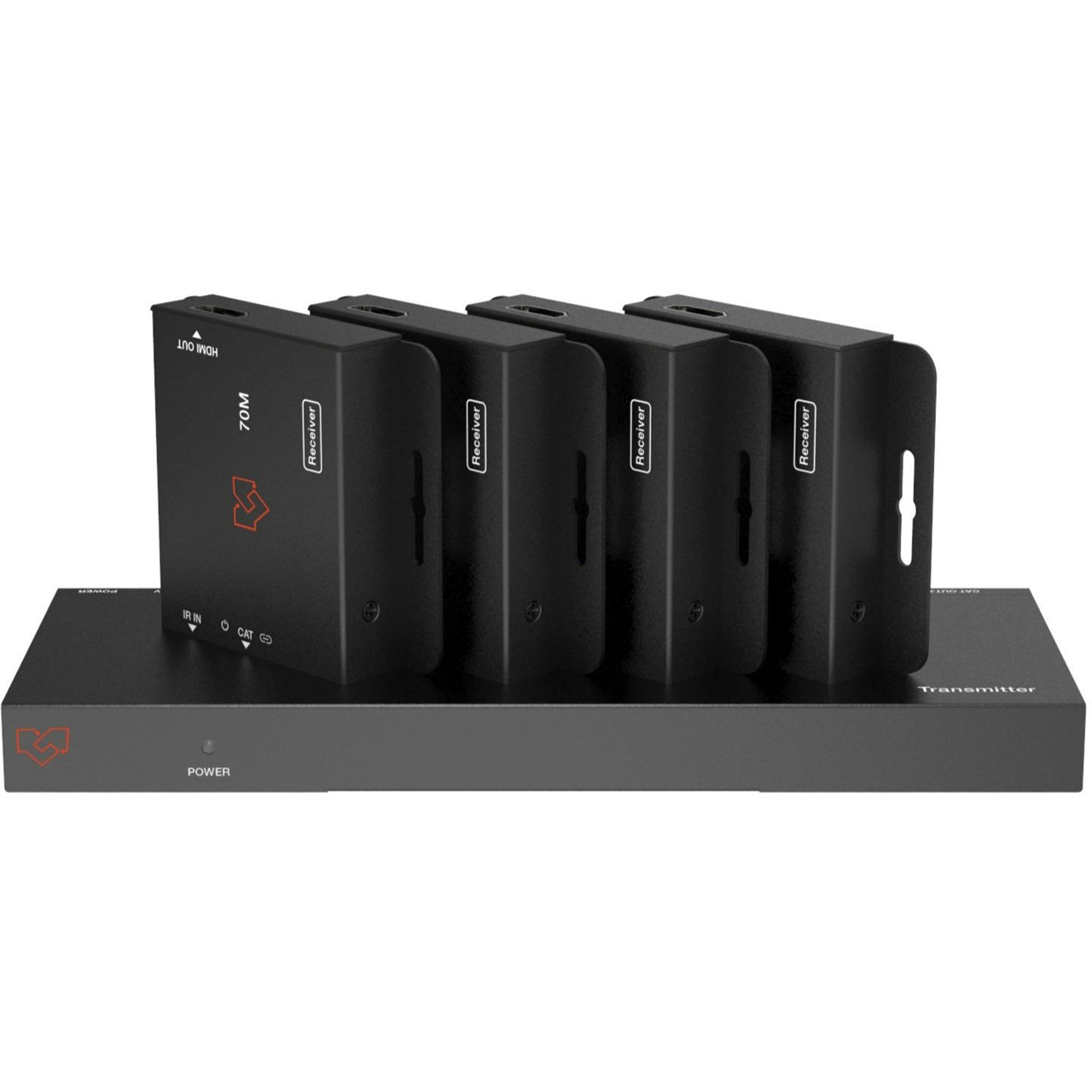

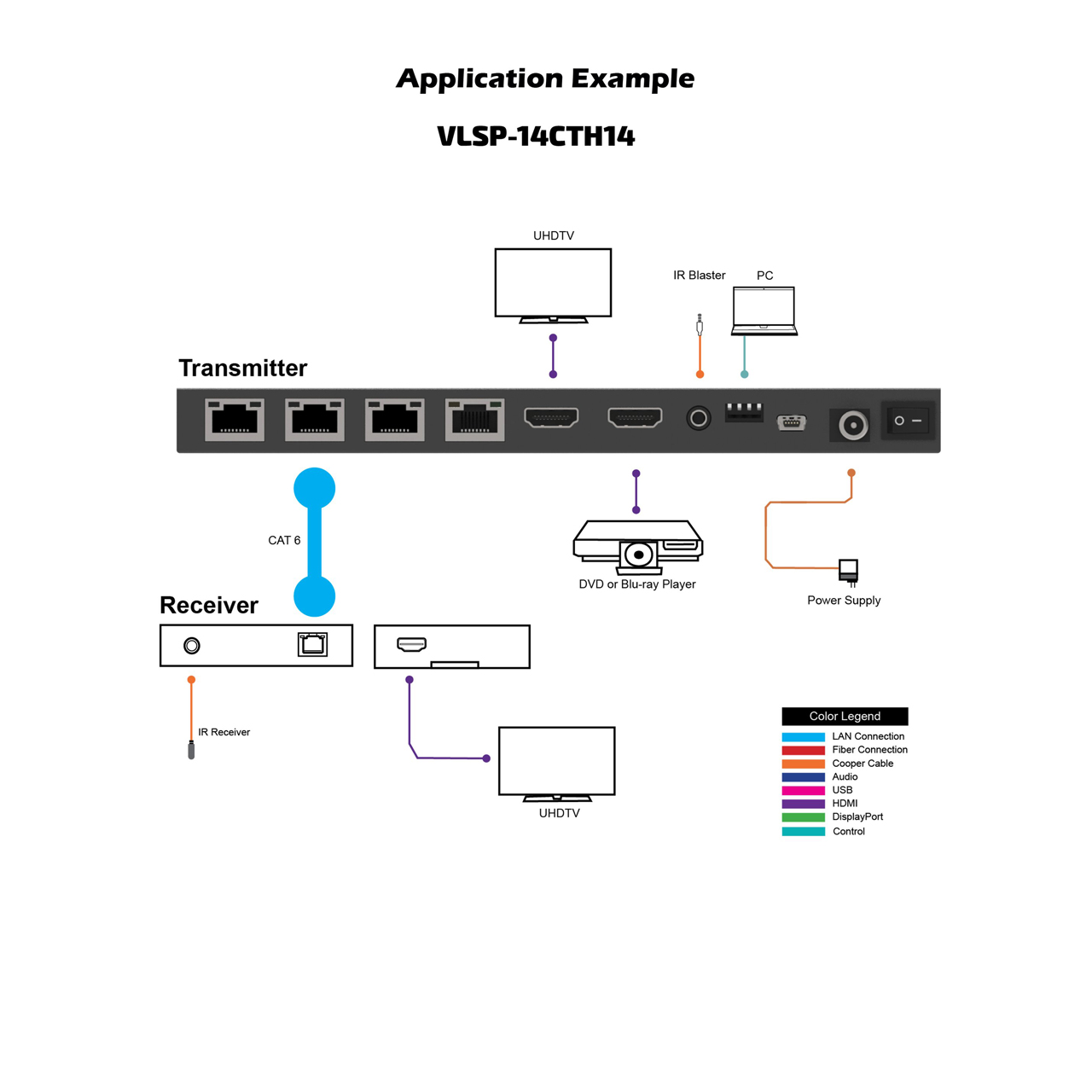

The VigilLink VLSP-14CTH14 HDMI 1x4 Splitter can distribute 1 HDMI source signal to any 4 display devices. Support video resolution up to 4K2K@30Hz 4:4:4. It is designed with 1 HDMI input, 1 HDMI loop output and 4 CAT outputs. The HDMI signal transmission distance can be extended up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft/70 meters at 1080P@60Hz via a single CAT6 cable. The product supports one-way IR control signal pass-through and advanced EDID management.

  • Features:

    • HDMI 1.4 and HDCP 1.4 compliant
    • Video resolution up to 4K2K@30Hz (4:4:4) 8-bit
    • Supports audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
    • Extend the signal transmission distance up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6 cable
    • Supports 1 HDMI input, 1 HDMI loop output and 4 CAT outputs.
    • Advanced EDID management
    • Supports one-way POC function (only from transmitter to receiver)
    • Compact design for easy and flexible installation


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 1.4
    • HDCP Compliance: HDCP 1.4
    • Video Bandwidth: 297MHz/10.2Gbps
    • Video Resolution: 480i - 1080p50/60Hz, 4Kx2K @ 30Hz (4:4:4)
    • Color Depth:
      - 8-bit, 10-bit, 12-bit (1080p @ 60Hz)
      - 8-bit (4K30Hz)
    • Color Space: RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
    • Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
    • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

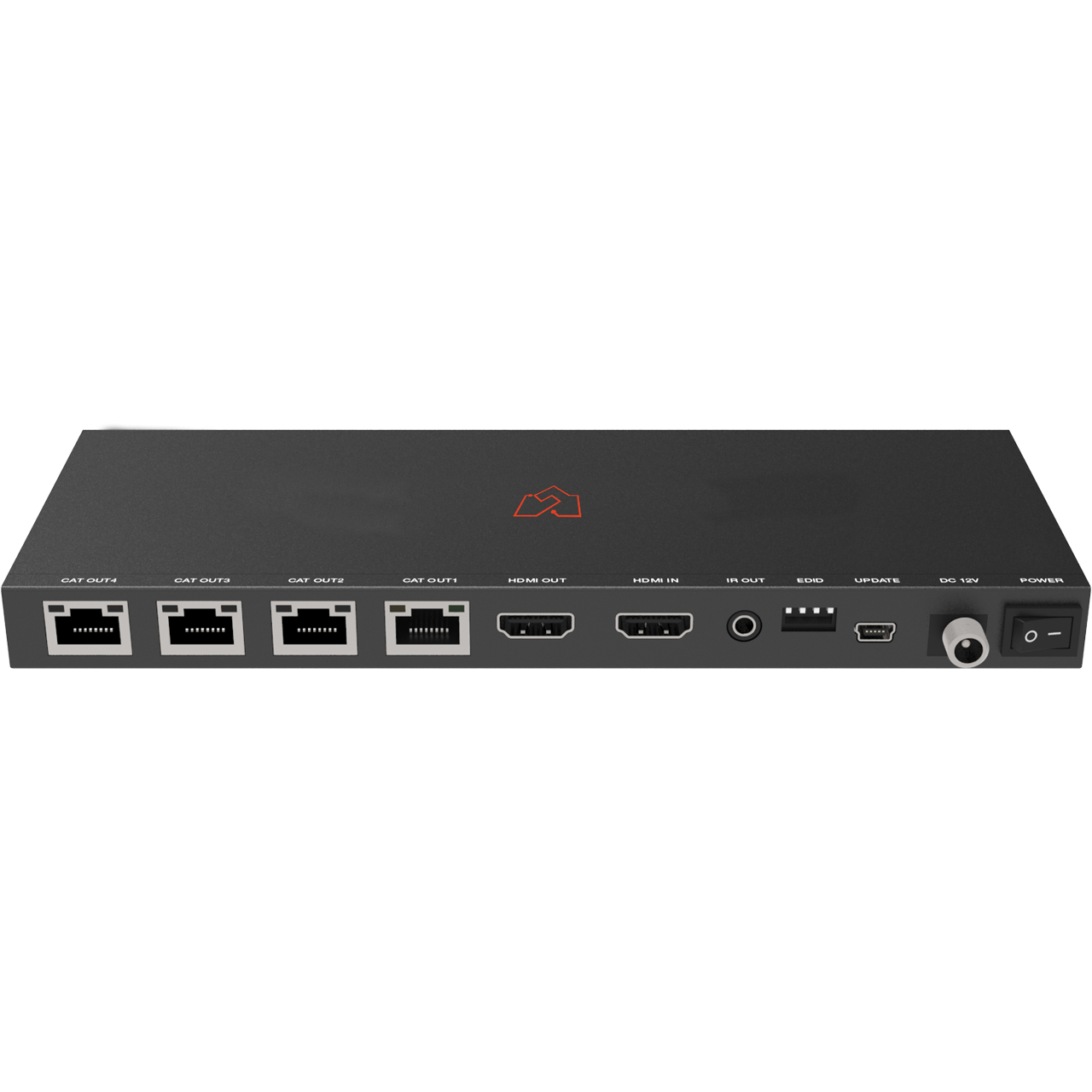

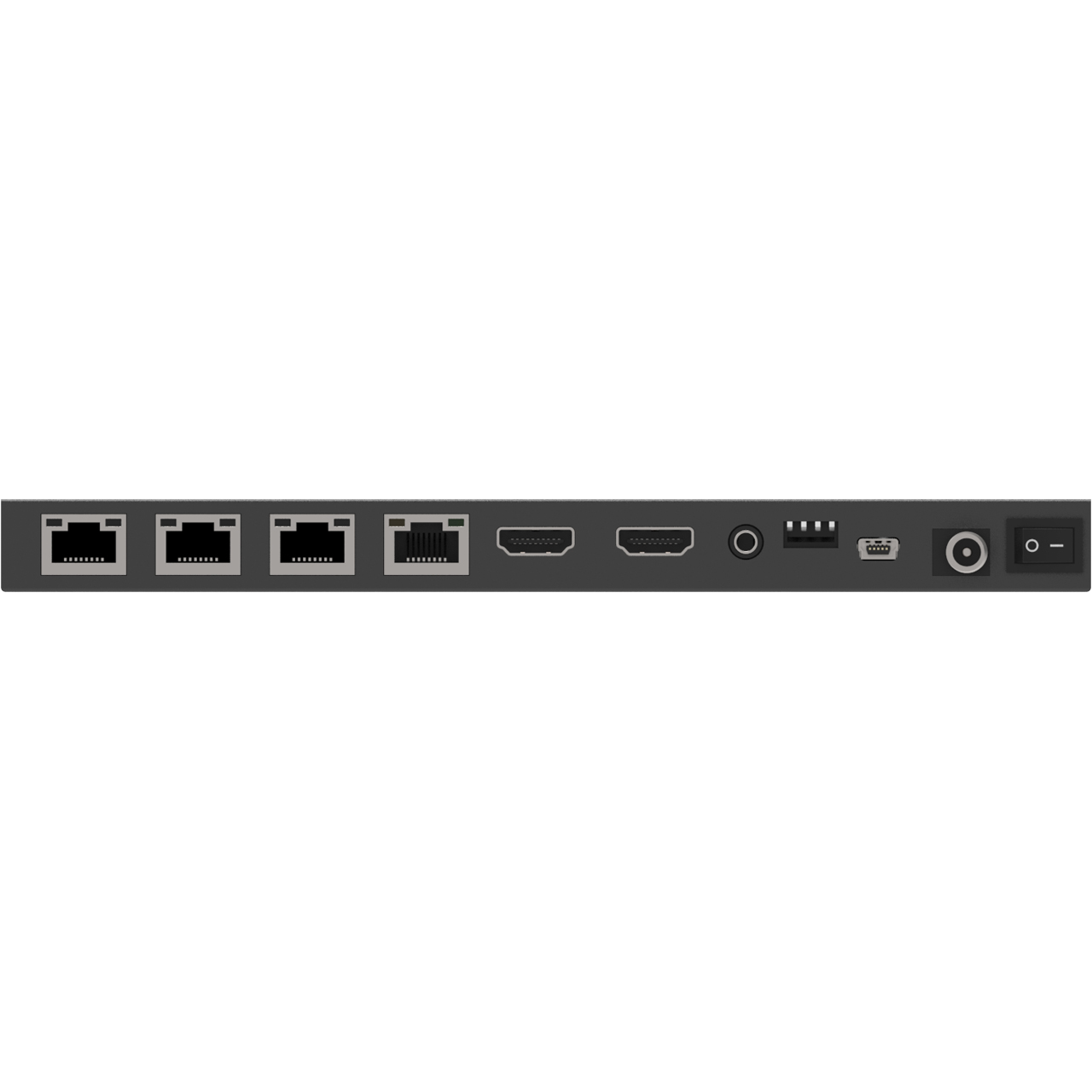

      Connections
    • Transmitter Inputs: 1x HDMI IN (Type A, 19-pin female)
    • Transmitter Outputs:
      - 1x HDMI OUT (Type A, 19-pin female)
      - 4x CAT OUT (RJ45)
    • Transmitter Controls:
      - 1x IR OUT (3.5mm Stereo Mini-jack)
      - 1x EDID DIP switch (4-pin)
      - 1x Update (Micro USB)
    • Receiver Inputs:
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x CAT IN (RJ45, 8-pin female)
    • Receiver Output: 1x HDMI OUT (Type A, 19-pin female)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions:
      - Transmitter: 8.27" x 3.27" x 0.71" (210mm x 83mm x 18mm)
      - Receiver: 3.13" x 2.72" x 0.65" (79.5mm x 69mm x 16.5mm)
    • Weight:
      - Transmitter: 0.99lbs (448g)
      - Receiver: 0.29lbs (130g)
    • Power Supply: 12V/2.5A DC Power (US/EU standards, CE/FCC/RoHs certificated)
    • Power Consumption: 11W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)


  • Item Includes:

    • 1x HDMI 1x4 Splitter
    • 4x CAT Receiver
    • 1x IR Blaster Cable (1.5 meters)
    • 4x IR Receiver Cable (1.5 meters)
    • 2x Mounting Ear
    • 1x 12V/2.5A DC Locking Power Adapter
    • 8x Machine Screw (KM3*4)
    • 1x User Manual


  • Warranty:

    • 6 Years
