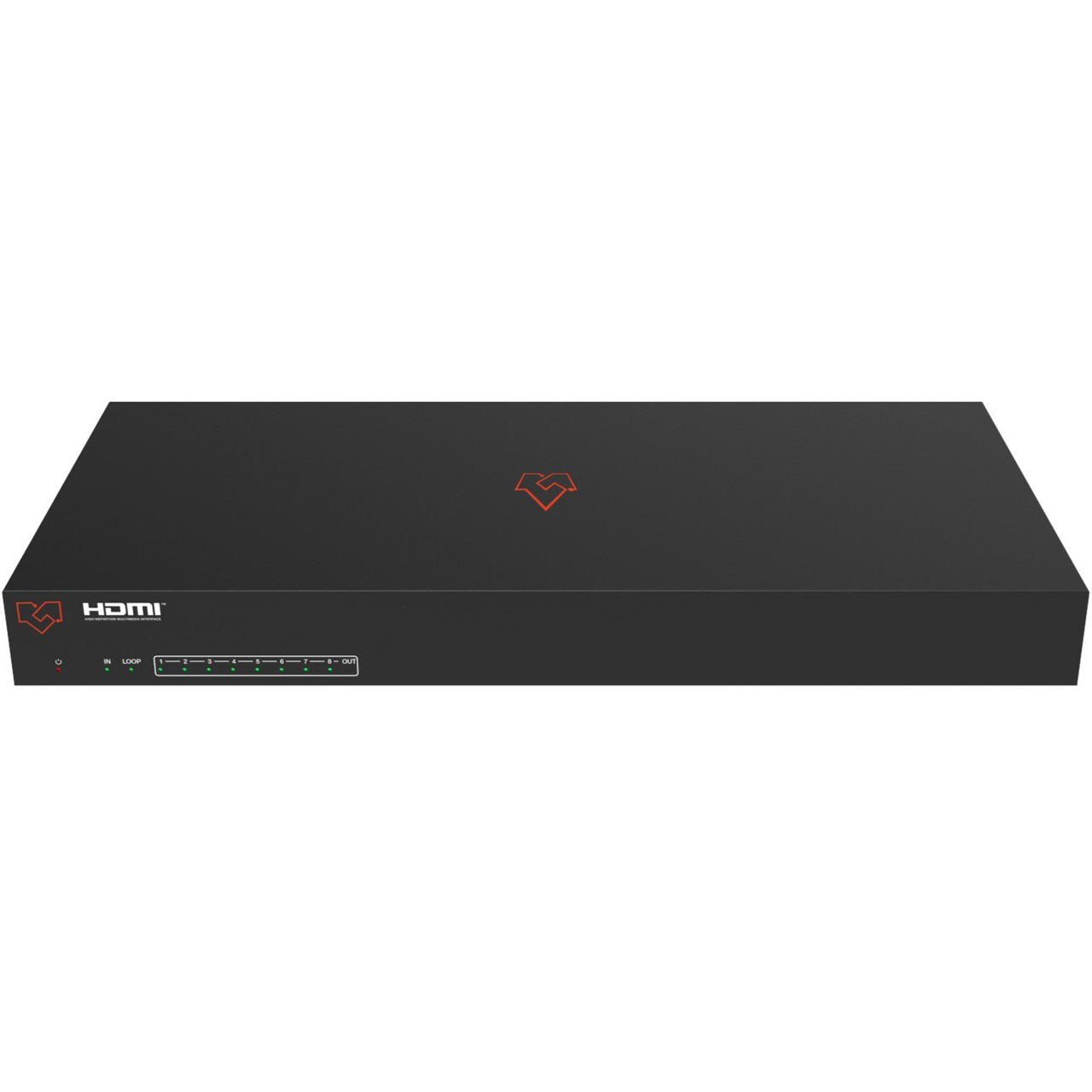

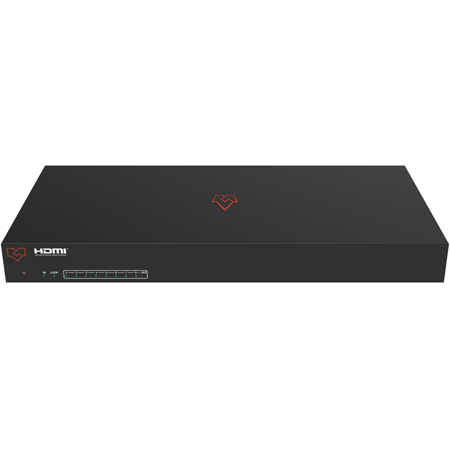

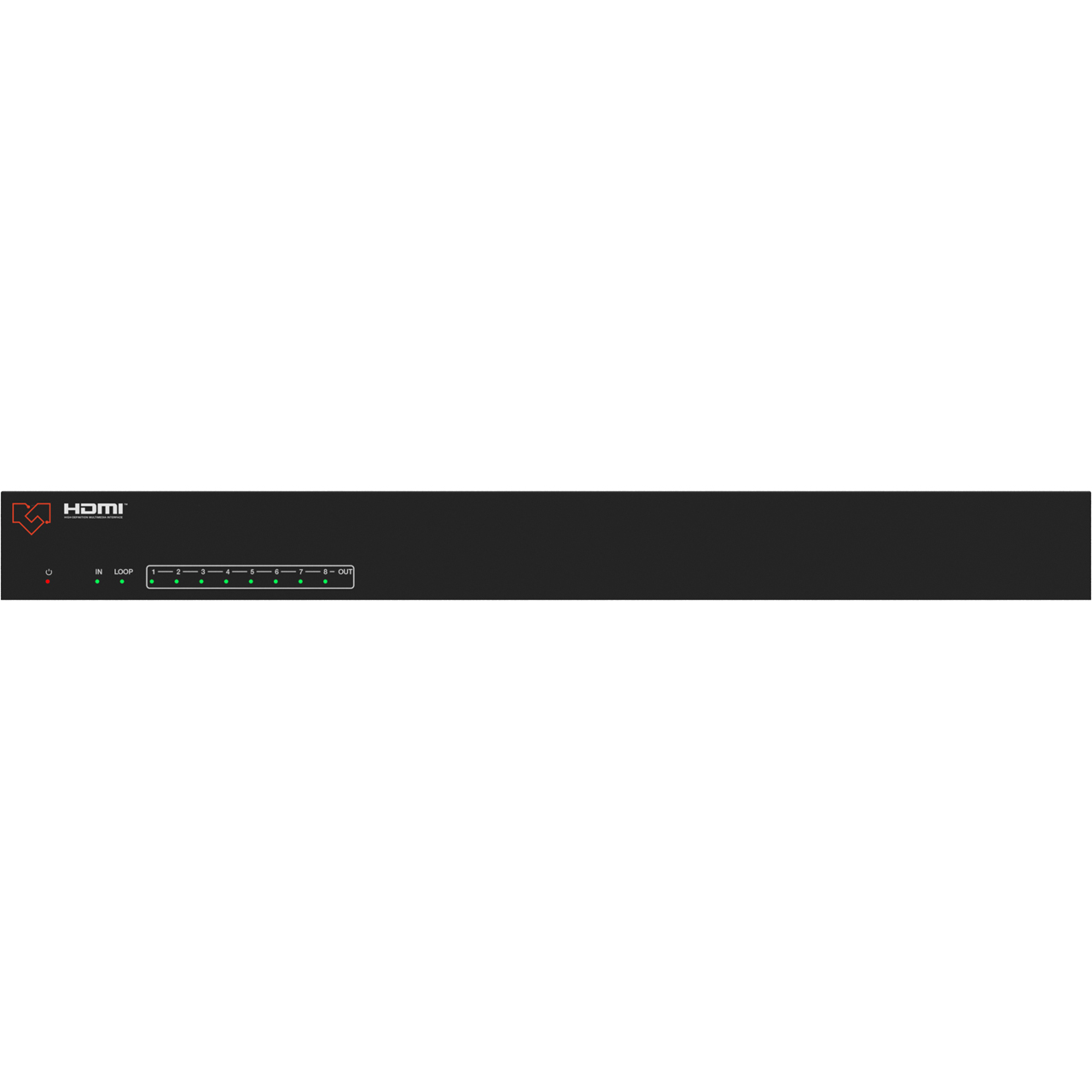

VigilLink VLSP-18HT150 1x8 HDMI 2.0 18Gbps 4K2K Distribution Amplifier over HDBaseT - 492 Foot/150m

VLSP-18HT150 - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K @ 60Hz 4:4:4
  • Supports HDR, HDR10+, HLG, and Dolby vision
  • Supports up to 7.1CH HD audio pass-through
  • Supports digital and analog audio de-embedded output
  • Extends the signal transmission distance up to 120 meters at the resolution of 4K2K @ 60Hz, 150 meters at 1080p @ 60Hz via a single CAT6/6a/7 cable
  • Supports 1 HDMI input, 1 HDMI loop output, and 8 HDBaseT outputs.
  • IR, RS-232 routed to HDBaseT output
  • Advanced EDID management
  • Supports one-way POC function (only from transmitter to receiver)
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 594MHz/18Gbps
  • Video Resolution: Up to 4k2k @ 60Hz 4:4:4
  • Color Depth:
    - 8-bit,10-bit,12-bit (1080p @ 60Hz)
    - 8-bit (4K2K @ 60Hz YUV4:4:4)
    - 8-bit,10-bit,12-bit (4K2K @ 60Hz YCbCr 4:2:2/4:2:0)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • HDR: Support HDR, HDR10+, HLG, Dolby vision
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Coaxial Audio Formats: PCM2.0, Dolby Digital/Plus, DTS 2.0/5.1
  • Analog Audio Formats: PCM 2.0CH
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

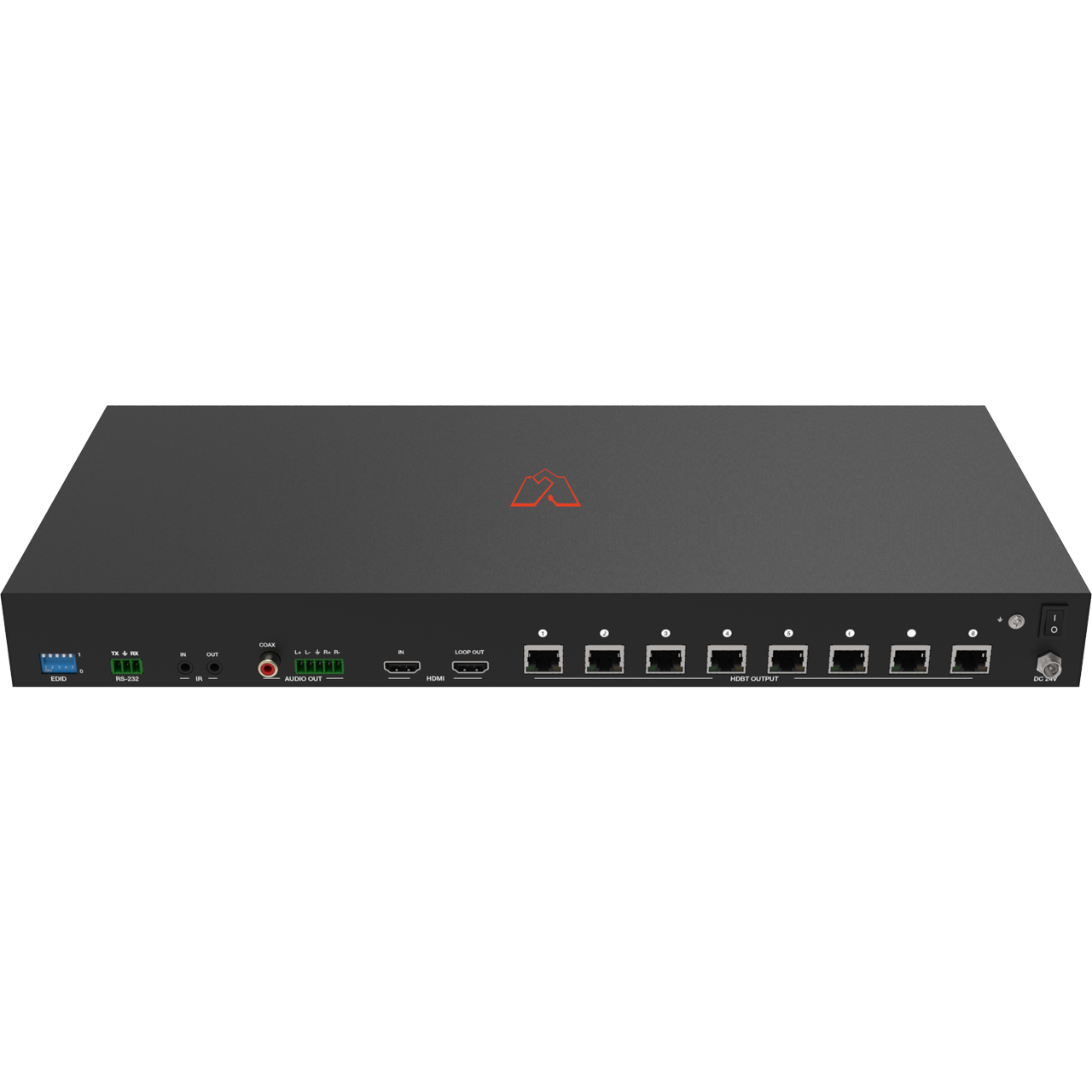

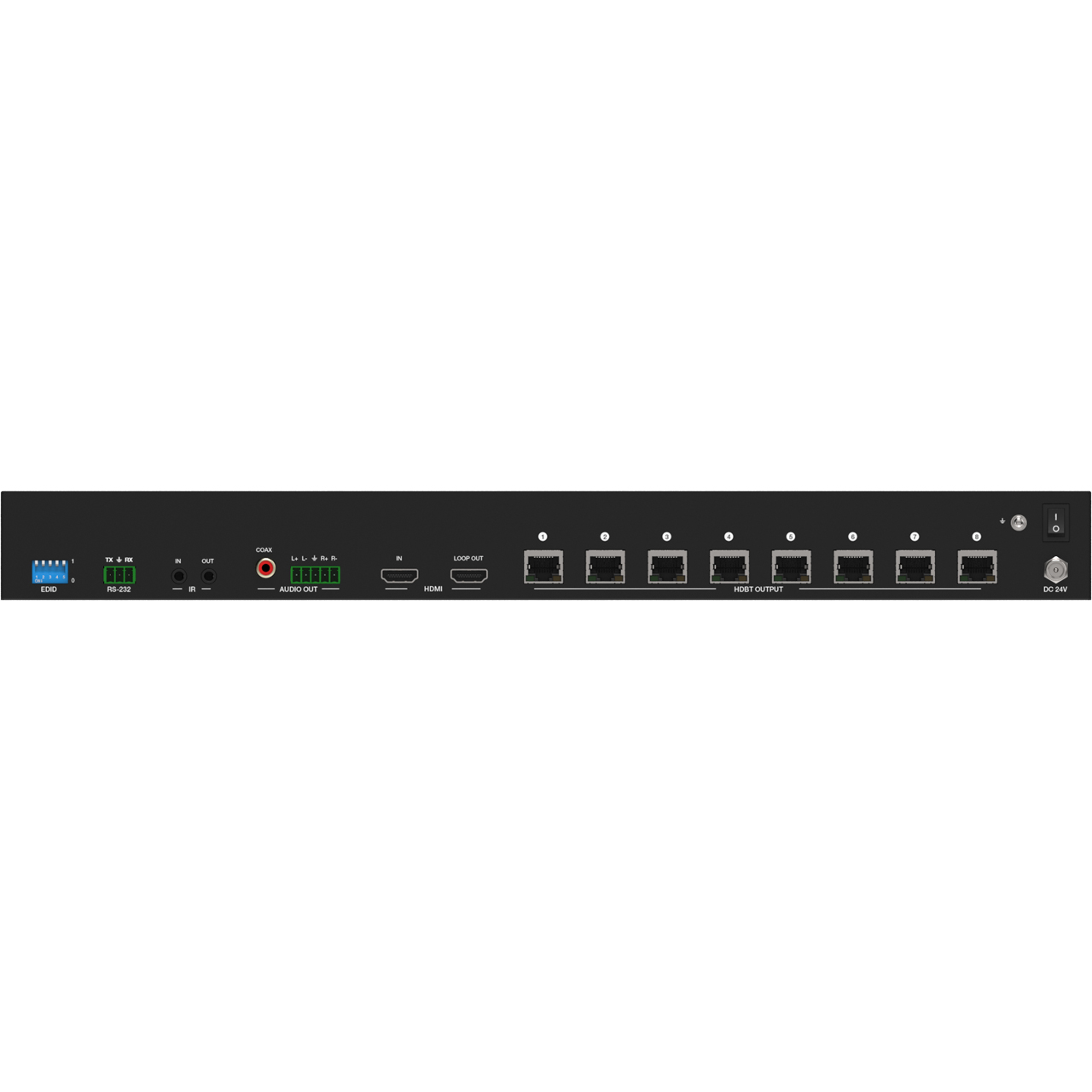

    Connections
  • Input: 1x HDMI Type A (19-pin female)
  • Output:
    - 1x HDMI Type A (19-pin female)
    - 8x HDBaseT OUT (RJ45)
    - 1x Coaxial Audio OUT (RCA)
    - 1x L/R Audio OUT (5-pin phoenix connector)
  • Control:
    - 1x RS-232 (3-pin phoenix connector)
    - 1x EDID DIP switch (5-pin)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)

    Mechanical
  • Housing: Metal Enclosure
  • Silkscreen Color: Black
  • Dimensions:
    - Transmitter: 8.66" x 5.12" x 1.57" (220mm x 130mm x 40mm)
    - Receiver: 5.51" x 2.56" x 0.71" (140mm x 65mm x 18mm)
  • Weight:
    - Transmitter: 3.57lbs (1.62kg)
    - Receiver: 0.54lbs (246g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption: 72W (max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 18Gbps HDMI 1x8 HDBaseT Splitter
  • 8x HDBaseT Receiver
  • 9x IR Blaster Cable (1.5 meters)
  • 9x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 9x 3-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 18x Mounting Ear
  • 1x 24V/3.75A DC Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
