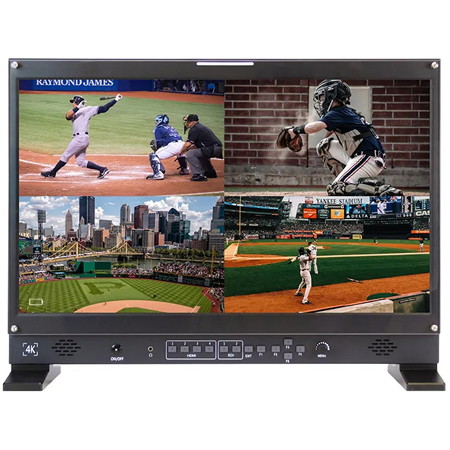

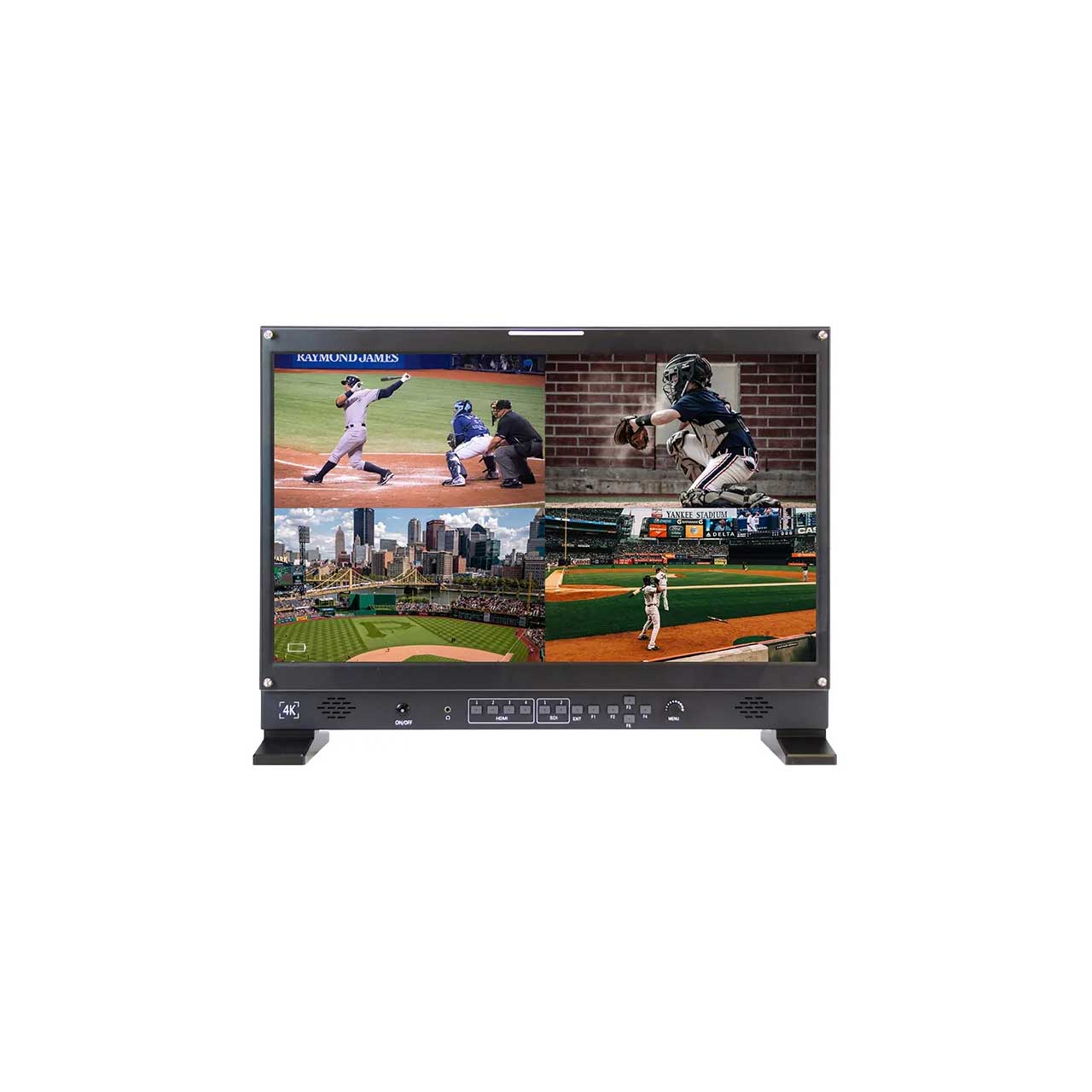

ViewZ VZ-238PM-HDR 23.8 Inch HD Broadcast Monitor - 3840x2160 IPS 10-bit - 3G-SDI/HDMI (4K)/HDR(PQ)/Tally

VZ-238PM-HDR - Overview

• Features:

  • 23.8" 10bit/3G-SDI Monitor
  • HDR (HDMI) PQ supported
  • 3G-SDI 2inputs and one loop-through
  • 3G-LUT (built in EBU/SMPTE/REC709 /DCI-P3)
  • 4K HDMI 4 inputs and a loop-through / 3G-SDI Input and a loop-through
  • Gamma 1.8, 2.0, 2.2 and 2.4
  • False Color, Display Swap, Aspect Ratio
  • Center Marker, Safety Area
  • Color/Mono
  • Tally (Red, Yellow, Green)
  • Battery Power Remain Information

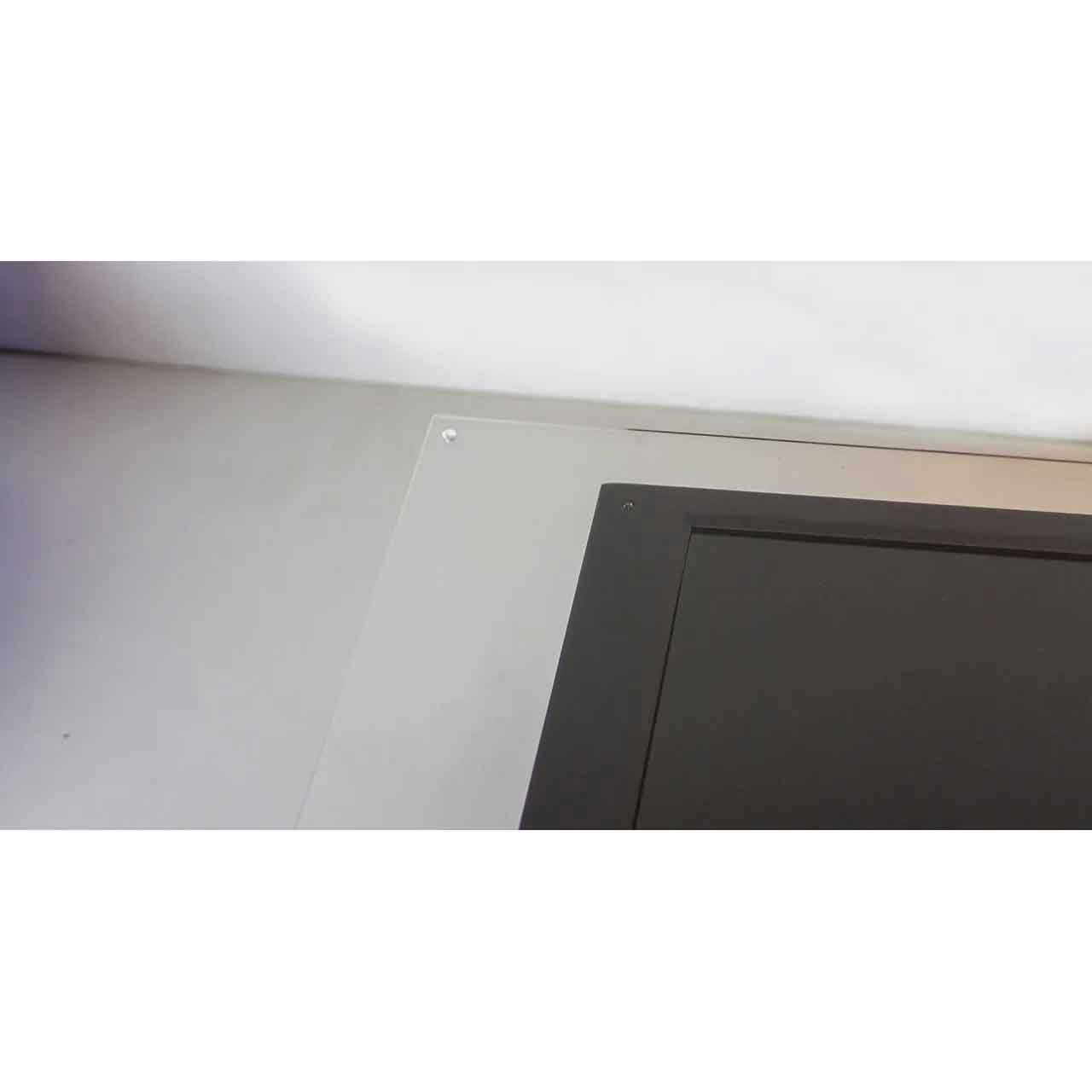

  • A Removable Protective Front Glass


• Specifications:

  • Display
  • Screen Size: 23.8"
  • Max Resolution: 3840 x 2160 (4K) IPS pixel
  • Pixel Pitch: 0.13725 x 0.13725 mm
  • Brightness: 400 cd/m²(Typical)
  • Contrast Ratio: 1000 : 1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 1.07 B

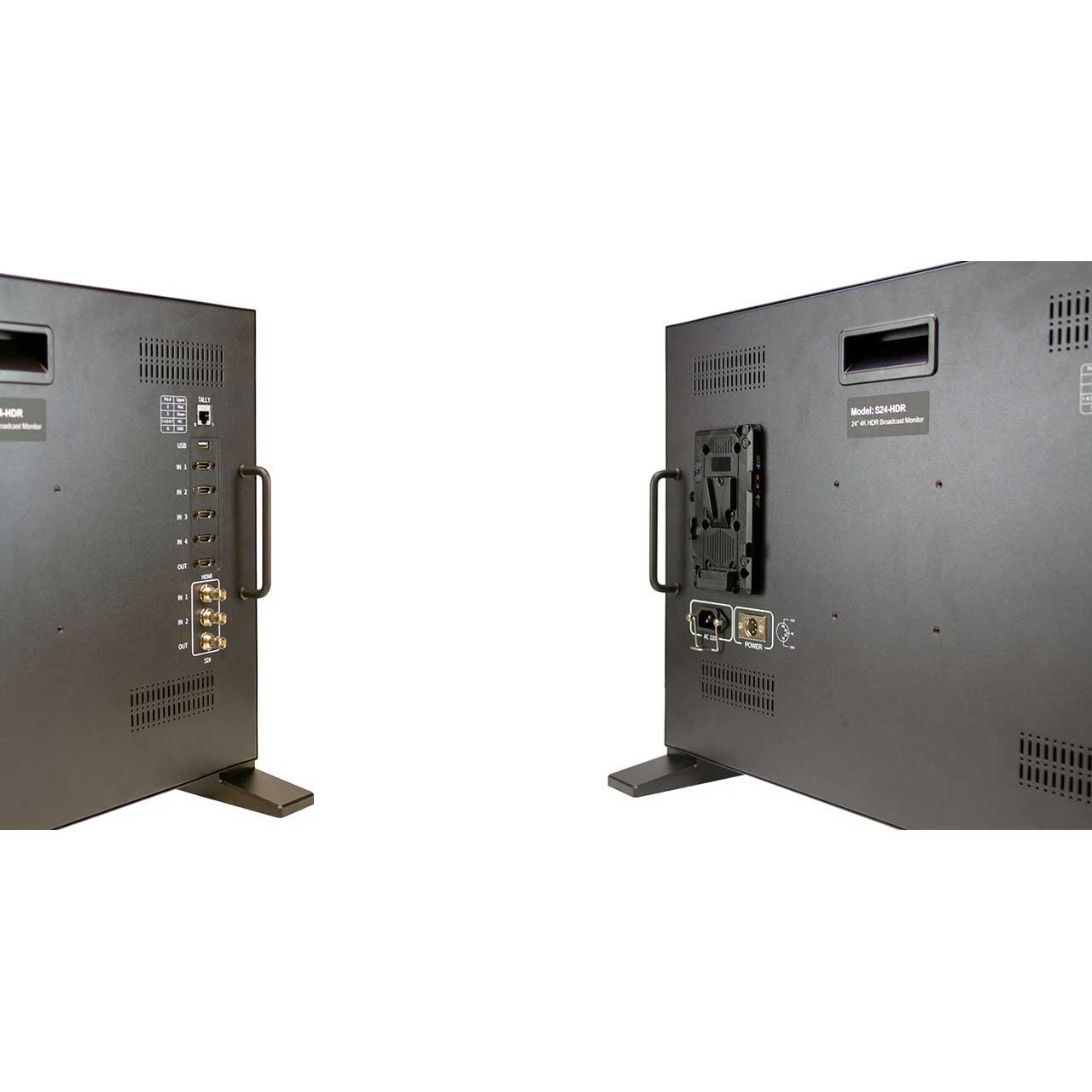

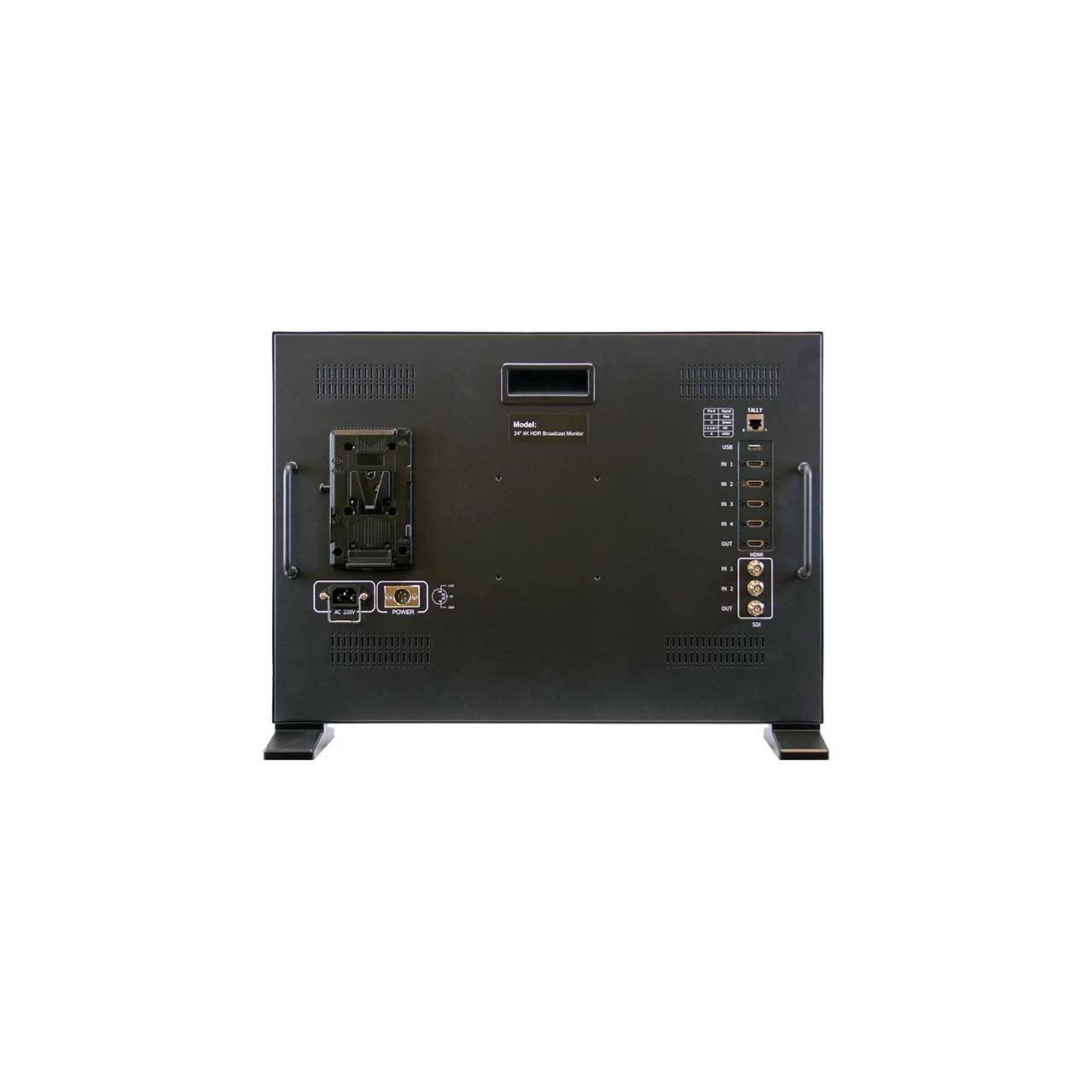

    Interface
  • 3G-SDI In / Out: 2 / 1 (Loop-through)
  • HDMI (2.0) In / Out: 4 (4K@60Hz) / 1 (Loop-through)
  • USB In: 1
  • Tally: 1

    Audio
  • Built in speaker: Support
  • Dimensions & Weight

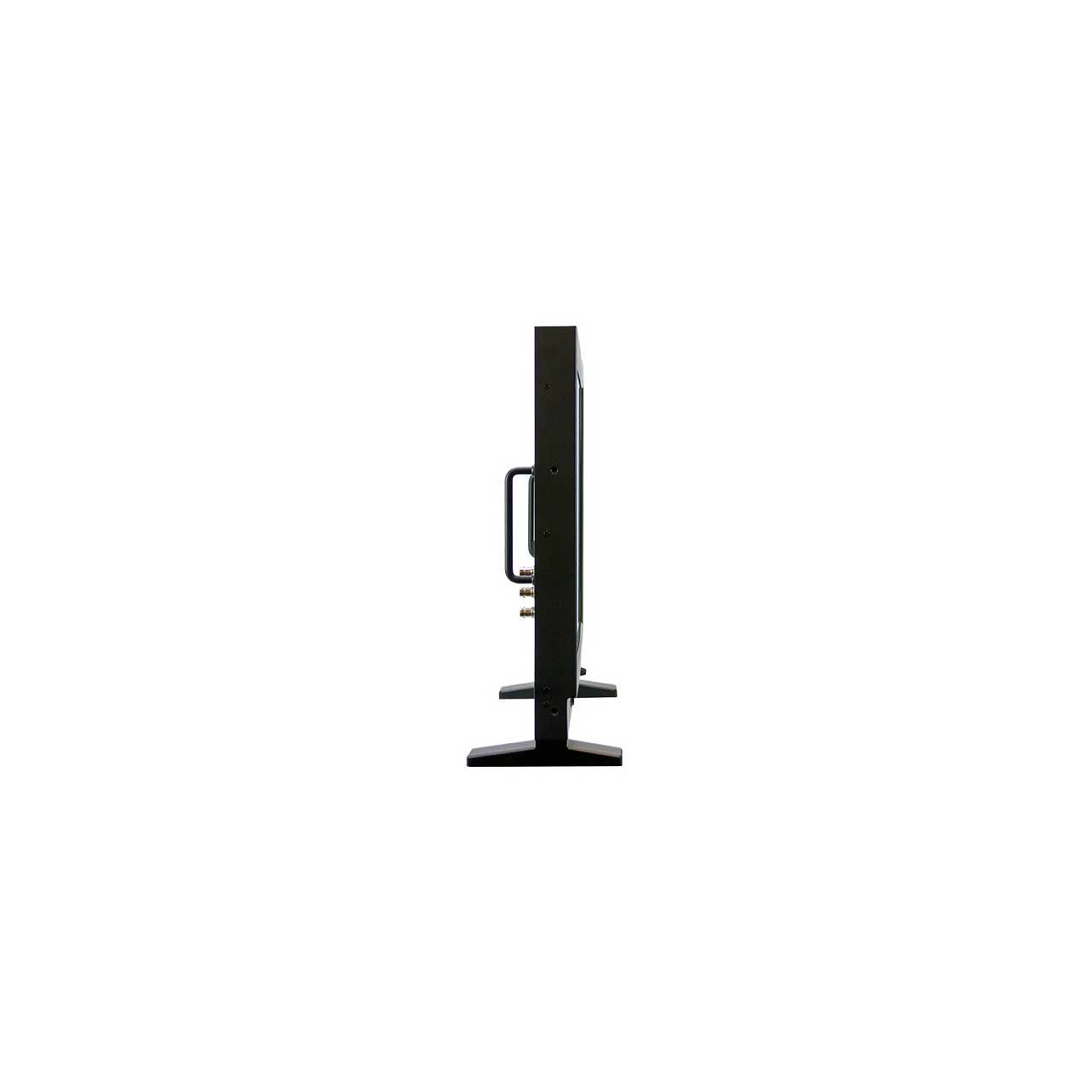

  • Outline Dimension (W x H x D): 21.96 x 15.55 x 1.6" / 558 x 395 x 40.8 mm
  • Net Weight: 25.35 lb / 11.5 kg

    Input Format
  • 3G-SDI SMPTE-125M: 480i (59.94/60)
  • 3G-SDI SMPTE-274M: 1080i (50/59.94/60), 1080p (24/25/29.97/30 sF)
  • 3G-SDI SMPTE-292M: 1080p (23.98/24/25/29.97/30/50/59.94/60)
  • 3G-SDI SMPTE-296M: 720p (50/59.94/60)
  • ITU-R BT.656: 576i (50))
  • HDMI: 720x480i (59.94/60), 720x480p (59.94/60), 720x576i (50), 720x576p (50), 720p (50/59.94/60), 1080i (50/59.94/60), 1080p (24/25/29.97/30 sF), 1920x1080p (23.98/24/25/29.97/30/50/59.94/60), 3840x2160p (24/25/30/59.94/60), 4096x2160p (23.98/24/25/29.97/30/50/59.94/60)

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC 12~24V) / AC 100 ~ 240V
  • Power - Consumption: ≤ 36 W
  • Warranty: 2 Years
  • Operating Temperature: -4 ~ 140°F / -20 ~ 60°C
  • Operating Humidity: 10~90% RH
  • Storage Temperature: -22 ~ 140°F / -30 ~ 60°C
  • Battery Plate: V-mount (IDX BRACKET)


• Item Includes:

  • 1x Manual
  • 1x Desktop Stand Set
  • 1x HDMI Cable
  • 1x AC Power Cable


• Warranty:

  • 2 Years
