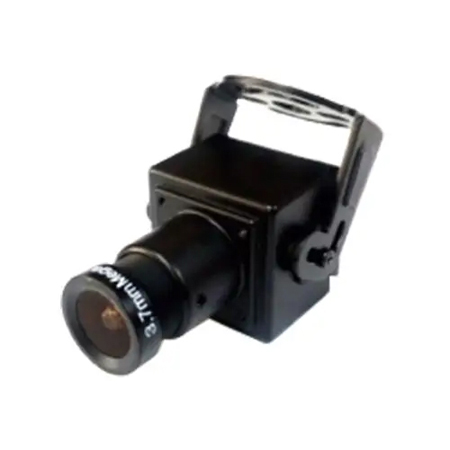

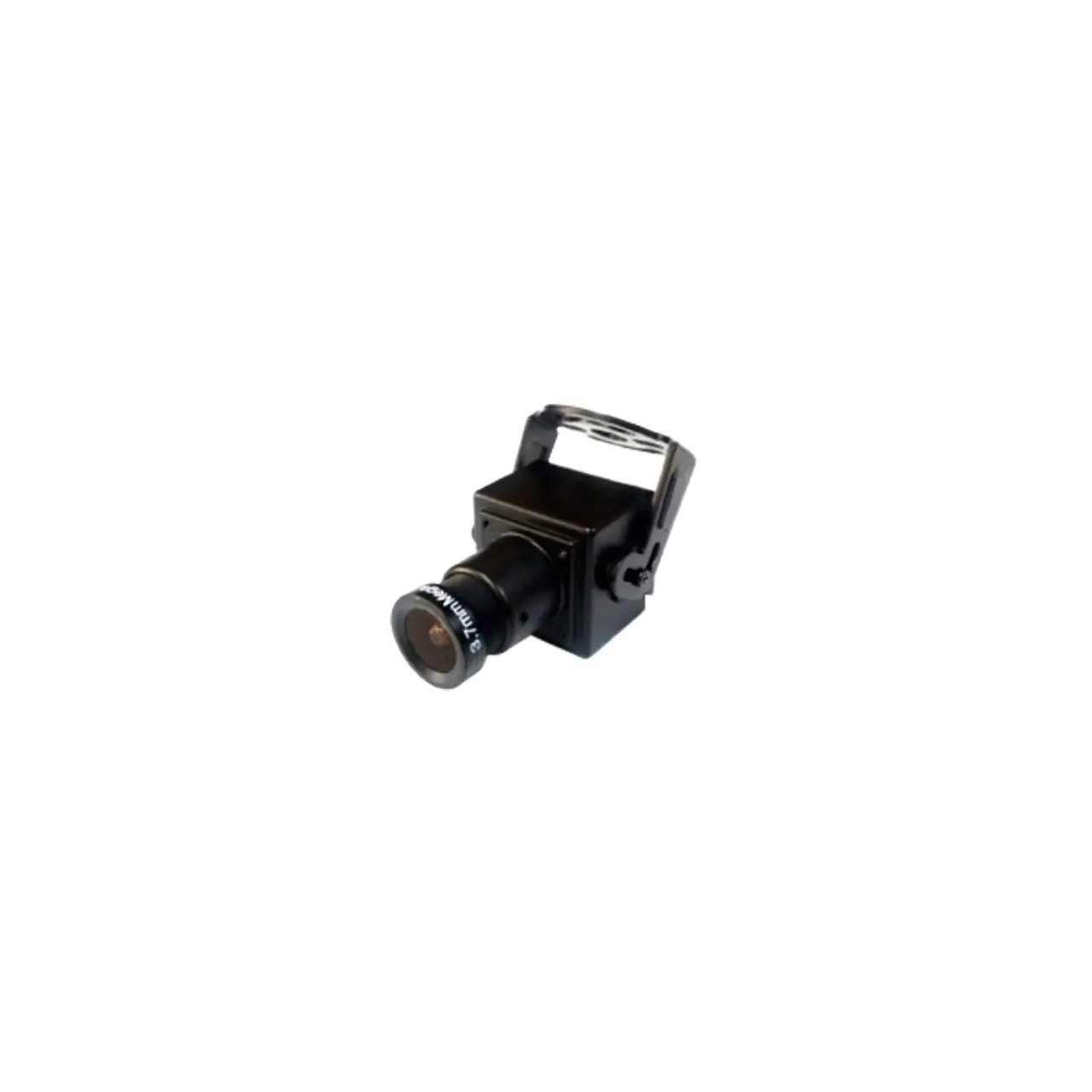

ViewZ VZ-FMS-2 2.1MP Full HD Mini Box BNC Camera - SDI/HDMI - CVBS NTSC / PAL / Color Bar

VZ-FMS-2 - Overview

• Features:

  • Full HD 1080p over coaxial cable, BNC connection
  • 1/3" 2.1MP Progressive Scan CMOS Sensor
  • Up to 1920 x 1080 / NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • More than 1000 TVL, WDR, Privacy Masking, Motion Detection
  • No additional installation cost. (Compatible with existing coaxial cables)
  • Video outputs for diverse applications. ( 3G/HD-SDI )
  • DNR (Digital Noise Reduction)
  • Built in OSD Control Switch
  • DC 12V, 400mA


• Specifications:

  • Imaging Sensor: 2.1 Megapixel CMOS Sensor
  • HD Scanning System: 1/3" Progressive Scan
  • S/N Ratio: More than 50dB (AGC Off)
  • HD Video Output / Resolution: HD-SDI, 3G-SDI, 1080p (29.97, 59.94fps), 1080i ( 59.94fps), 720p (29.97, 59.94fps), Composite(1.0Vp-p ,75ohm), Color Bar Signal
  • Image Frame: NTSC, PAL Composite (1.0Vp-p ,75ohm)
  • Min. Illumination: 0.1Lux (F1.2, 50 IRE, AGC MAX) / DSS X4:0.01 Lux
  • Horizontal TVL: More than 1000 TVL
  • Electronic Shutter Speed: AUTO / MANUAL ( 1/30(25) sec ~ 1/30,000 sec )
  • Auto White Balance: AUTO / AUTOEXT / PRESET / Manual (R-Gain, B-Gain)
  • Digital Noise Reduction: DNR (Off / Low / Middle / High)
  • Backlight Compensation: BLC (Off / On)
  • Wide Dynamic-Range: WDR (Off / Low / Middle / High)
  • SENS-UP: OFF / x2 / x3 / x4
  • AGC: Adjustable 0 ~ 10
  • Color Temperature / R-Gain / B-Gain: Adjustable
  • Mirror Image: MIRROR, FLIP (Off / On)
  • Privacy Masking: Support
  • Motion Detection: Support
  • Digital Zoom: Support
  • Camera ID: Support

    Interface
  • HD/3G-SDI: 1
  • DC 12V / Auto-Iris Connector: 1

    Dimensions & Weight
  • Outline Dimension (W x H x D): 0.9" x 0.9" x 1.45" / 23.0 mm x 23.0 mm x 37.0 mm
  • Net Weight: 0.11 lbs / 50g (Without Cable)

    General Summary
  • OSD Language: English ( Selectable )
  • Construction: Aluminum Alloy
  • Power - Supplied Voltage: DC12V 150mA
  • Power - Consumption: 1.8 W
  • Operating Temperature / Humidity: 14 ~ 122°F / -10°C ~ 50°C / 0% to 90% Non-condensing
  • Storage Temperature: -4 ~ 158°F / -20°C ~ 70°C
  • LENS Mount: Fix 1/2.5" 3.6mm, M12 (Option: 6mm)


• Item Includes:

  • 1x ViewZ VZ-FMS-2 2.1MP Full HD Mini Box BNC Camera - SDI/HDMI - CVBS NTSC / PAL / Color Bar
