VIZRT VIZ Connect Solo 12G SDI to NDI Bi-Directional I/O Converter - 16 Encode / 8 Decode Audio Channels

ITEM #: VZT-CNTSOLO-12G MFG #: FG-003293-R001

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$1,295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


FG-003293-R001 - Overview

Works with Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more

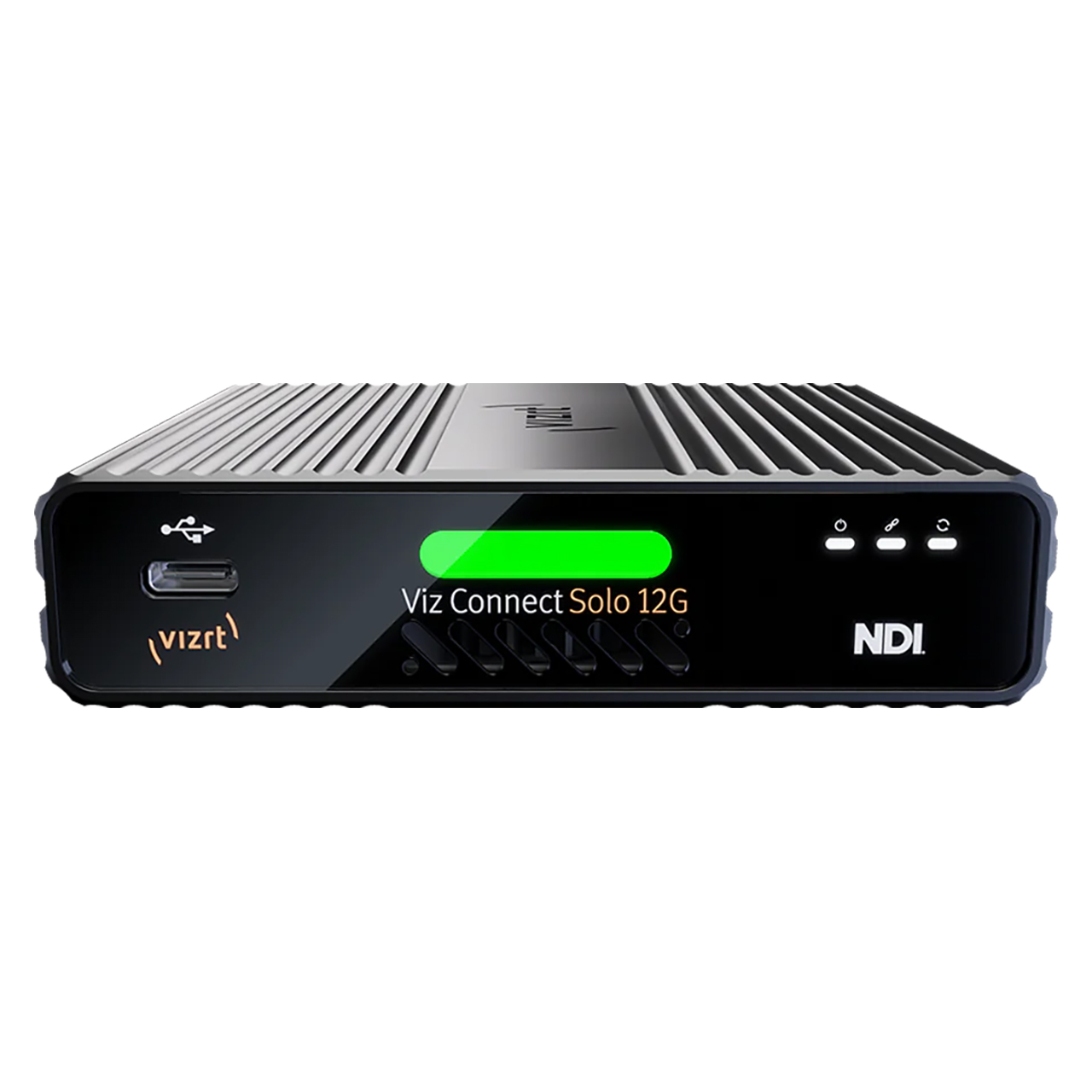

The VIZRT Viz Connect Solo 12G-SDI video converter is the fastest, easiest, and best way to send video over IP. The Viz Connect Solo 12G-SDI is Ultra-portable and features resolutions up to UHD 60p combined with the groundbreaking benefits of NDI®! These along with a host of other tools and capabilities, make Viz Connect Solo video converters the right choice for the full spectrum of video production needs.

Viz Connect Solo 12G-SDI video converters offers bi-directional conversion to 12G-SDI and also offers Tally support. It's portable and mountable, and offers the groundbreaking benefits of NDI.

Compatible With Any NDI Workflow
Share video over IP with any compatible system, device, or application that supports NDI, including Viz Connect Solo solutions and products from third-party manufacturers and developers.

NDI Transfer Modes
Transmit video to your network using your choice of supported NDI transfer modes, including unicast and multicast UDP with forward error correction (FEC), and unicast TCP.

NDI Input and Output

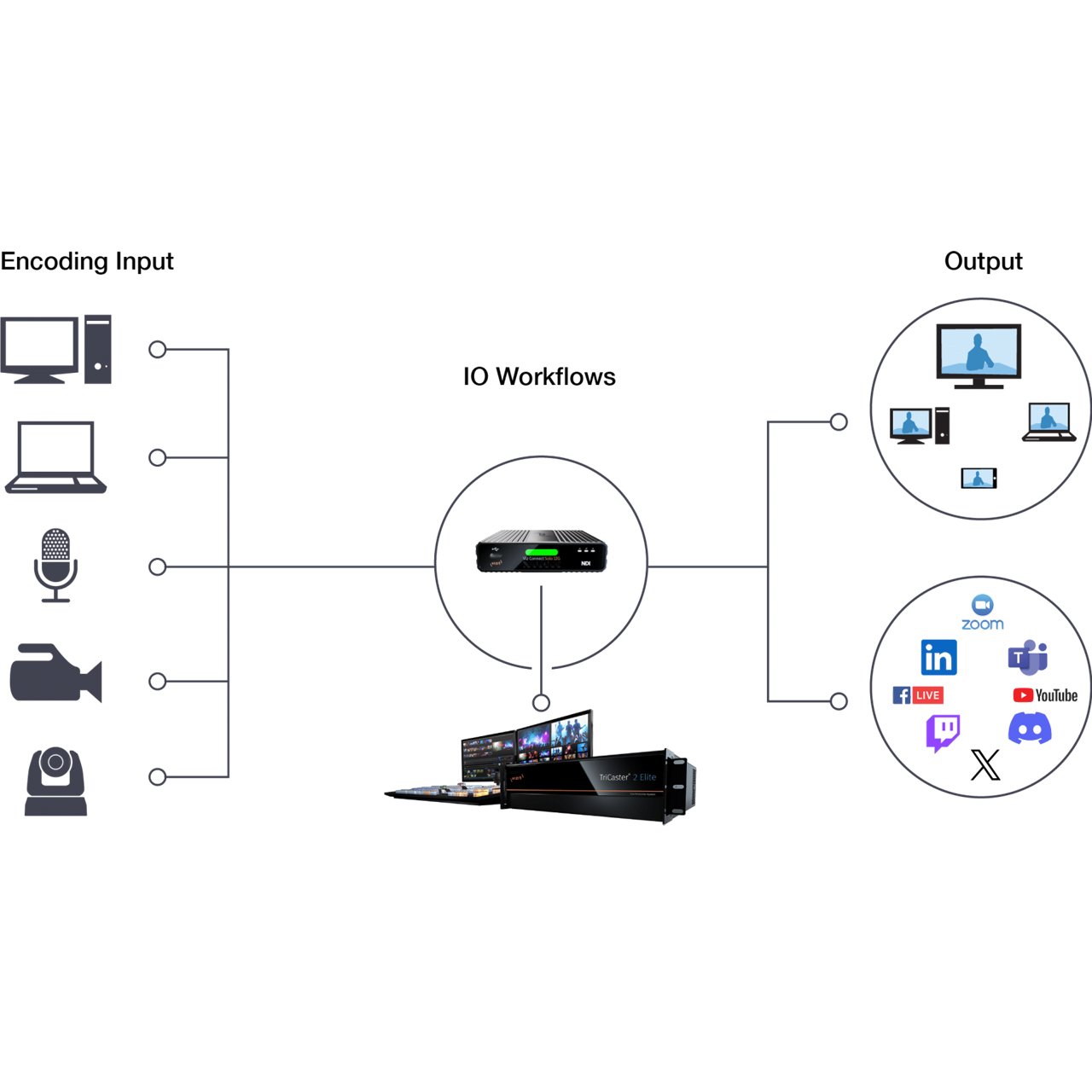

Acquire video from connected devices such as cameras and deliver as IP to networks with NDI or provide IP with NDI from networks to destinations such as displays.

NDI Virtual Input
Designate your video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the NDI® Virtual Input tool.

Web-Based Interface
Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

Multicast Mode
Permit multiple destinations and receive your video source without individual point-to-point connections to conserve network bandwidth.

Connectivity
Send and receive video with networks via Ethernet and be instantly available as NDI® sources and endpoints for any compatible system, device, or application.

Program and Preview Tally
Receive tally notification from compatible NDI® devices via a physical LED when video output from any Vis Connect Solo product is visible on Program and/or Preview.

Add Viz Connect Solo to Your Company Communications
Easily connect your camera, laptop or webcam to Spark and deliver live video to your meetings, training, conferences, and more through Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and other communication platforms.

  • Features:

    • NDI® Compatible Workflows
    • NDI® Transfer Modes
    • Lower operational costs

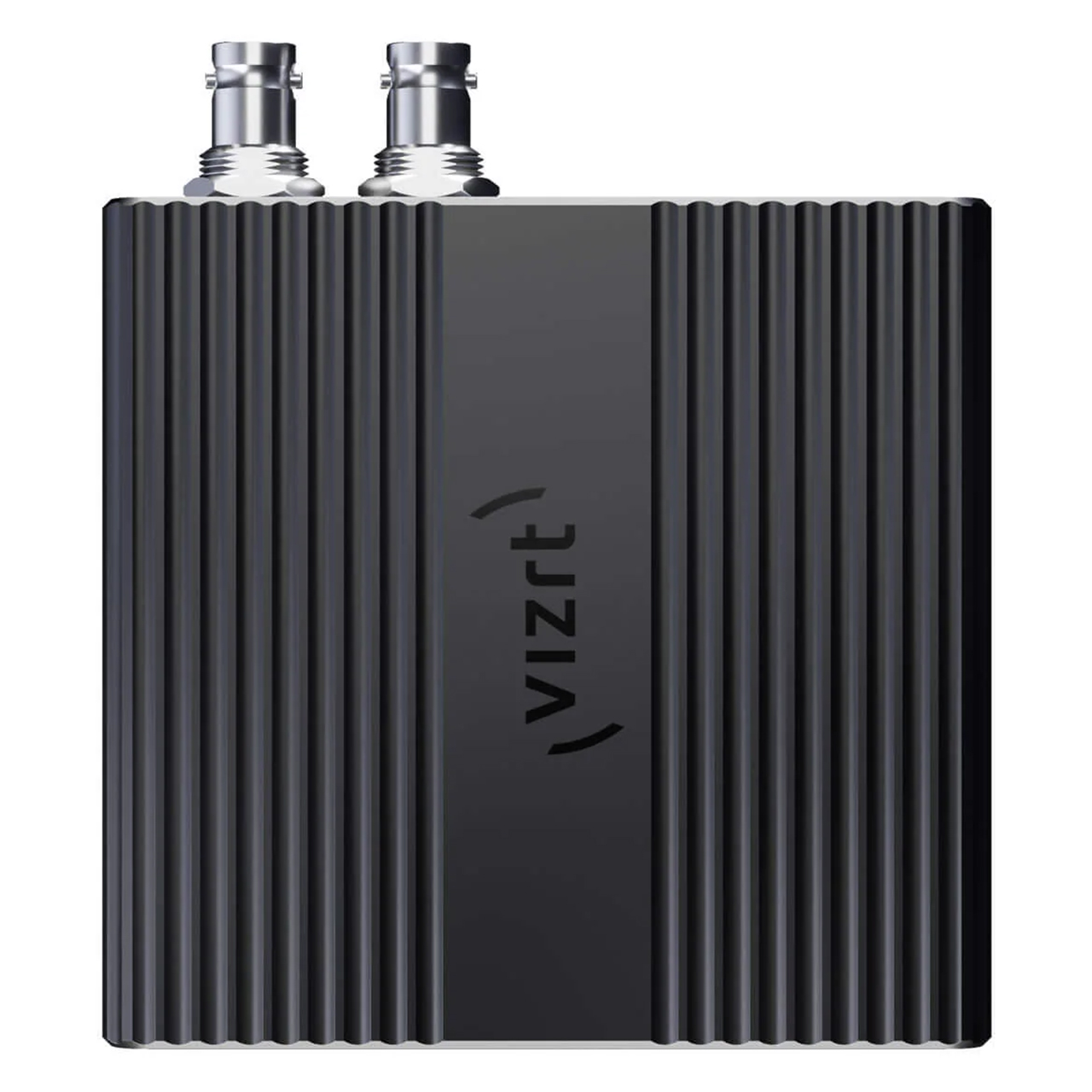

    • Portable and Mountable
    • Program and Preview Tally
    • Increased output
    • Web-Based Interface
    • Multicast Mode
    • NDI® Virtual Input

  • Specifications:

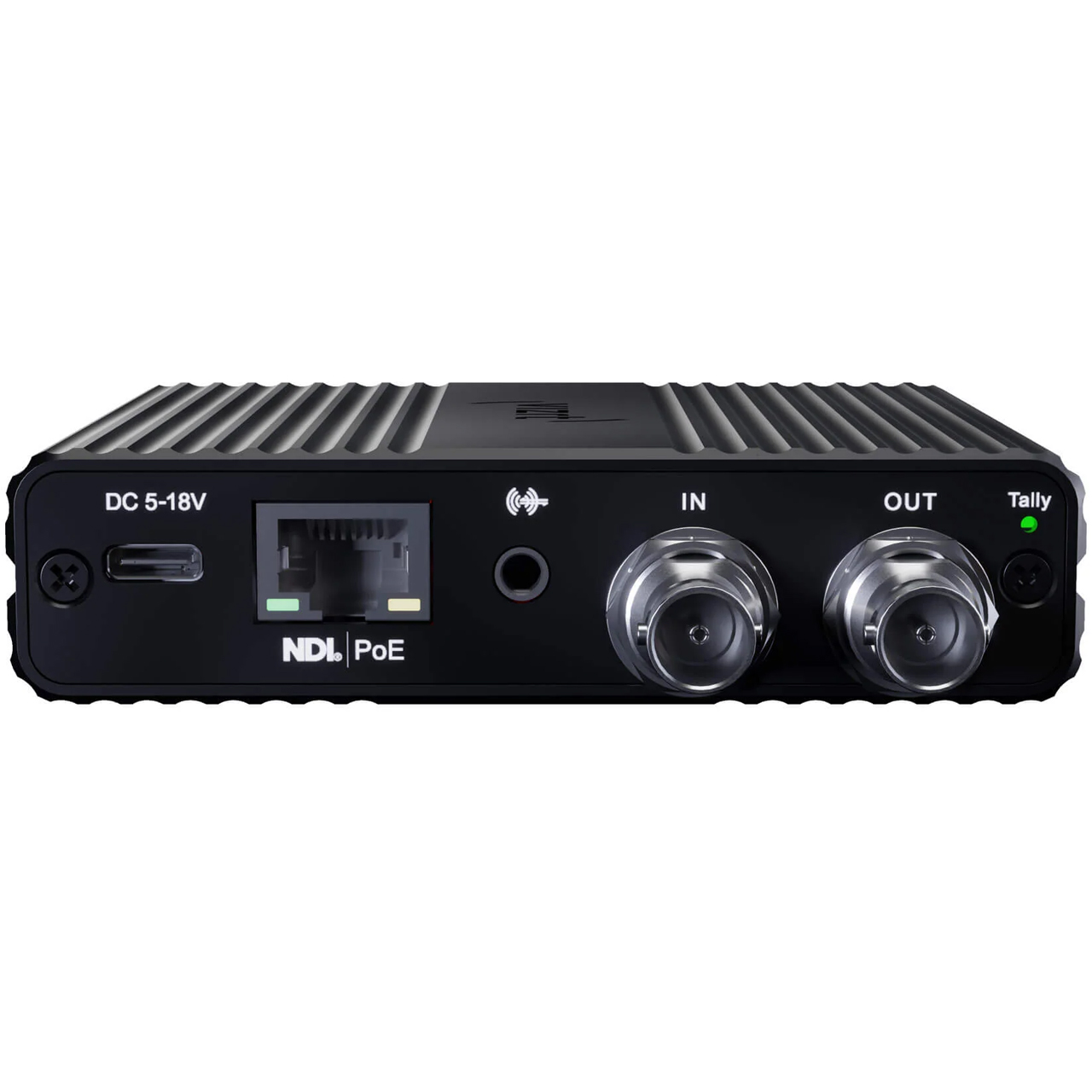

    • Video Input: 1x 12G-SDI
    • Video Output: 1x 12G-SDI
    • Audio Input:
      - 3.5mm Analog Stereo Line Level
      - Embedded 12G-SDI
    • Audio Output:
      - 3.5mm Analog Stereo Line Level
      - Embedded 12G-SDI
    • Audio Channels:
      - 16 Encode
      - 8 Decode
    • Encoding/Decoding: NDI
    • Network: RJ-45 port Gigabit Ethernet
    • Interface: Web-based user interface for configuration and monitoring
    • Tally: Tally support via NDI
    • Formats:
      - 2160p: 59.94, 50, 29.97, 25
      - 1080p: 59.94, 50, 29.97, 25
      - 1080i: 59.94, 50
      - 720p: 59.94, 50, 25
    • SDI: 75 Ohm impedance SMPTE ST-424M, ST-292M
    • Power: Power over Ethernet or External Power Adaptor DC 5V~18V Power Supply
    • Dimensions: 4.33" x 3.7" x 1.1" (110mm x 95mm x 28mm)
    • Weight: 0.66lbs (0.30kg)

  • Item Includes:

    • 1x Vizrt Viz Connect Solo I/O 12G-SDI Converter
    • 1x Power Adapter

  • Warranty:

    • 1 Year Limited Warranty
