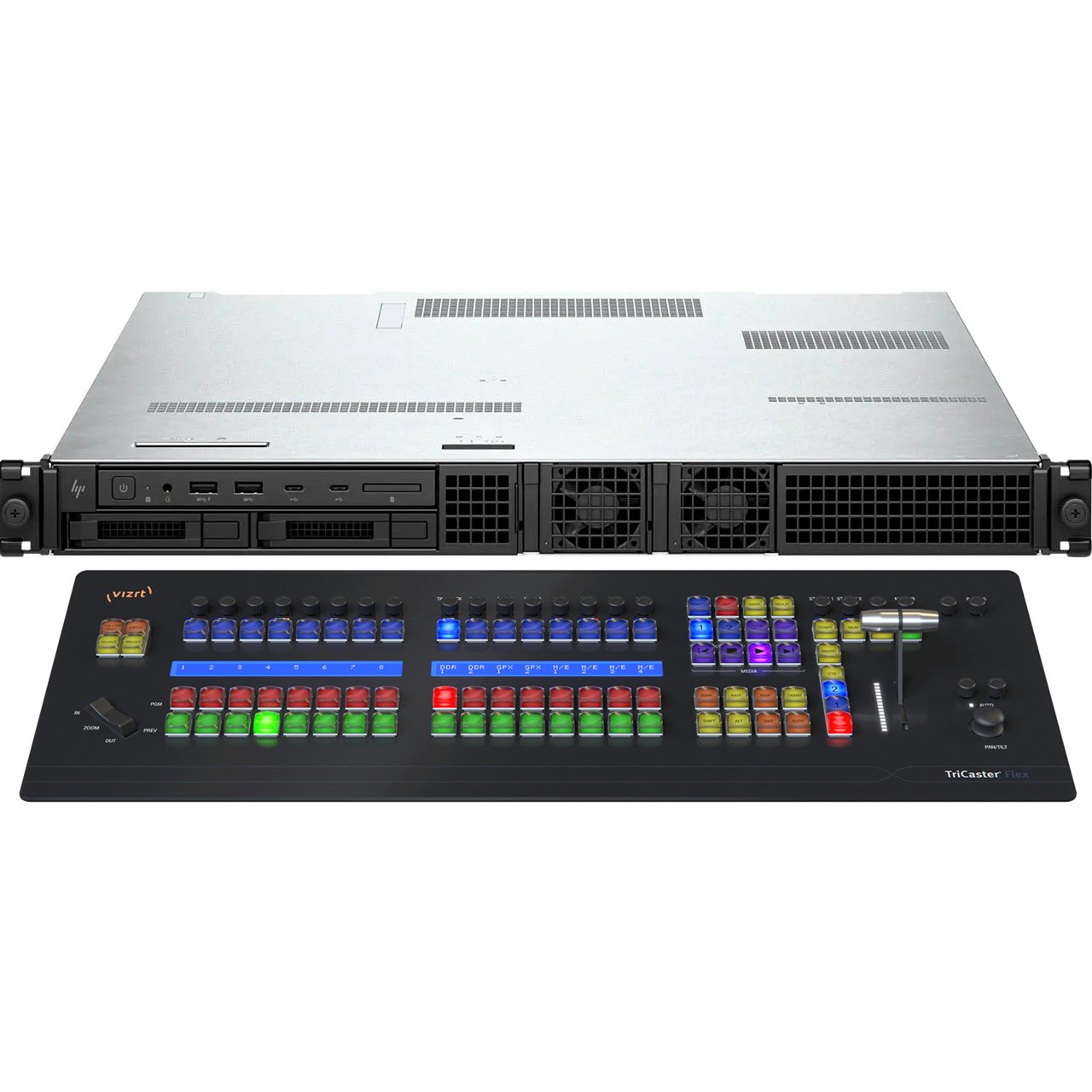

VIZRT TriCaster TCVIZ8RFLEX Vizion Rack 8 1RU Vdeo Mixer and Flex Control Panel Production Bundle Promo

ITEM #: VZT-TCVIZ8RFLEX MFG #: VZT-TCVIZ16TFLEX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$45,490.00

After Savings:

$27,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Vizrt bundle promotion instant savings!Get instant savings with your purchase of select Vizrt TRicaster and Flex control panel bundles! Get yours today through Markertek while this sale lasts!
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VZT-TCVIZ16TFLEX - Overview

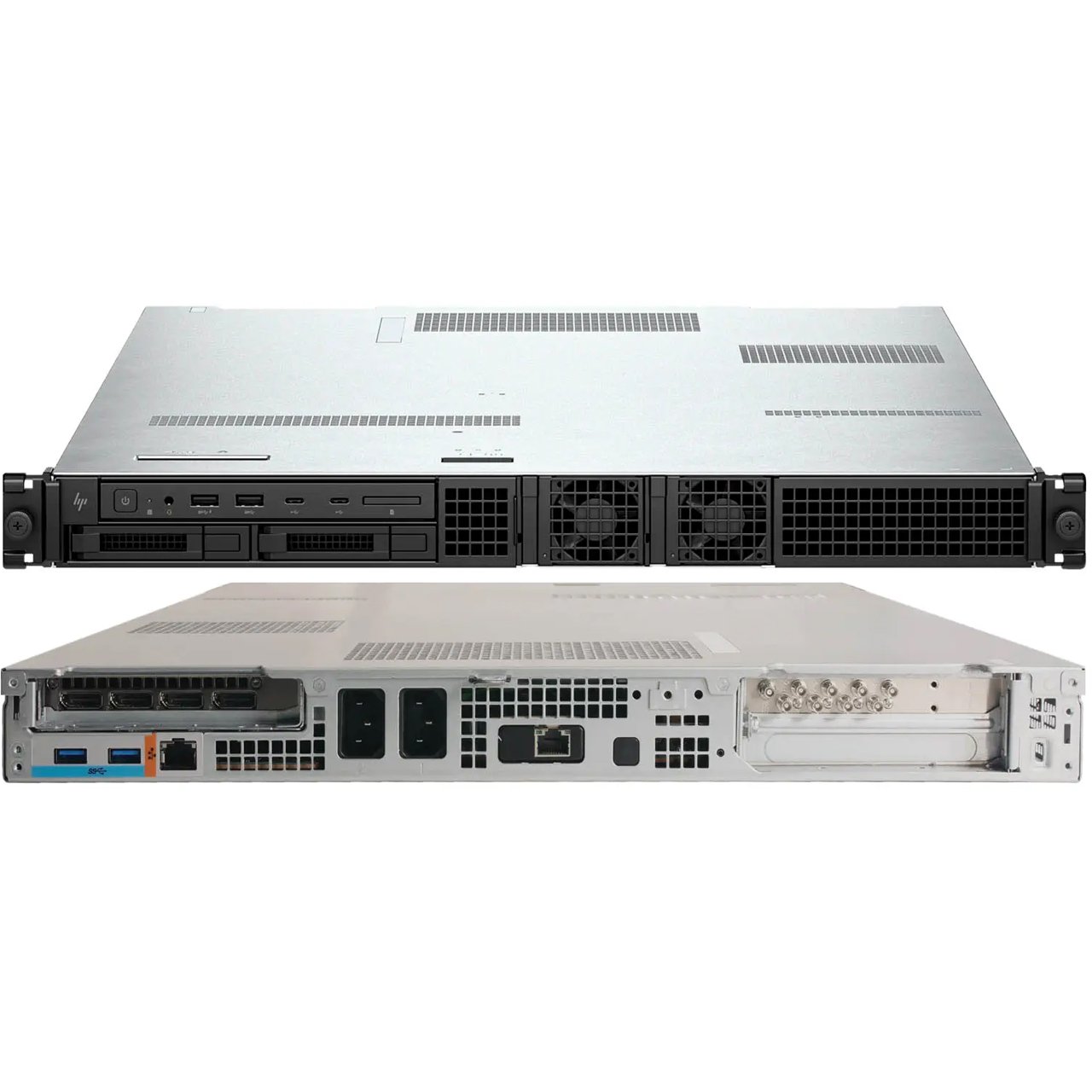

TriCaster Vizion Rack 8
TriCaster® Vizion is the latest evolution of a renowned video mixing tool, used and trusted by broadcasters, sports networks and live event producers for decades. TriCaster Vizion is built with both powerful new and roadmap production tools to harness the power of AI to create amazing content. With 44 live inputs, 8 configurable SDI inputs / outputs, 4 media players, 8 MEs plus enhanced remote production tools like Live Call Connect. It's the perfect solution for sophisticated, multi-camera productions for broadcasters, media publishers and stadiums.

The future proofing isn't limited to features; TriCaster Vizion is the first software and hardware TriCaster that is available to purchase with a perpetual or subscription license with a choice of two different hardware platforms offering the ultimate in production and budget flexibility - equipping your network, team or enterprise for whatever the future may hold.

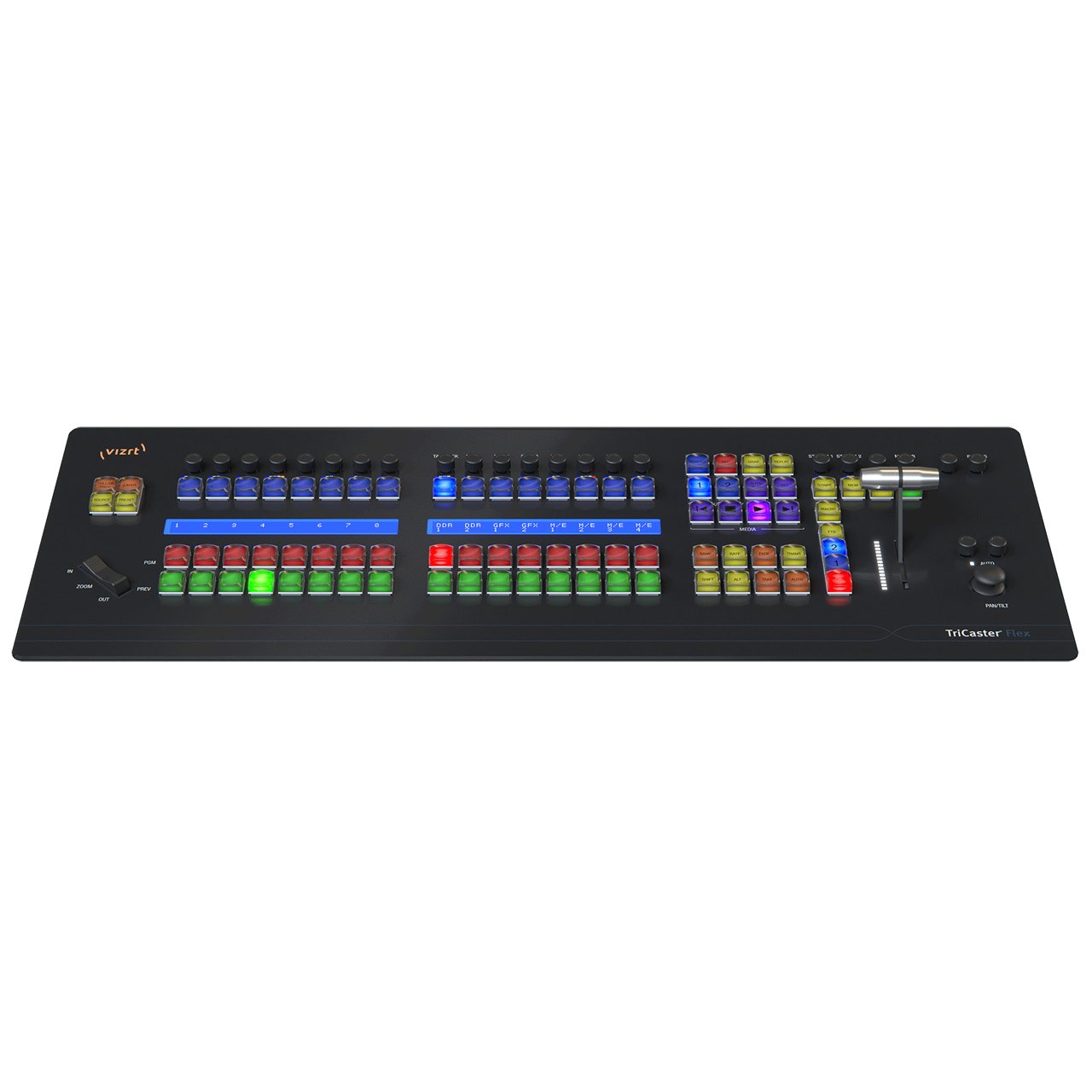

Flex Control Panel
The included Flex Control Panel is the best way to harness the power of TriCaster anywhere you're working. Operators can take direct control of PTZ devices, audio connections, audio and video mixing, and talkback - all connected with NDI®.

The VIZRT Flex Control Panel (FCP) offers greater control than ever before. Offering better connectivity and better control - all with the incredible flexibility of NDI®.

VIZRT Flex harnesses the power of the most complete production system on the planet in one control surface. For the first time VIZRT introduces a Control Surface that offers video and audio mixing, PTZ control, audio I/O, and talkback.

Better Connectivity
The Flex Control Panel is the first of its kind, it simply connects to a network utilizing NDI to take instant control of any video switcher on that network. In addition - the Flex is built to work with any modern TriCaster, it's as at home controlling the mighty TriCaster 2 Elite as it is mastering the TriCaster Mini X.

Better Control
Flex allows audio and video mixing, PTZ Control and talkback, all directly in one unit. It significantly reduces the margin for error for operators, offering greater precision and control than ever before. By offering audio I/O, Flex instantly expands the on-board I/O of any TriCaster allowing for more external sources to enter the NDI ecosystem directly from the panel.

  • Features:

    • Powerful Animated Graphics
    • 44 External Live Inputs
    • Up to 16 configurable SDI I/O
    • 12G connectivity
    • 10-bit SDR Workflow
    • HDR Sessions with LUT conversion
    • AI Gaze correction
    • AI Keyer
    • TriCaster graphics powered by Viz Flowics
    • Connect to a network with NDI and control any video switcher on the network
    • Control audio and video mixing, PTZ Control and talkback, directly in one unit

  • Specifications:

    • Video Input: 44x simultaneous external video inputs
    • Network Video Input: 44x IP inputs via NDI
    • SDI Video Inputs 12G/3G/HD SDI Frame Rates:
      - 2160p 59.94, 50, 29.97, 25
      - 1080p: 59.94, 50, 29.97, 25
      - 1080i: 59.94, 50
      - 720p: 59.94, 29.97, 25
    • Video Output: Configurable for up to 8 independent HD or 2 UHD video mix outputs, with simultaneous delivery via IP and SDI
    • Network Video Output:
      - 56x IP outputs via NDI
      - 8x video mix outputs in resolutions up to 1080p at frame rates up to 60fps or 2x UHD video mix outputs at up to 60 frames per second
      - Up to 16x direct IP source outputs via NDI translation of local SDI inputs
      - 4x direct IP source outputs via NDI translation of media players
      - 5x direct IP source outputs via NDI translation of media buffers
      - 3x Multiviewer outputs. 4K support on 2x Multiviewer outputs while the 3rd outputs in HD
      - 1x User Interface with dedicated multiviewer
      - 1x teleprompter output
      - 8x selectable IP outputs via internal NDI matrix router
    • SDI Video Output:
      - 8x independent 12G/3G/HD video mix outputs supporting standard NTSC and PAL formats, resolutions, and frame rates
      - 3 Available frame rates
    • Audio: 44-ch integrated audio mixer with support for 8-ch audio, DSPs and 4x8x8 audio input routing SSD
    • Local Audio Input:
      - Up to 16x SDI embedded
      - Local Audio Output Up to 8x SDI Embedded
    • Network Audio:
      - Native support for network audio input and output via NDI
      - Embedded audio supported for all NDI input and output video signals
      - Integrated support for Dante networking protocol from Audinate - Requires Dante Virtual Soundcard license from Audinate (sold separately)
      - Support for AES67 protocol via compatible WDM audio drivers - Requires virtual sound card license (sold separately)
    • Media:
      - 5x media players
      - 4x DDR
      - 1x Sound
      - 5x media buffers
      - 10x animation buffers with GIF support
      - 5x graphic buffers
    • Keyers:
      - 44x input keyers
      - 4x media player keyers
      - 8x M/E keyers
      - 1x PREVIZ keyer
      - 5x buffer keyers
    • Recording:
      - 8x configurable M/E channels
      - Up to 16x physical SDI inputs
      - 4x DDRs
      - 3x streaming encoders
      - Support for growing file playback from DDRs
      - Instant Replay capability on each input
      - 44x total configurable inputs
    • Storage: 4 TB SSD internal storage - Supports recording to external storage
    • PTZ: Up to 44 simultaneous PTZ robotic cameras
    • Processing:
      - Video: YCbCr + Alpha color space, using 4:2:2:4
      - Audio: Floating Point, 96kHz
    • Latency:
      - Processing Latency: ~1.0 - 1.5 frames
      - Practical Throughput Latency: 4 frames
    • A/V Standards: 12G-SDI video conforms to SMPTE ST 2082, 3G-SDI video conforms to SMPTE 424M, HD-SDI video conforms to SMPTE 292M
    • Tally: Network tally via NDI
    • Genlock: Genlock input per I/O board supporting SD or HD reference signals
    • GPI: GPI signals via JLCooper Electronics eBox GPI interface
    • MIDI: Standard MIDI protocol enabling third-party device control
    • System Drive: 500GB SSD
    • System Physical:
      - 1RU chassis w/ redundant 675W PSU, Tower chassis w/ 1125W PSU
      - Tower: 17.5 x 15.2 x 6.65" / 27.8
      - 1RU Rack: 25.7" x 17.2" x 1.7" / 26.7lbs

  • Item Includes:

    • 1x TriCaster Vizion Rack 8
    • 1x 1YR Standard Support
    • 1x Viz Flowics Basic for 36 months
    • 1x Vizrt Flex Control Panel
