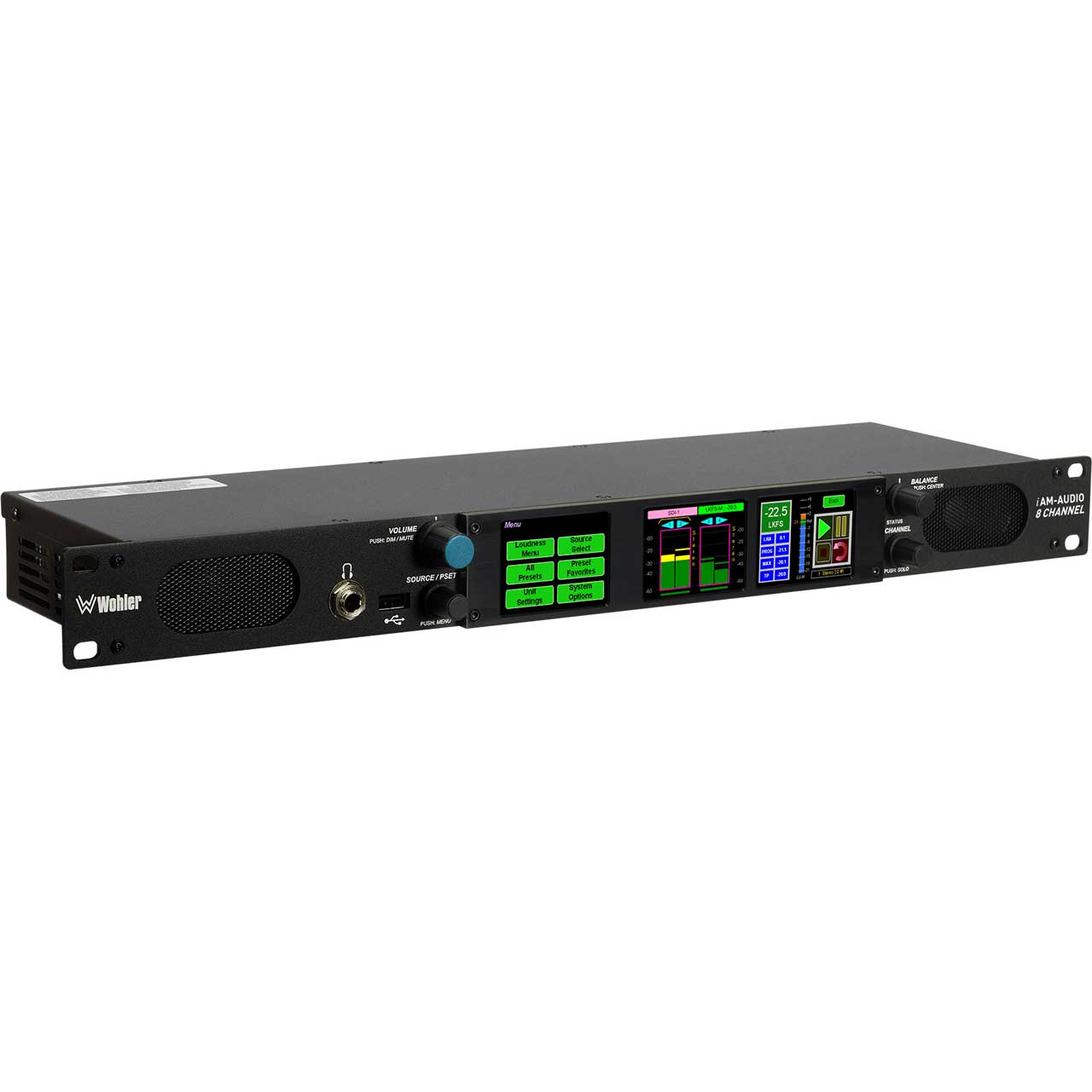

Wohler iAM1-8 1RU Triple Screen 8 Channel Dual Input 3G-SDI Audio Monitor with Touch Screen Control

ITEM #: WOH-IAM1-8 MFG #: IAM1-8

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$3,995.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    IAM1-8 - Overview

    An Audio Monitor that provides Value for Money!
    The Wohler iAM1-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.
    iAM1-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

    All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

    • Features:

      • Audio monitoring (up to 8 channels) from multiple sources
      • Up to 64 presets
      • Optional Output Routing enables the flexibility to route input signals to various outputs

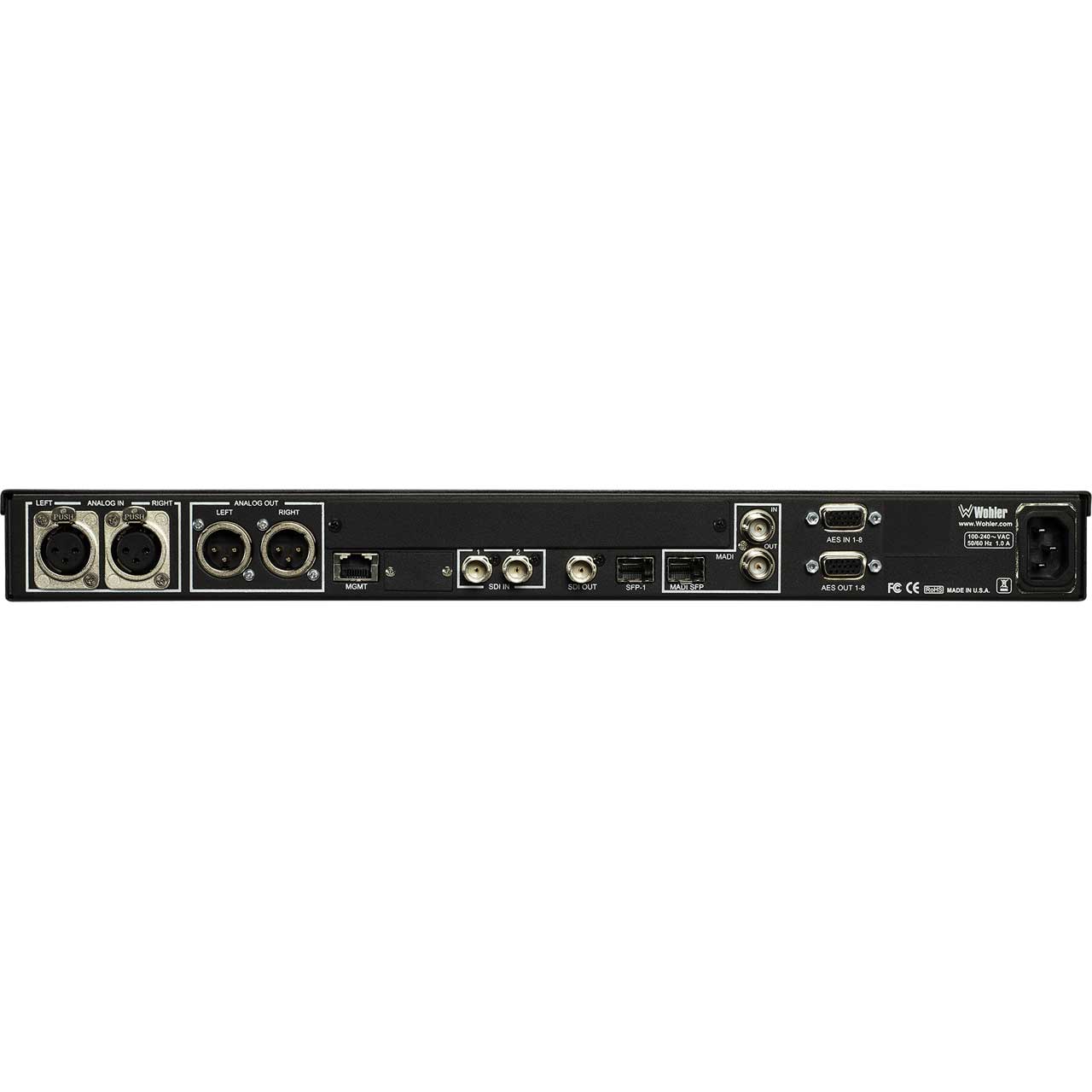

      • 2 x 3G SDI Inputs on BNC; 1 x 3G SDI Output of selected source on BNC
      • Optional I/O for SMPTE 2110 or SMPTE 2022 via SFP, AES3 on HD-15 (incl selected audio source converted to AES3 out), & MADI via BNC (looped out)
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Option Cards for AoIP or an additional 8 channels of analog inputs and outputs
      • Software upgrades via USB or network.
      • APIs included for remote control

    • Specifications:

      • Speaker Power Output: RMS Each Side: 5W Continuous/12W Peak
      • Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2ft
      • AES Input Sampling Rate: 48 kHZ
      • Analog Input Impedance: 40k Ohms balanced
      • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
      • Hum and Noise: Better than -68 dB below full output
      • Meter Dynamics: Simultaneous VU & PPM
      • Display Type: Capacitive LCD Touchscreen x 3
      • Number of screens: 3
      • Diagonal Display Size: 2.4" (60 mm)
      • Display Resolution (HxV): 320Hx240V
      • Viewing Angle: 160 (H) x 160 (V)
      • Rack Height: 1RU
      • Power Consumption: 65 Watts typical
      • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
      • Dimension Width: 19.0" (483mm)
      • Dimension Height: 1.75" (45mm)
      • Dimension Depth: 5.5" (140mm)
      • Net Weight: 7.5 lbs. (3.4 kg)
      • Shipping Weight: 7.6 lbs (3.4 kg)
      • Shipping Dimensions: 23 x 12 x 6 in (LxWxH)
