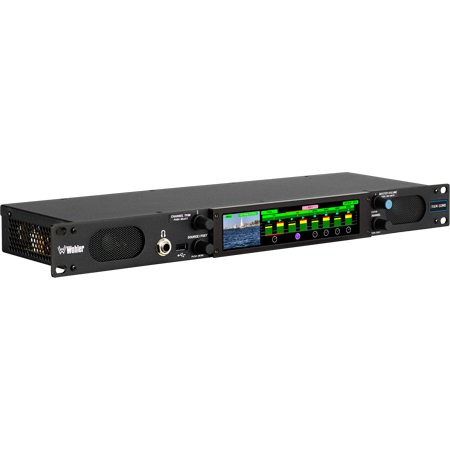

Wohler iVAM1-SUM8 8 Channel Single Screen 3G-SDI & Analog Audio/Video Monitor and Mixer with Optional 2022-7 Support

ITEM #: WOH-IVAM1-SUM8 MFG #: IVAM1-SUM8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,995.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    IVAM1-SUM8 - Overview

    The iVAM1-SUM8 is a well featured, easy to use and competitively priced IP ready audio and video monitor / mixer. The unit can be configured to operate in either single channel or pair mode. Standard features include 3G-SDI, an HDMI output, and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase.

    Equally at home in QC, fast-paced OB and live-to-air production environments, iAM-SUM provides intuitive audio and video monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Options for additional signals, include AES3, MADI, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

    All iVAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

    • Features:

      • Fast selection and summing of up to 8 audio channels with video, allowing quick muting and hold-for-solo. Video display includes resolution indication and HDR detection
      • Up to 64 presets
      • Virtual rotary dials showing trim levels
      • Access control with lockout prevents accidental or unauthorized changing of critical settings
      • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
      • Optional Output routing enables the flexibility to route input signals to various outputs
      • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
      • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, or 2 additional SFP cages
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Software upgradeable individually via USB or multiple units on the same network
      • Browser-based interface that supports fast configuration that protects critical configurations from unauthorized alteration.
      • APIs for remote management

    • Specifications:

      • Dimensions (W x H x D): 1RU in standard 19" rack: 19" x 1.75" x 5.5" (483 mm x 45 mm x 140 mm). Shipping dims: 23"x 6"x 12"
      • Shipping Weight / Net Weight: 8.0 lbs. (3.6 kg) / 5.5 lbs. (2.5 kg)
      • Power Consumption / Supply: 65W, 100 to 240 VAC ± 10%, 50-60 Hz, CE & UL approved
      • Display Type / Resolution: 7" (178 mm) LCD Capacitive Touchscreen; 1242H x 280V
      • Viewing Angle: 160° (H) x 160° (V)
      • Audio Channels: 8 Max
      • Hum and Noise: Better than -68 dB below full output
      • Peak Acoustic Output: 90 dB SPL @ 2 feet
      • Speaker Power Output: 5W RMS per side, 12W Peak
      • Upgrades: Via USB or GUI web interface
      • APIs: Provide easy integration with 3rd party control systems
