Wohler iVAM2-12G 2RU 16-Channel Dual Screen 12G-SDI & Analog Audio & Video Monitor with optional 2022-7 Support

ITEM #: WOH-IVAM2-12G MFG #: IVAM2-12G

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,495.00

Our Price:

$8,735.40

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


IVAM2-12G - Overview

12G-SDI & Analog Audio Monitoring & Metering with Optional Signal Upgrades

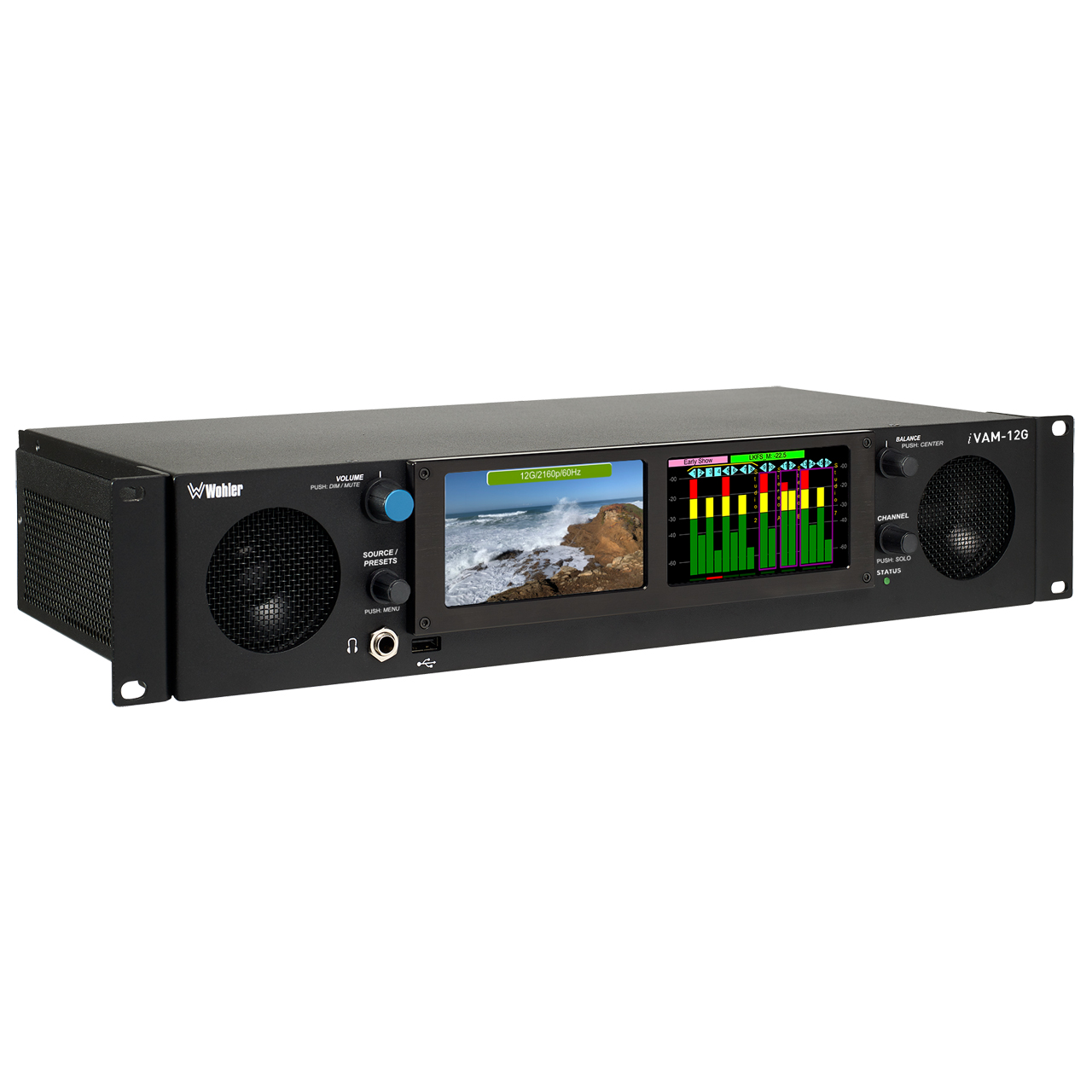

The Wohler iVAM2-12G is a premium 12G-SDI version of their iVAM series. It is similar to our iVAM2-2, but with 12G standard SDI inputs instead of 3G-SDI. Live the iVAM2-2, it is a well featured IP ready 16 channel audio and video monitor. Other standard features include loudness monitoring, meters, phase indication, HDR detection and presets. Like other touch-capable iSeries products, the iVAM2-12G is designed to be easy to operate, providing fast access to meters, menus and presets.

Flexible. Adaptable. Future Proof.
Standard features include 12G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase. Options for additional signals, include DanteTM or Ravenna™ (with hitless 2022-7 support), SMPTE-2110, SMPTE-2022-7, AES3, and MADI.

Network Capable with Remote Access Options:
The unit includes built-in support for remote monitoring provided by Wohler's MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

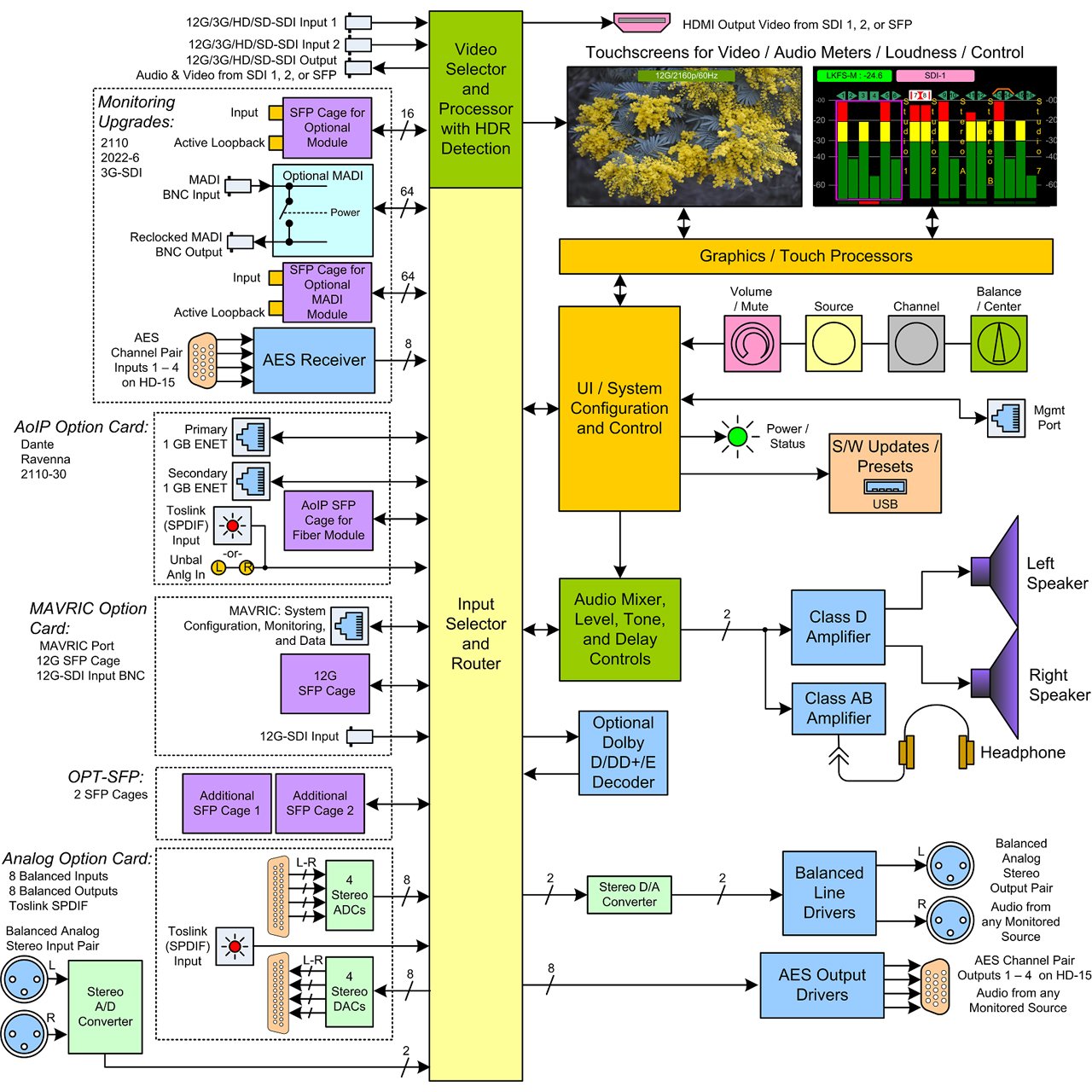

  • Features:

    • Audio & Video monitoring (up to 16 channels) from multiple sources

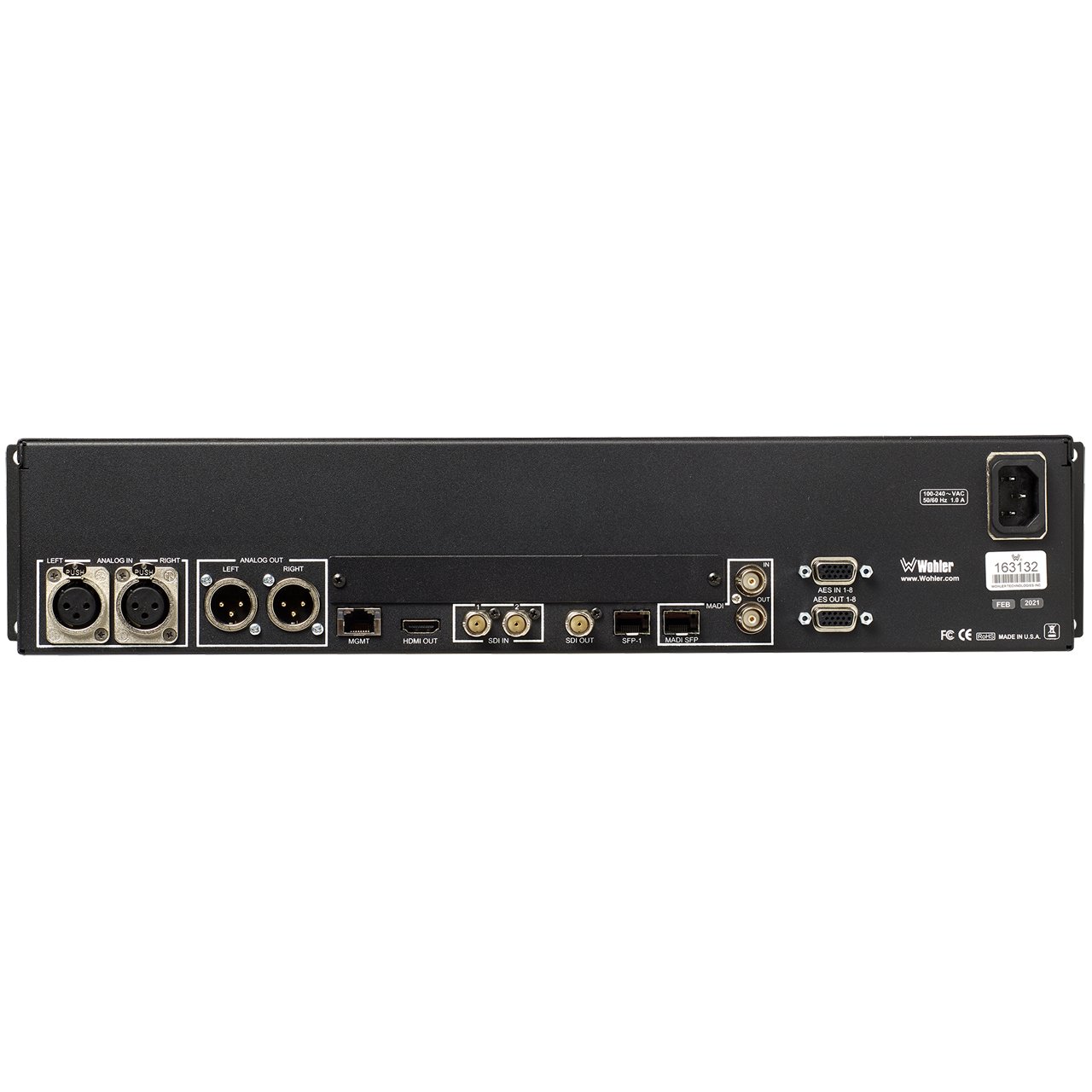

    • Standard I/O: 2x 3G-SDI Inputs on BNC; 1x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
    • HDMI output of the monitored video source included
    • Optional I/O: for AES3 on HD-15, (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP

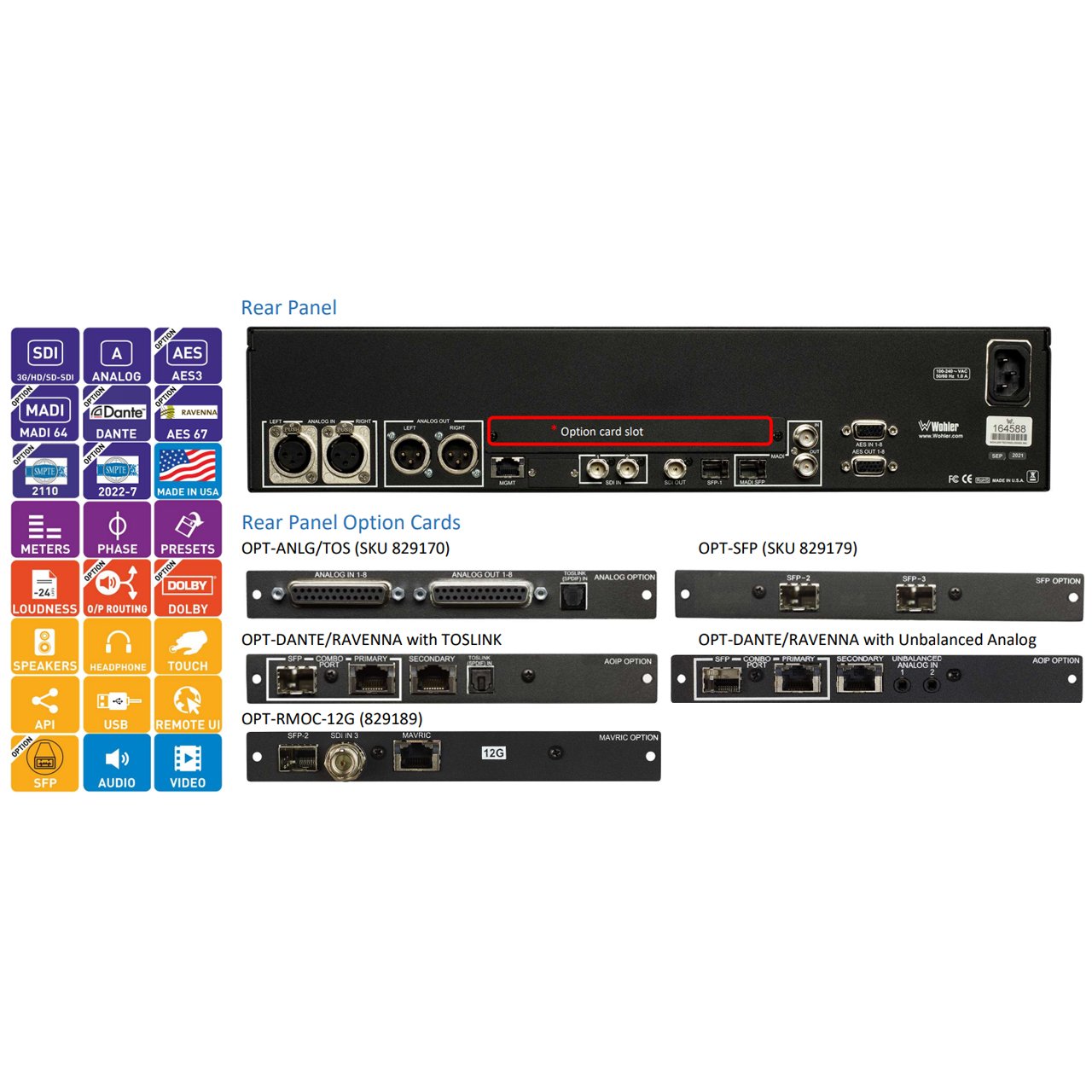

    • Option cards: Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
    • Store and retrieve up to 64 presets
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Built-in speakers, headphone jack, USB and Ethernet ports with API's for remote management
    • Software upgradeable individually via USB or multiple units on the same network
    • Built-in Audio-only remote monitoring probe. Requires MAVRIC subscription.

  • Specifications:

    • Power Consumption/Supply: 60W, 100V - 240V AC ± 10%, 50-60Hz, CE & UL approved

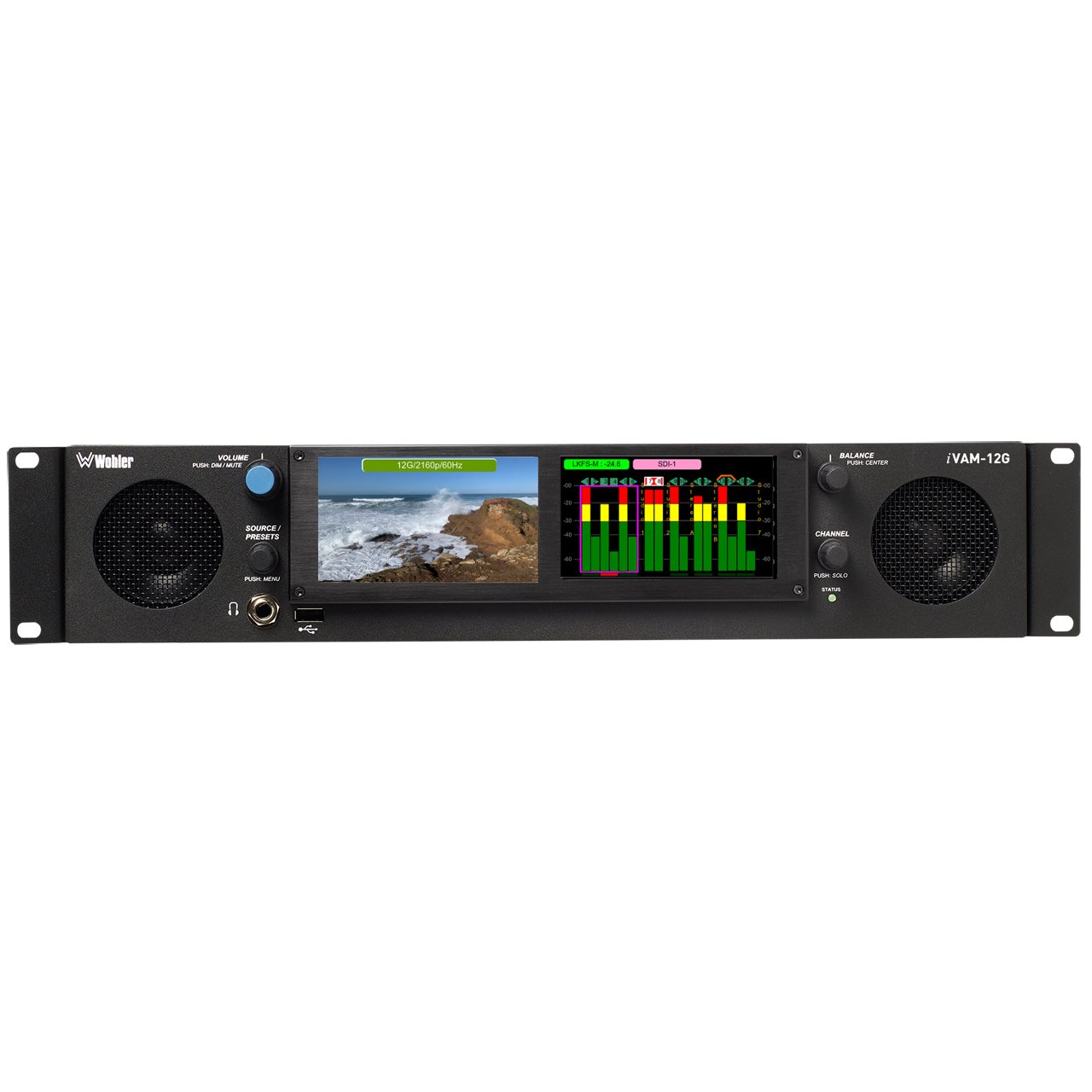

    • Display Type/Resolution: 2" x 4.3" LCD Capacitive Touchscreen; 480H x 272V
    • Viewing Angle: 160° (H) x 160° (V)
    • Audio Channels: 16 Max
    • Hum and Noise: Better than -75dB below full output
    • Peak Acoustic Output: 104dB SPL @ 2 feet
    • Speaker Power Output: 15W RMS per side, 30W Peak
    • Upgrades: Via USB or GUI web interface
    • APIs: Provide easy integration with 3rd party control systems
    • Dimensions (WxHxD):
      - 2RU in Standard Rack: 19" x 3.5" x 5.5"
      - Shipping Dims: 23"x 6"x 12"
    • Shipping Weight: 12.0lbs
    • Net Weight: 8.0lbs

  • Item Includes:

    • 1x 2RU Base unit with up to 16 channels of monitoring. Incl SD/HD/3G/12H-SDI & Analog as standard
