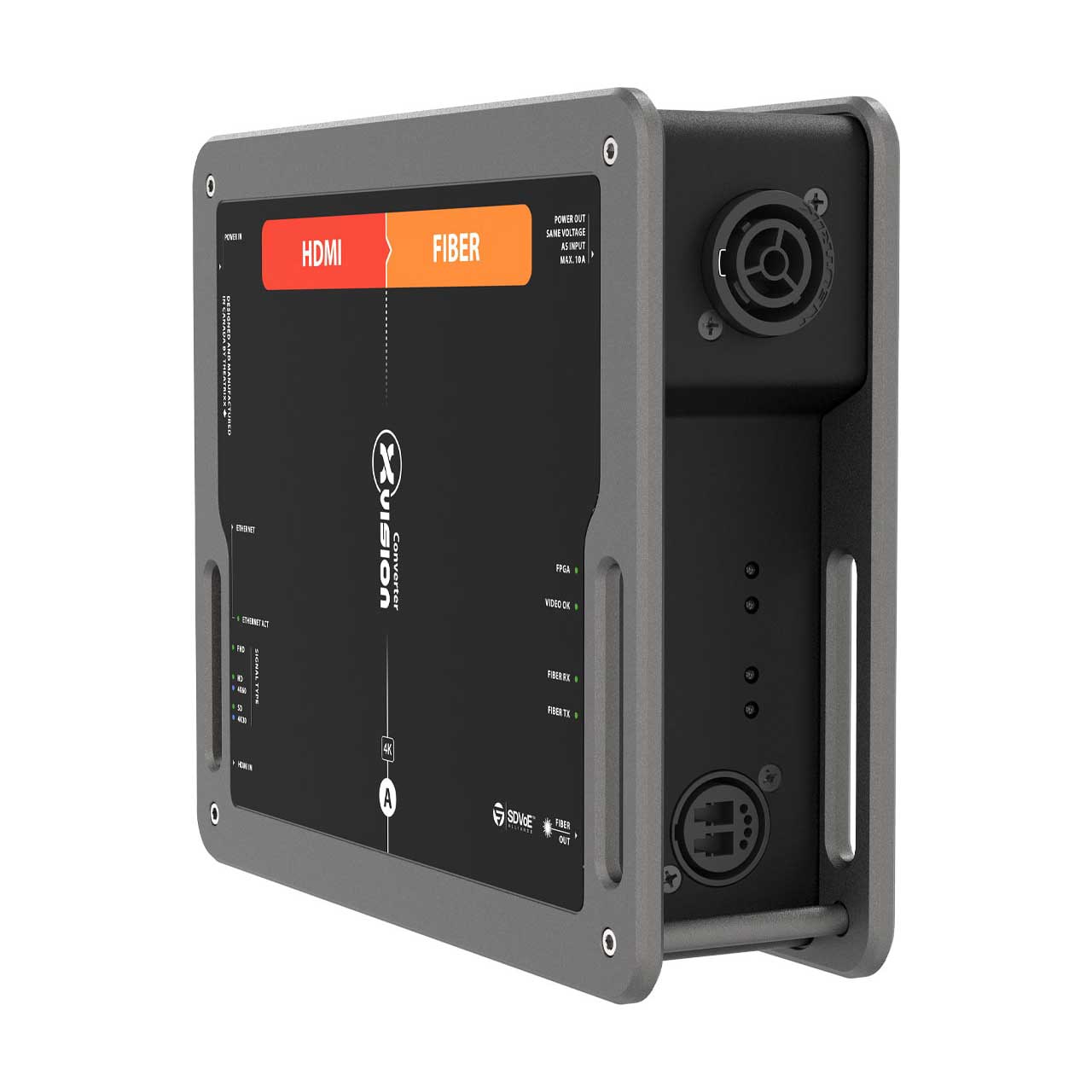

Theatrixx XVVHDMI2FIBER-S2 xVision Converter - HDMI 2.0 & Ethernet to Fiber Transmitter - Singlemode - OpticalCon Duo

ITEM #: XVVHDMI2FIBER-S2 MFG #: XVVHDMI2FIBER-S2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$2,230.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    XVVHDMI2FIBER-S2 - Overview

    Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

    Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

    Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. They wanted to change that, so they designed the xVision Video Converters (XVVHDMI2FIBER-S2).

    • Features:

      • Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience 120V outlet to power nearby projector, TV, laptop, small video projector. Power bar to power both the converter and device not required anymore.

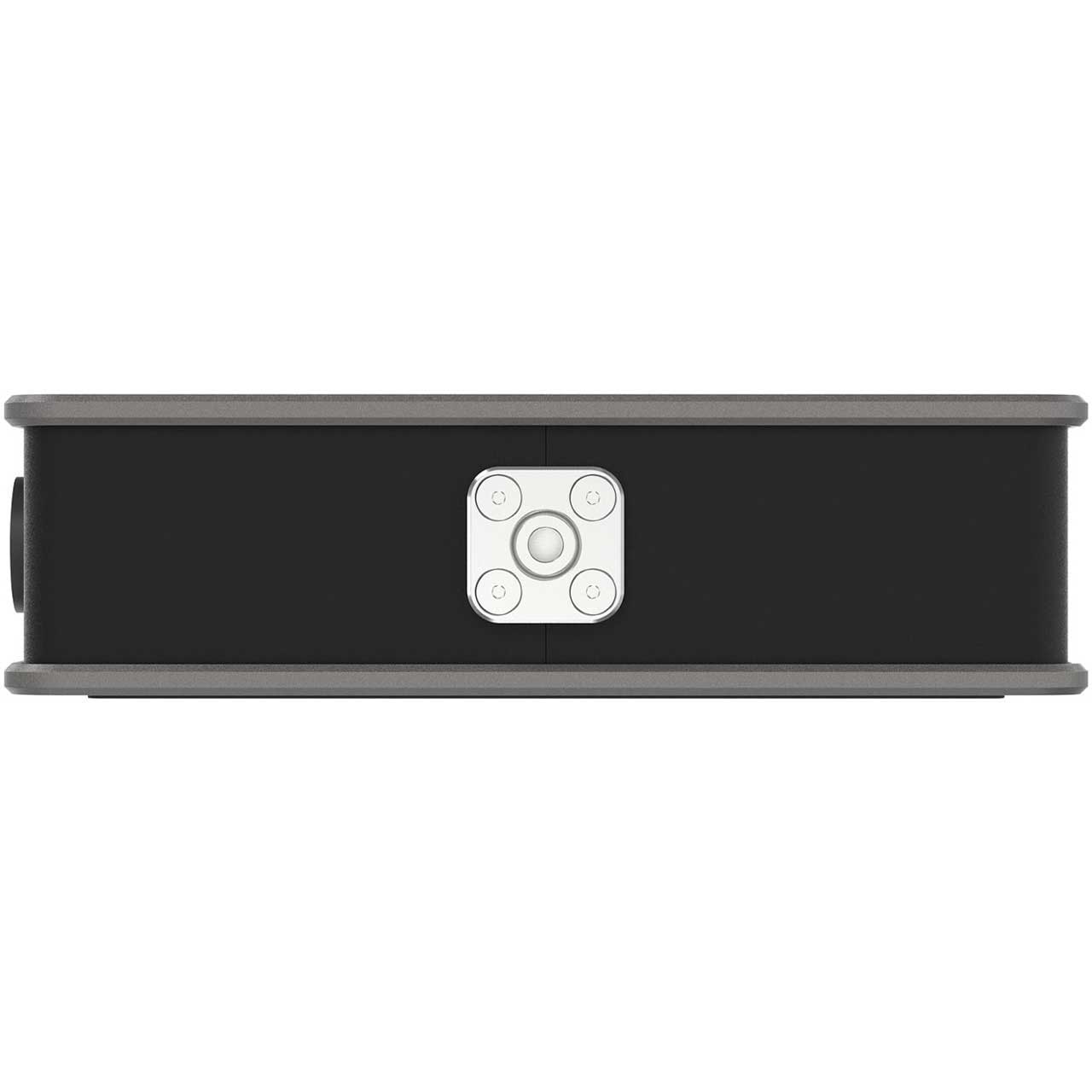

      • Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • Locking HDMI port prevents accidental disconnection.
      • Reclocked and amplified SDI loop thru
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections
      • Video Input: HDMI 2.0 type A
      • Ethernet Port: 1 Gbps Ethernet on Neutrik EtherCON
      • Fiber Output: 10 Gbps Optical Ethernet, SFP-based, Choice of Singlemode or Multimode, Choice of Neutrik OpticalCON DUO or QUAD, or FiberFOX EBC connectors

        Supported Signals
      • HDMI 2.0 Input:
        All HDMI 2.0 Formats including: 4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2
        High Dynamic Range (HDR10 & Dolby Vision)
      • Embedded Audio: Up to 8 channels, 24 bit, 192 kHz
      • Encoding Technology: SDVoE (NT1000-based)
      • Typical Latency: < 0.1 ms
      • Auxiliary Signals: 1 Gbps Ethernet pass-thru

        General
      • Dimensions (HxDxW): 2.44 x 7.08 x 8.7" (62 x 180 x 221mm)
      • Weight: 4.4Lbs (2kg)
      • Alt. Form Factor: Also available in rackmount module (RM)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Relative Humidity: 0 to 90% RH (non-condensing)
      • Power Supply:
        Built-in power supply
        PowerCON True1 in/loop thru
      • Power Consumption: 45 W max.
      • Operational Voltage Range: 100-240 V 50-60 Hz

    • Item Includes:

      • 1x xVision HDMI to Fiber Converter (True1)
      • 1x Power Cable
