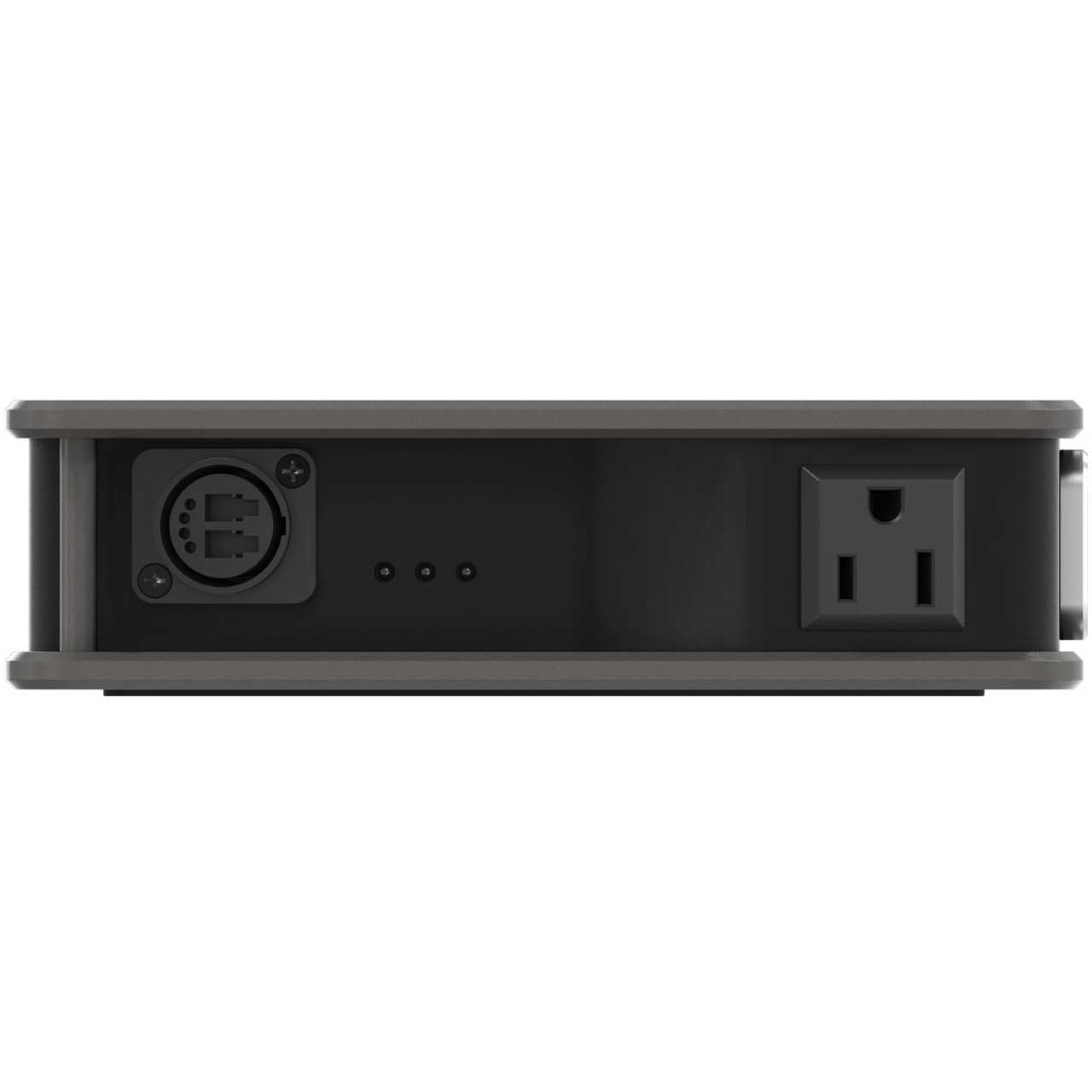

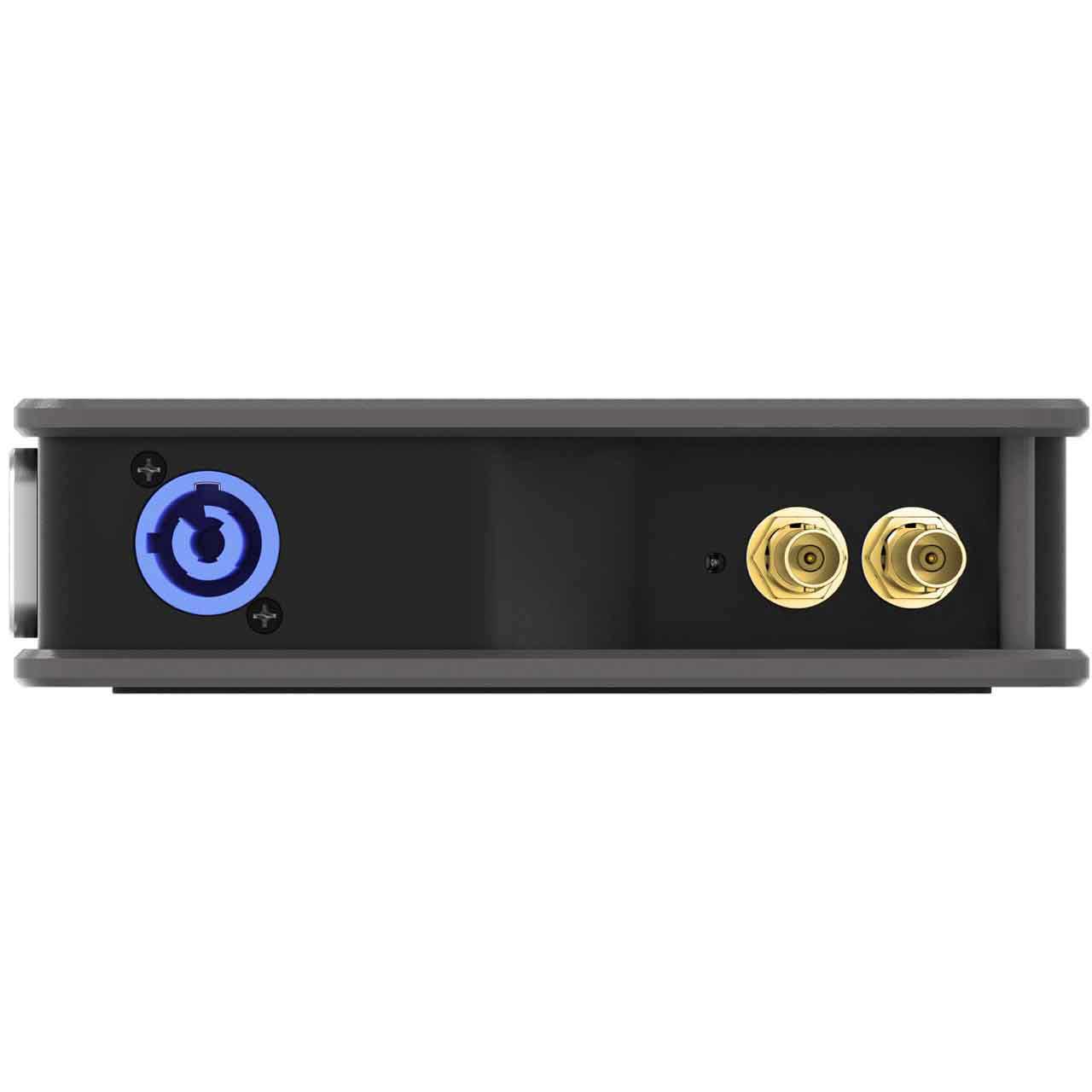

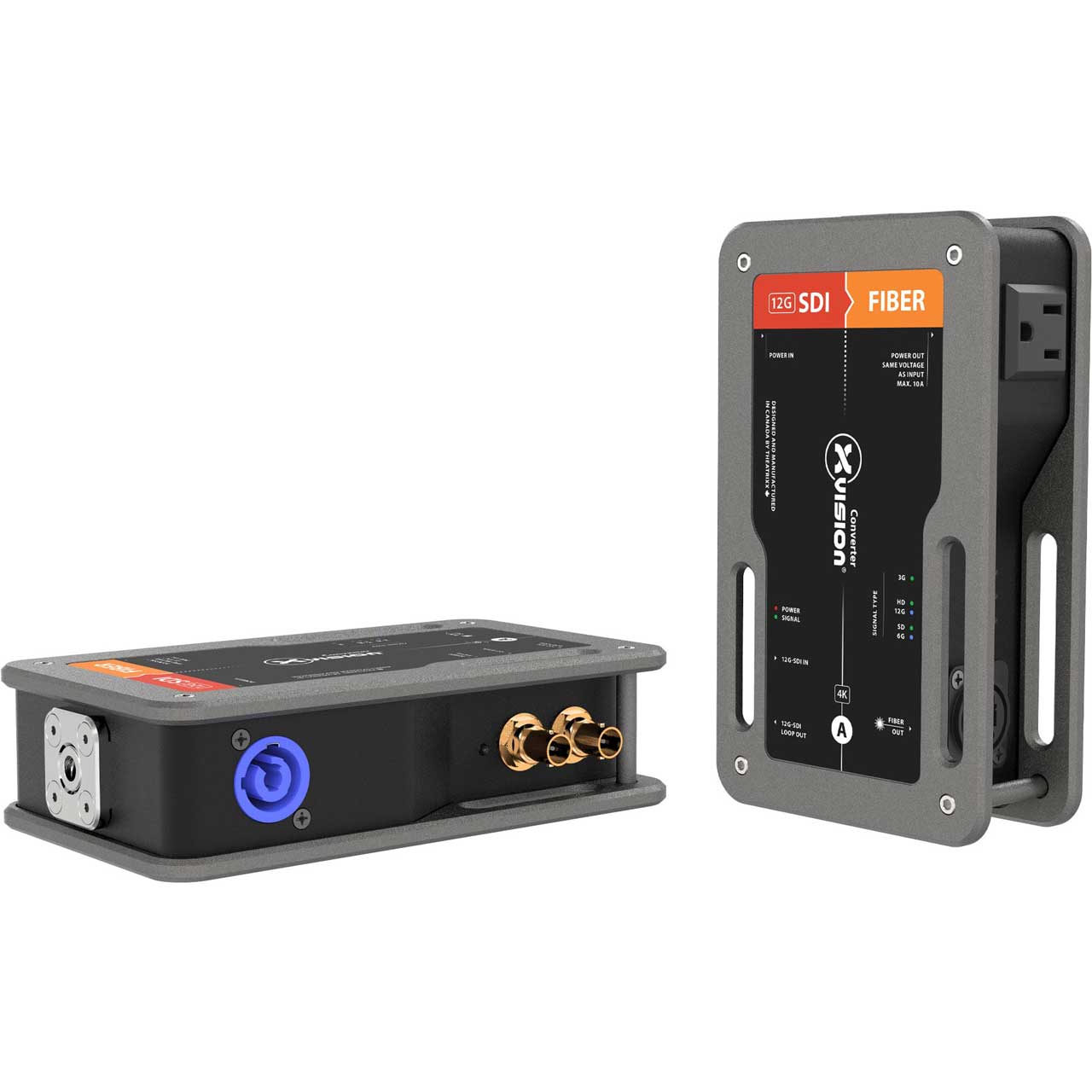

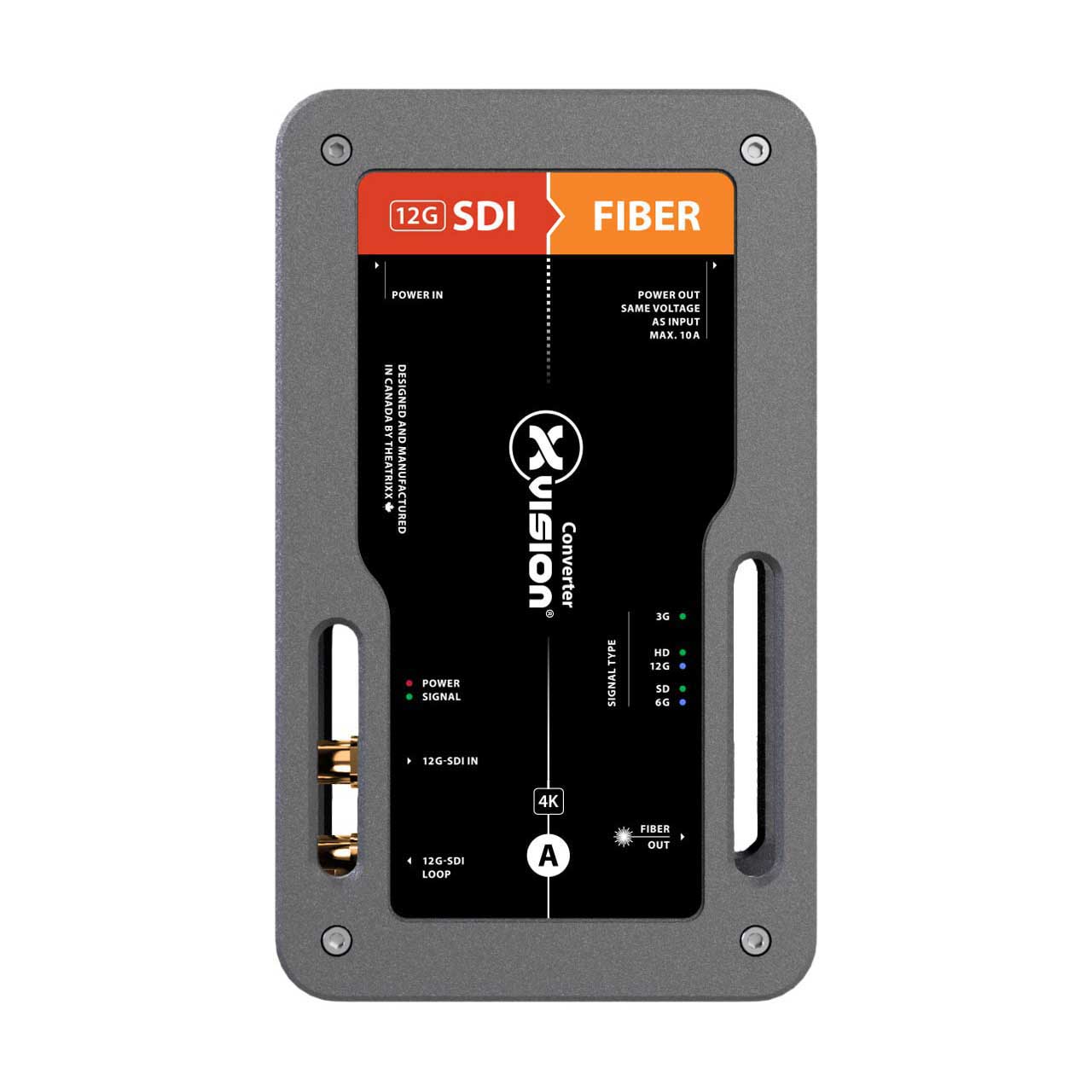

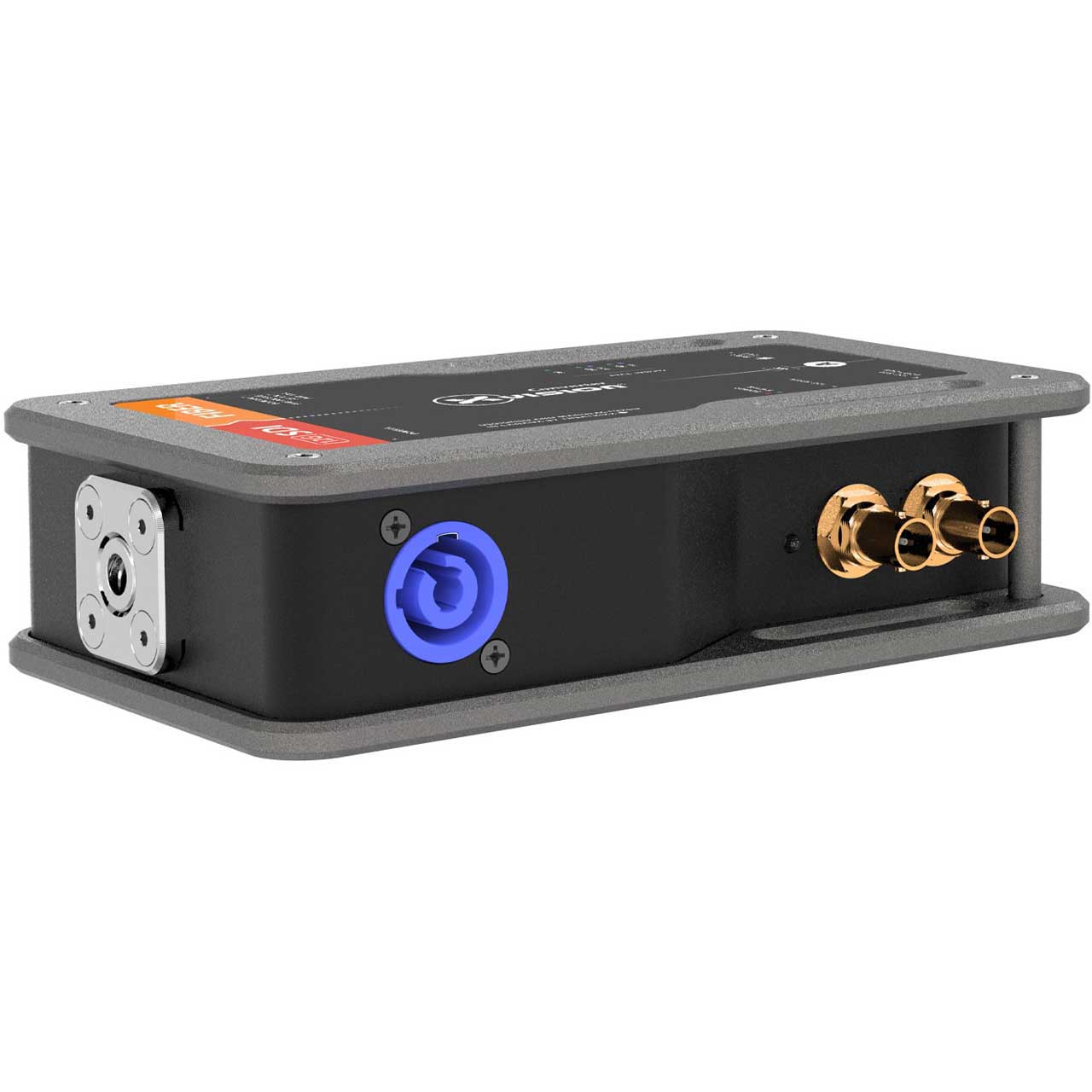

Theatrixx XVVSDI2FIBERT1-12GS2 xVision Converter - 12G-SDI to Fiber - PowerCON True1 - SingleMode - OpticalCON Duo

ITEM #: XVVSDI2FIBRT112G MFG #: XVVSDI2FIBERT1-12GS2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,540.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    XVVSDI2FIBERT1-12GS2 - Overview

    Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

    Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

    Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

    • Features:

      • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector.. Power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure : The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • Reclocked and amplified SDI loop thru
      • SFP-based video transmission for interoperability with standard SDI over fiber devices.
      • Proudly designed and assembled in Canada.

    • Specifications:

      • Connections
      • Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
      • Loop-thru: 1 x 12G/6G/3G/HD/SD SDI BNC
      • Video Output: Singlemode OpticalCON DUO

        Supported Signals
      • Video Format Support: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
      • SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

        Physical
      • Height: 50 mm (1.97 in)
      • Depth: 180 mm (7.08 in)
      • Width: 107 mm (4.21 in)
      • Weight: 1 kg (2.2 lbs)
      • Alternate Form Factor: Also available as a Reversible Module

        Environmental
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

        Power Requirements
      • Power Supply: Built-in power supply
      • PowerCON input: Edison Nema 5-15 output (loop-thru)
      • Power Consumption: 15W
      • Voltage Range: 100-240V, 50-60Hz available with PowerCON True1
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes:

      • 1x xVision Converter Singlemode 12-SDI to Fiber
      • 1x AC Mains to PowerCON True1 cable 1.5m
