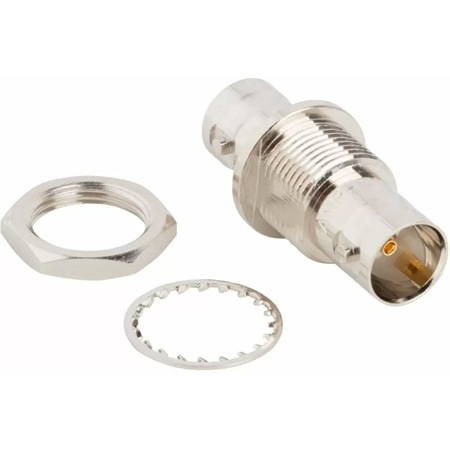

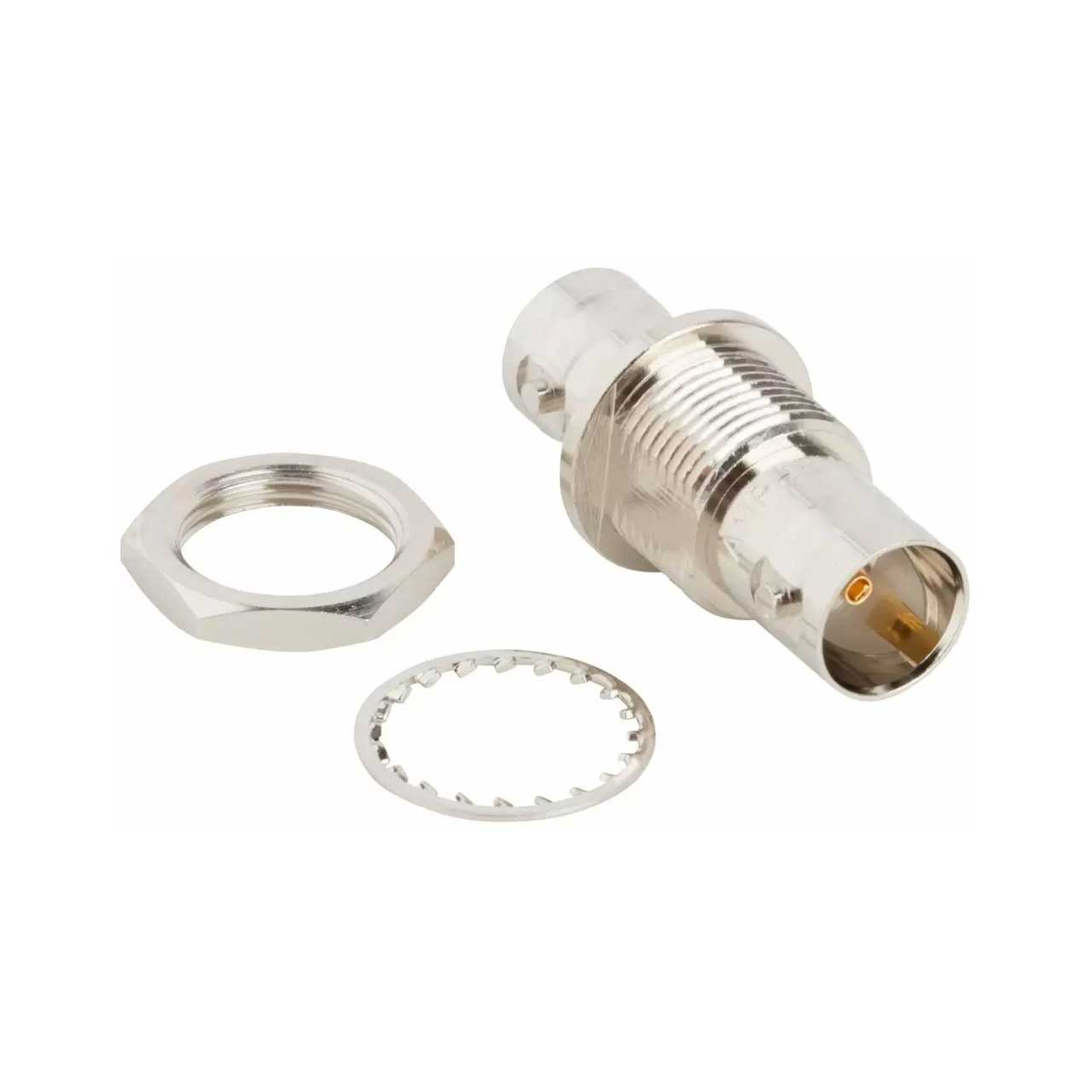

Amphenol 031-220N-75RFX BNC Jack to BNC Jack Adapter - Bulkhead - 75 Ohm

ITEM #: 031-220N-75RFX MFG #: 031-220N-75RFX

Primary Image
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    031-220N-75RFX - Overview

    Amphenol 031-220N-75RFX is a BNC Jack to BNC Jack Adapter 75 Ohm Straight Bulkhead.

    • Specifications:

      • Adapter Side 1 Style: Jack
      • Adapter Side 2 Series: BNC
      • Adapter Side 2 Style: Jack
      • Body Finish: Nickel
      • Body Material: Brass
      • Contact Finish: Gold
      • Contact Material: Phosphor Bronze
      • Export Control Classification Number: EAR99
      • Frequency (Max GHz): 4
      • IP Rating: Not Rated
      • Impedance (Ohms): 75
      • Insulator Material: Delrin
      • Isolated: No
      • Low PIM: No
      • Mil Qualified: No
      • Non Magnetic: No
      • Orientation: Straight
      • Panel Mounting Feature: Bulkhead
      • Temp (Max Degrees Celsius): 85
      • Temp (Min Degrees Celsius): -40


    • Item Includes:

      • 1x Amphenol 031-220N-75RFX BNC Jack to BNC Jack Adapter - Bulkhead - 75 Ohm
