AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter
  • AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter
  • AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter
  • AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter
  • AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter
  • AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter

Questions? Ask a Markertek Expert:
800-522-2025 Email

AVPro Edge AC-MXNET-1G-AVDM-E 1G Downmixing Encoder/Transmitter

Manufacturer: AVPro Edge

Item #: AC-MXNET1GAVDM-E   •   MFG #: AC-MXNET-1G-AVDM-E




Our Price:$1,349.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

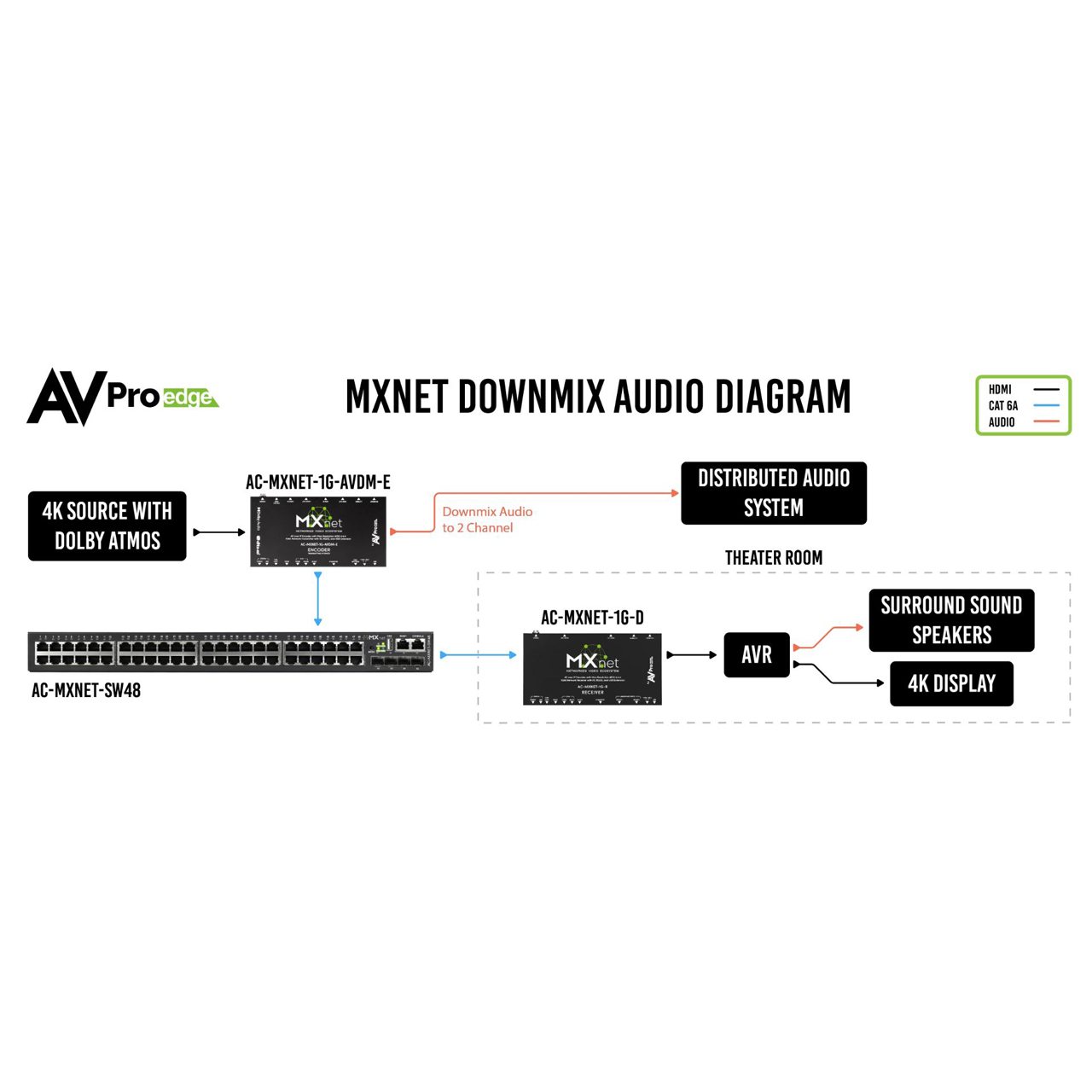

    The AC-MXNET-1G-AVDM-E Encoder is the audio processing and downmixing cousin to our standard-issue AC-MXNET-1G-E Encoder. As with our standard Encoder, this is where the signal starts. However, the AC-MXNET-1G-AVDM-E Encoder was specifically designed to integrate with multi-zone stereo/mono audio mixing systems. The AC-MXNET-1G-AVDM-E Encoder employs a specialized audio processor chipset that can accept and decode Dolby ATMOS, DTS-HD, and other lossless audio formats - and output those signals as stereo through the provided balanced stereo terminal block on the unit.

    Connect the MXNet 1G AVDM to any HDMI source, and it will encode the audio/video signal into a multicast data format that can be routed to any Decoder endpoint within the project/installation. As outlined above, it will also decode Dolby ATMOS, DTS-HD, and other lossless audio formats for connecting to a whole home or other distributed audio system. This device connects directly via category wires (CAT 6A recommended) or fiber optics to the MXNet Switch (AC-MXNET-SW48 or SW24) and any other compatible multicast capable managed L3 network switch. The AC-MXNET-1G-AVDM-E Encoder is a part of the MXNet Ecosystem of AV-over-IP products from AVPro Edge.

    The AC-MXNET-1G-AVDM-E will encode a full 4K 4:4:4 60Hz HDMI video signal - along with audio, control, power, and HDR metadata signals. These signals are passed to single or multiple Decoder endpoints via multicast routing through an MXNet or multicast compatible L3 managed network switch. And, it does all this with next to zero latency. MXNet Encoders encode audio/video/control signals into IP packets using an optimized JPEG2000 codec at a flexible data rate (200Mbps for 1080p content, 300Mbps for 4K30 content, 850Mbps at peak). The AC-MXNET-1G-AVDM-E Encoder also supports stand-alone point-to-point applications when connected directly to an AC-MXNET-1G-D Decoder.

    The AC-MXNET-1G-AVDM-E Encoder is only one part of the MXNet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXNet's Ecosystem includes formatting such as resolution scaling, full EDID management, HDR and Dolby Vision metadata, multifaceted video walls, and includes the MXNet Mentor setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.


    • Features

      • 1G Maximum Data Rate
      • Object and Lossless Stereo Downmixing
      • Bandwidth management via MXNet Mentor
      • SPF Fiber Connection for Long Runs
      • Built-In "Data Window" OLED display
      • USB/KVM Host support
      • Full Exterior Light Control
      • RS-232 and IR Direct Routing
      • RS-232 over IP serial passthrough support

    • Specifications

      • Video
      • Signal Type: DVI 1.0, HDMI 2.0B
      • Video Resolution: [email protected] 4:4:4, [email protected] 4:4:4, [email protected] 4:2:0
      • HDR Format: HDR 10, HLG, DV
      • Chroma Subsampling: 444, 422, 420
      • BIT Depth per Color: 1080P (16BIT), 4K (10, 12 BIT)

        Audio
      • Audio Format: PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby DIgital Plus
      • Embedded Audio: Stereo Analog Audio
      • De-Embedded Audio: Balanced Analog Audio

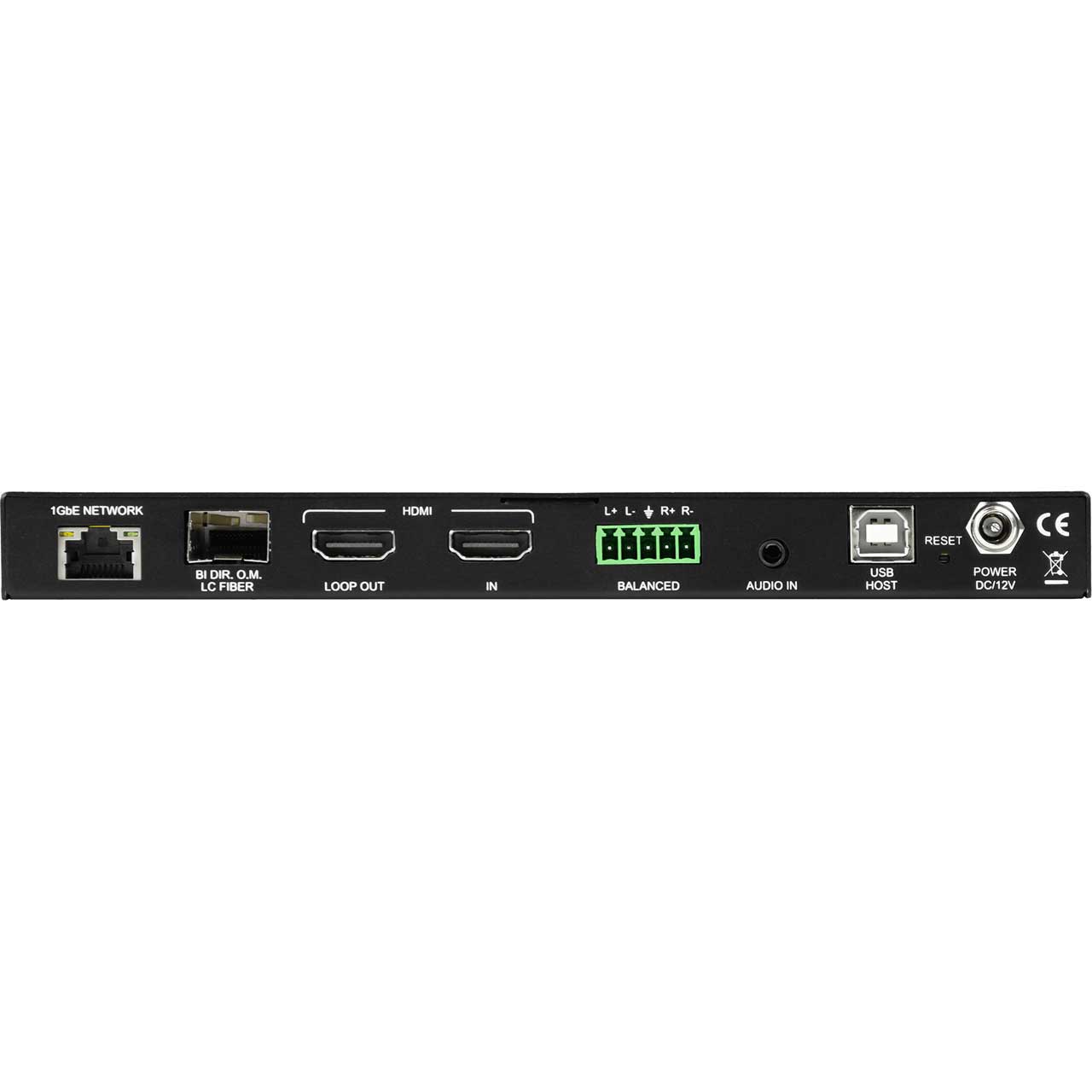

        Ports
      • Ethernet: 1 x Female RJ-45, PoE
      • SFP: 1 x SFP Slot
      • HDMI: 2 x HDMI Type A 19-Pin, Female, One HDMI Input, One HDMI Loop Out
      • Audio: 1 x 5 Pin Terminal Block, Balanced L/R Audio Out, 1 x 3.5 MM Mini Stereo Jack, Audio In
      • IR: 3 x 3.5 MM Mini-Stereo Jack, One IR-PASS
      • RS232: 1 x 5 Pin Terminal Block
      • USB: 1 x USB 2.0 Type-B for USB Extension and KVM, 1 x USB Micro Type-B for MXNET Service

        Distance
      • Ethernet: 100 Meter / 330 Feet over CAT5E and Above
      • SFP and Fiber: 1000Base-SX SFP Transceiver Module

        Power
      • Max Power Consumption: 9.5W
      • PoE: IEEE 802.3AF (15.4W)

    • Item Includes

      • 1x AC-MXNET-1G-AVDM-E (Encoder/Transmitter Device)

    • GTIN:

      0850015330339
