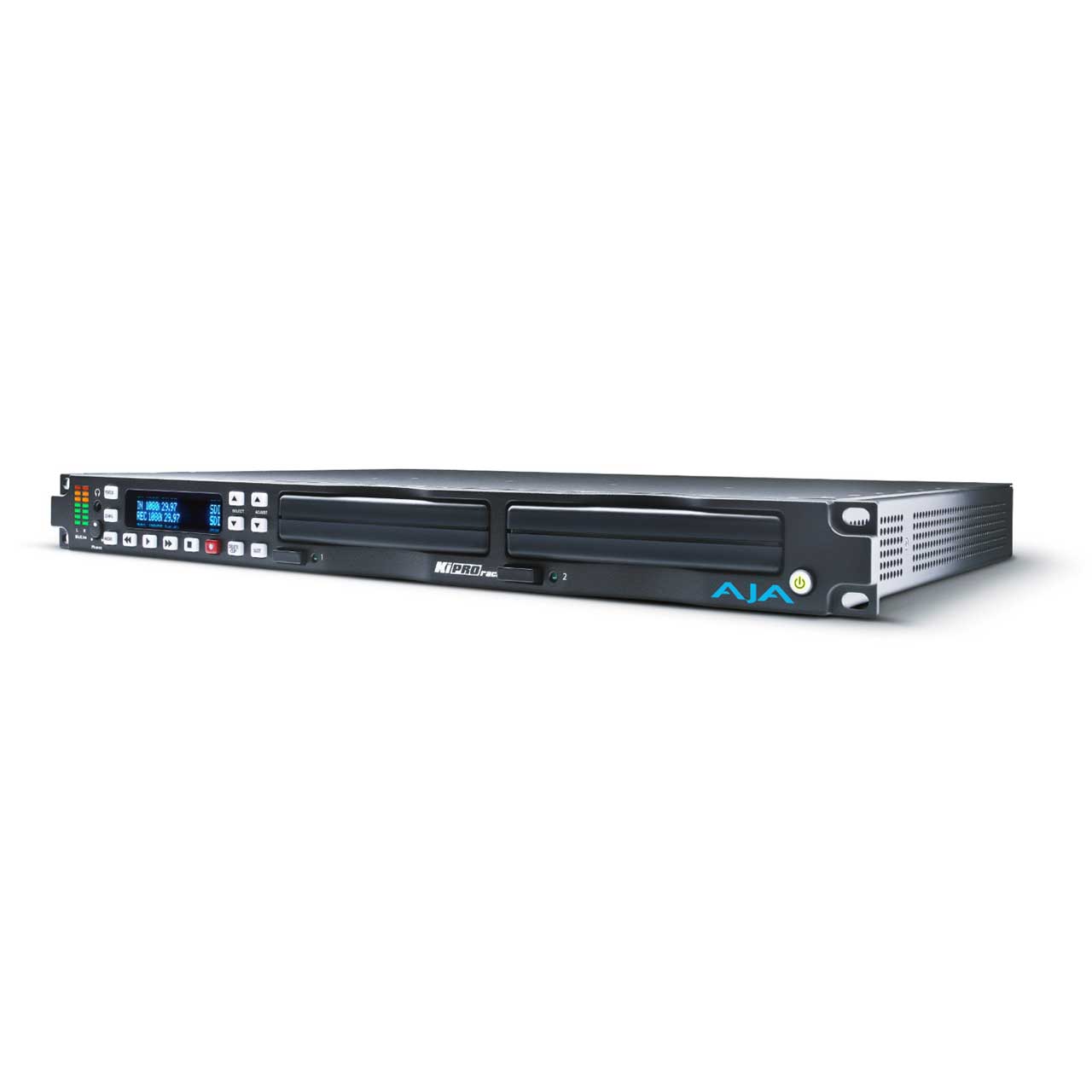

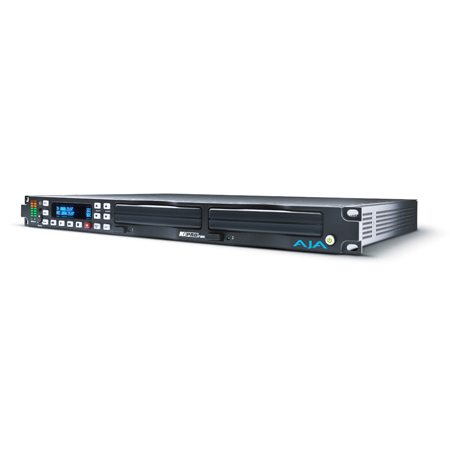

AJA Ki Pro Rack File Based 1RU HD/SD Recorder and Player with SDI/HDMI

ITEM #: AJA-KIPRORACK MFG #: KI-PRO-RACK

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$3,189.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    KI-PRO-RACK - Overview

    File Based 1RU Recorder and Player

    The AJA KIPRORACK gives you the power of Ki Pro in a 1RU form. The perfect fit for your file-based workflow the Ki Pro Rack features a wealth of professional connections including SDI and HDMI enabling it to fit right into your existing cabling and routing system. Ki Pro Rack also features AJA's industry leading conversion technology, enabling you to perform broadcast quality up, down, cross-conversion during recording or playback without the need for additional conversion hardware.

    For video facilities transitioning from tape to file based workflows for recording and playback, Ki Pro Rack offers high quality, 'ready-to-edit' file capture, designed to get material from source to editorial as quickly as possible.

    With a wealth of professional connections, Ki Pro Rack will fit right into your existing cabling and routing system and record 10-bit Apple ProRes and Avid DNxHD files direct to a removable hard disk or SSD Storage Module, eliminating the need for time-consuming logging and capturing. The files can be used in most editing systems without the need for additional transcoding or importing processes.

    AJA's high quality up, down, cross-conversion makes it easy to unify SD, 720p, and 1080i and create a single desired format for your project. The multitude of video and audio connections such as SDI, HDMI and analog make integrating Ki Pro Rack with other production equipment easy.

    • Features:

      • HD/SD Recorder and Player
      • Record and playback Apple ProRes or Avid DNxHD files

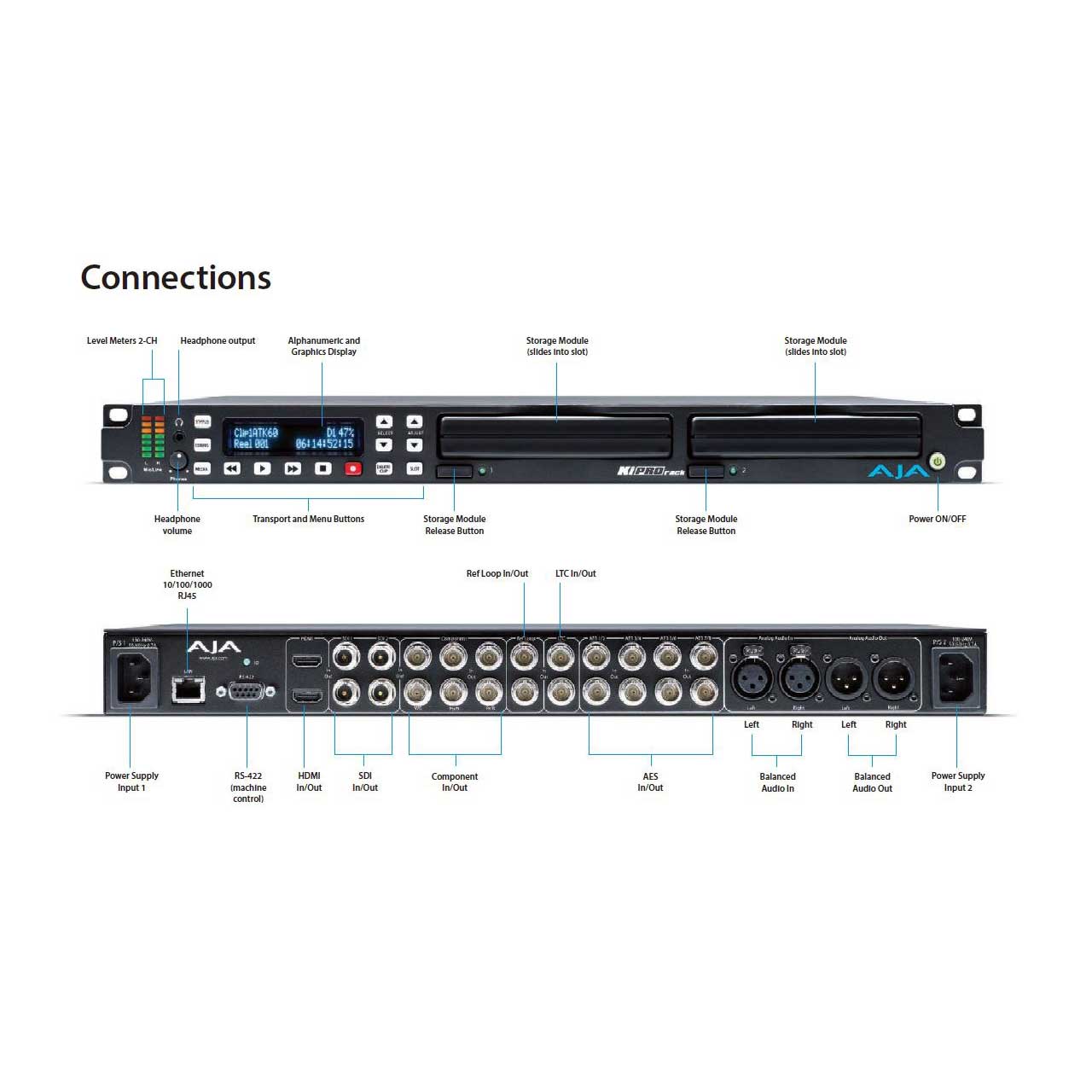

      • SDI, HDMI, and Component Video I/O
      • AES (BNC) and analog (XLR) audio I/O
      • 2x KiStor media bays with Ki Protect
      • Balanced XLR analog audio inputs, mic/line/48v switchable
      • Multi-channel embedded SDI and HDMI audio
      • Up, down, cross-conversion built-in
      • REF, LTC, RP-188 and RS-422 support
      • REST interface

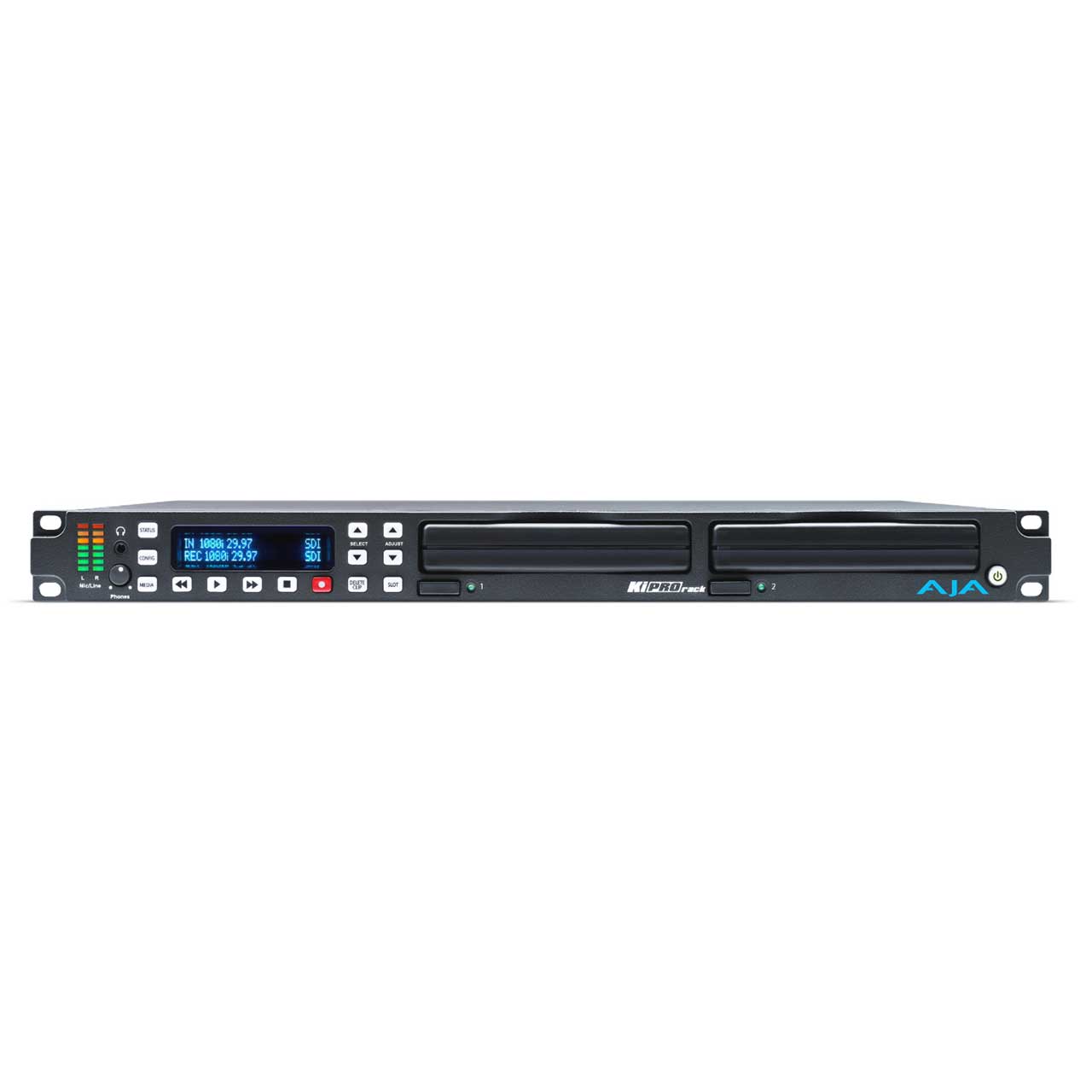

      • Front panel button controls
      • Easy to use web UI, configure and control from standard web browsers
      • Compact 1RU design

    • Specifications:

      • Video Formats
      • 1080i 25, 29.97, 30
      • 1080PsF 23.98, 24, 25*, 29.97*
      • 1080p 23.98, 24, 25, 29.97
      • 720p 23.98*, 25*, 29.97*, 50, 59.94, 60
      • 625i 25
      • 525i 29.97
      • *25 and 29.97 require a valid camera source and the use of the Record Type>PsF selection

        Codec Support
      • Apple ProRes 422
      • Apple ProRes 422 (HQ)
      • Apple ProRes 422 (LT)
      • Apple ProRes 422 (Proxy)
      • Avid DNxHD HQX (220x)
      • Avid DNxHD SQ (145)
      • Avid DNxHD LD (36), only provides support for the 1080p format

        Removable Storage
      • AJA KiStor modules - 2 slots with rollover recording

        Video Input Digital
      • SD/HD SDI, SMPTE-259/292, 10-bit
      • Single Link 4:2:2 (2 x BNC, input selection in software)
      • HDMI v1.3

        Video Output Digital
      • SD/HD SDI, SMPTE-259/292
      • Single Link 4:2:2 10-bit (1 x BNC)
      • HDMI v1.3 Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsF

        Video Input Analog
      • SD/HD Component (3 x BNC)
      • SMPTE/EBU N10, Betacam 525 line, Betacam 525J
      • 12-bit A/D, 2 x oversampling
      • +/- .25dB to 5.5 mHz Y frequency response
      • +/- .25dB to 2.5 mHz C frequency response
      • .5% 2T pulse response
      • <2 ns Y/C delay inequity, or Composite (1 x BNC - CVBS on Y)

        Video Output Analog
      • Component (3 x BNC)
      • NTSC, NTSCJ, PAL
      • HD: YPbPr, RGB
      • SD: YPbPr, RGB (component mode)
      • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
      • 12-bit D/A, 8 x oversampling
      • +/- .2dB to 5.5 mHz Y frequency response
      • +/- .2dB to 2.5 mHz C frequency response
      • .5% 2T pulse response
      • <1 ns Y/C delay inequity, or Composite (1 x BNC - CVBS on Y)
      • +/- .2dB to 5.0 mHz Y frequency response
      • +/- .2dB to 1 mHz C frequency response
      • <1% Diff Phase
      • <1% Diff Gain

        Audio Input Digital
      • 8-channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)

        Audio Input Analog
      • 2-channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (2 x XLR)
      • +24 dBu full scale digital
      • +/- 0.2 dB 20Hz to 20 kHz frequency response (Note: Line or Mic selection via CONFIG menu parameters)

        Audio Output Digital
      • 8-channel, 24-bit SMPTE-272/299 SDI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
      • 8-channel, 24-bit AES/EBU audio, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)

        Audio Output Analog
      • 2-channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (2 x XLR)
      • +24 dBu full scale digital (0dbFS)
      • +/- 0.2 dB 20 Hz to 20 kHz frequency response
      • Stereo unbalanced headphone (1 x 3.5mm mini jack)

    • Item Includes:

      • Ki Pro Rack Recorder
      • BNC termination-place on the Ref Loop output at the end of the loop
      • Four Rubber adhesive feet for placing on the bottom of Ki Pro Rack
      • Two AC power cords for redundant 100-240 VAC 50/60 Hz power
      • Read Me First Notice-late-breaking news and errata related to Ki Pro Rack
      • Registration Sheet-register by mail or online (details provided)

    • Warranty:

      • Three year warranty

    • GTIN:

      0892448000359
