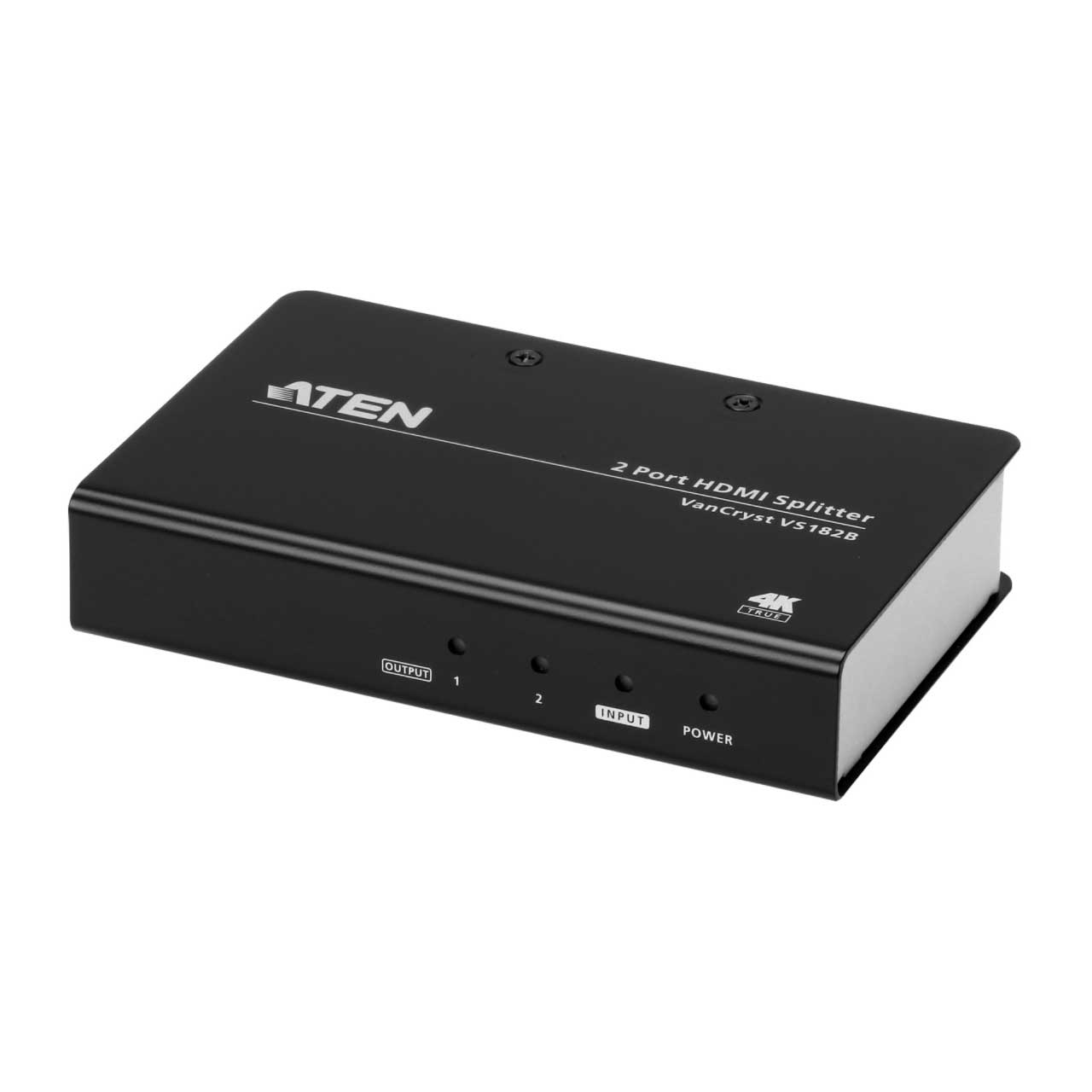

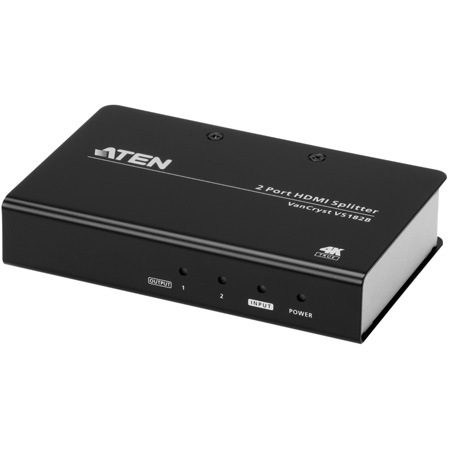

ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2
  • ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2
  • ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2
  • ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2
  • ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2

Questions? Ask a Markertek Expert:
800-522-2025 Email

ATEN VS182B 18Gbps 2 Port True 4K HDMI Splitter with HDCP 2.2

Manufacturer: ATEN

Item #: ATEN-VS182B   •   MFG #: VS182B



List Price:$208.00
Our Price:$148.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

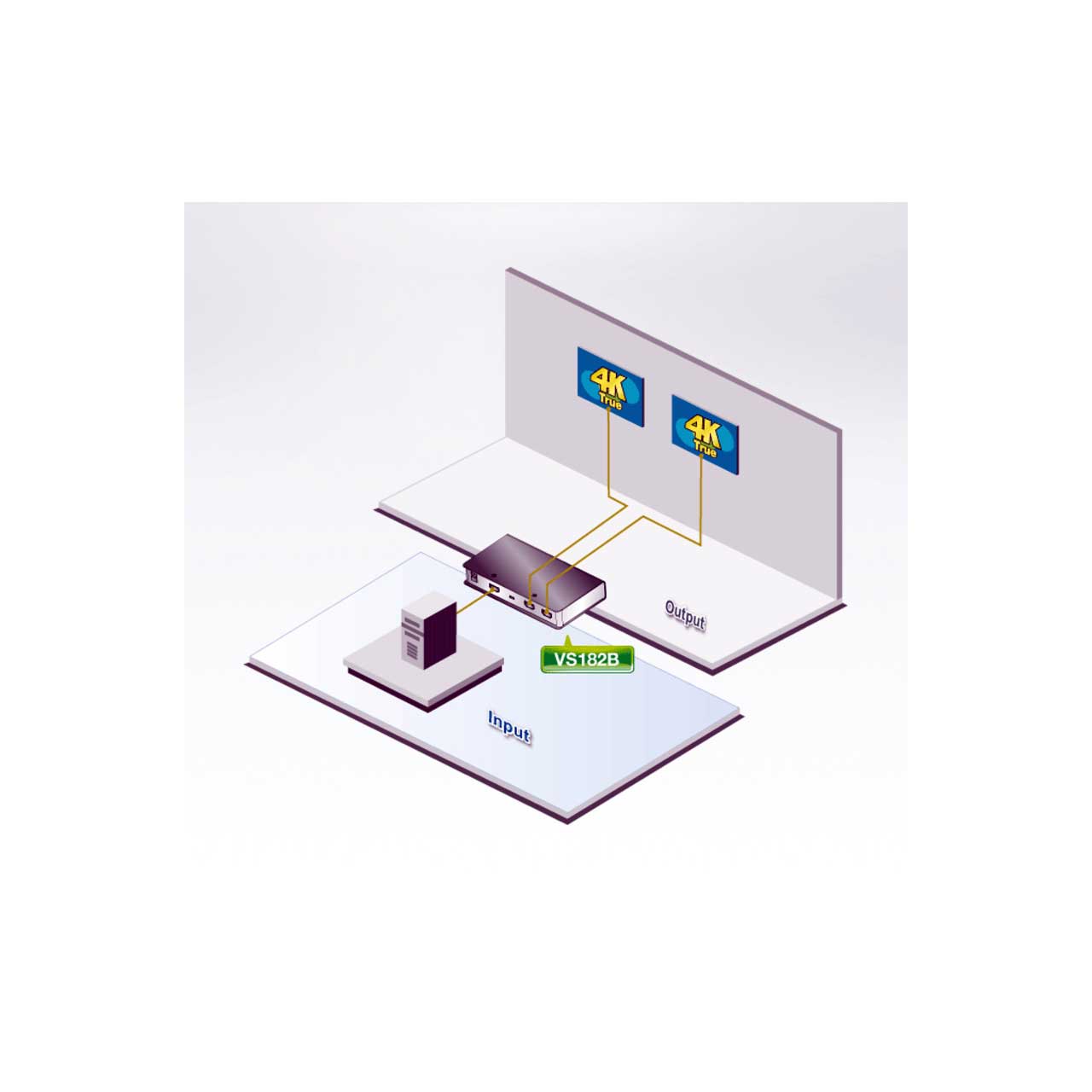

    The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI enabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.

    The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.


    • Features

      • Connects one HDMI source to two HDMI displays at the same time
      • HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
      • Supports HDR
      • Supports max resolutions of up to 4096 x 2160/3840 x 2160 @ 60 Hz (4:4:4)
      • Long distance transmission - up to 15 m(1920x1200)/1.8m (True 4K)
      • Max pixel clock rate up to 600 MHz
      • Max data rate up to 18 Gbps (6 Gbps per lane)
      • LED indication of power status and source devices
      • EDID Expert - Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
      • Plug-and-play - No software installation required

    • Specifications

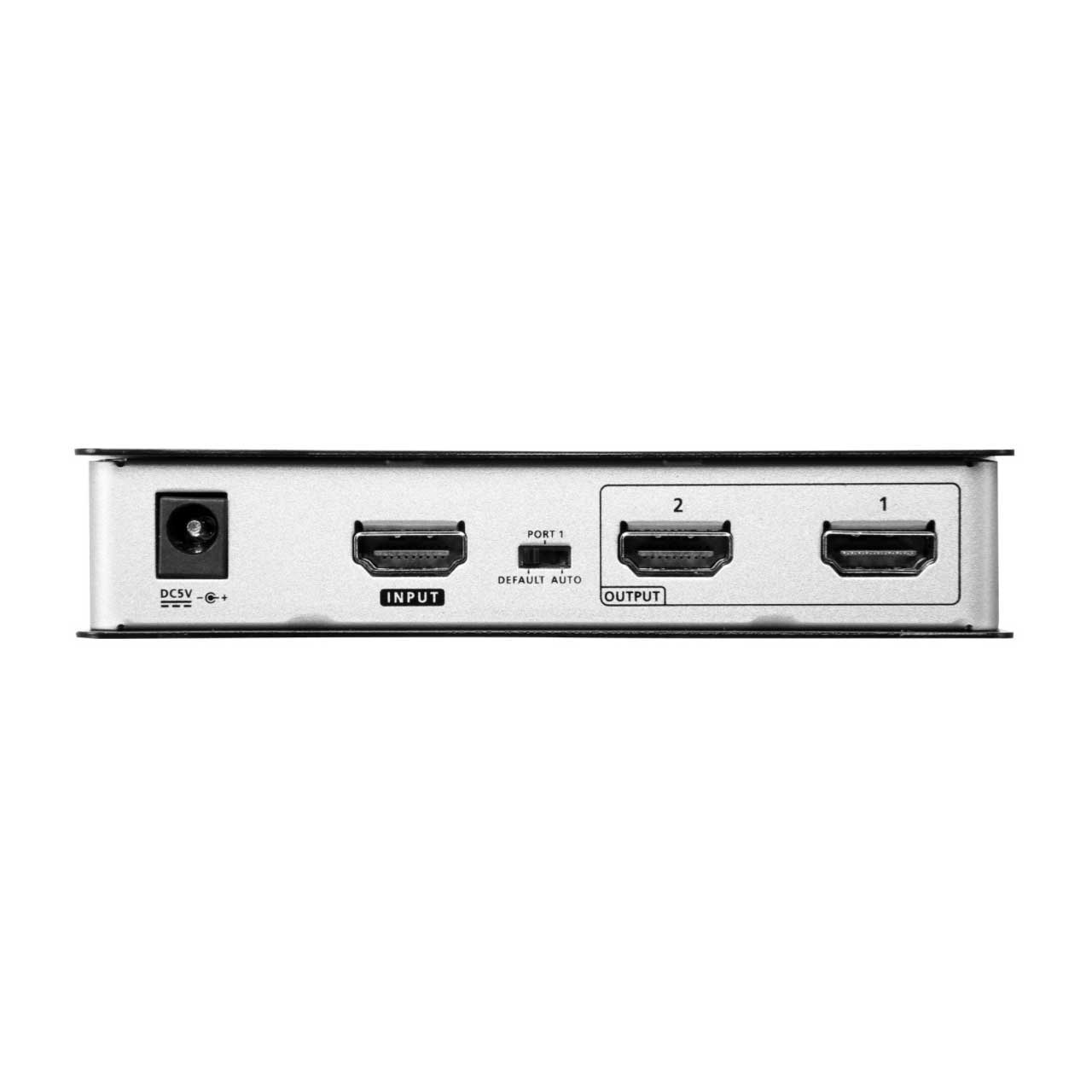

      • Video Input: 1 x HDMI Type A Female (Black) - 100 Ω
      • Interfaces: 2 x HDMI Type A Female (Black) - 100 Ω
      • Maximum Video Distance: 1.8m / [email protected] (4:4:4); 15m / 1920 x 1200
      • Maximum Data Rate: 18 Gbps (6 Gbps Per Lane)
      • Maximum Pixel Clock: 600 MHz
      • Compliance: HDMI (3D, Deep Color, 4K); HDCP Compatible
      • Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
      • Audio Input: 1 x HDMI Type A Female (Black)
      • Audio Output: 2 x HDMI Type A Female (Black)
      • Power Connectors: 1 x DC Jack
      • Power Consumption: 5 VDC, 4.25W
      • Operating Temperature: 0-40 °C
      • Storage Temperature: -20 - 60 °C
      • Humidity: 0 - 80% RH, Non-Condensing
      • Housing: Metal
      • Weight: 0.7 lb
      • Dimensions (L x W x H): 4.92 x 3.15 x 0.98 in.

    • Item Includes

      • 1 x VS182B 2-Port True 4K HDMI Splitter
      • 1 x Power adapter
      • 1 x HDMI cable
      • 1 x User Instructions

    • GTIN:

      0672792007316
