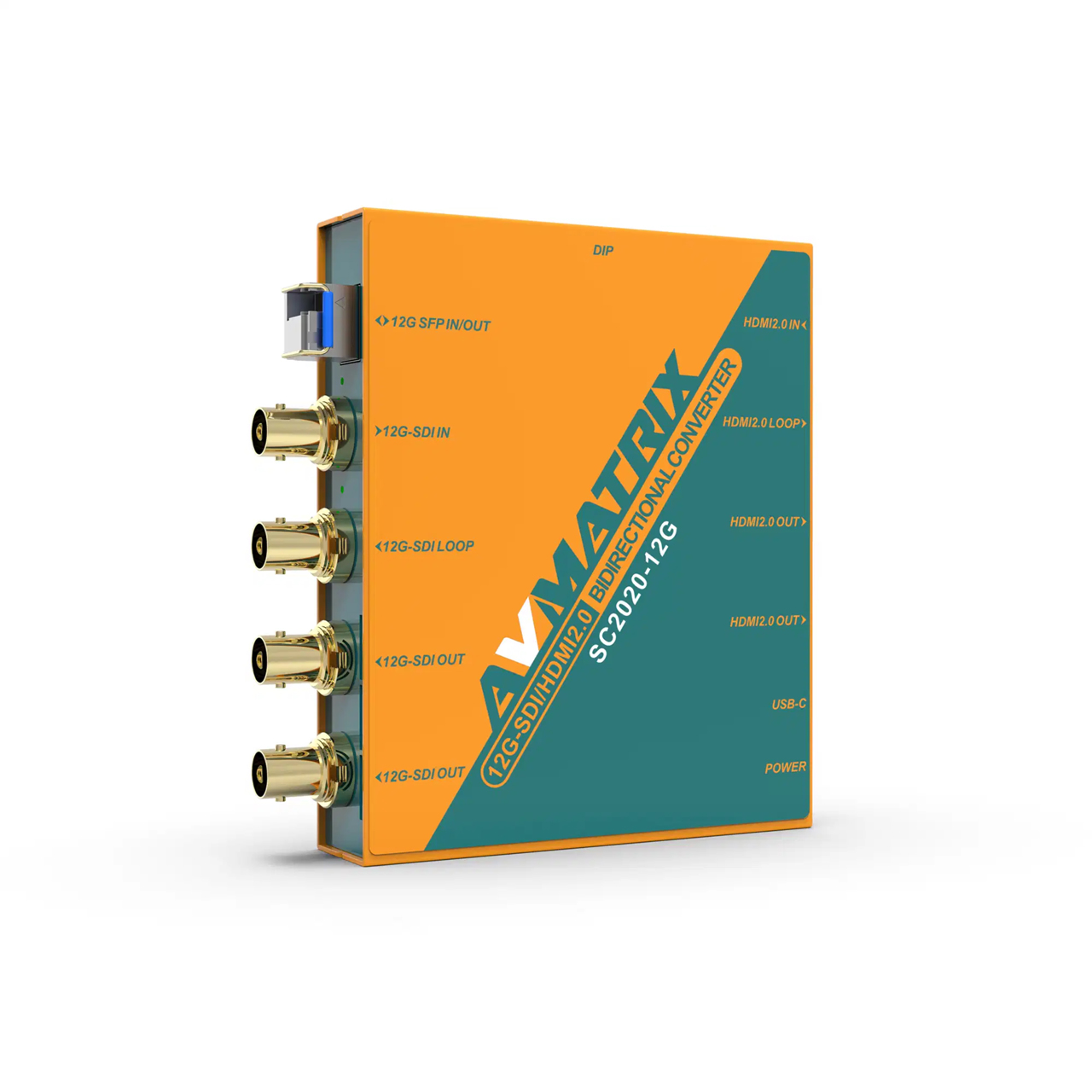

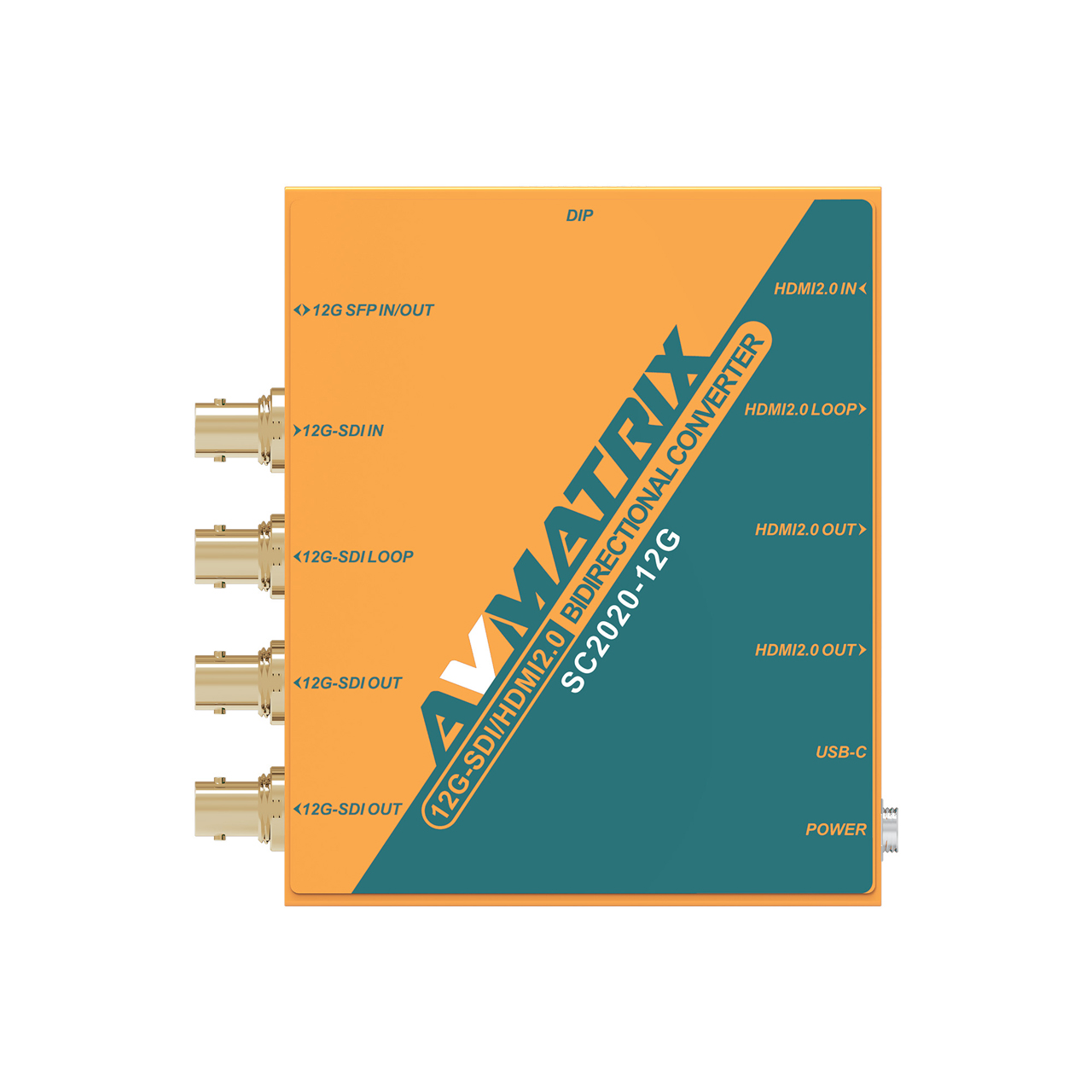

The AVMatrix SC2020-12G converter delivers seamless bidirectional conversion between 12G-SDI and HDMI 2.0 signals. With flexible multi-input and multi-output configuration, including dual 12G-SDI outputs, dual HDMI 2.0 outputs, and independent SDI/HDMI loop-through, it enables versatile signal processing to meet diverse professional AV and broadcast requirements.
Optional SFP Module Transceiver Support
Equipped with an optional SFP fiber interface, this converter supports stable, uncompressed long-haul fiber transmission up to 10km over 1310nm single mode LC simplex fiber. It delivers reliable 12G-SDI signal extension supporting resolutions up to 4K@60Hz (2160p60) for professional broadcast and live production workflows.
4K Signal Monitoring & Distribution
Featuring 12G-SDI and HDMI 2.0 inputs with seamless loop-through, this converter enables reliable 4K signal pass-through to secondary displays. With two simultaneous 12G-SDI/HDMI 2.0 outputs, it delivers flexible multi-monitor monitoring for professional broadcast, film, and live production environments.
Wide RGB & YCbCr Format Compatibility
This converter supports a full range of professional color space formats, including RGB 4:4:4 (Full/Limited), YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0. All color formats can be easily selected via DIP switches, ensuring accurate color reproduction and seamless compatibility with professional broadcast and AV systems.

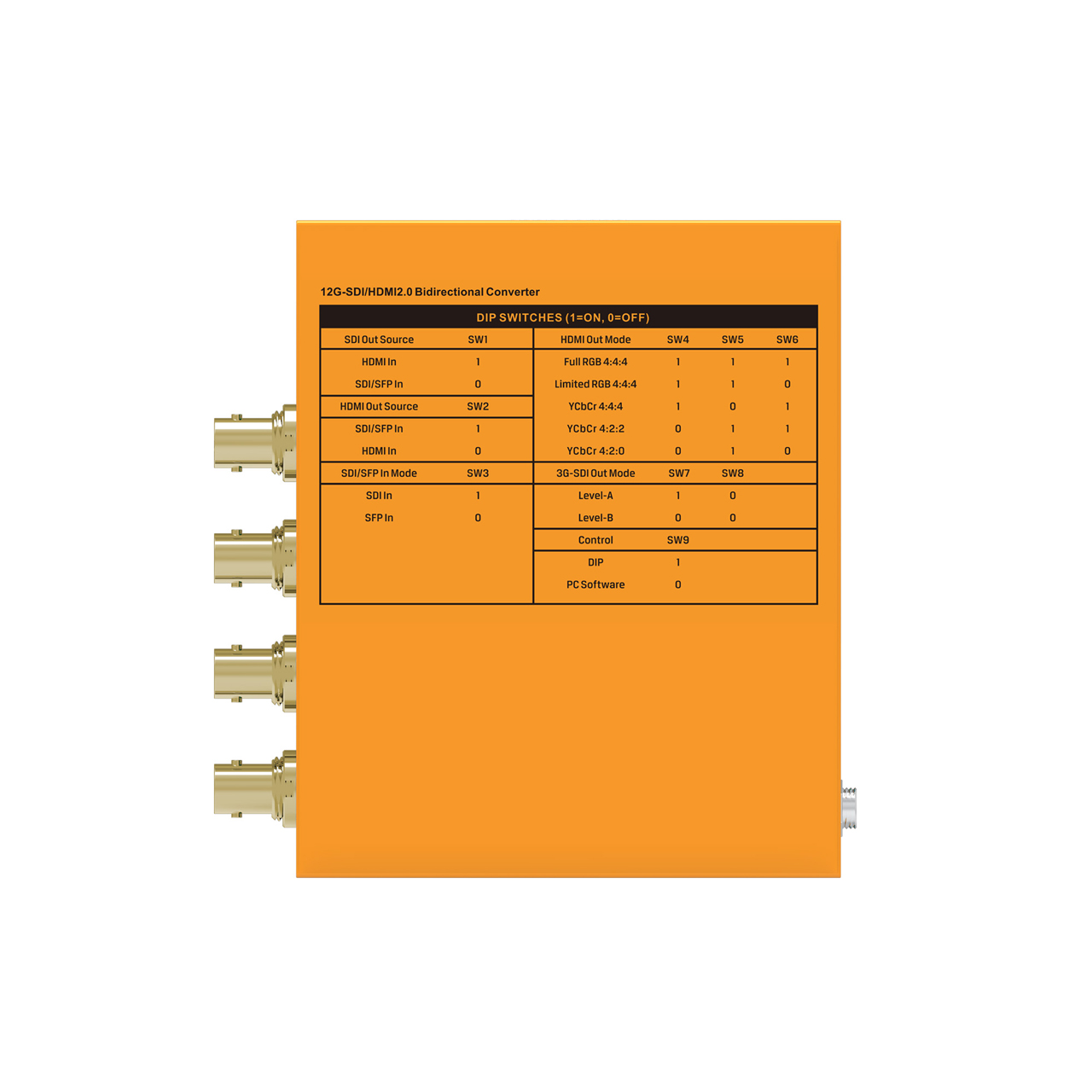

DIP Switches & PC Software Control
This converter features tool-free DIP switch adjustment for quick, on-site configuration, ideal for fast setting changes in outdoor and field applications. It also supports remote control and firmware upgrades via USB-C connection to a PC, delivering flexible operation and seamless software updates for long-term usability.
