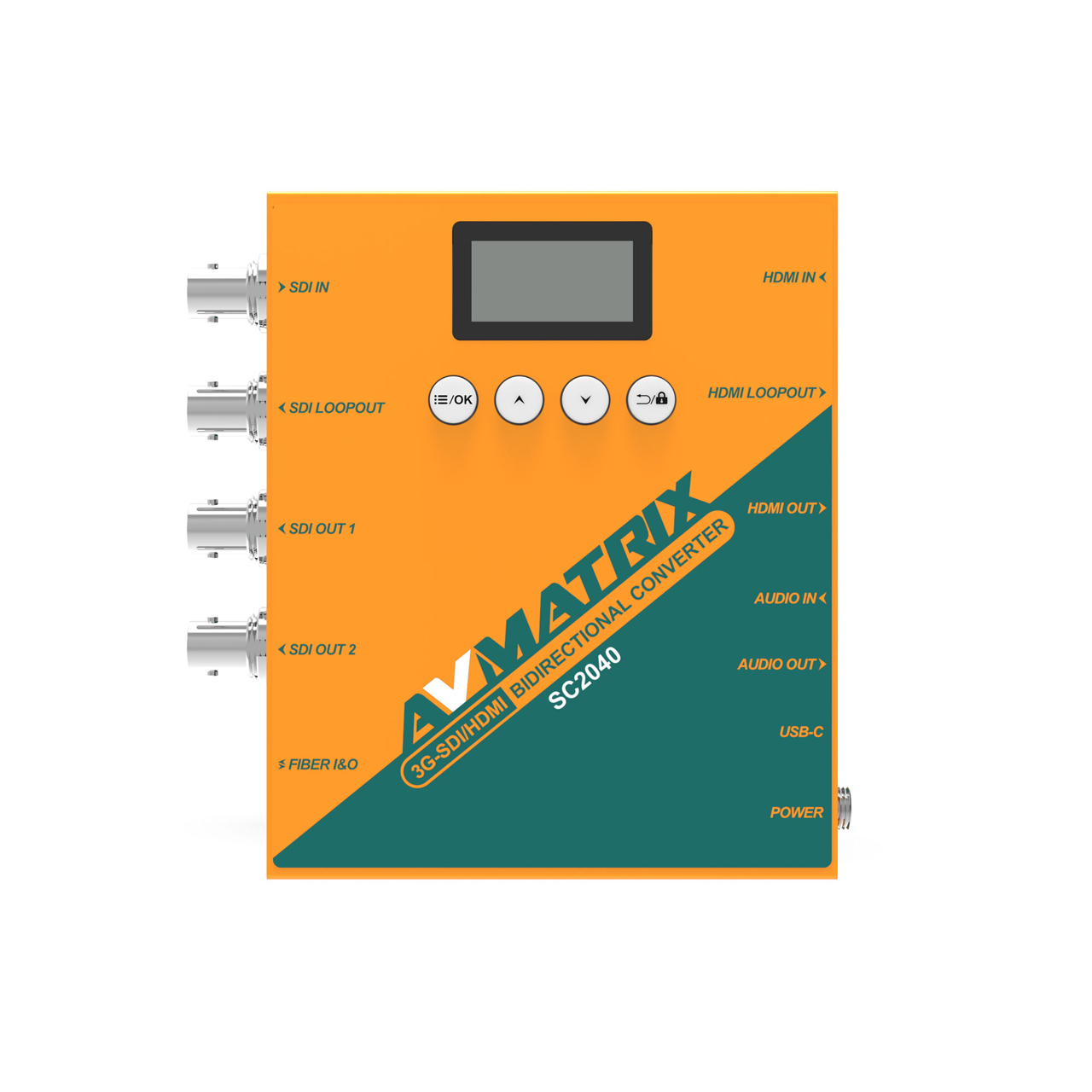

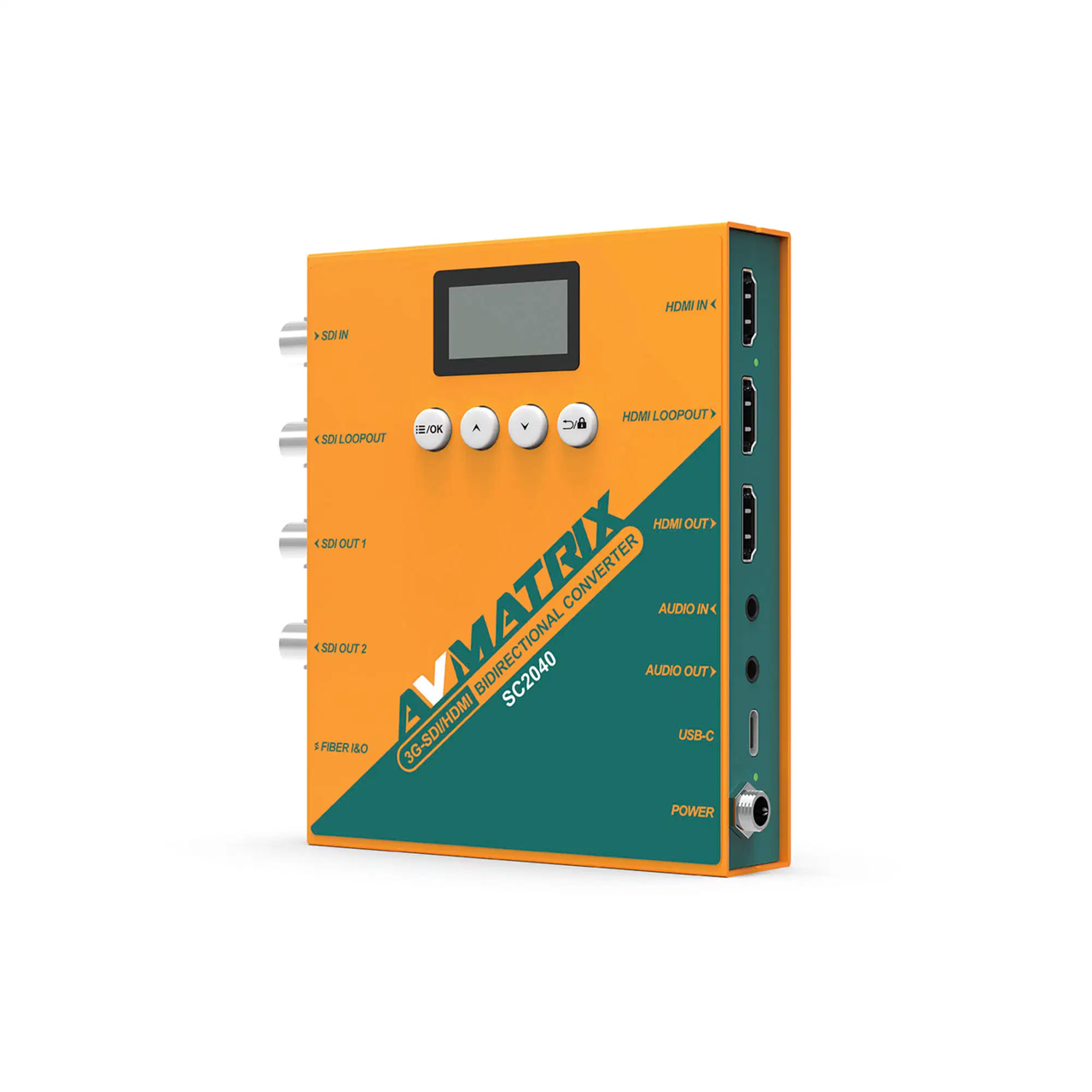

The AVMatrix SC2040 is a 3G-SDI/HDMI converter, featuring high-performance format conversion, fiber extension (up to 20km), professional test pattern generation, and multi-signal processing. All functions integrated in a compact, reliable device ideal for broadcast, live event, and professional AV workflows.
All-in-One: Converter, Splitter, Fiber Extender, Pattern Generator
This all-in-one device integrates powerful functions including video conversion, signal distribution, long-distance fiber extension, and test pattern generation in a single compact unit. It delivers versatile, end-to-end signal solutions to meet diverse requirements across professional AV, broadcast, and live production workflows.
Professional Scaling, Deinterlacing & Frame Rate Conversion
The all-in-one bidirectional converter for seamless 3G-SDI/HDMI signal conversion. It simultaneously processes HDMI, SDI, and SFP inputs while offering independent source selection for multiple outputs. With integrated up/down scaling and frame rate conversion, it guarantees universal format compatibility.
All-in-One Signal Hub, Up to 24 Flexible Conversion & Routing Configuration
It provides seamless cross-conversion between HDMI and 3G-SDI, supporting 3G-SDI Level A & Level B formats. Supporting up to 24 flexible conversion modes, it enables versatile signal distribution, routing and format adaptation to comply with various professional display and broadcast standards.
Analog Audio I/O for Professional AV Workflows
This converter supports embedding external analog audio via the 3.5mm input into SDI, HDMI, and SFP outputs for synchronized AV integration. It also de-embeds audio from SDI/HDMI signals to analog output, enabling seamless connection to monitoring, recording, and external audio equipment.
23 Professional Test Patterns & Audio Tones
This converter features an integrated Test Pattern Generator (TPG) with 23 test patterns, including brightness/chroma zone plates, color bars, pathological patterns, dynamic circles, and frame counters, enabling accurate display calibration and signal verification. It also provides left/right channel audio test tones, simplifying audio routing diagnosis and ensuring flawless system performance.
